SAXSdb — 1m6p

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CATION-DEPENDENT MANNOSE-6-PHOSPHATE RECEPTOR

Bos taurus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 31–182 Chain B； UniProt 31–182	Fragment：EXTRACYTOPLASMIC DOMAIN Mutation：N31Q, N57Q, N68Q, N87Q	MN MANGANESE (II) ION × 2 M6P 6-O-phosphono-alpha-D-mannopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；pH 6.5	Resolution 1.80 Å R-free 0.276

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1M6P	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1C39 STRUCTURE OF CATION-DEPENDENT MANNOSE 6-PHOSPHATE RECEPTOR BOUND TO PENTAMANNOSYL PHOSPHATE Deposited 1999-07-25	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 31–182（152 aa） Fragment：EXTRACYTOPLASMIC DOMAIN Chain B 31–182（152 aa） Fragment：EXTRACYTOPLASMIC DOMAIN	Mutation：N31Q, N57Q, N68Q, N87Q Mutation：N31Q, N57Q, N68Q, N87Q	MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.4；pH 6.40	Resolution 1.85 Å R-free 0.246
1KEO TWISTS AND TURNS OF THE CD-MPR: LIGAND-BOUND VERSUS LIGAND-FREE RECEPTOR Deposited 2001-11-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 29–182（154 aa） Fragment：(Residues 29-182) Chain B 29–182（154 aa） Fragment：(Residues 29-182)	Mutation：N31Q, N57Q, N68Q, N87Q Mutation：N31Q, N57Q, N68Q, N87Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；292 K；25% PEG 5000 monomethyl ether, 0.2M ammonium acetate, 0.1M cacodoylate, 150 mM Nacl, 50 mM imidazole (pH=6.5), 10 mM Manganese chloride, 5 mM beta-glycerophosphate, VAPOR DIFFUSION, SITTING DROP, temperature 292K	Resolution 2.20 Å R-free 0.248
2RL7 Crystal Structure cation-dependent mannose 6-phosphate receptor at pH 4.8 Deposited 2007-10-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 29–182（154 aa） Chain B 29–182（154 aa）	Mutation：N31Q, N57Q, N68Q, N87Q Mutation：N31Q, N57Q, N68Q, N87Q	GOL GLYCEROL × 1 ACT ACETATE ION × 2 CAC CACODYLATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 4.8；277 K；0.05M cacodylate, 30% PEG5000MME, 0.2M ammonium sulfate, 0.09mM TritonX-100, pH 4.8, VAPOR DIFFUSION, temperature 277K	Resolution 2.00 Å R-free 0.257
2RL7 Crystal Structure cation-dependent mannose 6-phosphate receptor at pH 4.8 Deposited 2007-10-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 29–182（154 aa） Chain D 29–182（154 aa）	Mutation：N31Q, N57Q, N68Q, N87Q Mutation：N31Q, N57Q, N68Q, N87Q	GOL GLYCEROL × 1 ACT ACETATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 4.8；277 K；0.05M cacodylate, 30% PEG5000MME, 0.2M ammonium sulfate, 0.09mM TritonX-100, pH 4.8, VAPOR DIFFUSION, temperature 277K	Resolution 2.00 Å R-free 0.257
2RL8 Crystal Structure cation-dependent mannose 6-phosphate receptor at pH 6.5 bound to M6P Deposited 2007-10-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 29–182（154 aa） Chain B 29–182（154 aa）	Mutation：N31Q, N57Q, N68Q, N87Q Mutation：N31Q, N57Q, N68Q, N87Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MN MANGANESE (II) ION × 2 M6D 6-O-phosphono-beta-D-mannopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；292 K；0.1M cacodylate, 25% PEG5000MME, 0.2M ammonium sulfate, pH 6.5, vapor diffusion, temperature 292K	Resolution 1.45 Å R-free 0.237
2RL9 Crystal Structure cation-dependent mannose 6-phosphate receptor at pH 6.5 bound to trimannoside Deposited 2007-10-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 29–182（154 aa） Chain B 29–182（154 aa）	Mutation：N31Q, N57Q, N68Q, N87Q Mutation：N31Q, N57Q, N68Q, N87Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 MN MANGANESE (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；292 K；0.1M cacodylate, 25% PEG5000MME, 0.2M ammonium sulfate, pH 6.5, vapor diffusion, temperature 292K	Resolution 2.40 Å R-free 0.265
2RLB Crystal Structure cation-dependent mannose 6-phosphate receptor at pH 6.5 bound to M6P in absence of Mn Deposited 2007-10-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 29–182（154 aa） Chain B 29–182（154 aa）	Mutation：N31Q, N57Q, N68Q, N87Q Mutation：N31Q, N57Q, N68Q, N87Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 M6D 6-O-phosphono-beta-D-mannopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；0.1M cacodylate, 25% PEG5000MME, 0.2M ammonium sulfate, pH 6.5, temperature 292K, VAPOR DIFFUSION, HANGING DROP	Resolution 1.75 Å R-free 0.229
3CY4 Crystal Structure cation-dependent mannose 6-phosphate receptor at pH 7.4 Deposited 2008-04-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 29–182（154 aa） Chain B 29–182（154 aa）	Mutation：N31Q, N57Q, N68Q, N87Q Mutation：N31Q, N57Q, N68Q, N87Q	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.4；292 K；0.1M cacodylate, 25% PEG5000MME, 0.2M ammonium sulfate, pH 7.4, VAPOR DIFFUSION, temperature 292K	Resolution 1.51 Å R-free 0.229
3K41 Crystal structure of sCD-MPR mutant E19Q/K137M bound to Man-6-P Deposited 2009-10-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 29–182（154 aa） Fragment：UNP residues 29-182 Chain B 29–182（154 aa） Fragment：UNP residues 29-182	Mutation：E19Q, K137M, N31Q, N57Q, N68Q, N87Q Mutation：E19Q, K137M, N31Q, N57Q, N68Q, N87Q	M6D 6-O-phosphono-beta-D-mannopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；100 mM sodium cacodylate, pH 6.5;25% PEG 2000MME; 0.2M ammonium acetate; 0.025M OBG, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 1.90 Å R-free 0.255
3K42 Crystal structure of sCD-MPR mutant E19Q/K137M pH 7.0 Deposited 2009-10-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 29–182（154 aa） Fragment：UNP residues 29-182 Chain B 29–182（154 aa） Fragment：UNP residues 29-182	Mutation：E19Q, K137M, N31Q, N57Q, N68Q, N87Q Mutation：E19Q, K137M, N31Q, N57Q, N68Q, N87Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 1GP SN-GLYCEROL-1-PHOSPHATE × 2 SO4 SULFATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；292 K；0.1M HEPES pH 7.0, 3M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.30 Å R-free 0.249
3K42 Crystal structure of sCD-MPR mutant E19Q/K137M pH 7.0 Deposited 2009-10-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 29–182（154 aa） Fragment：UNP residues 29-182 Chain B 29–182（154 aa） Fragment：UNP residues 29-182	Mutation：E19Q, K137M, N31Q, N57Q, N68Q, N87Q Mutation：E19Q, K137M, N31Q, N57Q, N68Q, N87Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 1GP SN-GLYCEROL-1-PHOSPHATE × 2 SO4 SULFATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；292 K；0.1M HEPES pH 7.0, 3M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.30 Å R-free 0.249
3K43 Crystal structure of sCD-MPR mutant E19Q/K137M pH 6.5 Deposited 2009-10-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 29–182（154 aa） Fragment：UNP residues 29-182 Chain B 29–182（154 aa） Fragment：UNP residues 29-182	Mutation：E19Q, K137M,N31Q, N57Q, N68Q, N87Q Mutation：E19Q, K137M,N31Q, N57Q, N68Q, N87Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 SO4 SULFATE ION × 3 ACT ACETATE ION × 1 IMD IMIDAZOLE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；0.1M sodium cacodylate, 3M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.00 Å R-free 0.199

10 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MPRD_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–152； UniProt 31–182 Author chain B； PDBConstruct 1–152； UniProt 31–182

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1m6p
Deposition date deposition_date	1998-04-19
Structure title title	EXTRACYTOPLASMIC DOMAIN OF BOVINE CATION-DEPENDENT MANNOSE 6-PHOSPHATE RECEPTOR
Keywords keywords	RECEPTOR, CATION DEPENDENT MANNOSE 6-PHOSPHATE, P-TYPE LECTIN, TRANSPORT; RECEPTOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.66 Å
Radius of gyration Rg (electron density) rg_electron	19.35 Å
Forward intensity I(0) i0	22221800.00
Molecular weight molecular_weight	33844.0 kDa
Excluded volume excluded_volume	41486 Å³
Envelope volume envelope_volume	49250 Å³
Hydration-shell volume shell_volume	21018 Å³
Envelope diameter envelope_diameter	69.2 Å
Shell Rg shell_rg	25.91 Å
Envelope Rg envelope_rg	19.61 Å
Shape Rg shape_rg	19.32 Å
Total Rg total_rg	20.28 Å
Total atoms total_atoms	2358
Residues n_residues	292
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

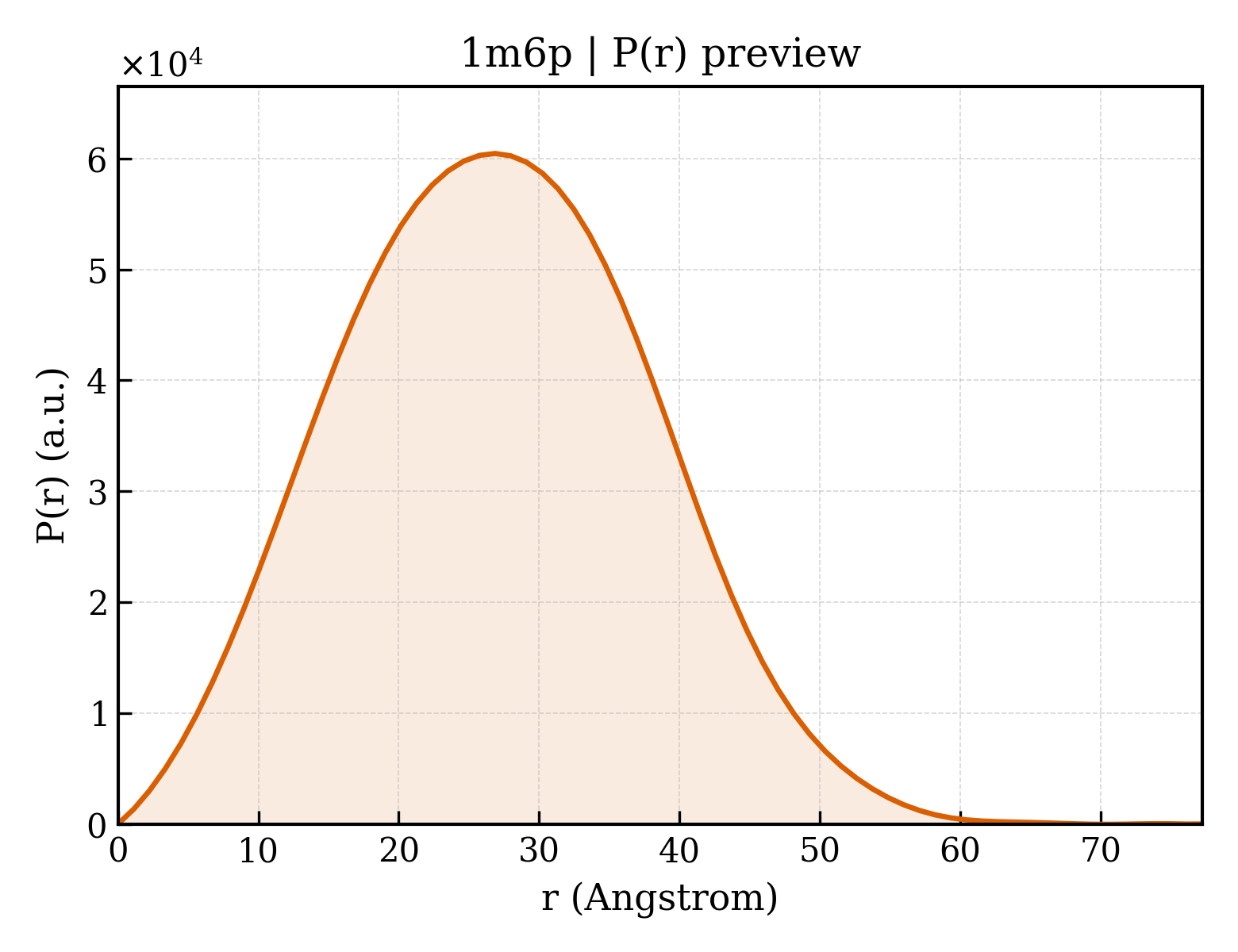

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	77.3 Å
Rg (real space) rg_real	20.53 Å
Rg uncertainty (real space) rg_real_error	0.60 Å
I(0) (real space) i0_real	2.2220e+07
I(0) uncertainty (real space) i0_real_error	3.1750e+05
Rg (reciprocal space) rg_reciprocal	20.56 Å
I(0) (reciprocal space) i0_reciprocal	22220000.0000
Solution quality estimate total_estimate	0.6061
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	26.9 Å
Skewness Skewness skewness	0.138
Kurtosis Kurtosis kurtosis	-0.390
Angular range angular_range	— – 0.3850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3599000.0000
Real-space data points n_real_points	70
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.580; Stabil: 1.000; Sysdev: 0.387; Positv: 1.000; Valcen: 0.972; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CATION-DEPENDENT MANNOSE-6-PHOSPHATE RECEPTOR
Molecular weight formula_weight	17213.4 kDa
Mutation mutation	N31Q, N57Q, N68Q, N87Q
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2503

EKTCDLVGEKGKESEKELALLKRLTPLFQKSFESTVGQSPDMYSYVFRVCREAGQHSSGAGLVQIQKSNGKETVVGRFNETQIFQGSNWIMLIYKGGDEYDNHCGREQRRAVVMISCNRHTLADNFNPVSEERGKVQDCFYLFEMDSSLACS

来源 Source

来源生物 organism	Bos taurus
通用名 common_name	cattle
NCBI Class编号 ncbi_taxonomy_id	9913
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	6-O-phosphono-alpha-D-mannopyranose
Molecular weight formula_weight	260.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	145

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1m6pa_
Class class	b — All beta proteins
Fold Fold fold	b.64 — Mannose 6-phosphate receptor domain
Superfamily Superfamily superfamily	b.64.1 — Mannose 6-phosphate receptor domain
Family Family family	b.64.1.1 — Mannose 6-phosphate receptor domain

Domain ID domain_id	d1m6pb_
Class class	b — All beta proteins
Fold Fold fold	b.64 — Mannose 6-phosphate receptor domain
Superfamily Superfamily superfamily	b.64.1 — Mannose 6-phosphate receptor domain
Family Family family	b.64.1.1 — Mannose 6-phosphate receptor domain

CATH v4.4 (2 domains)

Domain ID domain_id	1m6pA00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	130 — Cation-dependent Mannose-6-phosphate Receptor; Chain A
Homologous superfamily homologous superfamily	10 — Mannose-6-phosphate receptor binding domain

Domain ID domain_id	1m6pB00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	130 — Cation-dependent Mannose-6-phosphate Receptor; Chain A
Homologous superfamily homologous superfamily	10 — Mannose-6-phosphate receptor binding domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	92.641 Å
Unit-cell length b length_b	92.641 Å
Unit-cell length c length_c	85.316 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.2240
R_work r_work	0.2240
R_free r_free	0.2760
