1mhu

THE THREE-DIMENSIONAL STRUCTURE OF HUMAN [113CD7] METALLOTHIONEIN-2 IN SOLUTION DETERMINED BY NUCLEAR MAGNETIC RESONANCE SPECTROSCOPY

Method: SOLUTION NMR
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CD7 METALLOTHIONEIN-2

Homo sapiens

UniProt P02795

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein monomer Monomer Protein 1 CADMIUM ION × 4 Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence
UniProt name MT2_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A; PDBConstruct 1–31; UniProt 31–61

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1mhu
Deposition date deposition_date1990-05-14
Structure title titleTHE THREE-DIMENSIONAL STRUCTURE OF HUMAN [113CD7] METALLOTHIONEIN-2 IN SOLUTION DETERMINED BY NUCLEAR MAGNETIC RESONANCE SPECTROSCOPY
Keywords keywordsMETALLOTHIONEIN; METALLOTHIONEIN
Experimental Method methodSOLUTION NMR
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1mhu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

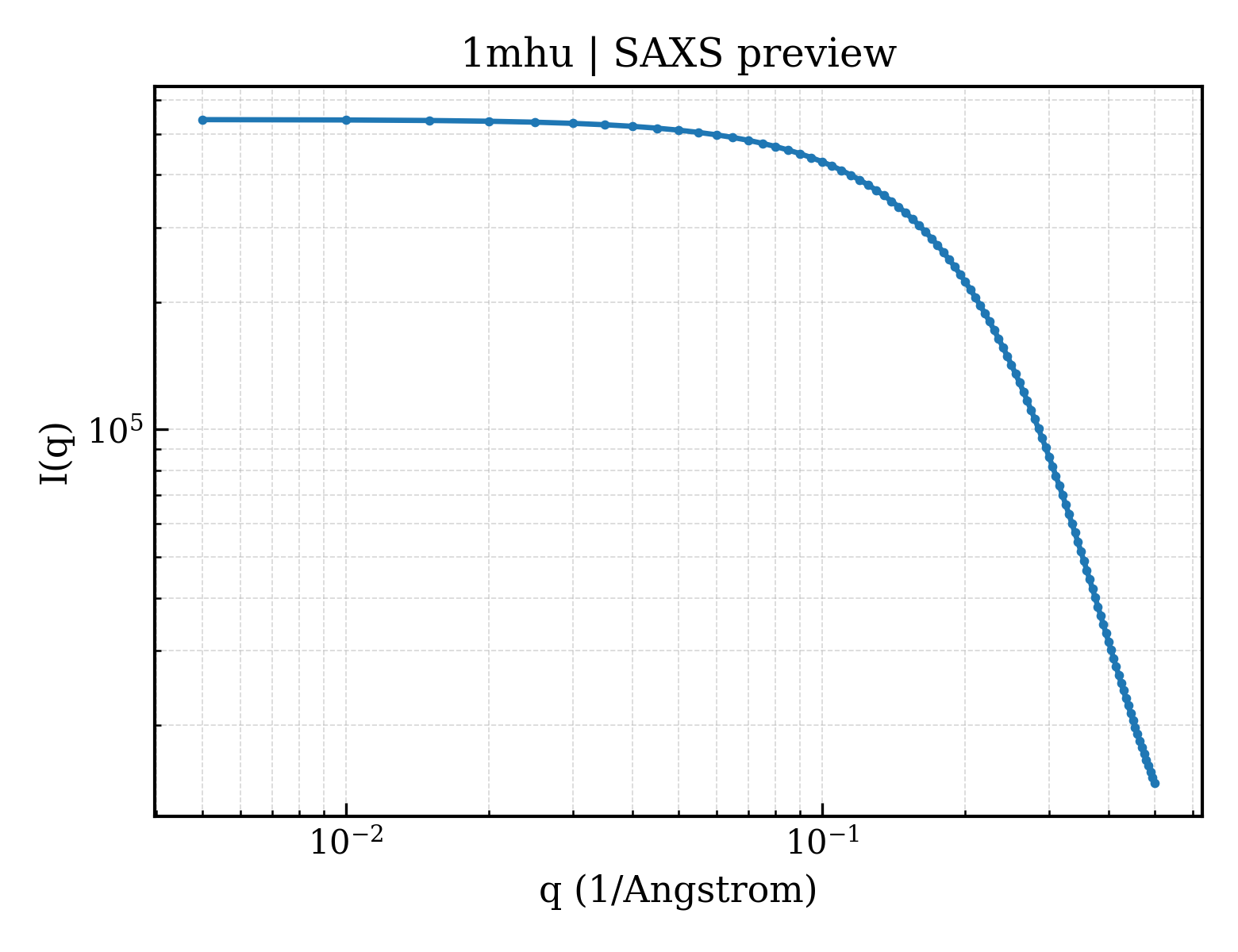

1mhu__assembly_1__model_1 | I(q)

10-2 10-1 105 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

1mhu__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg(Guinier)8.27 Å
Rg (electron density)7.88 Å
Total Rg8.57 Å
Atom count382
Residues31
Excluded volume3690 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 1mhu__assembly_1__model_1 monomeric (1) Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_idd1mhua_
Class classg — Small proteins
Fold Fold foldg.46 — Metallothionein
Superfamily Superfamily superfamilyg.46.1 — Metallothionein
Family Family familyg.46.1.1 — Metallothionein
▶

7. Citations (2)
