1mjd

Structure of N-terminal domain of human doublecortin

Method: SOLUTION NMR Dmax: 43.9 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DOUBLECORTIN

Homo sapiens

UniProt O43602

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 87–192 Fragment：N-terminal domain, Residues (45-150) No other associated polymer SOLUTION NMR NMR measurement conditions：pH 6；298 K；Pressure ambient NMR sample composition：1mM doublecortin 45-150 U-15N, 13C; 50mM phosphate buffer; 5mMM DTT | 90% H2O, 10% H2O Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1MJD Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2BQQ X-ray Structure of the N-terminal Domain of Human Doublecortin Deposited 2005-04-27 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 45–150（106 aa） Fragment：N-TERMINAL DOMAIN RESIDUES 45-150
Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.4；1.4 M NAH2PO4, 0.35 M K2HPO4, 0.6% PEG 150, SITTING DROP, pH 4.40
Resolution 2.20 Å R-free 0.237
2XRP Human Doublecortin N-DC Repeat (1MJD) and Mammalian Tubulin (1JFF and 3HKE) Docked into the 8-Angstrom Cryo-EM Map of Doublecortin- Stabilised Microtubules Deposited 2010-09-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain I 46–140（95 aa） Fragment：RESIDUES 46-140
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 4 GTP GUANOSINE-5'-TRIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer 80MM PIPES, 1MM EGTA, 3MM MGCL2, 1MM TCEP, 0.5MM GTP；pH 6.8；80MM PIPES, 1MM EGTA, 3MM MGCL2, 1MM TCEP, 0.5MM GTP
cryo-EM vitrification conditions Cryogen ETHANE；LIQUID ETHANE
Resolution 8.20 Å
4ATU Human doublecortin N-DC repeat plus linker, and tubulin (2XRP) docked into an 8A cryo-EM map of doublecortin-stabilised microtubules reconstructed in absence of kinesin Deposited 2012-05-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain I 2–360（359 aa） Fragment：RESIDUES 2-360
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 4 GTP GUANOSINE-5'-TRIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer 20MM PIPES, 1MM EGTA, 3MM MGCL2, 1MM TCEP, 0.5MM GTP；pH 6.8；20MM PIPES, 1MM EGTA, 3MM MGCL2, 1MM TCEP, 0.5MM GTP
cryo-EM vitrification conditions Cryogen ETHANE；CRYOGEN- ETHANE, HUMIDITY- 100, INSTRUMENT- FEI VITROBOT
Resolution 8.30 Å
5IKC X-RAY STRUCTURE OF THE N-TERMINAL DOMAIN OF HUMAN DOUBLECORTIN in complex with FAB Deposited 2016-03-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain M 52–140（89 aa） Fragment：N-terminal domain, UNP Residues 133-221
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；unknown
Resolution 2.06 Å R-free 0.265
5IKC X-RAY STRUCTURE OF THE N-TERMINAL DOMAIN OF HUMAN DOUBLECORTIN in complex with FAB Deposited 2016-03-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain N 52–140（89 aa） Fragment：N-terminal domain, UNP Residues 133-221
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；295 K；unknown
Resolution 2.06 Å R-free 0.265
5IN7 X-RAY STRUCTURE OF THE N-TERMINAL DOMAIN OF HUMAN DOUBLECORTIN Deposited 2016-03-07 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 127–231（105 aa） Fragment：N-TERMINAL DOMAIN, UNP RESIDUES 127-231
Mutation：K215D, K216D No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；293 K；crystals were either obtained out of 20mM CAPS pH 10.5, 100 mM NaCl, 5 mM TCEP or 20 mM HEPES pH 7.5, 100 mM NaCl, 5 mM DTT
Resolution 2.48 Å R-free 0.236
5IN7 X-RAY STRUCTURE OF THE N-TERMINAL DOMAIN OF HUMAN DOUBLECORTIN Deposited 2016-03-07 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 127–231（105 aa） Fragment：N-TERMINAL DOMAIN, UNP RESIDUES 127-231
Mutation：K215D, K216D No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；293 K；crystals were either obtained out of 20mM CAPS pH 10.5, 100 mM NaCl, 5 mM TCEP or 20 mM HEPES pH 7.5, 100 mM NaCl, 5 mM DTT
Resolution 2.48 Å R-free 0.236
5IO9 X-RAY STRUCTURE OF THE N-TERMINAL DOMAIN OF HUMAN DOUBLECORTIN Deposited 2016-03-08 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 133–230（98 aa） Fragment：N-TERMINAL DOMAIN, UNP RESIDUES 133-231
Mutation：K215D, K216D No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；crystals were either obtained out of 20mM CAPS pH 10.5, 100 mM NaCl, 5 mM TCEP or 20 mM HEPES pH 7.5, 100 mM NaCl, 5 mM DTT
Resolution 1.30 Å R-free 0.210
5IO9 X-RAY STRUCTURE OF THE N-TERMINAL DOMAIN OF HUMAN DOUBLECORTIN Deposited 2016-03-08 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 133–230（98 aa） Fragment：N-TERMINAL DOMAIN, UNP RESIDUES 133-231
Mutation：K215D, K216D No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；crystals were either obtained out of 20mM CAPS pH 10.5, 100 mM NaCl, 5 mM TCEP or 20 mM HEPES pH 7.5, 100 mM NaCl, 5 mM DTT
Resolution 1.30 Å R-free 0.210
5IOI X-RAY STRUCTURE OF THE N-TERMINAL DOMAIN OF HUMAN DOUBLECORTIN Deposited 2016-03-08 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 133–231（99 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 133-231
Mutation：K215D, K216D No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；N-DCXDD crystals were either obtained out of 20mM CAPS pH 10.5, 100 mM NaCl, 5 mM TCEP or 20 mM HEPES pH 7.5, 100 mM NaCl, 5 mM DTT
Resolution 2.40 Å R-free 0.234
5IOI X-RAY STRUCTURE OF THE N-TERMINAL DOMAIN OF HUMAN DOUBLECORTIN Deposited 2016-03-08 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 133–231（99 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 133-231
Mutation：K215D, K216D No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；N-DCXDD crystals were either obtained out of 20mM CAPS pH 10.5, 100 mM NaCl, 5 mM TCEP or 20 mM HEPES pH 7.5, 100 mM NaCl, 5 mM DTT
Resolution 2.40 Å R-free 0.234
5IOI X-RAY STRUCTURE OF THE N-TERMINAL DOMAIN OF HUMAN DOUBLECORTIN Deposited 2016-03-08 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 133–231（99 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 133-231
Mutation：K215D, K216D No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；N-DCXDD crystals were either obtained out of 20mM CAPS pH 10.5, 100 mM NaCl, 5 mM TCEP or 20 mM HEPES pH 7.5, 100 mM NaCl, 5 mM DTT
Resolution 2.40 Å R-free 0.234
5IOI X-RAY STRUCTURE OF THE N-TERMINAL DOMAIN OF HUMAN DOUBLECORTIN Deposited 2016-03-08 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 133–231（99 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 133-231
Mutation：K215D, K216D No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；N-DCXDD crystals were either obtained out of 20mM CAPS pH 10.5, 100 mM NaCl, 5 mM TCEP or 20 mM HEPES pH 7.5, 100 mM NaCl, 5 mM DTT
Resolution 2.40 Å R-free 0.234
5IOI X-RAY STRUCTURE OF THE N-TERMINAL DOMAIN OF HUMAN DOUBLECORTIN Deposited 2016-03-08 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 133–231（99 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 133-231
Mutation：K215D, K216D No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；N-DCXDD crystals were either obtained out of 20mM CAPS pH 10.5, 100 mM NaCl, 5 mM TCEP or 20 mM HEPES pH 7.5, 100 mM NaCl, 5 mM DTT
Resolution 2.40 Å R-free 0.234
5IOI X-RAY STRUCTURE OF THE N-TERMINAL DOMAIN OF HUMAN DOUBLECORTIN Deposited 2016-03-08 Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics Assembly 6 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain F 133–231（99 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 133-231
Mutation：K215D, K216D No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；293 K；N-DCXDD crystals were either obtained out of 20mM CAPS pH 10.5, 100 mM NaCl, 5 mM TCEP or 20 mM HEPES pH 7.5, 100 mM NaCl, 5 mM DTT
Resolution 2.40 Å R-free 0.234
5IP4 X-RAY STRUCTURE OF THE C-TERMINAL DOMAIN OF HUMAN DOUBLECORTIN Deposited 2016-03-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 251–341（91 aa） Fragment：C-TERMINAL DOMAIN, UNP RESIDUES 251-341
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；20% PEGMME, 100 mM Bis-Tris pH 6.5
Resolution 1.81 Å R-free 0.246
5IP4 X-RAY STRUCTURE OF THE C-TERMINAL DOMAIN OF HUMAN DOUBLECORTIN Deposited 2016-03-09 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 251–341（91 aa） Fragment：C-TERMINAL DOMAIN, UNP RESIDUES 251-341
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；20% PEGMME, 100 mM Bis-Tris pH 6.5
Resolution 1.81 Å R-free 0.246
6FNZ Crystal Structure of domain-swapped C-terminal domain of human doublecortin Deposited 2018-02-05 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 174–254（81 aa） Fragment：C-terminal ubiquitin-like domain, UNP residues 174-254
Chain C 174–254（81 aa） Fragment：C-terminal ubiquitin-like domain, UNP residues 174-254
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；293 K；20 mg/mL protein and 3x cmc CHAPS in 20mM CAPS/NaOH pH10.5, 100mM NaCl, 5mM TCEP mixed 60-70% with 40-30% reservoir consisting of 0.1M HEPES/NaOH pH7.0, 10% PEG 5000 MME, 5% Tacsimate
Resolution 2.23 Å R-free 0.231
6FNZ Crystal Structure of domain-swapped C-terminal domain of human doublecortin Deposited 2018-02-05 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 174–254（81 aa） Fragment：C-terminal ubiquitin-like domain, UNP residues 174-254
Chain D 174–254（81 aa） Fragment：C-terminal ubiquitin-like domain, UNP residues 174-254
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.3；293 K；20 mg/mL protein and 3x cmc CHAPS in 20mM CAPS/NaOH pH10.5, 100mM NaCl, 5mM TCEP mixed 60-70% with 40-30% reservoir consisting of 0.1M HEPES/NaOH pH7.0, 10% PEG 5000 MME, 5% Tacsimate
Resolution 2.23 Å R-free 0.231
6REV Cryo-EM structure of the N-terminal DC repeat (NDC) of human doublecortin (DCX) bound to 13-protofilament GDP-microtubule Deposited 2019-04-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain N 44–142（99 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 2 GTP GUANOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6RF2 Cryo-EM structure of the C-terminal DC repeat (CDC) of human doublecortin (DCX) bound to 13-protofilament GDP.Pi-microtubule Deposited 2019-04-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 178–264（87 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 PO4 PHOSPHATE ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
6RF8 Cryo-EM structure of the N-terminal DC repeat (NDC) of NDC-NDC chimera (human sequence) bound to 13-protofilament GDP-microtubule Deposited 2019-04-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain N 44–142（99 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 2 GTP GUANOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6RFD Cryo-EM structure of the N-terminal DC repeat (NDC) of NDC-NDC chimera (human sequence) bound to 14-protofilament GDP-microtubule Deposited 2019-04-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain N 44–142（99 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å

13 other PDB entries and 23 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name DCX_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 8–113； UniProt 87–192

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

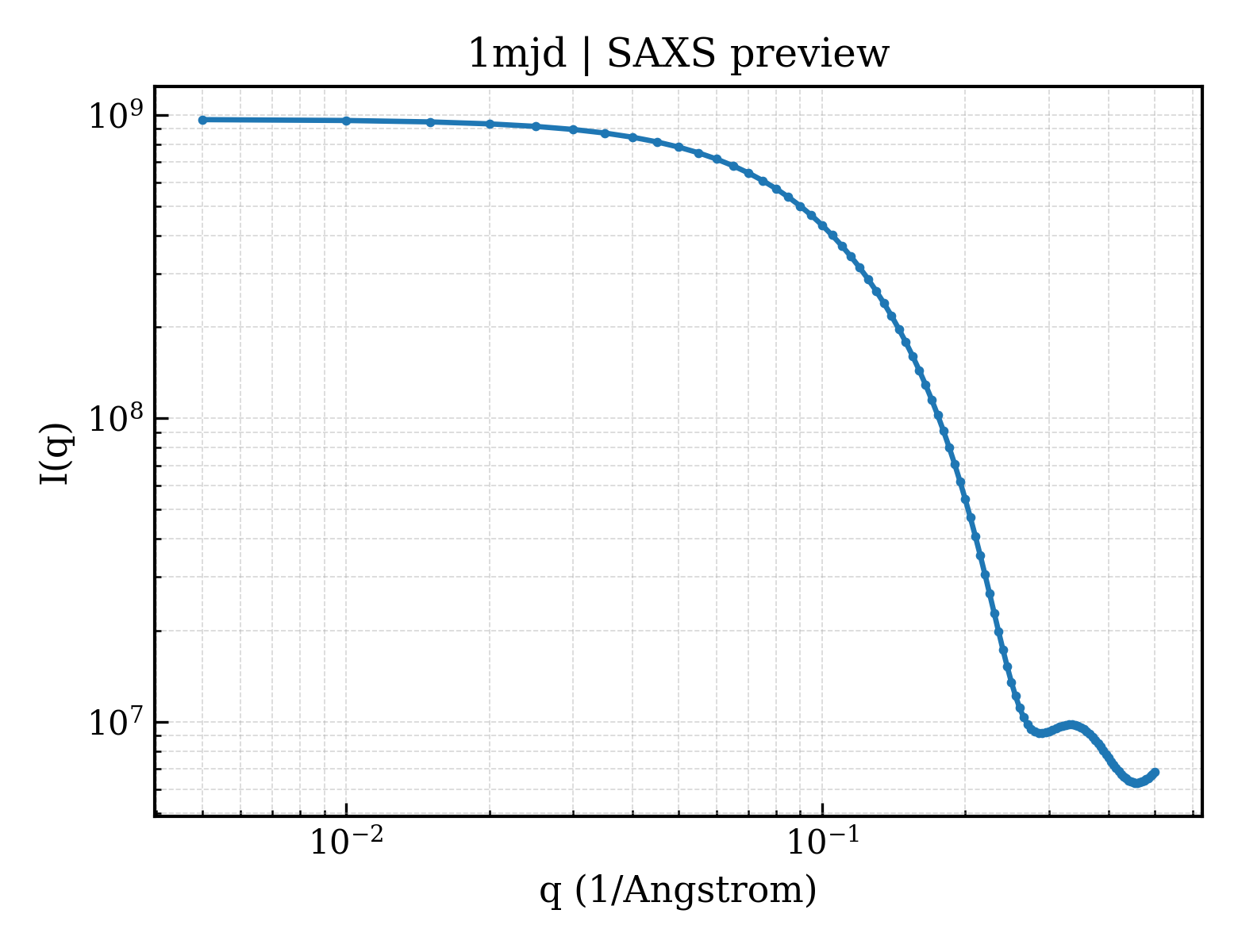

SAXS scattering curve SAXS Profile

SAXS profile for 1mjd

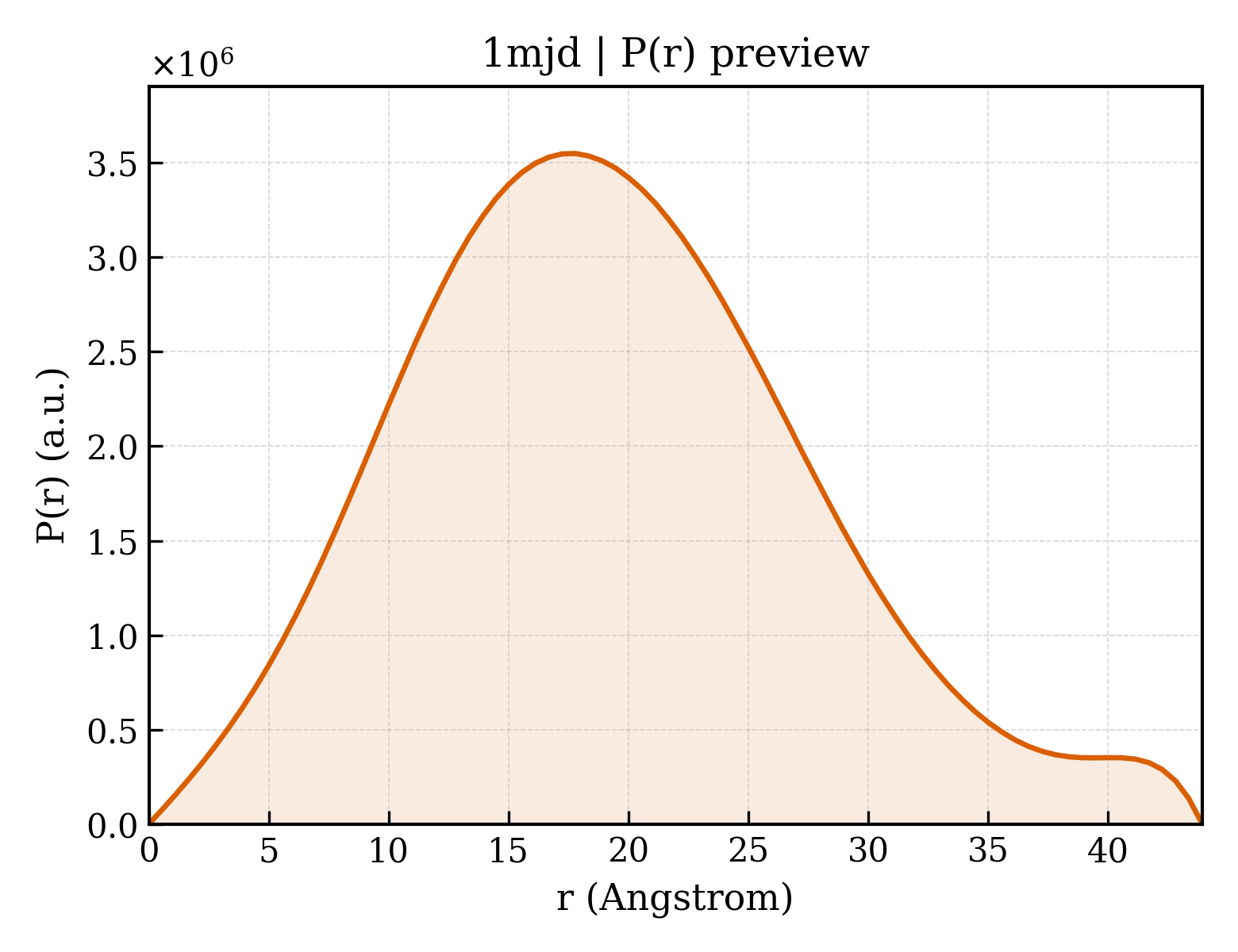

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1mjd
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1mjd
Deposition date deposition_date2002-08-27
Structure title titleStructure of N-terminal domain of human doublecortin
Keywords keywordsDCX domain, ubiquitin-like fold, microtubule associated protein, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method methodSOLUTION NMR
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier15.84 Å
Radius of gyration Rg (electron density) rg_electron15.46 Å
Forward intensity I(0) i0966901000.00
Molecular weight molecular_weight259130.0 kDa
Excluded volume excluded_volume322550 ų
Envelope volume envelope_volume57675 ų
Hydration-shell volume shell_volume21624 ų
Envelope diameter envelope_diameter76.0 Å
Shell Rg shell_rg29.63 Å
Envelope Rg envelope_rg24.41 Å
Shape Rg shape_rg15.42 Å
Total Rg total_rg15.99 Å
Total atoms total_atoms36040
Residues n_residues2260
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax43.9 Å
Rg (real space) rg_real14.79 Å
Rg uncertainty (real space) rg_real_error0.07 Å
I(0) (real space) i0_real9.2320e+08
I(0) uncertainty (real space) i0_real_error7.6710e+06
Rg (reciprocal space) rg_reciprocal16.00 Å
I(0) (reciprocal space) i0_reciprocal966900000.0000
Solution quality estimate total_estimate0.6758
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary17.8 Å
Skewness Skewness skewness0.382
Kurtosis Kurtosis kurtosis-0.098
Angular range angular_range— – 0.5000 Å−1
Current regularization parameter α current_alpha2.6470
Highest regularization parameter α highest_alpha583000.0000
Real-space data points n_real_points80
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.005; Oscil: 0.939; Stabil: 0.992; Sysdev: 0.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_idd1mjda1
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamilyd.15.11 — Doublecortin (DC)
Family Family familyd.15.11.1 — Doublecortin (DC)
Domain ID domain_idd1mjda2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id1mjdA00
Class class3 — Alpha Beta
Architecture architecture10 — Roll
Topology topology20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily230 — Doublecortin domain
▶

8. Citations (2)

▶

9. Files and Curves (10)
