1ml5

Structure of the E. coli ribosomal termination complex with release factor 2

Method: ELECTRON MICROSCOPY D_max: 220.5 Å Quality: EXCELLENT

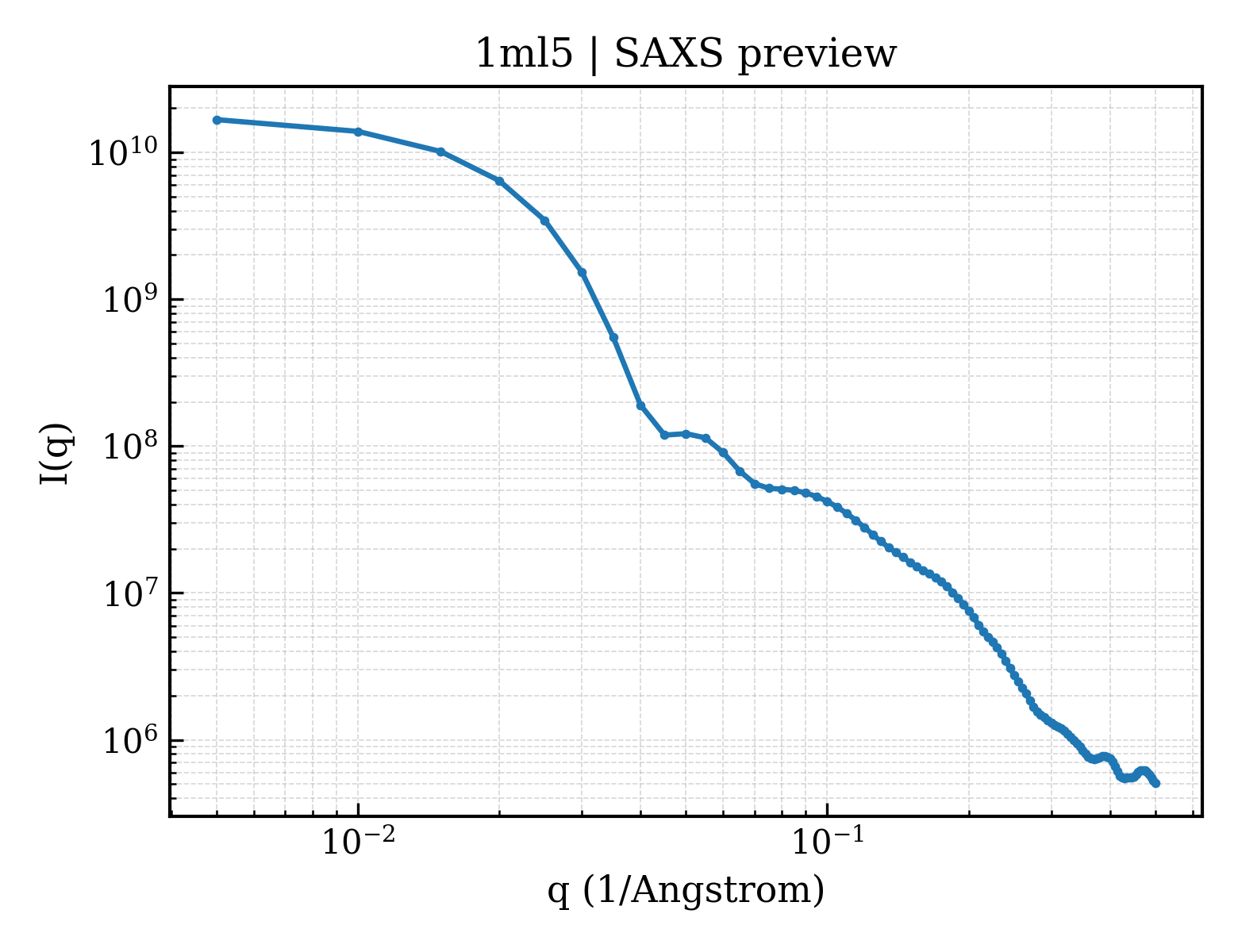

SAXS 散射曲线 SAXS Profile

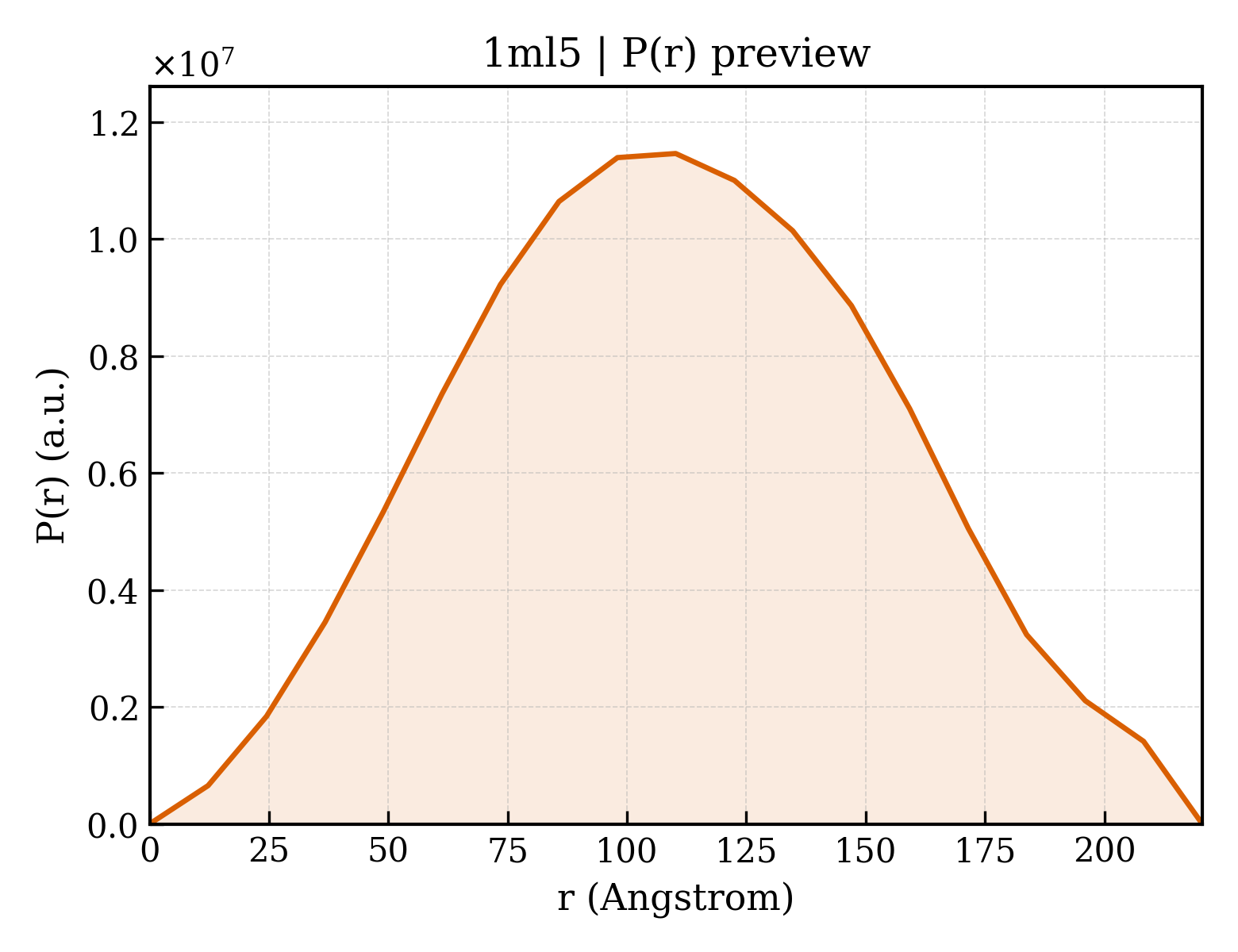

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ml5
沉积日期 deposition_date	2002-08-30
结构标题 title	Structure of the E. coli ribosomal termination complex with release factor 2
关键词 keywords	E. coli, ribosome, termination of protein synthesis, release factor, cryo-eletron microscopy, angular reconstitution; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	85.74 Å
回转半径 Rg (电子) rg_electron	87.19 Å
零角强度 I(0) i0	17762700000.00
分子量 molecular_weight	737850.0 kDa
排除体积 excluded_volume	752140 Å³
包络体积 envelope_volume	2724300 Å³
水化壳体积 shell_volume	266880 Å³
包络直径 envelope_diameter	271.7 Å
壳层 Rg shell_rg	88.45 Å
包络 Rg envelope_rg	78.14 Å
形状 Rg shape_rg	81.05 Å
总 Rg total_rg	87.96 Å
总原子数 total_atoms	6303
残基数 n_residues	4527
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	220.5 Å
Rg (实空间) rg_real	83.66 Å
Rg 误差 (实空间) rg_real_error	0.27 Å
I(0) (实空间) i0_real	1.6970e+10
I(0) 误差 (实空间) i0_real_error	3.0240e+08
Rg (倒空间) rg_reciprocal	87.35 Å
I(0) (倒空间) i0_reciprocal	17850000000.0000
解质量估计 total_estimate	0.9009
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	110.2 Å
偏度 Skewness skewness	0.066
峰度 Kurtosis kurtosis	-0.578
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	1.3610
最高正则化参数 α highest_alpha	4346000000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 1.000; Stabil: 0.952; Sysdev: 1.000; Positv: 1.000; Valcen: 0.860; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (45)

Entity 1 polymer

描述 description	30S 16S RIBOSOMAL RNA
分子量 formula_weight	493958.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A
原子数 atom_count	11392

UUUGUUGGAGAGUUUGAUCCUGGCUCAGGGUGAACGCUGGCGGCGUGCCUAAGACAUGCAAGUCGUGCGGGCCGCGGGGUUUUACUCCGUGGUCAGCGGCGGACGGGUGAGUAACGCGUGGGUGACCUACCCGGAAGAGGGGGACAACCCGGGGAAACUCGGGCUAAUCCCCCAUGUGGACCCGCCCCUUGGGGUGUGUCCAAAGGGCUUUGCCCGCUUCCGGAUGGGCCCGCGUCCCAUCAGCUAGUUGGUGGGGUAAUGGCCCACCAAGGCGACGACGGGUAGCCGGUCUGAGAGGAUGGCCGGCCACAGGGGCACUGAGACACGGGCCCCACUCCUACGGGAGGCAGCAGUUAGGAAUCUUCCGCAAUGGGCGCAAGCCUGACGGAGCGACGCCGCUUGGAGGAAGAAGCCCUUCGGGGUGUAAACUCCUGAACCCGGGACGAAACCCCCGACGAGGGGACUGACGGUACCGGGGUAAUAGCGCCGGCCAACUCCGUGCCAGCAGCCGCGGUAAUACGGAGGGCGCGAGCGUUACCCGGAUUCACUGGGCGUAAAGGGCGUGUAGGCGGCCUGGGGCGUCCCAUGUGAAAGACCACGGCUCAACCGUGGGGGAGCGUGGGAUACGCUCAGGCUAGACGGUGGGAGAGGGUGGUGGAAUUCCCGGAGUAGCGGUGAAAUGCGCAGAUACCGGGAGGAACGCCGAUGGCGAAGGCAGCCACCUGGUCCACCCGUGACGCUGAGGCGCGAAAGCGUGGGGAGCAAACCGGAUUAGAUACCCGGGUAGUCCACGCCCUAAACGAUGCGCGCUAGGUCUCUGGGUCUCCUGGGGGCCGAAGCUAACGCGUUAAGCGCGCCGCCUGGGGAGUACGGCCGCAAGGCUGAAACUCAAAGGAAUUGACGGGGGCCCGCACAAGCGGUGGAGCAUGUGGUUUAAUUCGAAGCAACGCGAAGAACCUUACCAGGCCUUGACAUGCUAGGGAACCCGGGUGAAAGCCUGGGGUGCCCCGCGAGGGGAGCCCUAGCACAGGUGCUGCAUGGCCGUCGUCAGCUCGUGCCGUGAGGUGUUGGGUUAAGUCCCGCAACGAGCGCAACCCCCGCCGUUAGUUGCCAGCGGUUCGGCCGGGCACUCUAACGGGACUGCCCGCGAAAGCGGGAGGAAGGAGGGGACGACGUCUGGUCAGCAUGGCCCUUACGGCCUGGGCGACACACGUGCUACAAUGCCCACUACAAAGCGAUGCCACCCGGCAACGGGGAGCUAAUCGCAAAAAGGUGGGCCCAGUUCGGAUUGGGGUCUGCAACCCGACCCCAUGAAGCCGGAAUCGCUAGUAAUCGCGGAUCAGCCAUGCCGCGGUGAAUACGUUCCCGGGCCUUGUACACACCGCCCGUCACGCCAUGGGAGCGGGCUCUACCCGAAGUCGCCGGGAGCCUACGGGCAGGCGCCGAGGGUAGGGCCCGUGACUGGGGCGAAGUCGUAACAAGGUAGCUGUACCGGAAGGUGCGGCUGGAUCACCUCCUUUCU

Entity 2 polymer

描述 description	T-RNA(PHE)
分子量 formula_weight	24890.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B

GCGGAUUUAGCUCAGUUGGGAGAGCGCCAGACUGAAGAUCUGGAGGUCCUGUGUUCGAUCCACAGAAUUCGCACCA

Entity 3 polymer

描述 description	A- AND P-SITE MESSENGER RNA CODONS
分子量 formula_weight	1792.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	C

UUUUUU

Entity 4 polymer

描述 description	50S 23S RIBOSOMAL RNA
分子量 formula_weight	948280.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	a

GGUCAAGAUGGUAAGGGCCCACGGUGGAUGCCUCGGCACCCGAGCCGAUGAAGGACGUGGCUACCUGCGAUAAGCCAGGGGGAGCCGGUAGCGGGCGUGGAUCCCUGGAUGUCCGAAUGGGGGAACCCGGCCGGCGGGAACGCCGGUCACCGCGCUUUUGCGCGGGGGGAACCUGGGGAACUGAAACAUCUCAGUACCCAGAGGAGAGGAAAGAGAAAUCGACUCCCUGAGUAGCGGCGAGCGAAAGGGGACCAGCCUAAACCGUCCGGCUUGUCCGGGCGGGGUCGUGGGGCCCUCGGACACCGAAUCCCCAGCCUAGCCGAAGCUGUUGGGAAGCAGCGCCAGAGAGGGUGAAAGCCCCGUAGGCGAAAGGUGGGGGGAUAGGUGAGGGUACCCGAGUACCCCGUGGUUCGUGGAGCCAUGGGGGAAUCUGGGCGGACCACCGGCCUAAGGCUAAGUACUCCGGGUGACCGAUAGCGCACCAGUACCGUGAGGGAAAGGUGAAAAGAACCCCGGGAGGGGAGUGAAAUAGAGCCUGAAACCGUGGGCUUACAAGCAGUCACGGCCCCGCAAGGGGUUGUGGCGUGCCUAUUGAAGCAUGAGCCGGCGACUCACGGUCGUGGGCGAGCUUAAGCCGUUGAGGCGGAGGCGUAGGGAAACCGAGUCCGAACAGGGCGCAAGCGGGCCGCACGCGGCCCGCAAAGUCCGCGGCCGUGGACCCGAAACCGGGCGAGCUAGCCCUGGCCAGGGUGAAGCUGGGGUGAGACCCAGUGGAGGCCCGAACCGGUGGGGGAUGCAAACCCCUCGGAUGAGCUGGGGCUAGGAGUGAAAAGCUAACCGAGCCCGGAGAUAGCUGGUUCUCCCCGAAAUGACUUUAGGGUCAGCCUCAGGCGCUGACUGGGGCCUGUAGAGCACUGAUAGGGCUAGGGGGCCCACCAGCCUACCAAACCCUGUCAAACUCCGAAGGGUCCCAGGUGGAGCCUGGGAGUGAGGGCGCGAGCGAUAACGUCCGCGUCCGAGCGCGGGAACAACCGAGACCGCCAGCUAAGGCCCCCAAGUCUGGGCUAAGUGGUAAAGGAUGUGGCGCCGCGAAGACAGCCAGGAGGUUGGCUUAGAAGCAGCCAUCCUUUAAAGAGUGCGUAAUAGCUCACUGGUCGAGUGGCGCCGCGCCGAAAAUGAUGCGGGGCUUAAGCCCAGCGCCGAAGCUGCGGGUCUGGGGGAUGACCCCAGGCGGUAGGGGAGCGUUCCCGAUGCCGAUGAAGGCCGACCCGCGAGGCGGCUGGAGGUAAGGGAAGUGCGAAUGCCGGCAUGAGUAACGAUAAAGAGGGUGAGAAUCCCUCUCGCCGUAAGCCCAAGGGUUCCUACGCAAUGGUCGUCAGCGUAGGGUUAGGCGGGACCUAAGGUGAAGCCGAAAGGCGUAGCCGAAGGGCAGCCGGUUAAUAUUCCGGCCCUUCCCGCAGGUGCGAUGGGGGGACGCUCUAGGCUAGGGGGACCGGAGCCAUGGACGAGCCCGGCCAGAAGCGCAGGGUGGGAGGUAGGCAAAUCCGCCUCCCAACAAGCUCUGCGUGGUGGGGAAGCCCGUACGGGUGACAACCCCCCGAAGCCAGGGAGCCAAGAAAAGCCUCUAAGCACAACCUGCGGGAACCCGUACCGCAAACCGACACAGGUGGGCGGGUGCAAGAGCACUCAGGCGCGCGGGAGAACCCUCGCCAAGGAACUCUGCAAGUUGGCCCCGUAACUUCGGGAGAAGGGGUGCUCCCUGGGGUGAUGAGCCCCGGGGAGCCGCAGUGAACAGGCUCUGGCGACUGUUUACCAAAAACACAGCUCUCUGCGAACUCGUAAGAGGAGGUAUAGGGAGCGACGCUUGCCCGGUGCCGGAAGGUCAAGGGGAGGGGUGCAAGCCCCGAACCGAAGCCCCGGUGAACGGCGGCCGUAACUAUAACGGUCCUAAGGUAGCGAAAUUCCUUGUCGGGUAAGUUCCGACCUGCACGAAAAGCGUAACGACCGGAGCGCUGUCUCGGCGAGGGACCCGGUGAAAUUGAACUGGCCGUGAAGAUGCGGCCUACCCGUGGCAGGACGAAAAGACCCCGUGGAGCUUUACUGCAGCCUGGUGUUGGCUCUUGGUCGCGCCUGCGUAGGAUAGGUGGGAGCCUGUGAACCCCCGCCUCCGGGUGGGGGGGAGGCGCCGGUGAAAUACCACCCUGGCGCGGCUGGGGGCCUAACCCUCGGAUGGGGGGACAGCGCUUGGCGGGCAGUUUGACUGGGGCGGUCGCCUCCUAAAAGGUAACGGAGGCGCCCAAAGGUCCCCUCAGGCGGGACGGAAAUCCGCCGGAGAGCGCAAGGGUAGAAGGGGGCCUGACUGCGAGGCCUGCAAGCCGAGCAGGGGCGAAAGCCGGGCCUAGUGAACCGGUGGUCCCGUGUGGAAGGGCCAUCGAUCAACGGAUAAAAGUUACCCCGGGGAUAACAGGCUGAUCUCCCCCGAGCGUCCACAGCGGCGGGGAGGUUUGGCACCUCGAUGUCGGCUCGUCGCAUCCUGGGGCUGAAGAAGGUCCCAAGGGUUGGGCUGUUCGCCCAUUAAAGCGGCACGCGAGCUGGGUUCAGAACGUCGUGAGACAGUUCGGUCUCUAUCCGCCACGGGCGCAGGAGGCUUGAGGGGGGCUCUUCCUAGUACGAGAGGACCGGAAGGGACGCACCUCUGGUUUCCCAGCUGUCCCUCCAGGGGCAUAAGCUGGGUAGCCAUGUGCGGAAGGGAUAACCGCUGAAAGCAUCUAAGCGGGAAGCCCGCCCCAAGAUGAGGCCUCCCACGGCGUCAAGCCGGUAAGGACCCGGGAAGACCACCCGGUGGAUGGGCCGGGGGUGUAAGCGCCGCGAGGCGUUGAGCCGACCGGUCCCAAUCGUCCGAGGUCUUGACCCCUC

Entity 5 polymer

描述 description	50S 5S RIBOSOMAL RNA
分子量 formula_weight	39846.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	b

AAUCCCCCGUGCCCAUAGCGGCGUGGAACCACCCGUUCCCAUUCCGAACACGGAAGUGAAACGCGCCAGCGCCGAUGGUACUGGGCGGGCGACCGCCUGGGAGAGUAGGUCGGUGCGGGGGAU

Entity 6 polymer

描述 description	Peptide chain release factor 2
分子量 formula_weight	41300.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

MFEINPVNNRIQDLTERSDVLRGYLDYDAKKERLEEVNAELEQPDVWNEPERAQALGKERSSLEAVVDTLDQMKQGLEDVSGLLELAVEADDEETFNEAVAELDALEEKLAQLEFRRMFSGEYDSADCYLDIQAGSGGTEAQDWASMLERMYLRWAESRGFKTEIIEESEGEVAGIKSVTIKISGDYAYGWLRTETGVHRLVRKSPFDSGGRRHTSFSSAFVYPEVDDDIDIEINPADLRIDVYRTSGAGGQHVNRTESAVRITHIPTGIVTQCQNDRSQHKNKDQAMKQMKAKLYELEMQKKNAEKQAMEDNKSDIGWGSQIRSYVLDDSRIKDLRTGVETRNTQAVLDGSLDQFIEASLKAGL

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 7 polymer

描述 description	30S RIBOSOMAL PROTEIN S2
分子量 formula_weight	29317.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MPVEITVKELLEAGVHFGHERKRWNPKFARYIYAERNGIHIIDLQKTMEELERTFRFIEDLAMRGGTILFVGTKKQAQDIVRMEAERAGMPYVNQRWLGGMLTNFKTISQRVHRLEELEALFASPEIEERPKKEQVRLKHELERLQKYLSGFRLLKRLPDAIFVVDPTKEAIAVREARKLFIPVIALADTDSDPDLVDYIIPGNDDAIRSIQLILSRAVDLIIQARGGVVEPSPSYALVQEAEATETPEGESEVEA

Entity 8 polymer

描述 description	30S RIBOSOMAL PROTEIN S3
分子量 formula_weight	26751.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MGNKIHPIGFRLGITRDWESRWYAGKKQYRHLLLEDQRIRGLLEKELYSAGLARVDIERAADNVAVTVHVAKPGVVIGRGGERIRVLREELAKLTGKNVALNVQEVQNPNLSAPLVAQRVAEQIERRFAVRRAIKQAVQRVMESGAKGAKVIVSGRIGGAEQARTEWAAQGRVPLHTLRANIDYGFALARTTYGVLGVKAYIFLGEVIGGQKPKARPELPKAEERPRRRRPAVRVKKEE

Entity 9 polymer

描述 description	30S RIBOSOMAL PROTEIN S4
分子量 formula_weight	24373.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MGRYIGPVCRLCRREGVKLYLKGERCYSPKCAMERRPYPPGQHGQKRARRPSDYAVRLREKQKLRRIYGISERQFRNLFEEASKKKGVTGSVFLGLLESRLDNVVYRLGFAVSRRQARQLVRHGHITVNGRRVDLPSYRVRPGDEIAVAEKSRNLELIRQNLEAMKGRKVGPWLSLDVEGMKGKFLRLPDREDLALPVQENLVIEFYSR

Entity 10 polymer

描述 description	30S RIBOSOMAL PROTEIN S5
分子量 formula_weight	17583.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MPETDFEEKMILIRRTARMQAGGRRFRFGALVVVGDRQGRVGLGFGKAPEVPLAVQKAGYYARRNMVEVPLQNGTIPHEIEVEFGASKIVLKPAAPGTGVIAGAVPRAILELAGVTDILTKELGSRNPINIAYATMEALRQLRTKADVERLRKGEAHAQAQG

Entity 11 polymer

描述 description	30S RIBOSOMAL PROTEIN S6
分子量 formula_weight	11988.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MRRYEVNIVLNPNLDQSQLALEKEIIQRALENYGARVEKVEELGLRRLAYPIAKDPQGYFLWYQVEMPEDRVNDLARELRIRDNVRRVMVVKSQEPFLANA

Entity 12 polymer

描述 description	30S RIBOSOMAL PROTEIN S7
分子量 formula_weight	18051.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MARRRRAEVRQLQPDLVYGDVLVTAFINKIMRDGKKNLAARIFYDACKIIQEKTGQEPLKVFKQAVENVKPRMEVRSRRVGGANYQVPMEVSPRRQQSLALRWLVQAANQRPERRAAVRIAHELMDAAEGKGGAVKKKEDVERMAEANRAYAHYRW

Entity 13 polymer

描述 description	30S RIBOSOMAL PROTEIN S8
分子量 formula_weight	15868.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MLTDPIADMLTRIRNATRVYKESTDVPASRFKEEILRILAREGFIKGYERVDVDGKPYLRVYLKYGPRRQGPDPRPEQVIHHIRRISKPGRRVYVGVKEIPRVRRGLGIAILSTSKGVLTDREARKLGVGGELICEVW

Entity 14 polymer

描述 description	30S RIBOSOMAL PROTEIN S9
分子量 formula_weight	14429.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MEQYYGTGRRKEAVARVFLRPGNGKVTVNGQDFNEYFQGLVRAVAALEPLRAVDALGRFDAYITVRGGGKSGQIDAIKLGIARALVQYNPDYRAKLKPLGFLTRDARVVERKKYGKHKARRAPQYSKR

Entity 15 polymer

描述 description	30S RIBOSOMAL PROTEIN S10
分子量 formula_weight	11955.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MPKIRIKLRGFDHKTLDASAQKIVEAARRSGAQVSGPIPLPTRVRRFTVIRGPFKHKDSREHFELRTHNRLVDIINPNRKTIEQLMTLDLPTGVEIEIKTVGGGR

Entity 16 polymer

描述 description	30S RIBOSOMAL PROTEIN S11
分子量 formula_weight	13737.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MAKKPSKKKVKRQVASGRAYIHASYNNTIVTITDPDGNPITWSSGGVIGYKGSRKGTPYAAQLAALDAAKKAMAYGMQSVDVIVRGTGAGREQAIRALQASGLQVKSIVDDTPVPHNGCRPKKKFRKAS

Entity 17 polymer

描述 description	30S RIBOSOMAL PROTEIN S12
分子量 formula_weight	14920.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MVALPTINQLVRKGREKVRKKSKVPALKGAPFRRGVCTVVRTVTPKKPNSALRKVAKVRLTSGYEVTAYIPGEGHNLQEHSVVLIRGGRVKDLPGVRYHIVRGVYDAAGVKDRKKSRSKYGTKKPKEAAKTAAKK

Entity 18 polymer

描述 description	30S RIBOSOMAL PROTEIN S13
分子量 formula_weight	14338.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MARIAGVEIPRNKRVDVALTYIYGIGKARAKEALEKTGINPATRVKDLTEAEVVRLREYVENTWKLEGELRAEVAANIKRLMDIGCYRGLRHRRGLPVRGQRTRTNARTRKGPRKTVAGKKKAPRK

Entity 19 polymer

描述 description	30S RIBOSOMAL PROTEIN S14
分子量 formula_weight	7158.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MARKALIEKAKRTPKFKVRAYTRCVRCGRARSVYRFFGLCRICLRELAHKGQLPGVRKASW

Entity 20 polymer

描述 description	30S RIBOSOMAL PROTEIN S15
分子量 formula_weight	10578.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MPITKEEKQKVIQEFARFPGDTGSTEVQVALLTLRINRLSEHLKVHKKDHHSHRGLLMMVGQRRRLLRYLQREDPERYRALIEKLGIRG

Entity 21 polymer

描述 description	30S RIBOSOMAL PROTEIN S16
分子量 formula_weight	10808.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MVKIRLARFGSKHNPHYPHYRIVVTDARRKRDGKYIEKIGYYDPRKTTPDWLKVDVERARYWLSVGAQPTDTARRLLRQAGVFRQEAREGA

Entity 22 polymer

描述 description	30S RIBOSOMAL PROTEIN S17
分子量 formula_weight	12324.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MPKKVLTGVVVSDKMQKTVTVLVERQFPHPLYGKVIKRSKKYLAHDPEEKYKLGDVVEIIESRPISKRKRFRVLRLVESGRMDLVEKYLIRRQNYQSLSKRGGKA

Entity 23 polymer

描述 description	30S RIBOSOMAL PROTEIN S18
分子量 formula_weight	10244.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MSTKNAKPKKEAQRRPSRKAKVKATLGEFDLRDYRNVEVLKRFLSETGKILPRRRTGLSGKEQRILAKTIKRARILGLLPFTEKLVRK

Entity 24 polymer

描述 description	30S RIBOSOMAL PROTEIN S19
分子量 formula_weight	10605.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MPRSLKKGVFVDDHLLEKVLELNAKGEKRLIKTWSRRSTIVPEMVGHTIAVYNGKQHVPVYITENMVGHKLGEFAPTRTYRGHGKEAKATKKK

Entity 25 polymer

描述 description	30S RIBOSOMAL PROTEIN S20
分子量 formula_weight	11722.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

MAQKKPKRNLSALKRHRQSLKRRLRNKAKKSAIKTLSKKAVQLAQEGKAEEALKIMRKAESLIDKAAKGSTLHKNAAARRKSRLMRKVRQLLEAAGAPLIGGGLSA

Entity 26 polymer

描述 description	30S RIBOSOMAL PROTEIN THX
分子量 formula_weight	3218.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

GKGDRRTRRGKIWRGTYGKYRPRKKK

Entity 27 polymer

描述 description	50S RIBOSOMAL PROTEIN L1
分子量 formula_weight	24736.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c

PKHGKRYRALLEKVDPNKIYTIDEAAHLVKELATAKFDETVEVHAKLGIDPRRSDQNVRGTVSLPHGLGKQVRVLAIAKGEKIKEAEEAGADYVGGEEIIQKILDGWMDFDAVVATPDVMGAVGSKLGRILGPRGLLPNPKAGTVGFNIGEIIREIKAGRIEFRNDKTGAIHAPVGKASFPPEKLADNIRAFIRALEAHKPEGAKGTFLRSVYVTTTMGPSVRINPHS

Entity 28 polymer

描述 description	50S RIBOSOMAL PROTEIN L2
分子量 formula_weight	19283.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d

QYRIIDFKRDKDGIPGRVATIEYDPNRSANIALINYADGEKRYIIAPKNLKVGMEIMSGPDADIKIGNALPLENIPVGTLVHNIELKPGRGGQLVRAAGTSAQVLGKEGKYVIVRLASGEVRMILGKCRATVGEVGNGGRTDKPFVKAGNKHHKMKARGTKWPNVRGVAMNAVDHPFG

Entity 29 polymer

描述 description	50S RIBOSOMAL PROTEIN L3
分子量 formula_weight	37412.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

PQPSRPRKGSLGFGPRKRSTSETPRFNSWPSDDGQPGVQGFAGYKAGMTHVVLVNDEPNSPREGMEETVPVTVIETPPMRAVALRAYEDTPYGQRPLTEVWTDEFHSELDRTLSDRLDHALDIVEDQIRDAHEAGDLGDLRLITHTVPDAVPSVPKKKPDVMETRVGGGSVSDRLDHALDIVEDGGEHAMNDIFRAGEYADVAGVTKGKGTQGPVKRWGVQKRKGKHARQGWRRRIGNLGPWNPSRVRSTVPQQGQTGYHQRTELNKRLIDIGEGDEPTVDGGFVNYGEVDGPYTLVKGSVPGPDKRLVPFFRPAVRPNDQPRLDPEVRYVSNESNQG

Entity 30 polymer

描述 description	50S RIBOSOMAL PROTEIN L4
分子量 formula_weight	26443.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f

MEATIYDLDGNTDGEVDLPDVFETPVRSDLIGKAVRAAQANRKQDYGSDEYAGLRTPAESFGSGRGQAHVPKLDGRARRVPQAVKGRSAHPPKTEKDRSLDLNDKERQLAVRSALAATADADLVADRGHEFDRDEVPVVVSDDFEDLVKTQEVVSLLEALDVHADIDRADETKIKAGQGSARGRKYRRPASILFVTSDEPSTAARNLAGADVATASEVNTEDLAPGGAPGRLTVFTESALAEVAER

Entity 31 polymer

描述 description	50S RIBOSOMAL PROTEIN L5
分子量 formula_weight	19420.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g

SSESESGGDFHEMREPRIEKVVVHMGIGHGGRDLANAEDILGEITGQMPVRTKAKRTVGEFDIREGDPIGAKVTLRDEMAEEFLQTALPLAELATSQFDDTGNFSFGVEEHTEFPSQEYDPSIGIYGLDVTVNLVRPGYRVAKRDKASRSIPTKHRLNPADAVAFIESTYDVEVSE

Entity 32 polymer

描述 description	50S RIBOSOMAL PROTEIN L6
分子量 formula_weight	19202.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	h

SRVGKKPIEIPAGVTVTVNGNTVTVKGPKGELTRTFHPDMTITVEGNVITVTRPSDEKHHRALHGTTRSLLANMVEGVSKGYEKALELVGVGYRASKQGKKLVLSVGYSHPVEIEPEEGLEIEVPSQTKIIVKGADKQRVGELAANIRAVRPPEPYKGKGIRYEGELVRLKEGKTGK

Entity 33 polymer

描述 description	50S RIBOSOMAL PROTEIN L11
分子量 formula_weight	15111.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	l

MAKKVAAQIKLQLPAGKATPAPPVGPALGQHGVNIMEFCKRFNAETADKAGMILPVVITVYEDKSFTFIIKTPPASFLLKKAAGIEKGSSEPKRKIVGKVTRKQIEEIAKTKMPDLNANSLEAAMKIIEGTAKSMGIEVVD

Entity 34 polymer

描述 description	50S RIBOSOMAL PROTEIN L13
分子量 formula_weight	16249.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	m

MSVAEFDADVIVDARDCIMGRVASQVAEQALDGETVAVVNAERAVITGREEQIVEKYEKRVDIGNDNGYFYPKRPDGIFKRTIRGMLPHKKQRGREAFESVRVYLGNPYDEDGEVLDGTSLDRLSNIKFVTLGEISETLGANKTW

Entity 35 polymer

描述 description	50S RIBOSOMAL PROTEIN L14
分子量 formula_weight	13369.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	n

MIQQESRLKVADNSGAREVLVIKVLGGSGRRYANIGDVVVATVKDATPGGVVKKGQVVKAVVVRTKRGVRRPDGSYIRFDENACVIIRDDKSPRGTRIFGPVARELRDKDFMKIISLAPEVI

Entity 36 polymer

描述 description	50S RIBOSOMAL PROTEIN L15
分子量 formula_weight	17874.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	o

TSKKKRQRGSRTHGGGSHKNRRGAGHRGGRGDAGRDKHEFHNHEPLGKSGFKRPQKVQEEAATIDVREIDENVTLLAADDVAEVEDGGFRVDVRDVVEEADDADYVKVLGAGQVRHELTLIADDFSEGAREKVEGAGGSVELTDLGEERQAEAEETEDADADEE

Entity 37 polymer

描述 description	50S RIBOSOMAL PROTEIN L16
分子量 formula_weight	15313.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	p

SIKPTRREYISGIPGKGIAQFKMGNNTYPAQVENVVEKPVQIRHNALEAARNAANRFVQNSGKFRIRKFPFHVIREQDGDGMRAPFGKSVGTAARSHGANHDFIAWVNPDPAVEFAWRRAYMKVTPTVNIDSSPAGNA

Entity 38 polymer

描述 description	50S RIBOSOMAL PROTEIN L18
分子量 formula_weight	20509.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	q

ATGPRYKVPMRRRREARTDYHQRLRLLKSGKPRLVARKSNKHVRAQLVTLGPNGDDTLASAHSSDLAEYGWEAPTGNMPSAYLTGLLAGLRAQEAGVEEAVLDIGLNSPTPGSKVFAIQEGAIDAGLDIPHNDDVLADWQRTRGAHIAEYDEQLEEPLYSGDFDAADLPEHFDELRETLLDGDIEL

Entity 39 polymer

描述 description	50S RIBOSOMAL PROTEIN L19
分子量 formula_weight	7233.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	r

PRTRECDYCGTDIEPGTGTMFVHKDGATTHFCSSKCENNADLGREARNLEWTDTARGEAGEAEDEA

Entity 40 polymer

描述 description	50S RIBOSOMAL PROTEIN L22
分子量 formula_weight	12808.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	s

MEAKAIARYVRISPRKVRLVVDLIRGKSLEEARNILRYTNKRGAYFVAKVLESAAANAVNNHDMLEDRLYVKAAYVDEGPALKRVLPRARGRADIIKKRTSHITVILGEKHGK

Entity 41 polymer

描述 description	50S RIBOSOMAL PROTEIN L23
分子量 formula_weight	9481.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	t

SWDVIKHPHVTEKAMNDMDFQNKLQFAVDDRASKGEVADAVEEQYDVTVEQVNTQNTMDGEKKAVVRLSEDDDAQEVASRIGVF

Entity 42 polymer

描述 description	50S RIBOSOMAL PROTEIN L24
分子量 formula_weight	13539.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	u

SKQPDKQRKSQRRAPLHERHKQVRATLSADLREEYGQRNVRVNAGDTVEVLRGDFAGEEGEVINVDLDKAVIHVEDVTLEKTDGEEVPRPLDTSNVRVTDLDLEDEKREARLESEDDSA

Entity 43 polymer

描述 description	50S RIBOSOMAL PROTEIN L25
分子量 formula_weight	10713.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	v

MFTINAEVRKEQGKGASRRLRAANKFPAIIYGGKEAPLAIELDHDKVMNMQAKAEFYSEVLTIVVDGKEIKVKAQDVQRHPYKPKLQHIDFVRA

Entity 44 polymer

描述 description	50S RIBOSOMAL PROTEIN L29
分子量 formula_weight	7758.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	w

TVLHVQEIRDMTPAEREAELDDLKTELLNARAVQAAGGAPENPGRIKELRKAIARIKTIQGEEGDLQENE

Entity 45 polymer

描述 description	50S RIBOSOMAL PROTEIN L30
分子量 formula_weight	6799.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	x

MPRLKVKLVKSPIGYPKDQKAALKALGLRRLQQERVLEDTPAIRGNVEKVAHLVRVEVVE

▼

6. 折叠分类 (SCOP + CATH) 22 domains

SCOP 2.08 (22 domains)

结构域编号 domain_id	d1ml5c_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5e_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5f_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5g_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5h_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5i_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5j_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5k_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5l_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5m_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5n_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5o_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5p_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5q_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5r_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5s_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5t_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5u_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5v_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5w_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5x_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

结构域编号 domain_id	d1ml5z_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.1 — Ribosome complexes

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	1

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	14.00 Å
分辨率测定方法 resolution_method	angular reconstitution, exact filtered back-projection
颗粒数 num_particles	15800

fit	/app/data/saxs_computation/ml/1ml5/1ml5.fit
pddf	/app/data/pr_computation/ml/1ml5/1ml5.pr.out
profile	/app/data/saxs_computation/ml/1ml5/1ml5.dat

Structure of the E. coli ribosomal termination complex with release factor 2

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (45)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

来源 Source

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 polymer

聚合体 Polymer

Entity 34 polymer

聚合体 Polymer
