1mmo

CRYSTAL STRUCTURE OF A BACTERIAL NON-HAEM IRON HYDROXYLASE THAT CATALYSES THE BIOLOGICAL OXIDATION OF METHANE

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

METHANE MONOOXYGENASE HYDROLASE (BETA CHAIN)

Methylococcus capsulatus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	METHANE MONOOXYGENASE HYDROLASE (ALPHA CHAIN) × 2 （P22869） METHANE MONOOXYGENASE HYDROLASE (GAMMA CHAIN) × 2 （P11987） FE (III) ION × 4 ACETIC ACID × 2 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MEMB_METCA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–384； UniProt 6–389 Author chain C； PDBConstruct 1–384； UniProt 6–389

METHANE MONOOXYGENASE HYDROLASE (ALPHA CHAIN)

Methylococcus capsulatus

UniProt P22869

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	METHANE MONOOXYGENASE HYDROLASE (BETA CHAIN) × 2 （P18798） METHANE MONOOXYGENASE HYDROLASE (GAMMA CHAIN) × 2 （P11987） FE (III) ION × 4 ACETIC ACID × 2 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MEMA_METCA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–512； UniProt 15–526 Author chain E； PDBConstruct 1–512； UniProt 15–526

METHANE MONOOXYGENASE HYDROLASE (GAMMA CHAIN)

Methylococcus capsulatus

UniProt P11987

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	METHANE MONOOXYGENASE HYDROLASE (BETA CHAIN) × 2 （P18798） METHANE MONOOXYGENASE HYDROLASE (ALPHA CHAIN) × 2 （P22869） FE (III) ION × 4 ACETIC ACID × 2 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MEMG_METCA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–162； UniProt 3–164 Author chain H； PDBConstruct 1–162； UniProt 3–164

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1mmo
Deposition date deposition_date	1994-02-22
Structure title title	CRYSTAL STRUCTURE OF A BACTERIAL NON-HAEM IRON HYDROXYLASE THAT CATALYSES THE BIOLOGICAL OXIDATION OF METHANE
Keywords keywords	OXIDOREDUCTASE (MONOOXYGENASE); OXIDOREDUCTASE (MONOOXYGENASE)
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1mmo__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1mmo__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

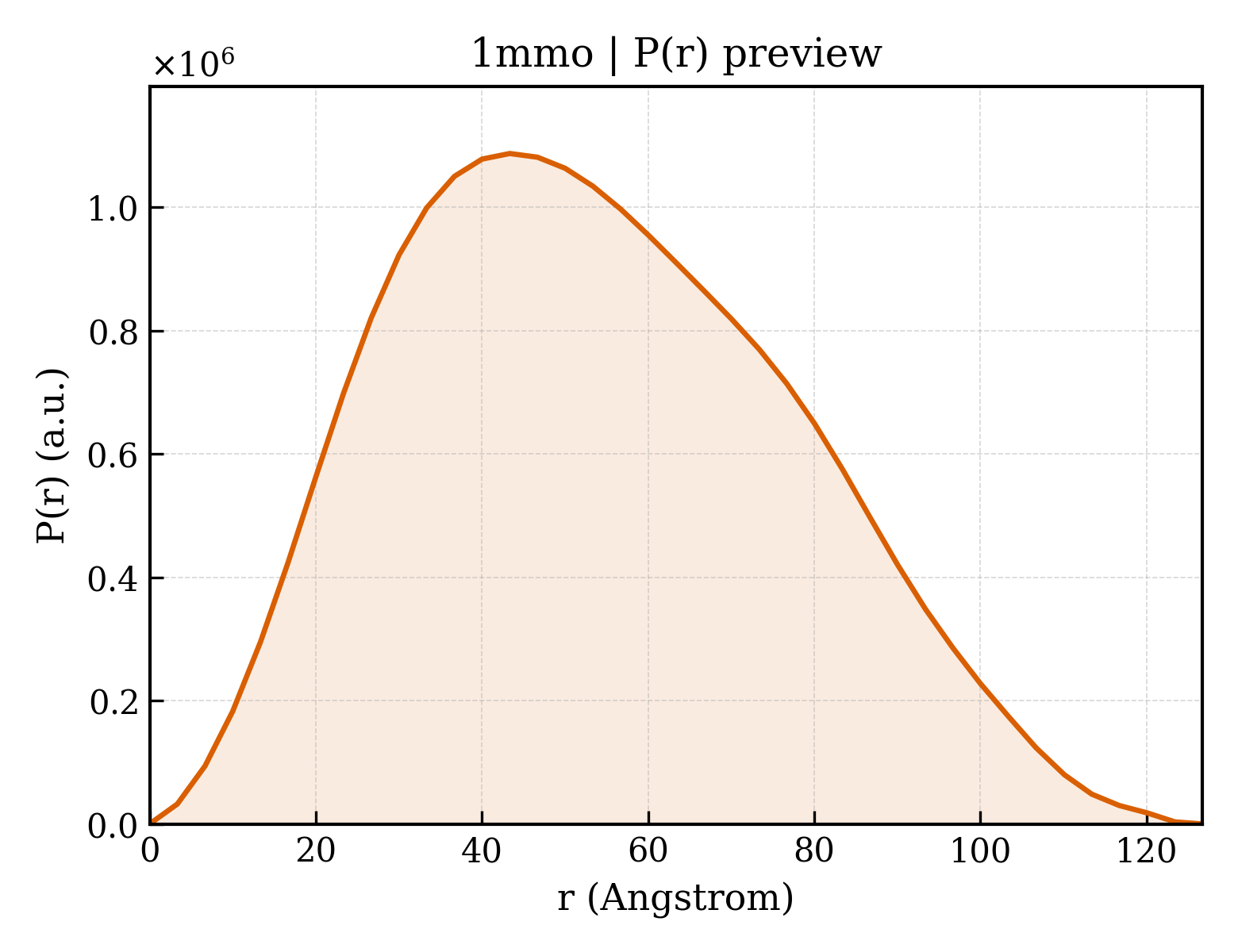

1mmo__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.45 Å
Rg (electron density)	41.07 Å
Total Rg	41.45 Å
Atom count	21282
Residues	2116
Excluded volume	306440 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1mmo__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	METHANE MONOOXYGENASE HYDROLASE (BETA CHAIN)
Molecular weight formula_weight	44452.7 kDa
EC 编号 ec_number	1.14.13.25
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C
Atom count atom_count	23859

ERRRGLTDPEMAAVILKALPEAPLDGNNKMGYFVTPRWKRLTEYEALTVYAQPNADWIAGGLDWGDWTQKFHGGRPSWGNETTELRTVDWFKHRDPLRRWHAPYVKDKAEEWRYTDRFLQGYSADGQIRAMNPTWRTSSCNRYWGAFLFNEYGLFNAHSQGAREALSDVTRVSLAFWGFDKIDIAQMIQLERGFLAKIVPGFDESTAVPKAEWTNGEVYKSARLAVEGLWQEVFDWNESAFSVHAVYDALFGQFVRREFFQRLAPRFGDNLTPFFINQAQTYFQIAKQGVQDLYYNCLGDDPEFSDYNRTVMRNWTGKWLEPTIAALRDFMGLFAKLPAGTTDKEEITASLYRVVDDWIEDYASAIDFKADRDQIVKAVLAGLK

Source Source

Source organism organism	Methylococcus capsulatus
NCBI taxonomy ID ncbi_taxonomy_id	414

Entity 2 Entity 2 polymer

Description description	METHANE MONOOXYGENASE HYDROLASE (ALPHA CHAIN)
Molecular weight formula_weight	59241.5 kDa
EC 编号 ec_number	1.14.13.25
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E

AANRAPTSVNAQEVHRWLQSFNWDFKNNRTKYATKYKMANETKEQFKLIAKEYARMEAVKDERQFGSLQVALTRLNAGVRVHPKWNETMKVVSNFLEVGEYNAIAATGMLWDSAQAAEQKNGYLAQVLDEIRHTHQCAYVNYYFAKNGQDPAGHNDARRTRTIGPLWKGMKRVFSDGFISGDAVECSLNLQLVGEACFTNPLIVAVTEWAAANGDEITPTVFLSIETDELRHMANGYQTVVSIANDPASAKYLNTDLNNAFWTQQKYFTPVLGMLFEYGSKFKVEPWVKTWDRWVYEDWGGIWIGRLGKYGVESPRSLKDAKQDAYWAHHDLYLLAYALWPTGFFRLALPDQEEMEWFEANYPGWYDHYGKIYEEWRARGCEDPSSGFIPLMWFIENNHPIYIDRVSQVPFCPSLAKGASTLRVHEYNGEMHTFSDQWGERMWLAEPERYECQNIFEQYEGRELSEVIAELHGLRSDGKTLIAQPHVRGDKLWTLDDIKRLNCVFKNPVKAF

Source Source

Source organism organism	Methylococcus capsulatus
NCBI taxonomy ID ncbi_taxonomy_id	414

Entity 3 Entity 3 polymer

Description description	METHANE MONOOXYGENASE HYDROLASE (GAMMA CHAIN)
Molecular weight formula_weight	18980.6 kDa
EC 编号 ec_number	1.14.13.25
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H

LGIHSNDTRDAWVNKIAHVNTLEKAAEMLKQFRMDHTTPFRNSYELDNDYLWIEAKLEEKVAVLKARAFNEVDFRHKTAFGEDAKSVLDGTVAKMNAAKDKWEAEKIHIGFRQAYKPPIMPVNYFLDGERQLGTRLMELRNLNYYDTPLEELRKQRGVRVVH

Source Source

Source organism organism	Methylococcus capsulatus
NCBI taxonomy ID ncbi_taxonomy_id	414

Entity 4 Entity 4 non-polymer

Description description	FE (III) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	ACETIC ACID
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	859

▼

6. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1mmob_
Class class	a — All alpha proteins
Fold Fold fold	a.25 — Ferritin-like
Superfamily Superfamily superfamily	a.25.1 — Ferritin-like
Family Family family	a.25.1.2 — Ribonucleotide reductase-like

Domain ID domain_id	d1mmoc_
Class class	a — All alpha proteins
Fold Fold fold	a.25 — Ferritin-like
Superfamily Superfamily superfamily	a.25.1 — Ferritin-like
Family Family family	a.25.1.2 — Ribonucleotide reductase-like

Domain ID domain_id	d1mmod_
Class class	a — All alpha proteins
Fold Fold fold	a.25 — Ferritin-like
Superfamily Superfamily superfamily	a.25.1 — Ferritin-like
Family Family family	a.25.1.2 — Ribonucleotide reductase-like

Domain ID domain_id	d1mmoe_
Class class	a — All alpha proteins
Fold Fold fold	a.25 — Ferritin-like
Superfamily Superfamily superfamily	a.25.1 — Ferritin-like
Family Family family	a.25.1.2 — Ribonucleotide reductase-like

Domain ID domain_id	d1mmog_
Class class	a — All alpha proteins
Fold Fold fold	a.23 — Open three-helical up-and-down bundle
Superfamily Superfamily superfamily	a.23.3 — Methane monooxygenase hydrolase, gamma subunit
Family Family family	a.23.3.1 — Methane monooxygenase hydrolase, gamma subunit

Domain ID domain_id	d1mmoh_
Class class	a — All alpha proteins
Fold Fold fold	a.23 — Open three-helical up-and-down bundle
Superfamily Superfamily superfamily	a.23.3 — Methane monooxygenase hydrolase, gamma subunit
Family Family family	a.23.3.1 — Methane monooxygenase hydrolase, gamma subunit

CATH v4.4 (8 domains)

Domain ID domain_id	1mmoB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	620 — Ribonucleotide Reductase, subunit A
Homologous superfamily homologous superfamily	20 — Ribonucleotide Reductase, subunit A

Domain ID domain_id	1mmoC00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	620 — Ribonucleotide Reductase, subunit A
Homologous superfamily homologous superfamily	20 — Ribonucleotide Reductase, subunit A

Domain ID domain_id	1mmoD00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	620 — Ribonucleotide Reductase, subunit A
Homologous superfamily homologous superfamily	20 — Ribonucleotide Reductase, subunit A

Domain ID domain_id	1mmoE00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	620 — Ribonucleotide Reductase, subunit A
Homologous superfamily homologous superfamily	20 — Ribonucleotide Reductase, subunit A

Domain ID domain_id	1mmoG01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1280 — Monooxygenase
Homologous superfamily homologous superfamily	10 — Methane monooxygenase, gamma chain, domain 1

Domain ID domain_id	1mmoG02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1280 — Monooxygenase
Homologous superfamily homologous superfamily	30 — Methane monooxygenase, gamma chain, domain 2

Domain ID domain_id	1mmoH01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1280 — Monooxygenase
Homologous superfamily homologous superfamily	10 — Methane monooxygenase, gamma chain, domain 1

Domain ID domain_id	1mmoH02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1280 — Monooxygenase
Homologous superfamily homologous superfamily	30 — Methane monooxygenase, gamma chain, domain 2

▶

Unit-cell length a length_a	62.600 Å
Unit-cell length b length_b	110.100 Å
Unit-cell length c length_c	333.500 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	5.000 Å
R factor r_factor	0.1700
R_work r_work	0.1700
R_free r_free	—
