SAXSdb — 1mn0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Aldose 1-epimerase

Lactococcus lactis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	alpha-D-xylopyranose × 2 NICKEL (II) ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9ZB17_9LACT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–339； UniProt 1–339 Author chain B； PDBConstruct 1–339； UniProt 1–339

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1mn0
Deposition date deposition_date	2002-09-04
Structure title title	Crystal structure of galactose mutarotase from lactococcus lactis complexed with D-xylose
Keywords keywords	epimerase, sugar binding, galactosemia, ISOMERASE; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1mn0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1mn0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

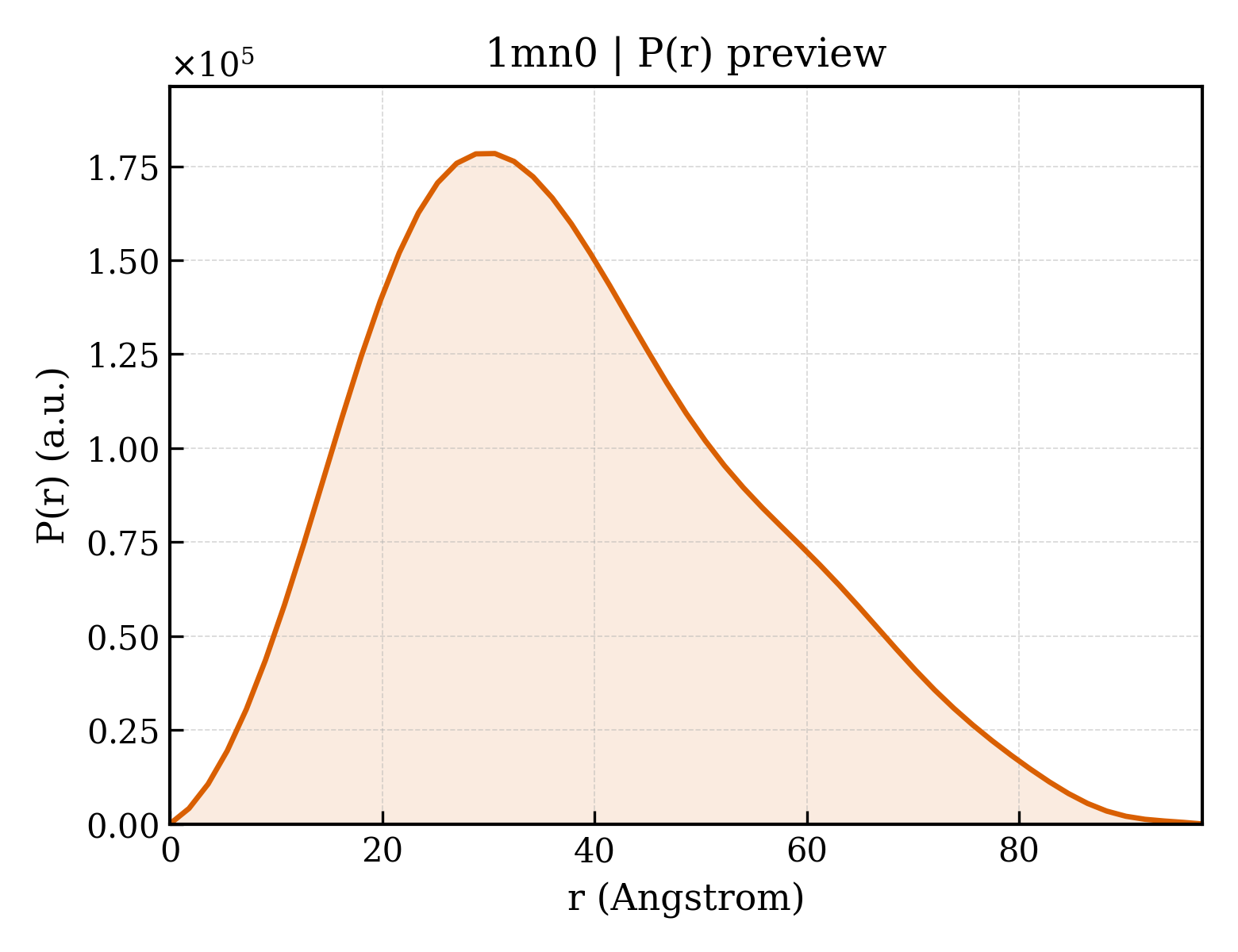

1mn0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.28 Å
Rg (electron density)	28.44 Å
Total Rg	29.13 Å
Atom count	5385
Residues	685
Excluded volume	95066 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1mn0__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Aldose 1-epimerase
Molecular weight formula_weight	38623.0 kDa
EC 编号 ec_number	5.1.3.3
Mutation mutation	E2S
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5841

MSIKIRDFGLGSDLISLTNKAGVTISFTNLGARIVDWQKDGKHLILGFDSAKEYLEKDAYPGATVGPTAGRIKDGLVKISGKDYILNQNEGPQTLHGGEESIHTKLWTYEVTDLGAEVQVKFSLVSNDGTNGYPGKIEMSVTHSFDDDNKWKIHYEAISDKDTVFNPTGHVYFNLNGDASESVENHGLRLAASRFVPLKDQTEIVRGDIVDIKNTDLDFRQEKQLSNAFNSNMEQVQLVKGIDHPFLLDQLGLDKEQARLTLDDTSISVFTDQPSIVIFTANFGDLGTLYHEKKQVHHGGITFECQVSPGSEQIPELGDISLKAGEKYQATTIYSLHTKLEHHHHHH

Source Source

Source organism organism	Lactococcus lactis
NCBI taxonomy ID ncbi_taxonomy_id	1358
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	alpha-D-xylopyranose
Molecular weight formula_weight	150.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	NICKEL (II) ION
Molecular weight formula_weight	58.7 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	431

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1mn0a1
Class class	b — All beta proteins
Fold Fold fold	b.30 — Supersandwich
Superfamily Superfamily superfamily	b.30.5 — Galactose mutarotase-like
Family Family family	b.30.5.4 — Aldose 1-epimerase (mutarotase)

Domain ID domain_id	d1mn0a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1mn0b1
Class class	b — All beta proteins
Fold Fold fold	b.30 — Supersandwich
Superfamily Superfamily superfamily	b.30.5 — Galactose mutarotase-like
Family Family family	b.30.5.4 — Aldose 1-epimerase (mutarotase)

Domain ID domain_id	d1mn0b2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	1mn0A00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	98 — Beta-galactosidase; Chain A, domain 5
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1mn0B00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	98 — Beta-galactosidase; Chain A, domain 5
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	45.100 Å
Unit-cell length b length_b	76.400 Å
Unit-cell length c length_c	210.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1680
R_work r_work	0.1650
R_free r_free	0.2230

Crystal structure of galactose mutarotase from lactococcus lactis complexed with D-xylose
