1mok

NADPH DEPENDENT 2-KETOPROPYL COENZYME M OXIDOREDUCTASE/CARBOXYLASE

Method: X-RAY DIFFRACTION D_max: 192.9 Å Quality: REASONABLE

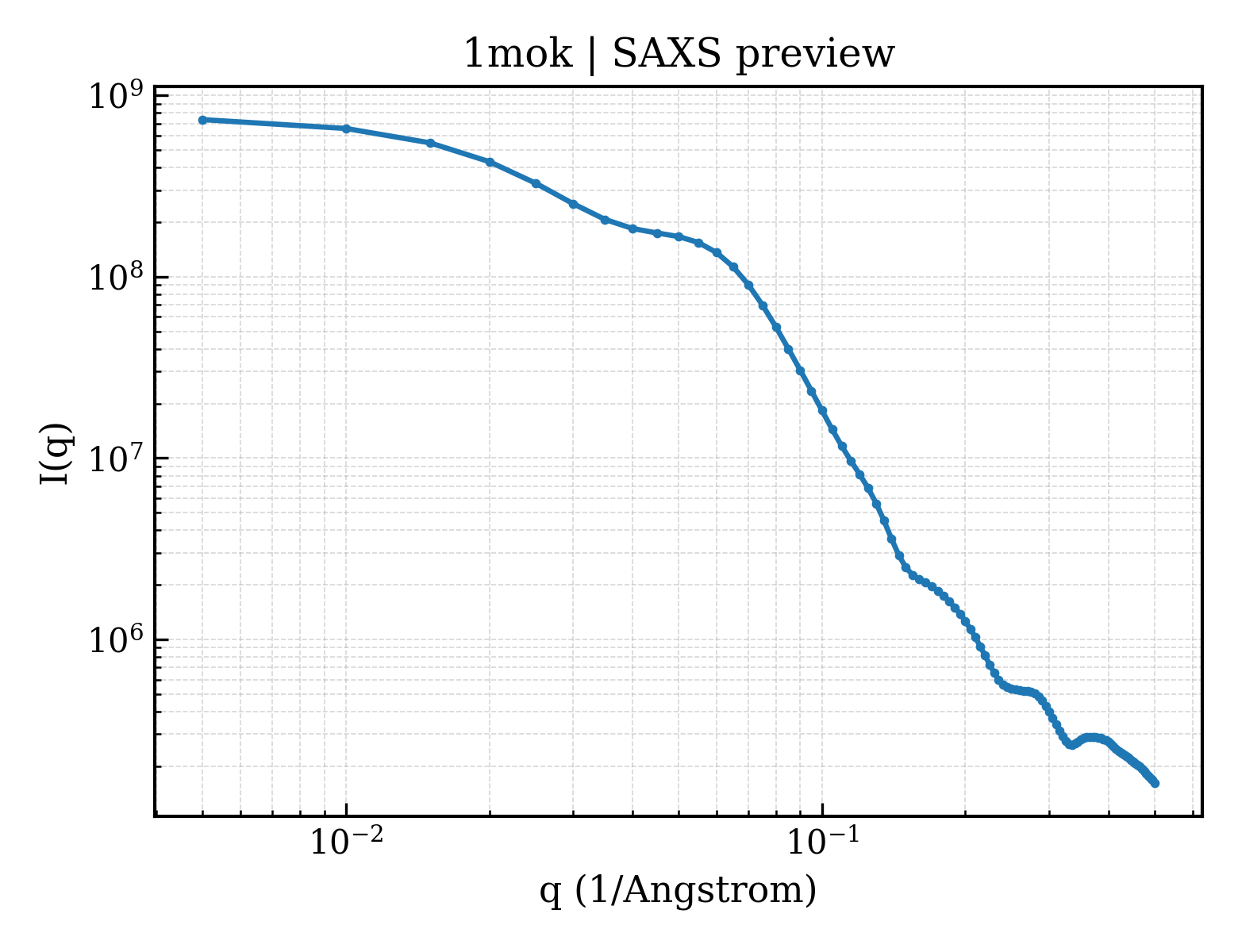

SAXS 散射曲线 SAXS Profile

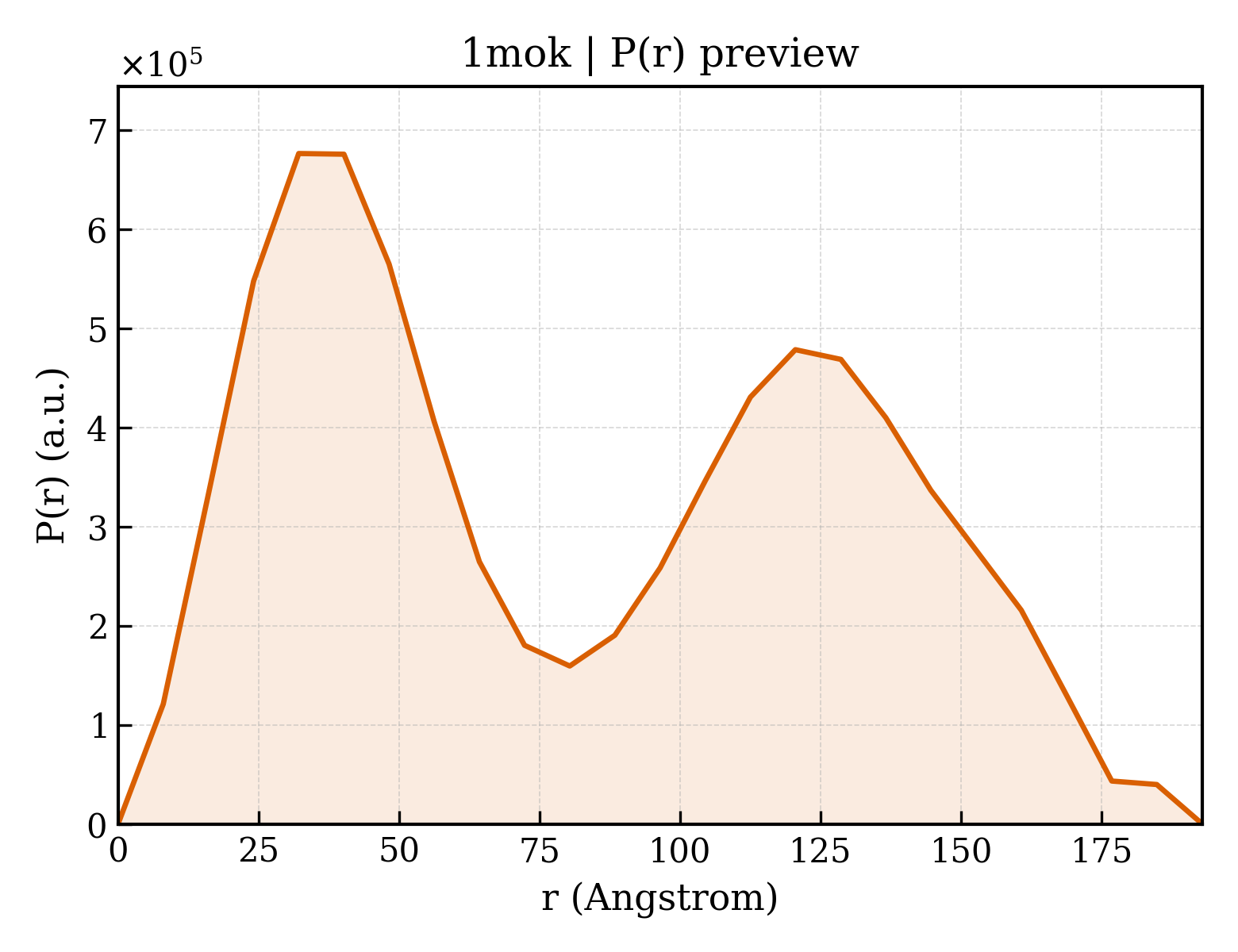

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1mok
沉积日期 deposition_date	2002-09-09
结构标题 title	NADPH DEPENDENT 2-KETOPROPYL COENZYME M OXIDOREDUCTASE/CARBOXYLASE
关键词 keywords	Nucleotide binding motifs, Nucleotide binding domain, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	66.53 Å
回转半径 Rg (电子) rg_electron	67.42 Å
零角强度 I(0) i0	762869000.00
分子量 molecular_weight	231960.0 kDa
排除体积 excluded_volume	289260 Å³
包络体积 envelope_volume	424600 Å³
水化壳体积 shell_volume	51243 Å³
包络直径 envelope_diameter	203.6 Å
壳层 Rg shell_rg	73.77 Å
包络 Rg envelope_rg	63.81 Å
形状 Rg shape_rg	67.40 Å
总 Rg total_rg	67.57 Å
总原子数 total_atoms	16304
残基数 n_residues	2088
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	192.9 Å
Rg (实空间) rg_real	67.48 Å
Rg 误差 (实空间) rg_real_error	2.61 Å
I(0) (实空间) i0_real	7.6290e+08
I(0) 误差 (实空间) i0_real_error	1.7870e+07
Rg (倒空间) rg_reciprocal	65.50 Å
I(0) (倒空间) i0_reciprocal	760000000.0000
解质量估计 total_estimate	0.5713
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	32.1 Å
偏度 Skewness skewness	0.197
峰度 Kurtosis kurtosis	-1.325
角度范围 angular_range	— – 0.1200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	24450000.0000
实空间数据点数 n_real_points	25
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.064; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.231; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d1moka1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

结构域编号 domain_id	d1moka2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

结构域编号 domain_id	d1moka3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.87 — CO dehydrogenase flavoprotein C-domain-like
超家族 Superfamily superfamily	d.87.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain
家族 Family family	d.87.1.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain

结构域编号 domain_id	d1mokb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

结构域编号 domain_id	d1mokb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

结构域编号 domain_id	d1mokb3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.87 — CO dehydrogenase flavoprotein C-domain-like
超家族 Superfamily superfamily	d.87.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain
家族 Family family	d.87.1.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain

结构域编号 domain_id	d1mokc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

结构域编号 domain_id	d1mokc2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

结构域编号 domain_id	d1mokc3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.87 — CO dehydrogenase flavoprotein C-domain-like
超家族 Superfamily superfamily	d.87.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain
家族 Family family	d.87.1.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain

结构域编号 domain_id	d1mokd1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

结构域编号 domain_id	d1mokd2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

结构域编号 domain_id	d1mokd3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.87 — CO dehydrogenase flavoprotein C-domain-like
超家族 Superfamily superfamily	d.87.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain
家族 Family family	d.87.1.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain

CATH v4.4 (12 domains)

结构域编号 domain_id	1mokA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	1mokA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	1mokA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

结构域编号 domain_id	1mokB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	1mokB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	1mokB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

结构域编号 domain_id	1mokC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	1mokC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	1mokC03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

结构域编号 domain_id	1mokD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	1mokD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	1mokD03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	65.600 Å
晶胞边长 b length_b	87.500 Å
晶胞边长 c length_c	100.700 Å
晶胞夹角 α angle_alpha	72.00 °
晶胞夹角 β angle_beta	73.40 °
晶胞夹角 γ angle_gamma	69.81 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	19.990 Å
R 因子 r_factor	0.2380
R_work r_work	0.2250
R_free r_free	0.2770

描述 description	orf3
分子量 formula_weight	57414.3 kDa
EC 编号 ec_number	1.8.1.5
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	16304

NADPH DEPENDENT 2-KETOPROPYL COENZYME M OXIDOREDUCTASE/CARBOXYLASE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

衍射实验 Diffraction

5. 实体与聚合体信息 (2)

Entity 1 polymer

聚合体 Polymer

Entity 2 non-polymer

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)

描述 description	FLAVIN-ADENINE DINUCLEOTIDE
分子量 formula_weight	785.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4
