SAXSdb — 1mp5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Y177F VARIANT OF S. ENTERICA RmlA BOUND TO UDP-GLUCOSE

Salmonella enterica

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	URIDINE-5'-DIPHOSPHATE-GLUCOSE × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9F7G8_9ENTR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–292； UniProt 1–292 Author chain B； PDBConstruct 1–292； UniProt 1–292 Author chain C； PDBConstruct 1–292； UniProt 1–292 Author chain D； PDBConstruct 1–292； UniProt 1–292

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1mp5
Deposition date deposition_date	2002-09-11
Structure title title	Y177F VARIANT OF S. ENTERICA RmlA
Keywords keywords	Transferase; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1mp5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1mp5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

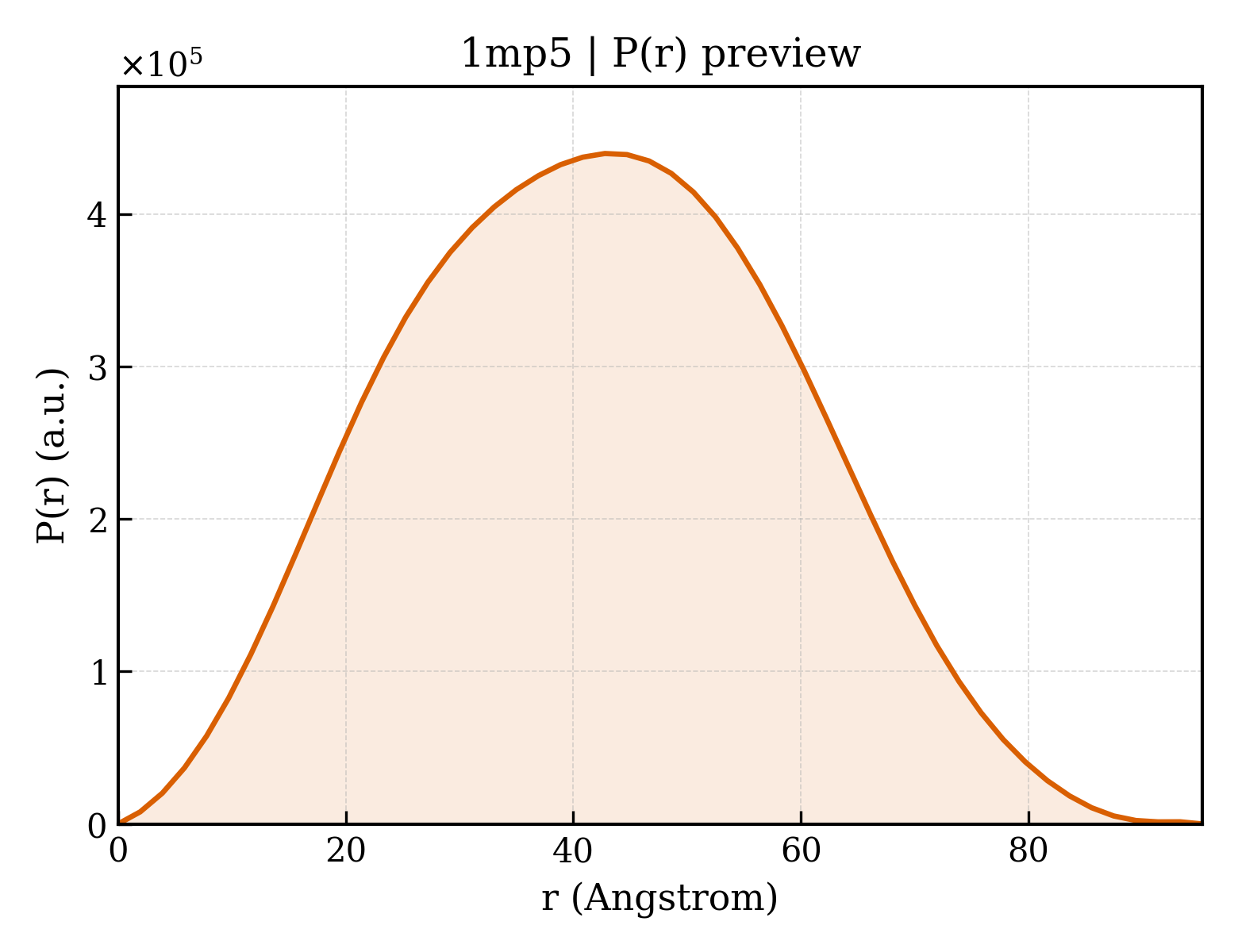

1mp5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.33 Å
Rg (electron density)	31.11 Å
Total Rg	31.89 Å
Atom count	9185
Residues	1156
Excluded volume	163880 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1mp5__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1mp5a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
Superfamily Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
Family Family family	c.68.1.6 — glucose-1-phosphate thymidylyltransferase

Domain ID domain_id	d1mp5b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
Superfamily Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
Family Family family	c.68.1.6 — glucose-1-phosphate thymidylyltransferase

Domain ID domain_id	d1mp5c_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
Superfamily Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
Family Family family	c.68.1.6 — glucose-1-phosphate thymidylyltransferase

Domain ID domain_id	d1mp5d_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
Superfamily Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
Family Family family	c.68.1.6 — glucose-1-phosphate thymidylyltransferase

CATH v4.4 (4 domains)

Domain ID domain_id	1mp5A00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	1mp5B00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	1mp5C00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	1mp5D00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

▶

Unit-cell length a length_a	91.700 Å
Unit-cell length b length_b	111.220 Å
Unit-cell length c length_c	131.150 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.750 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	—
R_work r_work	0.2300
R_free r_free	0.2900

Description description	Y177F VARIANT OF S. ENTERICA RmlA BOUND TO UDP-GLUCOSE
Molecular weight formula_weight	32411.1 kDa
EC 编号 ec_number	2.7.7.24
Mutation mutation	Y177F
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	9185

Y177F VARIANT OF S. ENTERICA RmlA

1. Protein Identity and Related Structures Protein Identity & Related Structures

Y177F VARIANT OF S. ENTERICA RmlA BOUND TO UDP-GLUCOSE

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1mp5__assembly_1__model_1

1mp5__assembly_1__model_1 | I(q)

1mp5__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Source organism organism	Salmonella enterica
NCBI taxonomy ID ncbi_taxonomy_id	28901
Host organism host_organism	Escherichia coli

Description description	URIDINE-5'-DIPHOSPHATE-GLUCOSE
Molecular weight formula_weight	566.3 kDa
Source method src_method	syn
Copy count entity_count	4
