SAXSdb — 1mrz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Riboflavin kinase/FMN adenylyltransferase

Thermotoga maritima

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CITRIC ACID × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9WZW1_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–293； UniProt 1–293 Author chain B； PDBConstruct 1–293； UniProt 1–293

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1mrz
Deposition date deposition_date	2002-09-19
Structure title title	Crystal structure of a flavin binding protein from Thermotoga Maritima, TM379
Keywords keywords	;Rossmann fold, flavin binding domain, 6-stranded beta barrel, nucleotide binding domain, Structural Genomics, BSGC structure funded by NIH, Protein Structure Initiative, PSI, Berkeley Structural Genomics Center, TRANSFERASE ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1mrz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1mrz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

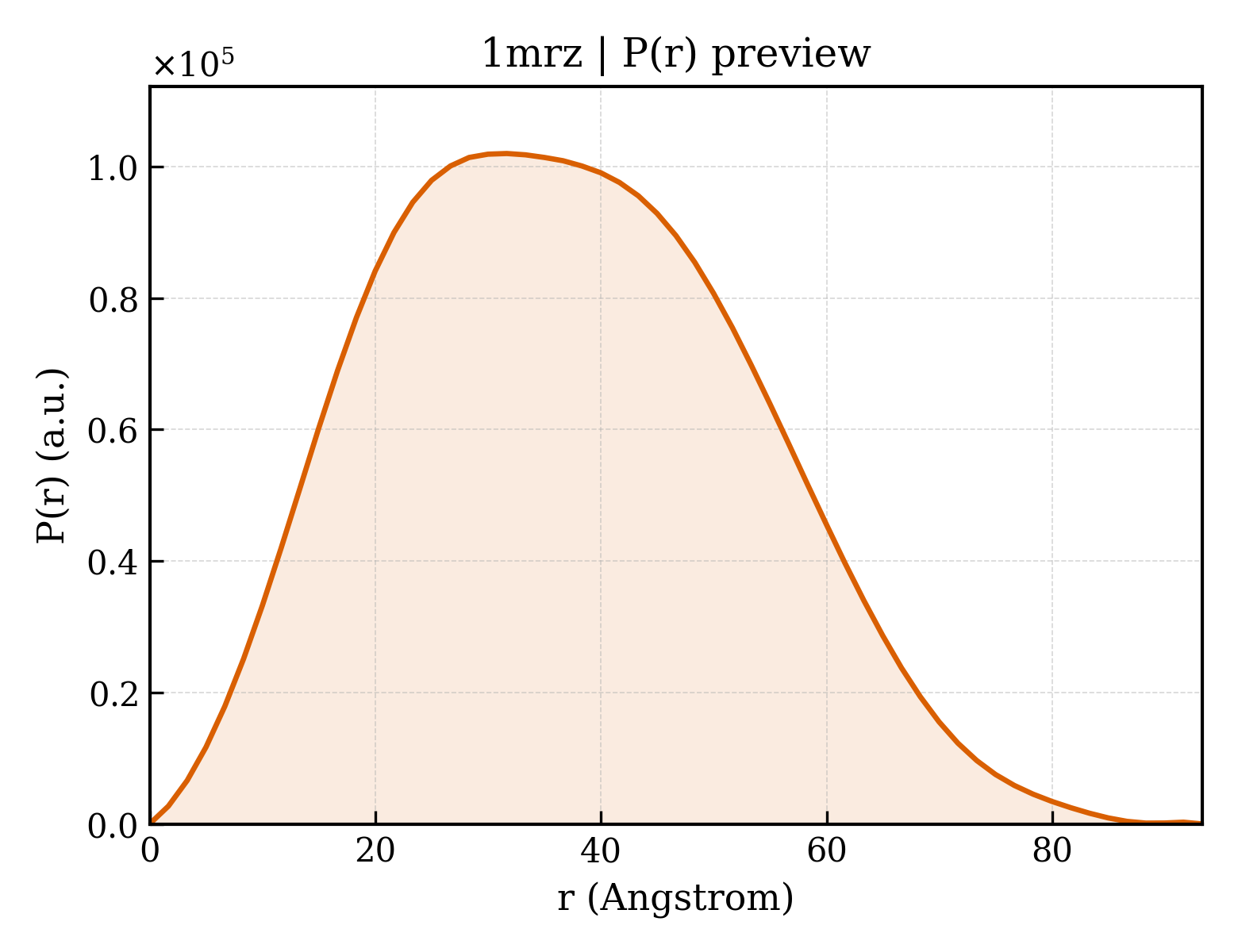

1mrz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.49 Å
Rg (electron density)	27.60 Å
Total Rg	28.39 Å
Atom count	4372
Residues	536
Excluded volume	78612 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1mrz__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Riboflavin kinase/FMN adenylyltransferase
Molecular weight formula_weight	33665.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4814

MVVSIGVFDGVHIGHQKVLRTMKEIAFFRKDDSLIYTISYPPEYFLPDFPGLLMTVESRVEMLSRYARTVVLDFFRIKDLTPEGFVERYLSGVSAVVVGRDFRFGKNASGNASFLRKKGVEVYEIEDVVVQGKRVSSSLIRNLVQEGRVEEIPAYLGRYFEIEGIVHKDREFGRKLGFPTANIDRGNEKLVDLKRGVYLVRVHLPDGKKKFGVMNVGFRPTVGDARNVKYEVYILDFEGDLYGQRLKLEVLKFMRDEKKFDSIEELKAAIDQDVKSARNMIDDIINSKFEKEG

Source Source

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	2336
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CITRIC ACID
Molecular weight formula_weight	192.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	442

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1mrza1
Class class	b — All beta proteins
Fold Fold fold	b.43 — Reductase/isomerase/elongation factor common domain
Superfamily Superfamily superfamily	b.43.5 — Riboflavin kinase-like
Family Family family	b.43.5.1 — ATP-dependent riboflavin kinase-like

Domain ID domain_id	d1mrza2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.3 — Adenylyltransferase

Domain ID domain_id	d1mrzb1
Class class	b — All beta proteins
Fold Fold fold	b.43 — Reductase/isomerase/elongation factor common domain
Superfamily Superfamily superfamily	b.43.5 — Riboflavin kinase-like
Family Family family	b.43.5.1 — ATP-dependent riboflavin kinase-like

Domain ID domain_id	d1mrzb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.3 — Adenylyltransferase

CATH v4.4 (4 domains)

Domain ID domain_id	1mrzA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1mrzA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	30 — Riboflavin kinase-like

Domain ID domain_id	1mrzB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1mrzB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	30 — Riboflavin kinase-like

▶

Unit-cell length a length_a	67.211 Å
Unit-cell length b length_b	83.095 Å
Unit-cell length c length_c	67.851 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	116.93 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2170
R_work r_work	0.2170
R_free r_free	0.2335
