1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ms0
沉积日期 deposition_date	2002-09-19
结构标题 title	Monoclinic form of Trypanosoma cruzi trans-sialidase, in complex with 3-deoxy-2,3-dehydro-N-acetylneuraminic acid (DANA)and lactose
关键词 keywords	transglycosylation, beta-propeller, protein-carbohydrate interactions, sialidase, Hydrolase; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.37 Å
回转半径 Rg (电子) rg_electron	39.32 Å
零角强度 I(0) i0	291402000.00
分子量 molecular_weight	138260.0 kDa
排除体积 excluded_volume	172890 Å³
包络体积 envelope_volume	228530 Å³
水化壳体积 shell_volume	50368 Å³
包络直径 envelope_diameter	148.5 Å
壳层 Rg shell_rg	43.02 Å
包络 Rg envelope_rg	38.97 Å
形状 Rg shape_rg	39.30 Å
总 Rg total_rg	39.60 Å
总原子数 total_atoms	9756
残基数 n_residues	1246
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	136.9 Å
Rg (实空间) rg_real	39.63 Å
Rg 误差 (实空间) rg_real_error	1.45 Å
I(0) (实空间) i0_real	2.9140e+08
I(0) 误差 (实空间) i0_real_error	5.5080e+06
Rg (倒空间) rg_reciprocal	39.47 Å
I(0) (倒空间) i0_reciprocal	291400000.0000
解质量估计 total_estimate	0.8445
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	37.6 Å
偏度 Skewness skewness	0.489
峰度 Kurtosis kurtosis	-0.146
角度范围 angular_range	— – 0.2000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	143600000.0000
实空间数据点数 n_real_points	41
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.784; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.895; Smooth: 0.728

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	trans-sialidase
分子量 formula_weight	71389.3 kDa
EC 编号 ec_number	3.2.1.18
突变 mutation	N58F,S495K,V496G,E520K,D593G,I597D,H599R
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	10372

MGGSHHHHHHGMASLAPGSSRVELFKRQSSKVPFEKDGKVTERVVHSFRLPALVNVDGVMVAIADARYETSFDNSLIDTVAKYSVDDGETWETQIAIKNSRASSVSRVVDPTVIVKGNKLYVLVGSYNSSRSYWTSHGDARDWDILLAVGEVTKSTAGGKITASIKWGSPVSLKEFFPAEMEGMHTNQFLGGAGVAIVASNGNLVYPVQVTNKKKQVFSKIFYSEDEGKTWKFGKGRSAFGCSEPVALEWEGKLIINTRVDYRRRLVYESSDMGNTWLEAVGTLSRVWGPSPKSNQPGSQSSFTAVTIEGMRVMLFTHPLNFKGRWLRDRLNLWLTDNQRIYNVGQVSIGDENSAYSSVLYKDDKLYCLHEINSNEVYSLVFARLVGELRIIKSVLQSWKNWDSHLSSICTPADPAASSSERGCGPAVTTVGLVGFLSHSATKTEWEDAYRCVNASTANAERVPNGLKFAGVGGGALWPVSQQGQNQRYHFANHAFTLVASVTIHEVPKGASPLLGASLDSSGGKKLLGLSYDKRHQWQPIYGSTPVTPTGSWEMGKRYHVVLTMANKIGSVYIDGEPLEGSGQTVVPDERTPDISHFYVGGYKRSGMPTDSRVTVNNVLLYNRQLNAEEIRTLFLSQDLIGTEAHMD

来源 Source

来源生物 organism	Trypanosoma cruzi
NCBI 分类编号 ncbi_taxonomy_id	5693
宿主生物 host_organism	Escherichia coli

Entity 2 branched

描述 description	beta-D-galactopyranose-(1-4)-beta-D-glucopyranose
分子量 formula_weight	342.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	2-DEOXY-2,3-DEHYDRO-N-ACETYL-NEURAMINIC ACID
分子量 formula_weight	291.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	616

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1ms0a1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.29 — Concanavalin A-like lectins/glucanases
超家族 Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
家族 Family family	b.29.1.15 — Trypanosoma sialidase, C-terminal domain

结构域编号 domain_id	d1ms0a2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.68 — 6-bladed beta-propeller
超家族 Superfamily superfamily	b.68.1 — Sialidases
家族 Family family	b.68.1.1 — Sialidases (neuraminidases)

结构域编号 domain_id	d1ms0b1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.29 — Concanavalin A-like lectins/glucanases
超家族 Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
家族 Family family	b.29.1.15 — Trypanosoma sialidase, C-terminal domain

结构域编号 domain_id	d1ms0b2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.68 — 6-bladed beta-propeller
超家族 Superfamily superfamily	b.68.1 — Sialidases
家族 Family family	b.68.1.1 — Sialidases (neuraminidases)

CATH v4.4 (4 domains)

结构域编号 domain_id	1ms0A01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	120 — 6 Propeller
拓扑 Topology topology	10 — Neuraminidase
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1ms0A02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	200 —

结构域编号 domain_id	1ms0B01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	120 — 6 Propeller
拓扑 Topology topology	10 — Neuraminidase
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1ms0B02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	200 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	65.222 Å
晶胞边长 b length_b	133.374 Å
晶胞边长 c length_c	90.606 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	91.41 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	15.000 Å
R 因子 r_factor	0.1939
R_work r_work	0.1908
R_free r_free	0.2532

fit	/app/data/saxs_computation/ms/1ms0/1ms0.fit
pddf	/app/data/pr_computation/ms/1ms0/1ms0.pr.out
profile	/app/data/saxs_computation/ms/1ms0/1ms0.dat

Monoclinic form of Trypanosoma cruzi trans-sialidase, in complex with 3-deoxy-2,3-dehydro-N-acetylneuraminic acid (DANA)and lactose

SAXS 散射曲线 SAXS Profile

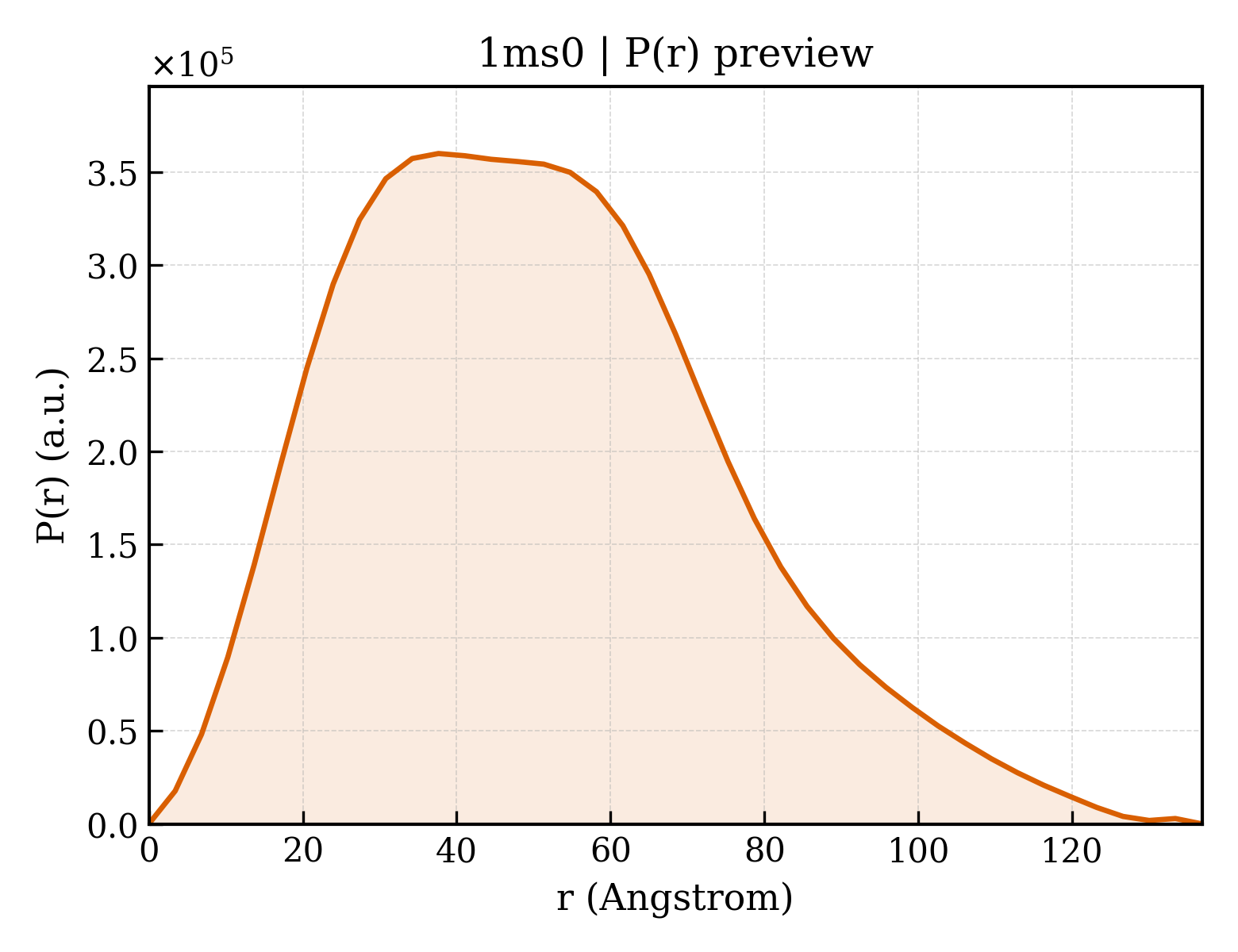

P(r) 距离分布 P(r) Distribution
