SAXSdb — 1msa

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AGGLUTININ

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	methyl alpha-D-mannopyranoside × 12 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LEC_GALNI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–109； UniProt 24–132 Author chain B； PDBConstruct 1–109； UniProt 24–132 Author chain C； PDBConstruct 1–109； UniProt 24–132 Author chain D； PDBConstruct 1–109； UniProt 24–132

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1msa
Deposition date deposition_date	1995-03-06
Structure title title	MANNOSE-SPECIFIC AGGLUTININ (LECTIN) FROM SNOWDROP (GALANTHUS NIVALIS) BULBS COMPLEXED WITH METHYL-ALPHA-D-MANNOSIDE
Keywords keywords	METHYL-ALPHA-D-MANNOSIDE, LECTIN (AGGLUTININ); LECTIN (AGGLUTININ)
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1msa__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1msa__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

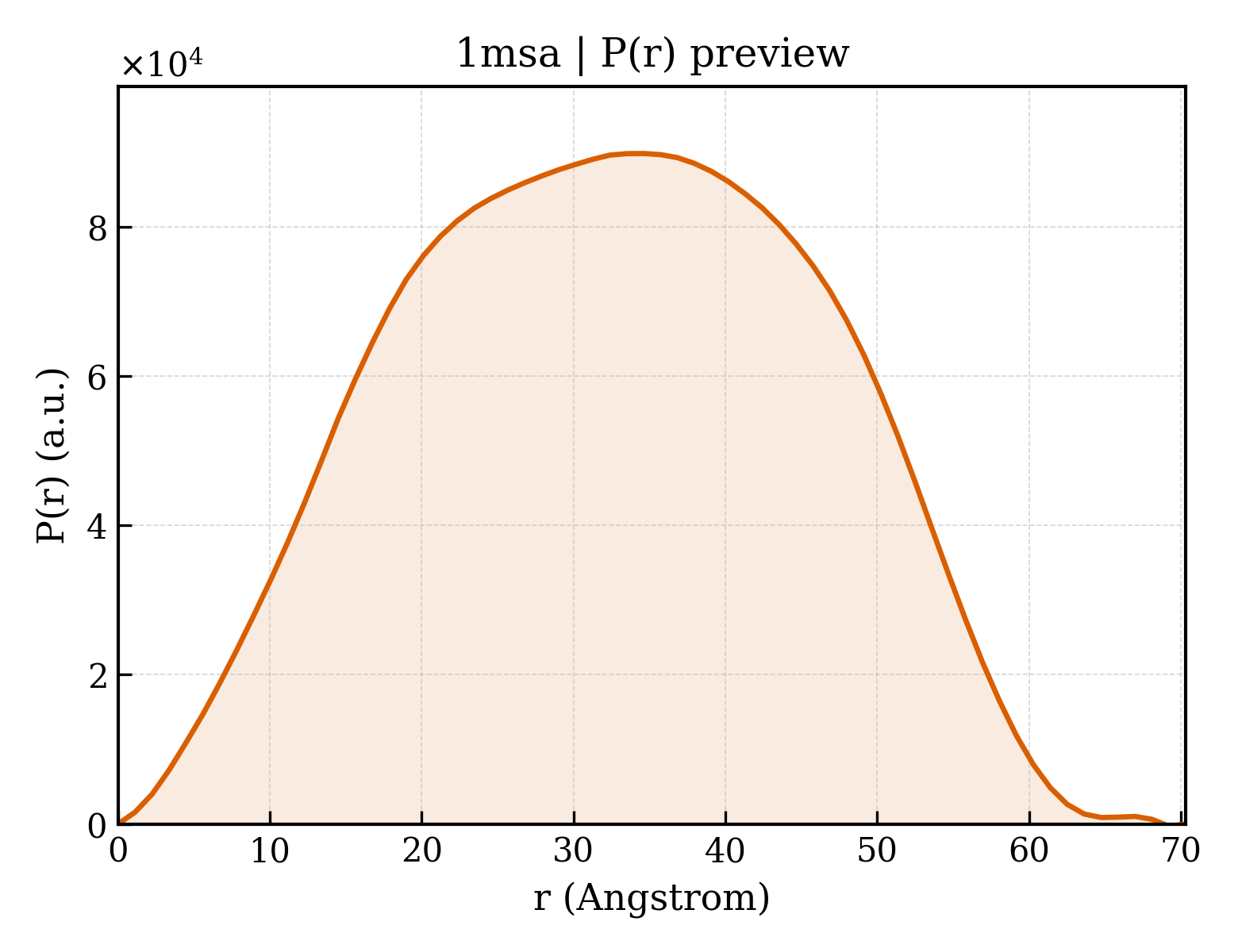

1msa__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.94 Å
Rg (electron density)	23.63 Å
Total Rg	24.54 Å
Atom count	3548
Residues	436
Excluded volume	62534 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1msa__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1msaa_
Class class	b — All beta proteins
Fold Fold fold	b.78 — beta-Prism II
Superfamily Superfamily superfamily	b.78.1 — alpha-D-mannose-specific plant lectins
Family Family family	b.78.1.1 — alpha-D-mannose-specific plant lectins

Domain ID domain_id	d1msab_
Class class	b — All beta proteins
Fold Fold fold	b.78 — beta-Prism II
Superfamily Superfamily superfamily	b.78.1 — alpha-D-mannose-specific plant lectins
Family Family family	b.78.1.1 — alpha-D-mannose-specific plant lectins

Domain ID domain_id	d1msac_
Class class	b — All beta proteins
Fold Fold fold	b.78 — beta-Prism II
Superfamily Superfamily superfamily	b.78.1 — alpha-D-mannose-specific plant lectins
Family Family family	b.78.1.1 — alpha-D-mannose-specific plant lectins

Domain ID domain_id	d1msad_
Class class	b — All beta proteins
Fold Fold fold	b.78 — beta-Prism II
Superfamily Superfamily superfamily	b.78.1 — alpha-D-mannose-specific plant lectins
Family Family family	b.78.1.1 — alpha-D-mannose-specific plant lectins

CATH v4.4 (4 domains)

Domain ID domain_id	1msaA00
Class class	2 — Mainly Beta
Architecture architecture	90 — Orthogonal Prism
Topology topology	10 — Agglutinin, subunit A
Homologous superfamily homologous superfamily	10 — Bulb-type lectin domain

Domain ID domain_id	1msaB00
Class class	2 — Mainly Beta
Architecture architecture	90 — Orthogonal Prism
Topology topology	10 — Agglutinin, subunit A
Homologous superfamily homologous superfamily	10 — Bulb-type lectin domain

Domain ID domain_id	1msaC00
Class class	2 — Mainly Beta
Architecture architecture	90 — Orthogonal Prism
Topology topology	10 — Agglutinin, subunit A
Homologous superfamily homologous superfamily	10 — Bulb-type lectin domain

Domain ID domain_id	1msaD00
Class class	2 — Mainly Beta
Architecture architecture	90 — Orthogonal Prism
Topology topology	10 — Agglutinin, subunit A
Homologous superfamily homologous superfamily	10 — Bulb-type lectin domain

▶

Unit-cell length a length_a	138.820 Å
Unit-cell length b length_b	64.110 Å
Unit-cell length c length_c	62.080 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.290 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.1770
R_work r_work	0.1770
R_free r_free	0.2400

Description description	AGGLUTININ
Molecular weight formula_weight	12061.3 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	3875

MANNOSE-SPECIFIC AGGLUTININ (LECTIN) FROM SNOWDROP (GALANTHUS NIVALIS) BULBS COMPLEXED WITH METHYL-ALPHA-D-MANNOSIDE

1. Protein Identity and Related Structures Protein Identity & Related Structures

AGGLUTININ

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1msa__assembly_1__model_1

1msa__assembly_1__model_1 | I(q)

1msa__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (3)

Description description	methyl alpha-D-mannopyranoside
Molecular weight formula_weight	194.2 kDa
Source method src_method	man
Copy count entity_count	12

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	327
