1mt1

The Crystal Structure of Pyruvoyl-dependent Arginine Decarboxylase from Methanococcus jannaschii

Method: X-RAY DIFFRACTION D_max: 113.2 Å Quality: REASONABLE

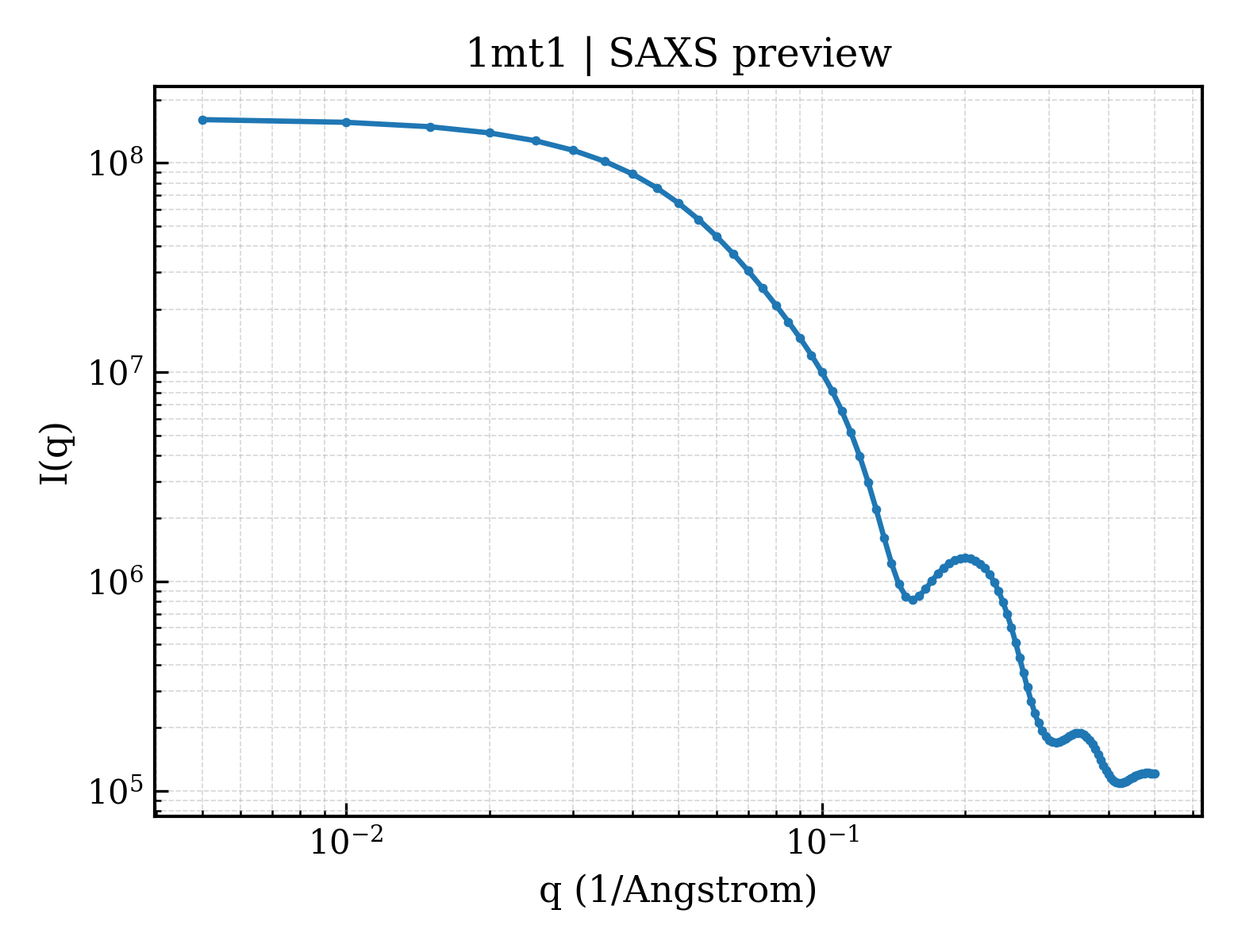

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1mt1
沉积日期 deposition_date	2002-09-20
结构标题 title	The Crystal Structure of Pyruvoyl-dependent Arginine Decarboxylase from Methanococcus jannaschii
关键词 keywords	pyruvoyl group, pyruvate, agmatine, arginine, LYASE; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	34.08 Å
回转半径 Rg (电子) rg_electron	33.60 Å
零角强度 I(0) i0	162586000.00
分子量 molecular_weight	104610.0 kDa
排除体积 excluded_volume	131560 Å³
包络体积 envelope_volume	160690 Å³
水化壳体积 shell_volume	40772 Å³
包络直径 envelope_diameter	117.9 Å
壳层 Rg shell_rg	39.28 Å
包络 Rg envelope_rg	33.42 Å
形状 Rg shape_rg	33.59 Å
总 Rg total_rg	34.07 Å
总原子数 total_atoms	7237
残基数 n_residues	921
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	113.2 Å
Rg (实空间) rg_real	34.22 Å
Rg 误差 (实空间) rg_real_error	0.93 Å
I(0) (实空间) i0_real	1.6260e+08
I(0) 误差 (实空间) i0_real_error	2.6810e+06
Rg (倒空间) rg_reciprocal	34.13 Å
I(0) (倒空间) i0_reciprocal	162600000.0000
解质量估计 total_estimate	0.6271
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	34.5 Å
偏度 Skewness skewness	0.457
峰度 Kurtosis kurtosis	-0.437
角度范围 angular_range	— – 0.2300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	16010000.0000
实空间数据点数 n_real_points	47
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.748; Stabil: 1.000; Sysdev: 0.038; Positv: 1.000; Valcen: 0.974; Smooth: 0.816

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	PYRUVOYL-DEPENDENT ARGININE DECARBOXYLASE BETA CHAIN
分子量 formula_weight	5475.0 kDa
EC 编号 ec_number	4.1.1.19
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,G,I,K
原子数 atom_count	7968

MNAEINPLHAYFKLPNTVSLVAGSSEGETPLNAFDGALLNAGIGNVNLIRIS

来源 Source

来源生物 organism	Methanocaldococcus jannaschii
NCBI 分类编号 ncbi_taxonomy_id	2190
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	PYRUVOYL-DEPENDENT ARGININE DECARBOXYLASE ALPHA CHAIN
分子量 formula_weight	12531.9 kDa
EC 编号 ec_number	4.1.1.19
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F,H,J,L

XIMPPEAEIVPLPKLPMGALVPTAYGYIISDVPGETISAAISVAIPKDKSLCGLIMEYEGKCSKKEAEKTVREMAKIGFEMRGWELDRIESIAVEHTVEKLGCAFAAAALWYK

来源 Source

来源生物 organism	Methanocaldococcus jannaschii
NCBI 分类编号 ncbi_taxonomy_id	2190
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	AGMATINE
分子量 formula_weight	130.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	454

▼

6. 折叠分类 (SCOP + CATH) 18 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d1mt1.1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.155 — Pyruvoyl-dependent histidine and arginine decarboxylases
超家族 Superfamily superfamily	d.155.1 — Pyruvoyl-dependent histidine and arginine decarboxylases
家族 Family family	d.155.1.2 — Arginine decarboxylase

结构域编号 domain_id	d1mt1.2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.155 — Pyruvoyl-dependent histidine and arginine decarboxylases
超家族 Superfamily superfamily	d.155.1 — Pyruvoyl-dependent histidine and arginine decarboxylases
家族 Family family	d.155.1.2 — Arginine decarboxylase

结构域编号 domain_id	d1mt1.3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.155 — Pyruvoyl-dependent histidine and arginine decarboxylases
超家族 Superfamily superfamily	d.155.1 — Pyruvoyl-dependent histidine and arginine decarboxylases
家族 Family family	d.155.1.2 — Arginine decarboxylase

结构域编号 domain_id	d1mt1.4
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.155 — Pyruvoyl-dependent histidine and arginine decarboxylases
超家族 Superfamily superfamily	d.155.1 — Pyruvoyl-dependent histidine and arginine decarboxylases
家族 Family family	d.155.1.2 — Arginine decarboxylase

结构域编号 domain_id	d1mt1.5
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.155 — Pyruvoyl-dependent histidine and arginine decarboxylases
超家族 Superfamily superfamily	d.155.1 — Pyruvoyl-dependent histidine and arginine decarboxylases
家族 Family family	d.155.1.2 — Arginine decarboxylase

结构域编号 domain_id	d1mt1.6
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.155 — Pyruvoyl-dependent histidine and arginine decarboxylases
超家族 Superfamily superfamily	d.155.1 — Pyruvoyl-dependent histidine and arginine decarboxylases
家族 Family family	d.155.1.2 — Arginine decarboxylase

CATH v4.4 (12 domains)

结构域编号 domain_id	1mt1A00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
同源超家族 H-superfamily homologous superfamily	30 —

结构域编号 domain_id	1mt1B00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	20 — Pyruvoyl-Dependent Histidine Decarboxylase; Chain B
同源超家族 H-superfamily homologous superfamily	10 — Pyruvoyl-Dependent Histidine Decarboxylase, subunit B

结构域编号 domain_id	1mt1C00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
同源超家族 H-superfamily homologous superfamily	30 —

结构域编号 domain_id	1mt1D00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	20 — Pyruvoyl-Dependent Histidine Decarboxylase; Chain B
同源超家族 H-superfamily homologous superfamily	10 — Pyruvoyl-Dependent Histidine Decarboxylase, subunit B

结构域编号 domain_id	1mt1E00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
同源超家族 H-superfamily homologous superfamily	30 —

结构域编号 domain_id	1mt1F00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	20 — Pyruvoyl-Dependent Histidine Decarboxylase; Chain B
同源超家族 H-superfamily homologous superfamily	10 — Pyruvoyl-Dependent Histidine Decarboxylase, subunit B

结构域编号 domain_id	1mt1G00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
同源超家族 H-superfamily homologous superfamily	30 —

结构域编号 domain_id	1mt1H00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	20 — Pyruvoyl-Dependent Histidine Decarboxylase; Chain B
同源超家族 H-superfamily homologous superfamily	10 — Pyruvoyl-Dependent Histidine Decarboxylase, subunit B

结构域编号 domain_id	1mt1I00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
同源超家族 H-superfamily homologous superfamily	30 —

结构域编号 domain_id	1mt1J00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	20 — Pyruvoyl-Dependent Histidine Decarboxylase; Chain B
同源超家族 H-superfamily homologous superfamily	10 — Pyruvoyl-Dependent Histidine Decarboxylase, subunit B

结构域编号 domain_id	1mt1K00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
同源超家族 H-superfamily homologous superfamily	30 —

结构域编号 domain_id	1mt1L00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	20 — Pyruvoyl-Dependent Histidine Decarboxylase; Chain B
同源超家族 H-superfamily homologous superfamily	10 — Pyruvoyl-Dependent Histidine Decarboxylase, subunit B

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	56.770 Å
晶胞边长 b length_b	92.990 Å
晶胞边长 c length_c	87.230 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	94.84 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	63.500 Å
R 因子 r_factor	0.1900
R_work r_work	0.1900
R_free r_free	0.2290

fit	/app/data/saxs_computation/mt/1mt1/1mt1.fit
pddf	/app/data/pr_computation/mt/1mt1/1mt1.pr.out
profile	/app/data/saxs_computation/mt/1mt1/1mt1.dat
