SAXSdb — 1mw8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA Topoisomerase I

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Monomer Protein × 1 DNA 1 PDB declaration: dimeric（2） Consistent with all polymer counts	Chain X； UniProt 1–592	Fragment：67 kDa N-terminal fragment Mutation：H365R	5'-D(APCPTPTPCPGPGPGPAPTPG)-3' × 1 SO4* SULFATE ION × 5 TMP THYMIDINE-5'-PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；287 K；ammonium sulfate, sodium acetate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 287K	Resolution 1.90 Å R-free 0.273

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1MW8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CY0 COMPLEX OF E.COLI DNA TOPOISOMERASE I WITH 3'-5'-ADENOSINE DIPHOSPHATE Deposited 1999-08-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–597（597 aa） Fragment：67 KDA N-TERMINAL FRAGMENT OF E.COLI TOPOISOMERASE I	Not recorded	A3P ADENOSINE-3'-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions MICRODIALYSIS；pH 5；287 K；2.14M ammonium sulfate, pH 5.0, MICRODIALYSIS, temperature 287K	Resolution 2.45 Å R-free 0.274
1CY1 COMPLEX OF E.COLI DNA TOPOISOMERASE I WITH 5'PTPTPT Deposited 1999-08-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–597（597 aa） Fragment：67 KDA N-TERMINAL FRAGMENT OF E.COLI TOPOISOMERASE I	Not recorded	PO4 PHOSPHATE ION × 1 TMP THYMIDINE-5'-PHOSPHATE × 2 THP THYMIDINE-3',5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；287 K；2.3M ammonium sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 287K	Resolution 2.30 Å R-free 0.307
1CY2 COMPLEX OF E.COLI DNA TOPOISOMERASE I WITH TPTPTP3' Deposited 1999-08-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–597（597 aa） Fragment：67 KDA N-TERMINAL FRAGMENT OF E.COLI TOPOISOMERASE I	Not recorded	PO4 PHOSPHATE ION × 1 TMP THYMIDINE-5'-PHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；287 K；2.3M ammonium sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 287K	Resolution 2.30 Å R-free 0.284
1CY4 COMPLEX OF E.COLI DNA TOPOISOMERASE I WITH 5'pTpTpTp3' Deposited 1999-08-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–597（597 aa） Fragment：67 KDA N-TERMINAL FRAGMENT OF E.COLI TOPOISOMERASE I	Not recorded	PO4 PHOSPHATE ION × 3 TMP THYMIDINE-5'-PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；2.2M AMMONIUM SULFATE, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.55 Å R-free 0.299
1CY6 COMPLEX OF E.COLI DNA TOPOISOMERASE I WITH 3' THYMIDINE MONOPHOSPHATE Deposited 1999-08-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–597（597 aa） Fragment：67 KDA N-TERMINAL FRAGMENT OF E.COLI TOPOISOMERASE I	Not recorded	PO4 PHOSPHATE ION × 3 T3P THYMIDINE-3'-PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；287 K；2.2M AMMONIUM SULFATE, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 287K	Resolution 2.50 Å R-free 0.309
1CY7 COMPLEX OF E.COLI DNA TOPOISOMERASE I WITH 5'-THYMIDINE MONOPHOSPHATE Deposited 1999-08-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–597（597 aa） Fragment：67 KDA N-TERMINAL FRAGMENT OF E.COLI TOPOISOMERASE I	Mutation：GLY-SER ATTACHED AT N-TERMINUS DUE TO CONSTRUCT	PO4 PHOSPHATE ION × 1 TMP THYMIDINE-5'-PHOSPHATE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；2.3M AMMONIUM SULFATE, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.40 Å R-free 0.295
1CY8 COMPLEX OF E.COLI DNA TOPOISOMERASE I WITH 5'-THYMIDINE MONOPHOSPHATE AND 3'-THYMIDINE MONOPHOSPHATE Deposited 1999-08-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–597（597 aa） Fragment：67 KDA N-TERMINAL FRAGMENT OF E.COLI TOPOISOMERASE I	Not recorded	PO4 PHOSPHATE ION × 1 T3P THYMIDINE-3'-PHOSPHATE × 1 TMP THYMIDINE-5'-PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；287 K；2.2M AMMONIUM SULFATE, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 287K	Resolution 2.45 Å R-free 0.295
1CY9 CRYSTAL STRUCTURE OF THE 30 KDA FRAGMENT OF E. COLI DNA TOPOISOMERASE I. MONOCLINIC FORM Deposited 1999-08-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 214–477（264 aa） Fragment：30 KDA FRAGMENT COMPRISING DOMAINS II AND III Chain B 214–477（264 aa） Fragment：30 KDA FRAGMENT COMPRISING DOMAINS II AND III	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；11-13%(W/V) PEG 3500, 20MM MES PH 6.0, 50MM KCL, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.80 Å R-free 0.242
1CYY CRYSTAL STRUCTURE OF THE 30 KDA FRAGMENT OF E. COLI DNA TOPOISOMERASE I. HEXAGONAL FORM Deposited 1999-08-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 214–477（264 aa） Fragment：30 KDA FRAGMENT COMPRISING DOMAINS II AND III Chain B 214–477（264 aa） Fragment：30 KDA FRAGMENT COMPRISING DOMAINS II AND III	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；296 K；2M AMMONIUM SULFATE, 100MM HEPES PH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.15 Å R-free 0.282
1CYY CRYSTAL STRUCTURE OF THE 30 KDA FRAGMENT OF E. COLI DNA TOPOISOMERASE I. HEXAGONAL FORM Deposited 1999-08-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 214–477（264 aa） Fragment：30 KDA FRAGMENT COMPRISING DOMAINS II AND III Chain B 214–477（264 aa） Fragment：30 KDA FRAGMENT COMPRISING DOMAINS II AND III	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；296 K；2M AMMONIUM SULFATE, 100MM HEPES PH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.15 Å R-free 0.282
1CYY CRYSTAL STRUCTURE OF THE 30 KDA FRAGMENT OF E. COLI DNA TOPOISOMERASE I. HEXAGONAL FORM Deposited 1999-08-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 214–477（264 aa） Fragment：30 KDA FRAGMENT COMPRISING DOMAINS II AND III Chain B 214–477（264 aa） Fragment：30 KDA FRAGMENT COMPRISING DOMAINS II AND III	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；296 K；2M AMMONIUM SULFATE, 100MM HEPES PH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.15 Å R-free 0.282
1ECL AMINO TERMINAL 67KDA DOMAIN OF ESCHERICHIA COLI DNA TOPOISOMERASE I (RESIDUES 2-590 OF MATURE PROTEIN) CLONING ARTIFACT ADDS TWO RESIDUES TO THE AMINO-TERMINUS WHICH WERE NOT OBSERVED IN THE EXPERIMENTAL ELECTRON DENSITY (GLY-2, SER-1). Deposited 1995-05-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–597（597 aa）	Mutation：GLY SER INSERTION AT N-TERMINUS, INSERTION OF STOP CODON AT 598; ENGINEERED	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å
1MW9 Crystal Structure of H365R mutant of 67 kDA N-terminal fragment of E. coli DNA Topoisomerase I Deposited 2002-09-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 1–592（592 aa） Fragment：67 kDa N-terminal fragment	Mutation：H365R	SO4 SULFATE ION × 9	X-RAY DIFFRACTION X-ray crystallization conditions DIALYSIS；pH 8；287 K；ammonium sulfate, pH 8, DIALYSIS, temperature 287K	Resolution 1.67 Å R-free 0.216
1YUA C-TERMINAL DOMAIN OF ESCHERICHIA COLI TOPOISOMERASE I Deposited 1995-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 745–865（121 aa） Fragment：122 C-TERMINAL RESIDUES	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
3PWT Crystal structure of mutant E.coli topoisomerase IA Deposited 2010-12-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–596（596 aa） Fragment：N-terminal catalytical domain, 67K	Mutation：D111N	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.4；288 K；2M ammonium sulfate, pH 7.4, VAPOR DIFFUSION, temperature 288K	Resolution 1.90 Å R-free 0.249
9GDA RNAP-TopoI complex on duplex scaffold Deposited 2024-08-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric	Chain F 1–865（865 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å
9GDB RNAP-TopoI complex on bubble scaffold - consensus reconstruction Deposited 2024-08-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric	Chain F 1–865（865 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
9GDC RNAP-TopoI complex on bubble scaffold - single-bubble configuration Deposited 2024-08-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric	Chain F 1–865（865 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
9GDD RNAP-TopoI complex on bubble scaffold - two-bubble configuration Deposited 2024-08-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric	Chain F 1–865（865 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
9GDE RNAP-TopoI complex on long-overhang scaffold - orientation 1 Deposited 2024-08-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric	Chain F 1–865（865 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
9GDH RNAP-TopoI complex on long-overhang scaffold - orientation 2 Deposited 2024-08-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: nonameric	Chain F 1–865（865 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å

19 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TOP1_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain X； PDBConstruct 1–592； UniProt 1–592

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1mw8
Deposition date deposition_date	2002-09-27
Structure title title	Crystal Structure of a Complex between H365R mutant of 67 kDA N-terminal fragment of E. coli DNA Topoisomerase I and 5'-ACTTCGGGATG-3'
Keywords keywords	DNA TOPOISOMERASE, DECATENASE ENZYME, TOPRIM DOMAIN, ISOMERASE; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.94 Å
Radius of gyration Rg (electron density) rg_electron	29.72 Å
Forward intensity I(0) i0	78163500.00
Molecular weight molecular_weight	66234.0 kDa
Excluded volume excluded_volume	81574 Å³
Envelope volume envelope_volume	108910 Å³
Hydration-shell volume shell_volume	31940 Å³
Envelope diameter envelope_diameter	104.5 Å
Shell Rg shell_rg	35.31 Å
Envelope Rg envelope_rg	29.71 Å
Shape Rg shape_rg	29.74 Å
Total Rg total_rg	30.16 Å
Total atoms total_atoms	4642
Residues n_residues	568
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

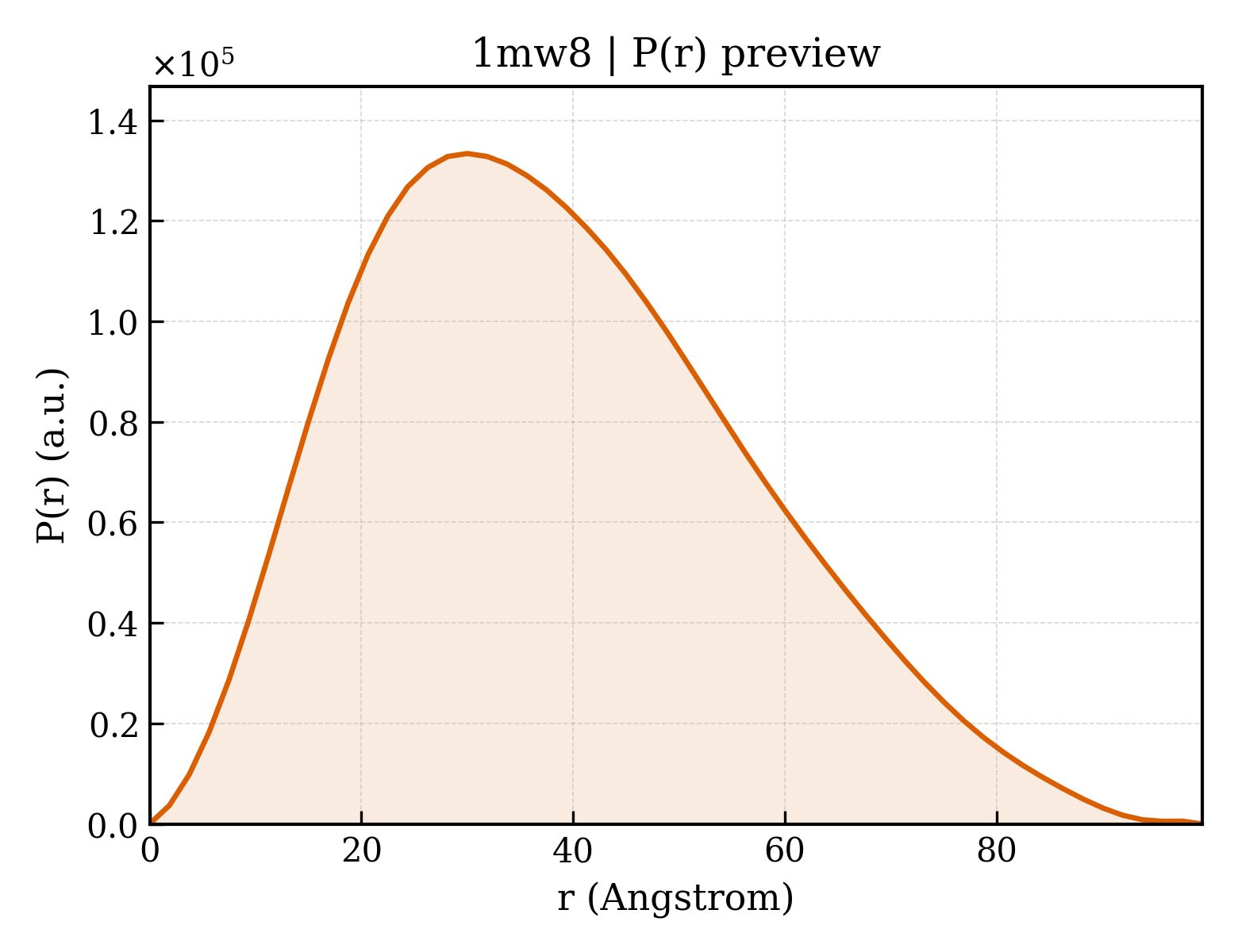

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	99.5 Å
Rg (real space) rg_real	30.05 Å
Rg uncertainty (real space) rg_real_error	0.82 Å
I(0) (real space) i0_real	7.8160e+07
I(0) uncertainty (real space) i0_real_error	1.3440e+06
Rg (reciprocal space) rg_reciprocal	30.01 Å
I(0) (reciprocal space) i0_reciprocal	78160000.0000
Solution quality estimate total_estimate	0.8767
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	30.0 Å
Skewness Skewness skewness	0.425
Kurtosis Kurtosis kurtosis	-0.379
Angular range angular_range	— – 0.2650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	17850000.0000
Real-space data points n_real_points	54
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.876; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.929; Smooth: 0.836

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	5'-D(APCPTPTPCPGPGPGPAPTP*G)-3'
Molecular weight formula_weight	3389.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	Y
Atom count atom_count	5346

ACTTCGGGATG

Entity 2 Entity 2 polymer

Description description	DNA Topoisomerase I
Molecular weight formula_weight	66930.8 kDa
EC 编号 ec_number	5.99.1.2
Mutation mutation	H365R
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X

MGKALVIVESPAKAKTINKYLGSDYVVKSSVGHIRDLPTSGSAAKKSADSTSTKTAKKPKKDERGALVNRMGVDPWHNWEAHYEVLPGKEKVVSELKQLAEKADHIYLATDLDREGEAIAWHLREVIGGDDARYSRVVFNEITKNAIRQAFNKPGELNIDRVNAQQARRFMDRVVGYMVSPLLWKKIARGLSAGRVQSVAVRLVVEREREIKAFVPEEFWEVDASTTTPSGEALALQVTHQNDKPFRPVNKEQTQAAVSLLEKARYSVLEREDKPTTSKPGAPFITSTLQQAASTRLGFGVKKTMMMAQRLYEAGYITYMRTDSTNLSQDAVNMVRGYISDNFGKKYLPESPNQYASKENSQEAREAIRPSDVNVMAESLKDMEADAQKLYQLIWRQFVACQMTPAKYDSTTLTVGAGDFRLKARGRILRFDGWTKVMPALRKGDEDRILPAVNKGDALTLVELTPAQHFTKPPARFSEASLVKELEKRGIGRPSTYASIISTIQDRGYVRVENRRFYAEKMGEIVTDRLEENFRELMNYDFTAQMENNLDQVANHEAEWKAVLDHFFSDFTQQLDKAEKDPEEGGMRPNQM

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 non-polymer

Description description	THYMIDINE-5'-PHOSPHATE
Molecular weight formula_weight	322.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	553

▼

7. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1mw8x_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.10 — Prokaryotic type I DNA topoisomerase
Superfamily Superfamily superfamily	e.10.1 — Prokaryotic type I DNA topoisomerase
Family Family family	e.10.1.1 — Prokaryotic type I DNA topoisomerase

CATH v4.4 (4 domains)

Domain ID domain_id	1mw8X01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	140 —

Domain ID domain_id	1mw8X02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	460 — Topoisomerase I; domain 2
Homologous superfamily homologous superfamily	10 — Topoisomerase I, domain 2

Domain ID domain_id	1mw8X03
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	20 — Topoisomerase I; domain 3
Homologous superfamily homologous superfamily	10 — Topoisomerase I, domain 3

Domain ID domain_id	1mw8X04
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	290 — Topoisomerase I; domain 4
Homologous superfamily homologous superfamily	10 — Topoisomerase I, domain 4

▶

8. Citations (2)

▶

Unit-cell length a length_a	63.392 Å
Unit-cell length b length_b	79.148 Å
Unit-cell length c length_c	141.798 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	70.710 Å
R factor r_factor	0.2260
R_work r_work	0.2235
R_free r_free	0.2726

fit	/app/data/saxs_computation/mw/1mw8/1mw8.fit
pddf	/app/data/pr_computation/mw/1mw8/1mw8.pr.out
profile	/app/data/saxs_computation/mw/1mw8/1mw8.dat
