SAXSdb — 1mwj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

G/U mismatch-specific DNA glycosylase

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 2 DNA 2	5'-D(CPGPCPGPAGP(DU)PTPCPGPCPG)-3' × 2 water × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MUG_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–168； UniProt 1–168

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1mwj
Deposition date deposition_date	2002-09-30
Structure title title	Crystal Structure of a MUG-DNA pseudo substrate complex
Keywords keywords	Rossmann Fold, non-hydrolysable DNA-complex, Uracil recognition., HYDROLASE-DNA COMPLEX; HYDROLASE/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1mwj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1mwj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

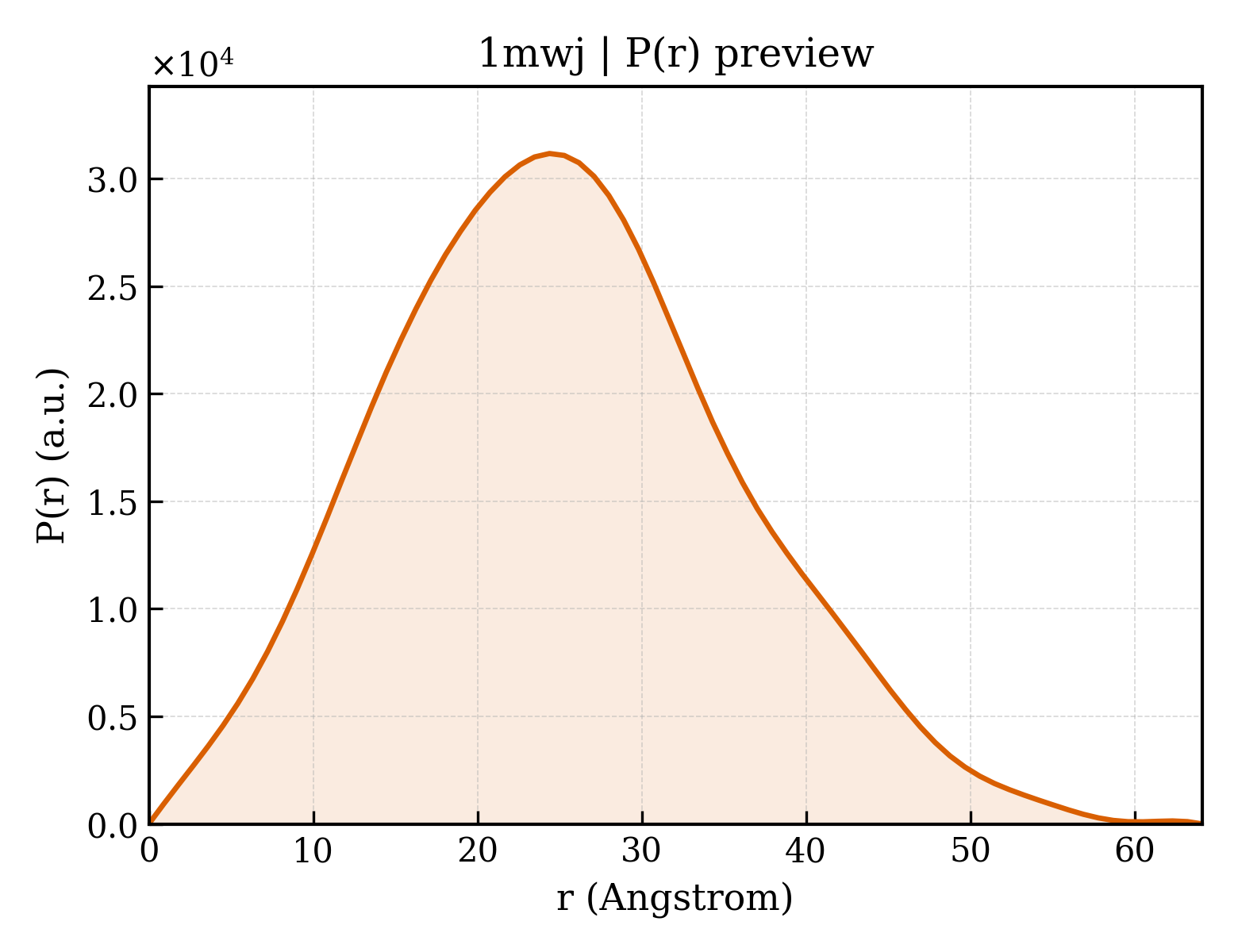

1mwj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.68 Å
Rg (electron density)	23.44 Å
Total Rg	24.07 Å
Atom count	3036
Residues	354
Excluded volume	52459 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1mwj__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	5'-D(CPGPCPGPAGP(DU)PTPCPGPCPG)-3'
Molecular weight formula_weight	3665.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D
Atom count atom_count	1576

CGCGAGUTCGCG

Entity 2 Entity 2 polymer

Description description	G/U mismatch-specific DNA glycosylase
Molecular weight formula_weight	18696.4 kDa
EC 编号 ec_number	3.2.2.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MVEDILAPGLRVVFCGINPGLSSAGTGFPFAHPANRFWKVIYQAGFTDRQLKPQEAQHLLDYRCGVTKLVDRPTVQANEVSKQELHAGGRKLIEKIEDYQPQALAILGKQAYEQGFSQRGAQWGKQTLTIGSTQIWVLPNPSGLSRVSLEKLVEAYRELDQALVVRGR

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	58

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1mwja_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.18 — Uracil-DNA glycosylase-like
Superfamily Superfamily superfamily	c.18.1 — Uracil-DNA glycosylase-like
Family Family family	c.18.1.2 — Mug-like

CATH v4.4 (1 domains)

Domain ID domain_id	1mwjA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	470 — Uracil-DNA Glycosylase, subunit E
Homologous superfamily homologous superfamily	10 — Uracil-DNA glycosylase-like domain

▶

Unit-cell length a length_a	101.996 Å
Unit-cell length b length_b	101.996 Å
Unit-cell length c length_c	45.133 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 42 21 2
Space-group number int_tables_number	94
Crystal system crystal_system	—

Resolution resolution	2.850 Å
Low-resolution limit resolution_low	14.970 Å
R factor r_factor	0.2300
R_work r_work	0.1900
R_free r_free	0.2520

Crystal Structure of a MUG-DNA pseudo substrate complex
