1mx5

Crystal Structure of Human Liver Carboxylesterase in complexed with homatropine, a cocaine analogue

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

liver Carboxylesterase I

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	2-acetamido-2-deoxy-beta-D-glucopyranose × 3 N-acetyl-alpha-neuraminic acid × 2 CHLORIDE ION × 1 HOMOTROPINE × 6 water × 3	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 3	2-acetamido-2-deoxy-beta-D-glucopyranose × 4 N-acetyl-alpha-neuraminic acid × 1 CHLORIDE ION × 1 HOMOTROPINE × 6 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EST1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–548； UniProt 19–567 Author chain B； PDBConstruct 1–548； UniProt 19–567 Author chain C； PDBConstruct 1–548； UniProt 19–567 Author chain D； PDBConstruct 1–548； UniProt 19–567 Author chain E； PDBConstruct 1–548； UniProt 19–567 Author chain F； PDBConstruct 1–548； UniProt 19–567

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1mx5
Deposition date deposition_date	2002-10-01
Structure title title	Crystal Structure of Human Liver Carboxylesterase in complexed with homatropine, a cocaine analogue
Keywords keywords	esterase, hydrolase, cocaine; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1mx5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1mx5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

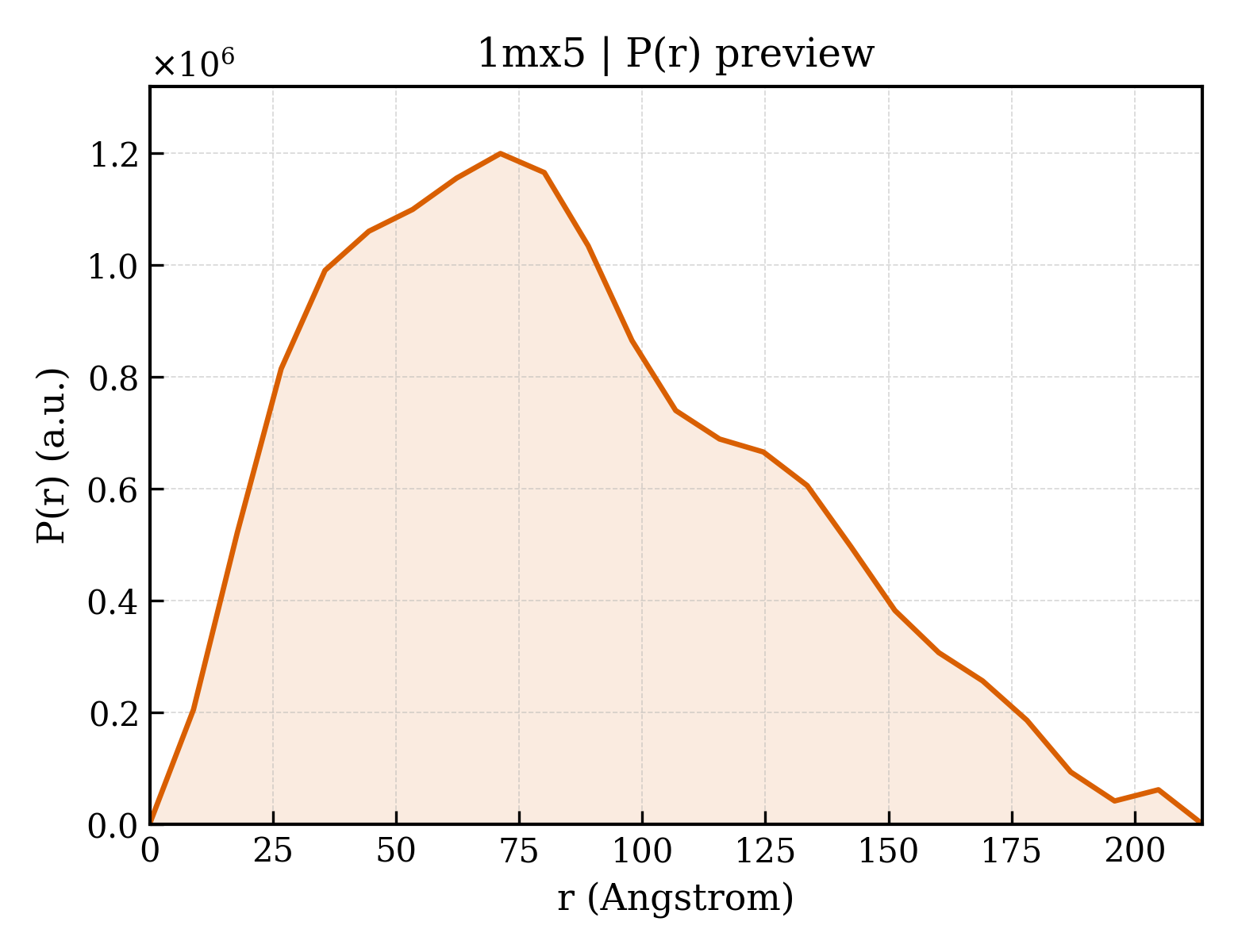

1mx5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.79 Å
Rg (electron density)	40.23 Å
Total Rg	40.52 Å
Atom count	12523
Residues	1594
Excluded volume	225110 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1mx5__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1mx5__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	liver Carboxylesterase I
Molecular weight formula_weight	60511.3 kDa
EC 编号 ec_number	3.1.1.1
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	26960

HPSSPPVVDTVHGKVLGKFVSLEGFAQPVAIFLGIPFAKPPLGPLRFTPPQPAEPWSFVKNATSYPPMCTQDPKAGQLLSELFTNRKENIPLKLSEDCLYLNIYTPADLTKKNRLPVMVWIHGGGLMVGAASTYDGLALAAHENVVVVTIQYRLGIWGFFSTGDEHSRGNWGHLDQVAALRWVQDNIASFGGNPGSVTIFGESAGGESVSVLVLSPLAKNLFHRAISESGVALTSVLVKKGDVKPLAEQIAITAGCKTTTSAVMVHCLRQKTEEELLETTLKMKFLSLDLQGDPRESQPLLGTVIDGMLLLKTPEELQAERNFHTVPYMVGINKQEFGWLIPMLMSYPLSEGQLDQKTAMSLLWKSYPLVCIAKELIPEATEKYLGGTDDTVKKKDLFLDLIADVMFGVPSVIVARNHRDAGAPTYMYEFQYRPSFSSDMKPKTVIGDHGDELFSVFGAPFLKEGASEEEIRLSKMVMKFWANFARNGNPNGEGLPHWPEYNQKEGYLQIGANTQAAQKLKDKEVAFWTNLFAKKAVEKPPQTEHIEL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	7

Entity 3 Entity 3 non-polymer

Description description	N-acetyl-alpha-neuraminic acid
Molecular weight formula_weight	309.3 kDa
Source method src_method	man
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	HOMOTROPINE
Molecular weight formula_weight	275.3 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1681

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1mx5a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.1 — Acetylcholinesterase-like

Domain ID domain_id	d1mx5b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.1 — Acetylcholinesterase-like

Domain ID domain_id	d1mx5c_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.1 — Acetylcholinesterase-like

Domain ID domain_id	d1mx5d_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.1 — Acetylcholinesterase-like

Domain ID domain_id	d1mx5e_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.1 — Acetylcholinesterase-like

Domain ID domain_id	d1mx5f_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.1 — Acetylcholinesterase-like

CATH v4.4 (6 domains)

Domain ID domain_id	1mx5A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	1mx5B00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	1mx5C00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	1mx5D00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	1mx5E00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	1mx5F00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

▶

Unit-cell length a length_a	55.400 Å
Unit-cell length b length_b	178.800 Å
Unit-cell length c length_c	199.600 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.20 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	19.960 Å
R factor r_factor	0.1580
R_work r_work	0.1580
R_free r_free	0.2210
