1n0u
Crystal structure of yeast elongation factor 2 in complex with sordarin
SAXS 散射曲线 SAXS Profile

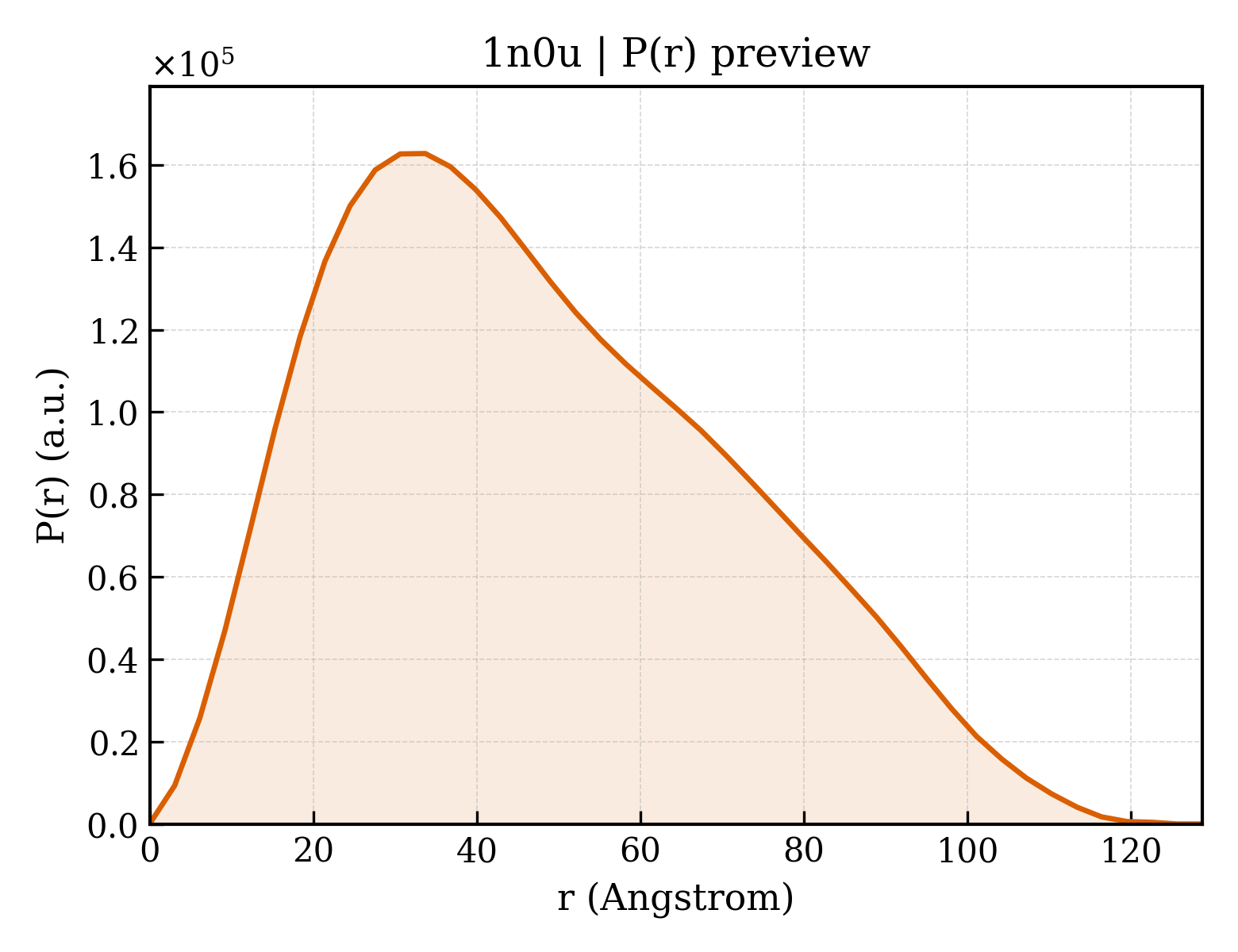

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1n0u |
| 沉积日期 deposition_date | 2002-10-15 |
| 结构标题 title | Crystal structure of yeast elongation factor 2 in complex with sordarin |
| 关键词 keywords | G-protein, cis-proline, TRANSLATION; TRANSLATION |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 37.34 Å |
| 回转半径 Rg (电子) rg_electron | 37.42 Å |
| 零角强度 I(0) i0 | 122674000.00 |
| 分子量 molecular_weight | 91124.0 kDa |
| 排除体积 excluded_volume | 114980 ų |
| 包络体积 envelope_volume | 149930 ų |
| 水化壳体积 shell_volume | 35490 ų |
| 包络直径 envelope_diameter | 129.2 Å |
| 壳层 Rg shell_rg | 40.53 Å |
| 包络 Rg envelope_rg | 37.33 Å |
| 形状 Rg shape_rg | 37.43 Å |
| 总 Rg total_rg | 37.59 Å |
| 总原子数 total_atoms | 6410 |
| 残基数 n_residues | 819 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 128.7 Å |
| Rg (实空间) rg_real | 37.68 Å |
| Rg 误差 (实空间) rg_real_error | 1.79 Å |
| I(0) (实空间) i0_real | 1.2270e+08 |
| I(0) 误差 (实空间) i0_real_error | 2.0500e+06 |
| Rg (倒空间) rg_reciprocal | 37.47 Å |
| I(0) (倒空间) i0_reciprocal | 122600000.0000 |
| 解质量估计 total_estimate | 0.8402 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 33.7 Å |
| 偏度 Skewness skewness | 0.448 |
| 峰度 Kurtosis kurtosis | -0.559 |
| 角度范围 angular_range | — – 0.2100 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 13590000.0000 |
| 实空间数据点数 n_real_points | 43 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.764; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.778; Smooth: 0.848 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (3)
6. 折叠分类 (SCOP + CATH) 11 domains
SCOP 2.08 (5 domains)
| 结构域编号 domain_id | d1n0ua1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.43 — Reductase/isomerase/elongation factor common domain |
| 超家族 Superfamily superfamily | b.43.3 — Translation proteins |
| 家族 Family family | b.43.3.1 — Elongation factors |
| 结构域编号 domain_id | d1n0ua2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.37 — P-loop containing nucleoside triphosphate hydrolases |
| 超家族 Superfamily superfamily | c.37.1 — P-loop containing nucleoside triphosphate hydrolases |
| 家族 Family family | c.37.1.8 — G proteins |
| 结构域编号 domain_id | d1n0ua3 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.14 — Ribosomal protein S5 domain 2-like |
| 超家族 Superfamily superfamily | d.14.1 — Ribosomal protein S5 domain 2-like |
| 家族 Family family | d.14.1.1 — Translational machinery components |
| 结构域编号 domain_id | d1n0ua4 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.58 — Ferredoxin-like |
| 超家族 Superfamily superfamily | d.58.11 — EF-G C-terminal domain-like |
| 家族 Family family | d.58.11.1 — EF-G/eEF-2 domains III and V |
| 结构域编号 domain_id | d1n0ua5 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.58 — Ferredoxin-like |
| 超家族 Superfamily superfamily | d.58.11 — EF-G C-terminal domain-like |
| 家族 Family family | d.58.11.1 — EF-G/eEF-2 domains III and V |
CATH v4.4 (6 domains)
| 结构域编号 domain_id | 1n0uA01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 300 — P-loop containing nucleotide triphosphate hydrolases |
| 结构域编号 domain_id | 1n0uA02 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 40 — Beta Barrel |
| 拓扑 Topology topology | 30 — Elongation Factor Tu (Ef-tu); domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Translation factors |
| 结构域编号 domain_id | 1n0uA03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 90 — Alpha-Beta Complex |
| 拓扑 Topology topology | 1430 — Yeast translation eEF2 (G' domain) |
| 同源超家族 H-superfamily homologous superfamily | 10 — Yeast translation eEF2 (G' domain) |
| 结构域编号 domain_id | 1n0uA04 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 70 — Alpha-Beta Plaits |
| 同源超家族 H-superfamily homologous superfamily | 870 — Elongation Factor G (Translational Gtpase), domain 3 |
| 结构域编号 domain_id | 1n0uA05 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 70 — Alpha-Beta Plaits |
| 同源超家族 H-superfamily homologous superfamily | 240 — |
| 结构域编号 domain_id | 1n0uA06 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 230 — Ribosomal Protein S5; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — |
