SAXSdb — 1n2d

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Myosin Light Chain

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	IQ2 AND IQ3 MOTIFS FROM MYO2P, A CLASS V MYOSIN × 1 （P19524） water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MLC1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–148； UniProt 2–149 Author chain B； PDBConstruct 1–148； UniProt 2–149

IQ2 AND IQ3 MOTIFS FROM MYO2P, A CLASS V MYOSIN

OrganismNot specified

UniProt P19524

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Myosin Light Chain × 2 （P53141） water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MYO2_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–48； UniProt 806–853

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1n2d
Deposition date deposition_date	2002-10-22
Structure title title	Ternary complex of MLC1P bound to IQ2 and IQ3 of Myo2p, a class V myosin
Keywords keywords	PROTEIN-PEPTIDE COMPLEX, IQ MOTIF, MYOSIN LIGHT CHAIN, CELL CYCLE; CELL CYCLE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1n2d__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1n2d__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

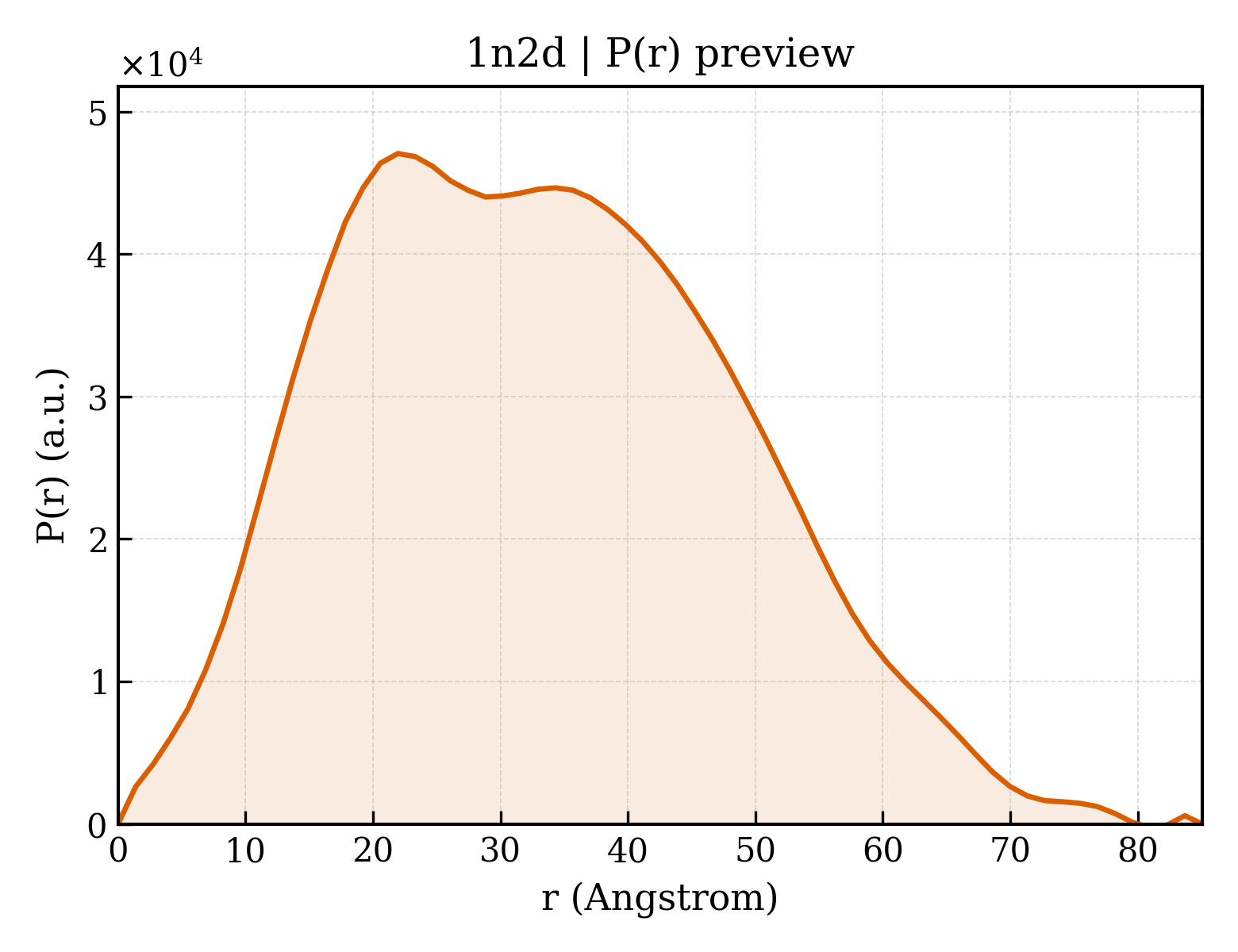

1n2d__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.64 Å
Rg (electron density)	24.90 Å
Total Rg	25.63 Å
Atom count	2661
Residues	340
Excluded volume	47355 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1n2d__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Myosin Light Chain
Molecular weight formula_weight	16332.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2982

SATRANKDIFTLFDKKGQGAIAKDSLGDYLRAIGYNPTNQLVQDIINADSSLRDASSLTLDQITGLIEVNEKELDATTKAKTEDFVKAFQVFDKESTGKVSVGDLRYMLTGLGEKLTDAEVDELLKGVEVDSNGEIDYKKFIEDVLRQ

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	IQ2 AND IQ3 MOTIFS FROM MYO2P, A CLASS V MYOSIN
Molecular weight formula_weight	5543.4 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

QISQAIKYLQNNIKGFIIRQRVNDEMKVNCATLLQAAYRGHSIRANVF

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	256

▼

6. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1n2da_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

Domain ID domain_id	d1n2db_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

CATH v4.4 (5 domains)

Domain ID domain_id	1n2dA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

Domain ID domain_id	1n2dA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

Domain ID domain_id	1n2dB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

Domain ID domain_id	1n2dB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

Domain ID domain_id	1n2dC00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	190 —

▶

Unit-cell length a length_a	80.017 Å
Unit-cell length b length_b	64.240 Å
Unit-cell length c length_c	72.785 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	41.270 Å
R factor r_factor	—
R_work r_work	0.2080
R_free r_free	0.2570

Ternary complex of MLC1P bound to IQ2 and IQ3 of Myo2p, a class V myosin
