1n2i

;Crystal Structure of Pantothenate Synthetase from M. tuberculosis in complex with a reaction intermediate, pantoyl adenylate, different occupancies of pantoyl adenylate ;

Method: X-RAY DIFFRACTION D_max: 88.5 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

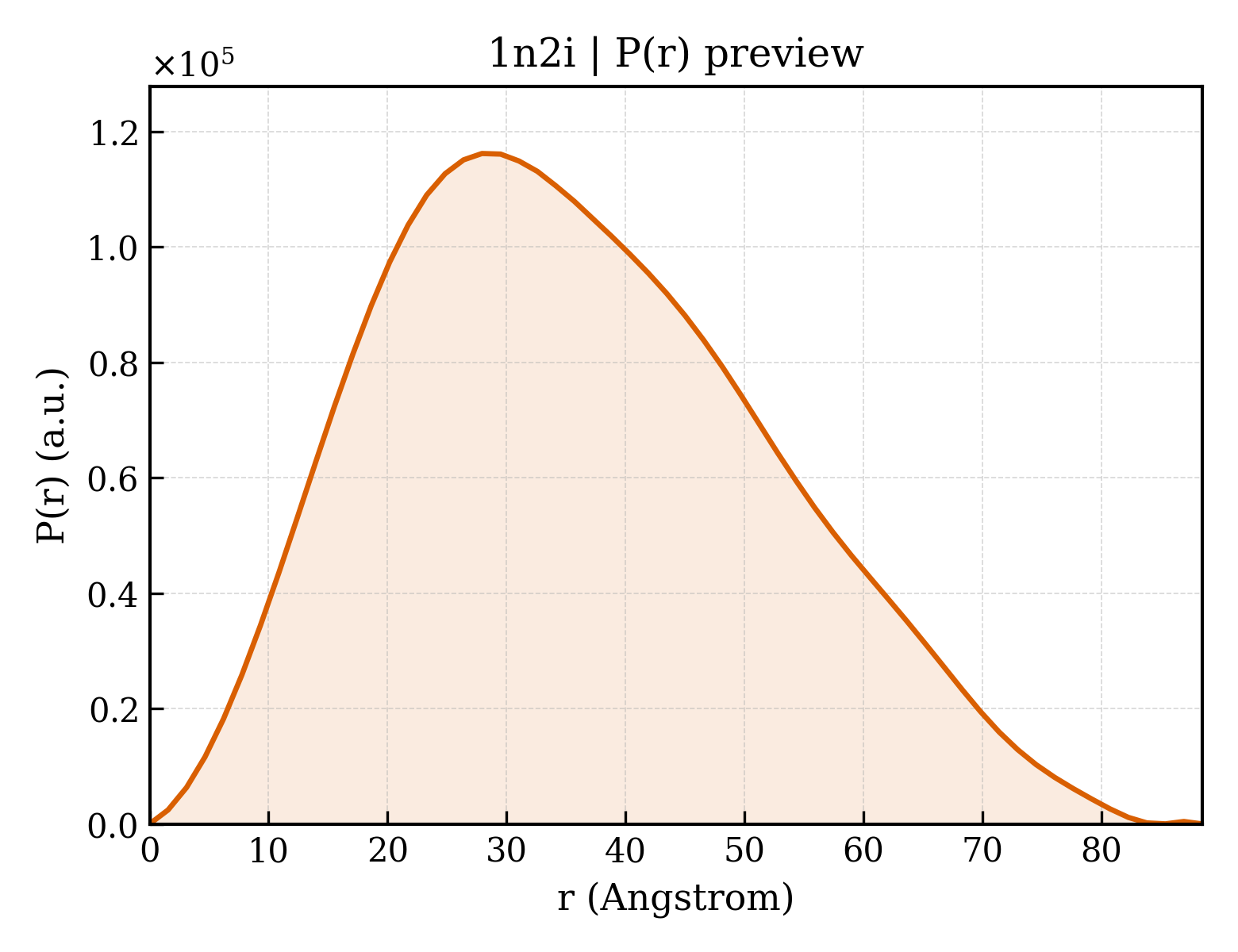

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1n2i
沉积日期 deposition_date	2002-10-22
结构标题 title	;Crystal Structure of Pantothenate Synthetase from M. tuberculosis in complex with a reaction intermediate, pantoyl adenylate, different occupancies of pantoyl adenylate ;
关键词 keywords	;Structural genomics, Rossmann fold, dimer, intersubunit beta sheet, PSI, Protein Structure Initiative, TB Structural Genomics Consortium, TBSGC, LIGASE ;; LIGASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.84 Å
回转半径 Rg (电子) rg_electron	26.90 Å
零角强度 I(0) i0	61696500.00
分子量 molecular_weight	61452.0 kDa
排除体积 excluded_volume	77082 Å³
包络体积 envelope_volume	93042 Å³
水化壳体积 shell_volume	29602 Å³
包络直径 envelope_diameter	91.3 Å
壳层 Rg shell_rg	33.53 Å
包络 Rg envelope_rg	26.96 Å
形状 Rg shape_rg	26.91 Å
总 Rg total_rg	27.55 Å
总原子数 total_atoms	4319
残基数 n_residues	573
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	88.5 Å
Rg (实空间) rg_real	27.86 Å
Rg 误差 (实空间) rg_real_error	0.59 Å
I(0) (实空间) i0_real	6.1700e+07
I(0) 误差 (实空间) i0_real_error	9.3560e+05
Rg (倒空间) rg_reciprocal	27.86 Å
I(0) (倒空间) i0_reciprocal	61700000.0000
解质量估计 total_estimate	0.8910
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	27.9 Å
偏度 Skewness skewness	0.342
峰度 Kurtosis kurtosis	-0.502
角度范围 angular_range	— – 0.2850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	18050000.0000
实空间数据点数 n_real_points	58
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.926; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.817

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	pantothenate synthetase
分子量 formula_weight	31500.1 kDa
EC 编号 ec_number	6.3.2.1
突变 mutation	T2A, E77G
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	4761

MAIPAFHPGELNVYSAPGDVADVSRALRLTGRRVMLVPTMGALHEGHLALVRAAKRVPGSVVVVSIFVNPMQFGAGGDLDAYPRTPDDDLAQLRAEGVEIAFTPTTAAMYPDGLRTTVQPGPLAAELEGGPRPTHFAGVLTVVLKLLQIVRPDRVFFGEKDYQQLVLIRQLVADFNLDVAVVGVPTVREADGLAMSSRNRYLDPAQRAAAVALSAALTAAAHAATAGAQAALDAARAVLDAAPGVAVDYLELRDIGLGPMPLNGSGRLLVAARLGTTRLLDNIAIEIGTFAGTDRPDGYR

来源 Source

来源生物 organism	Mycobacterium tuberculosis
NCBI 分类编号 ncbi_taxonomy_id	1773
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 3 non-polymer

描述 description	PANTOYL ADENYLATE
分子量 formula_weight	477.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	ETHANOL
分子量 formula_weight	46.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	401

▼

6. 折叠分类 (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1n2ia_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
超家族 Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
家族 Family family	c.26.1.4 — Pantothenate synthetase (Pantoate-beta-alanine ligase, PanC)

结构域编号 domain_id	d1n2ib_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
超家族 Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
家族 Family family	c.26.1.4 — Pantothenate synthetase (Pantoate-beta-alanine ligase, PanC)

CATH v4.4 (4 domains)

结构域编号 domain_id	1n2iA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	620 — HUPs

结构域编号 domain_id	1n2iA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1300 — Pantoate--beta-alanine Ligase; Chain: A,domain 2
同源超家族 H-superfamily homologous superfamily	10 — Pantoate-beta-alanine ligase, C-terminal domain

结构域编号 domain_id	1n2iB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	620 — HUPs

结构域编号 domain_id	1n2iB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1300 — Pantoate--beta-alanine Ligase; Chain: A,domain 2
同源超家族 H-superfamily homologous superfamily	10 — Pantoate-beta-alanine ligase, C-terminal domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	48.177 Å
晶胞边长 b length_b	70.803 Å
晶胞边长 c length_c	81.751 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	99.43 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.700 Å
最低分辨率 resolution_low	19.800 Å
R 因子 r_factor	0.1820
R_work r_work	0.1820
R_free r_free	0.2040
