SAXSdb — 1nco

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HOLO-NEOCARZINOSTATIN

Streptomyces carzinostaticus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	(4R)-2-METHYLPENTANE-2,4-DIOL × 1 NEOCARZINOSTATIN-CHROMOPHORE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NCZS_STRCZ
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–113； UniProt 35–147 Author chain B； PDBConstruct 1–113； UniProt 35–147

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1nco
Deposition date deposition_date	1993-07-13
Structure title title	STRUCTURE OF THE ANTITUMOR PROTEIN-CHROMOPHORE COMPLEX NEOCARZINOSTATIN
Keywords keywords	ANTIBACTERIAL AND ANTITUMOR PROTEIN; ANTIBACTERIAL AND ANTITUMOR PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1nco__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1nco__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

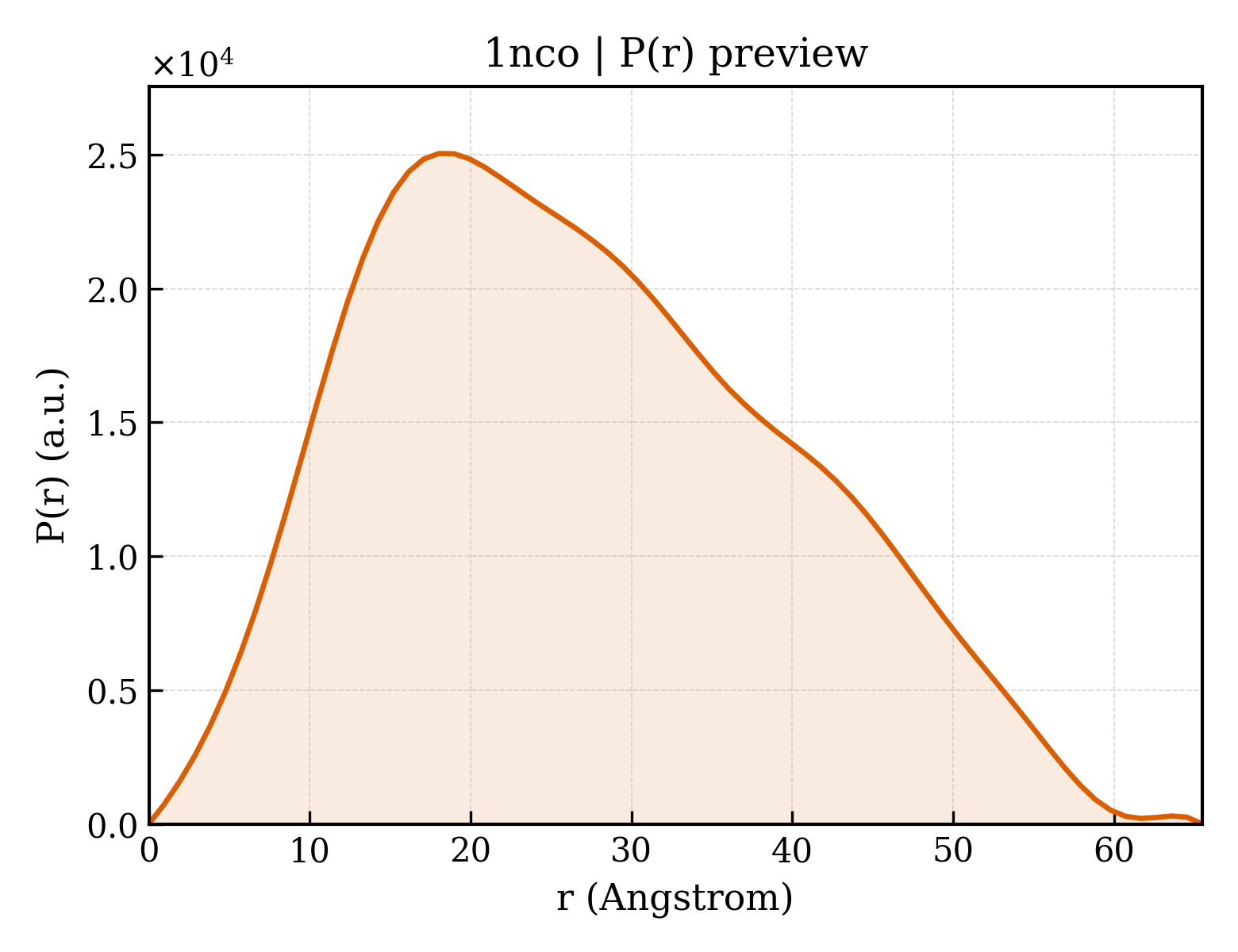

1nco__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.99 Å
Rg (electron density)	20.31 Å
Total Rg	20.98 Å
Atom count	1612
Residues	226
Excluded volume	28147 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1nco__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	HOLO-NEOCARZINOSTATIN
Molecular weight formula_weight	11100.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1773

AAPTATVTPSSGLSDGTVVKVAGAGLQAGTAYDVGQCAWVDTGVLACNPADFSSVTADANGSASTSLTVRRSFEGFLFDGTRWGTVDCTTAACQVGLSDAAGNGPEGVAISFN

Source Source

Source organism organism	Streptomyces carzinostaticus
NCBI taxonomy ID ncbi_taxonomy_id	1897

Entity 2 Entity 2 non-polymer

Description description	(4R)-2-METHYLPENTANE-2,4-DIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	NEOCARZINOSTATIN-CHROMOPHORE
Molecular weight formula_weight	659.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	161

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1ncoa_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.7 — Actinoxanthin-like
Family Family family	b.1.7.1 — Actinoxanthin-like

Domain ID domain_id	d1ncob_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.7 — Actinoxanthin-like
Family Family family	b.1.7.1 — Actinoxanthin-like

CATH v4.4 (2 domains)

Domain ID domain_id	1ncoA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	230 — Neocarzinostatin-like

Domain ID domain_id	1ncoB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	230 — Neocarzinostatin-like

▶

Unit-cell length a length_a	90.400 Å
Unit-cell length b length_b	90.400 Å
Unit-cell length c length_c	52.500 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	0.1990
R_work r_work	—
R_free r_free	—

STRUCTURE OF THE ANTITUMOR PROTEIN-CHROMOPHORE COMPLEX NEOCARZINOSTATIN
