SAXSdb — 1nf8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

phenazine biosynthesis protein phzD

Pseudomonas aeruginosa

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	octyl beta-D-glucopyranoside × 2 (5S,6S)-5-[(1-carboxyethenyl)oxy]-6-hydroxycyclohexa-1,3-diene-1-carboxylic acid × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q7DC80_PSEAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–207； UniProt 1–207

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1nf8
Deposition date deposition_date	2002-12-13
Structure title title	Crystal structure of PhzD protein active site mutant with substrate
Keywords keywords	isochorismatase, enzyme, phenazine pathway, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1nf8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1nf8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

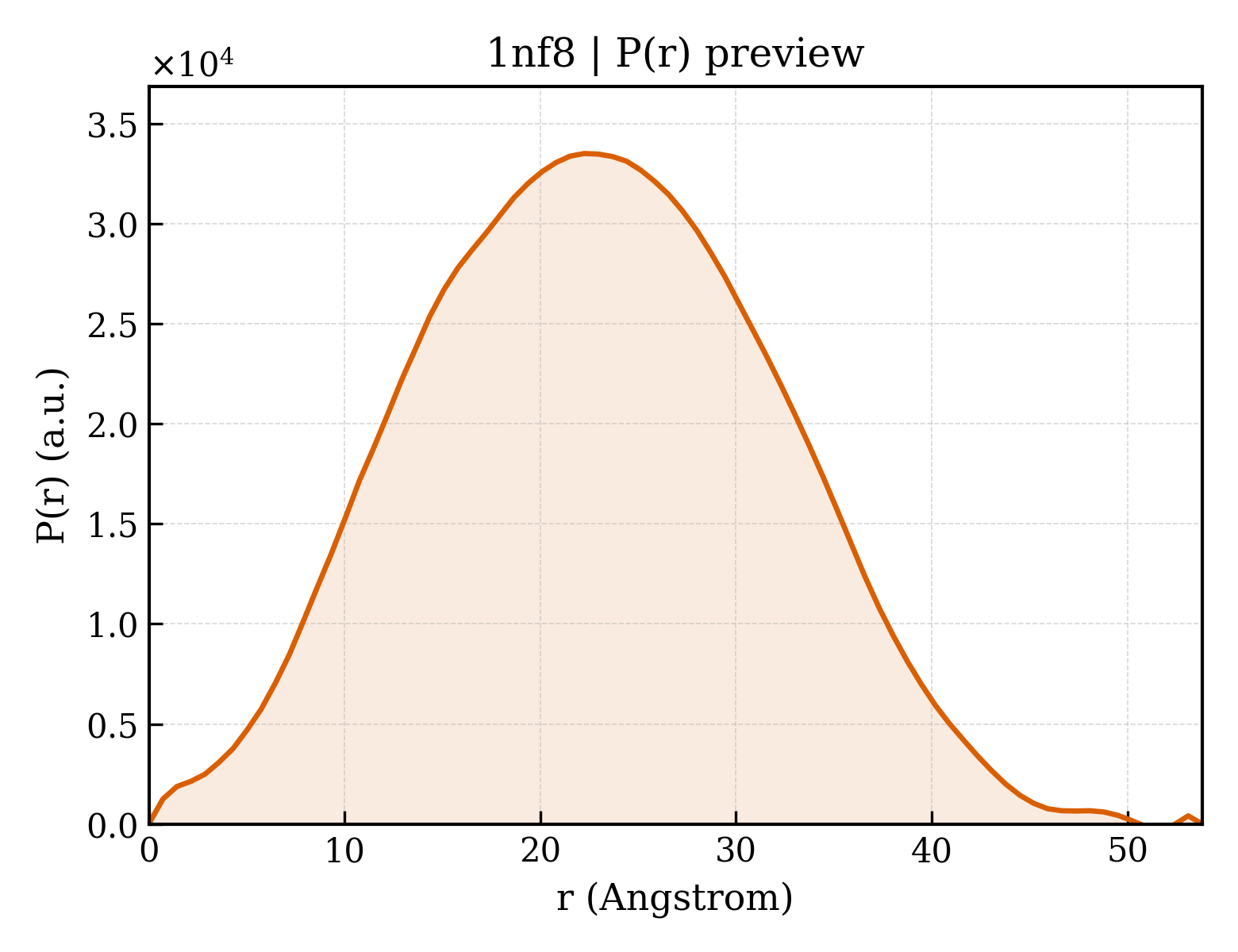

1nf8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.17 Å
Rg (electron density)	20.87 Å
Total Rg	21.76 Å
Atom count	3330
Residues	414
Excluded volume	59244 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1nf8__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	phenazine biosynthesis protein phzD
Molecular weight formula_weight	23176.5 kDa
EC 编号 ec_number	3.3.2.1
Mutation mutation	D38A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1963

MSGIPEITAYPLPTAQQLPANLARWSLEPRRAVLLVHAMQRYFLRPLPESLRAGLVANAARLRRWCVEQGVQIAYTAQPGSMTEEQRGLLKDFWGPGMRASPADREVVEELAPGPDDWLLTKWRYSAFFHSDLLQRMRAAGRDQLVLCGVYAHVGVLISTVDAYSNDIQPFLVADAIADFSEAHHRMALEYAASRCAMVVTTDEVLE

Source Source

Source organism organism	Pseudomonas aeruginosa
NCBI taxonomy ID ncbi_taxonomy_id	287
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	octyl beta-D-glucopyranoside
Molecular weight formula_weight	292.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	(5S,6S)-5-[(1-carboxyethenyl)oxy]-6-hydroxycyclohexa-1,3-diene-1-carboxylic acid
Molecular weight formula_weight	226.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	298

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1nf8a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.33 — Isochorismatase-like hydrolases
Superfamily Superfamily superfamily	c.33.1 — Isochorismatase-like hydrolases
Family Family family	c.33.1.3 — Isochorismatase-like hydrolases

CATH v4.4 (1 domains)

Domain ID domain_id	1nf8A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	850 — Isochorismatase-like

▶

Unit-cell length a length_a	68.400 Å
Unit-cell length b length_b	77.010 Å
Unit-cell length c length_c	82.440 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1340
R_work r_work	0.1340
R_free r_free	0.2100
