SAXSdb — 1ngq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

N1G9 (IGG1-LAMBDA)

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain H； UniProt 20–244	Fragment：FAB FRAGMENT	N1G9 (IGG1-LAMBDA) × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.40 Å R-free 0.254

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1NGQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A6U B1-8 FV FRAGMENT Deposited 1998-03-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 20–139（120 aa） Fragment：FV FRAGMENT	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions CRYSTALS WERE GROWN USING AMMONIUM SULFATE AS PRECIPITANT.	Resolution 2.10 Å
1A6V B1-8 FV fragment complexed with a (4-hydroxy-3-nitrophenyl) acetate compound Deposited 1998-03-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 20–139（120 aa） Fragment：FV FRAGMENT	Not recorded	NPC 4-HYDROXY-3-NITROPHENYLACETYL-EPSILON-AMINOCAPROIC ACID ANION × 1	X-RAY DIFFRACTION X-ray crystallization conditions CRYSTALS WERE GROWN USING AMMONIUM SULPHATE AS PRECIPITANT	Resolution 1.80 Å
1A6V B1-8 FV fragment complexed with a (4-hydroxy-3-nitrophenyl) acetate compound Deposited 1998-03-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 20–139（120 aa） Fragment：FV FRAGMENT	Not recorded	NPC 4-HYDROXY-3-NITROPHENYLACETYL-EPSILON-AMINOCAPROIC ACID ANION × 1	X-RAY DIFFRACTION X-ray crystallization conditions CRYSTALS WERE GROWN USING AMMONIUM SULPHATE AS PRECIPITANT	Resolution 1.80 Å
1A6V B1-8 FV fragment complexed with a (4-hydroxy-3-nitrophenyl) acetate compound Deposited 1998-03-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain J 20–139（120 aa） Fragment：FV FRAGMENT	Not recorded	NPC 4-HYDROXY-3-NITROPHENYLACETYL-EPSILON-AMINOCAPROIC ACID ANION × 1	X-RAY DIFFRACTION X-ray crystallization conditions CRYSTALS WERE GROWN USING AMMONIUM SULPHATE AS PRECIPITANT	Resolution 1.80 Å
1A6W B1-8 FV FRAGMENT COMPLEXED WITH A (4-HYDROXY-5-IODO-3-NITROPHENYL) ACETATE COMPOUND Deposited 1998-03-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 20–139（120 aa） Fragment：FV FRAGMENT	Not recorded	NIP 4-HYDROXY-5-IODO-3-NITROPHENYLACETYL-EPSILON-AMINOCAPROIC ACID ANION × 1	X-RAY DIFFRACTION X-ray crystallization conditions dialysis；THE PURIFIED PROTEIN HAS BEEN DIALYSED INTO A 10 MM TRIS-HCL PH 7.5 BUFFER ALSO CONTAINING 20 MM NACL. PEG 1550 WAS USED AS PRECIPITANT., dialysis	Resolution 2.00 Å
1NGP N1G9 (IGG1-LAMBDA) FAB FRAGMENT COMPLEXED WITH (4-HYDROXY-3-NITROPHENYL) ACETATE Deposited 1995-06-23	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 20–244（225 aa） Fragment：FAB FRAGMENT	Not recorded	SO4 SULFATE ION × 1 NPA 2-(4-HYDROXY-3-NITROPHENYL)ACETIC ACID × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.40 Å R-free 0.250
1NQB TRIVALENT ANTIBODY FRAGMENT Deposited 1997-04-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 20–139（120 aa） Fragment：VH DOMAIN RESIDUES 2 - 120, VL DOMAIN RESIDUES 121 - 233 Chain C 20–139（120 aa） Fragment：VH DOMAIN RESIDUES 2 - 120, VL DOMAIN RESIDUES 121 - 233	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；30% 2-PROPANOL, 0.2M NA CITRATE, 0.1M NA CACODYLATE PH 6.5	Resolution 2.00 Å R-free 0.230
1NQB TRIVALENT ANTIBODY FRAGMENT Deposited 1997-04-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 20–139（120 aa） Fragment：VH DOMAIN RESIDUES 2 - 120, VL DOMAIN RESIDUES 121 - 233	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；30% 2-PROPANOL, 0.2M NA CITRATE, 0.1M NA CACODYLATE PH 6.5	Resolution 2.00 Å R-free 0.230
1NQB TRIVALENT ANTIBODY FRAGMENT Deposited 1997-04-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain C 20–139（120 aa） Fragment：VH DOMAIN RESIDUES 2 - 120, VL DOMAIN RESIDUES 121 - 233	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；30% 2-PROPANOL, 0.2M NA CITRATE, 0.1M NA CACODYLATE PH 6.5	Resolution 2.00 Å R-free 0.230

5 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HV07_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain H； PDBConstruct 1–222； UniProt 20–244

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ngq
Deposition date deposition_date	1995-06-23
Structure title title	N1G9 (IGG1-LAMBDA) FAB FRAGMENT
Keywords keywords	IMMUNOGLOBULIN; IMMUNOGLOBULIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.56 Å
Radius of gyration Rg (electron density) rg_electron	23.60 Å
Forward intensity I(0) i0	35422800.00
Molecular weight molecular_weight	45708.0 kDa
Excluded volume excluded_volume	57005 Å³
Envelope volume envelope_volume	70026 Å³
Hydration-shell volume shell_volume	24835 Å³
Envelope diameter envelope_diameter	76.2 Å
Shell Rg shell_rg	30.52 Å
Envelope Rg envelope_rg	23.38 Å
Shape Rg shape_rg	23.60 Å
Total Rg total_rg	24.43 Å
Total atoms total_atoms	3221
Residues n_residues	426
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

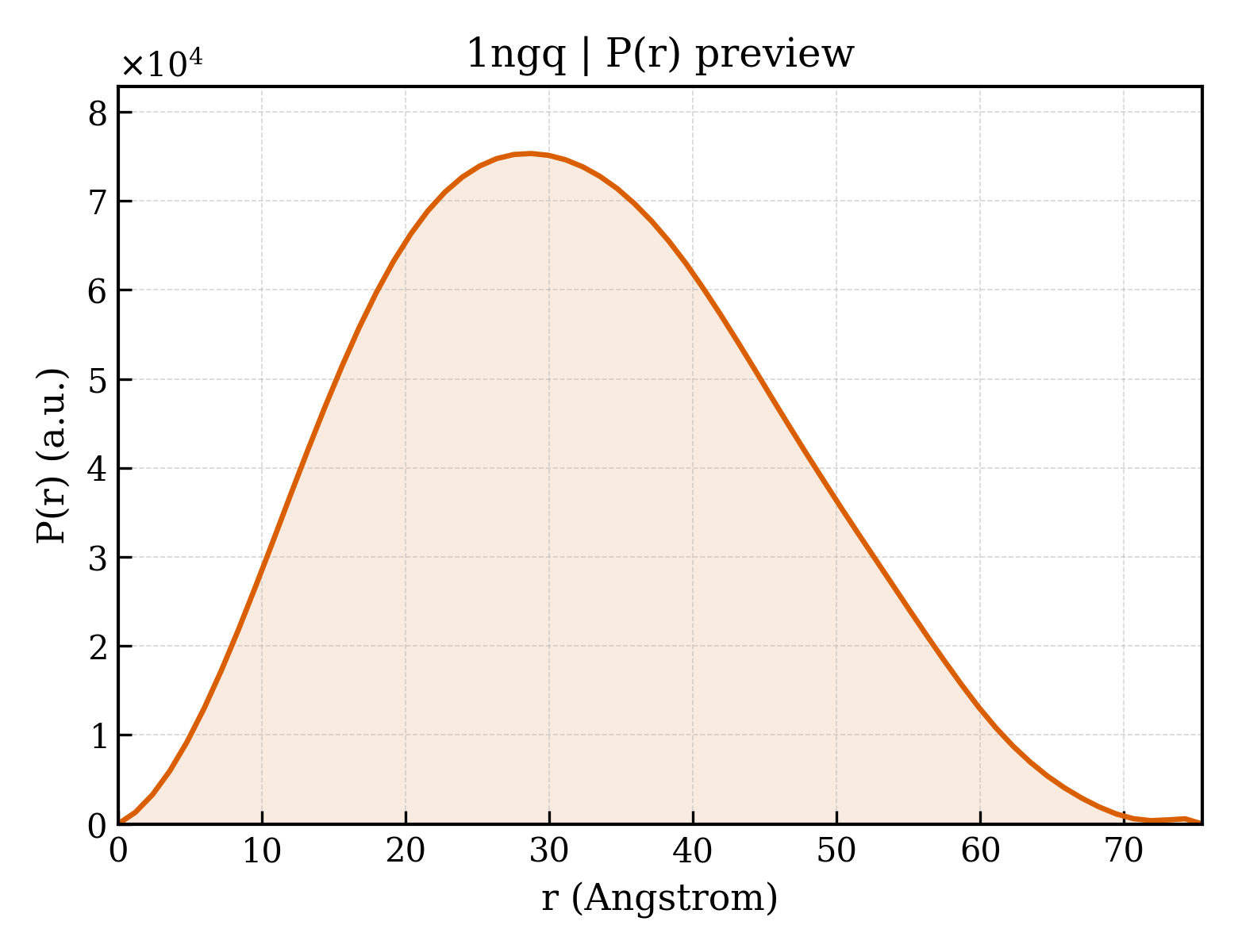

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	75.4 Å
Rg (real space) rg_real	24.50 Å
Rg uncertainty (real space) rg_real_error	0.44 Å
I(0) (real space) i0_real	3.5420e+07
I(0) uncertainty (real space) i0_real_error	4.6120e+05
Rg (reciprocal space) rg_reciprocal	24.52 Å
I(0) (reciprocal space) i0_reciprocal	35420000.0000
Solution quality estimate total_estimate	0.9138
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	28.7 Å
Skewness Skewness skewness	0.230
Kurtosis Kurtosis kurtosis	-0.545
Angular range angular_range	— – 0.3250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7857000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.969; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.971

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	N1G9 (IGG1-LAMBDA)
Molecular weight formula_weight	23129.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	3369

QAVVTQESALTTSPGETVTLTCRSSTGAVTTSNYANWVQEKPDHLFTGLIGGTNNRAPGVPARFSGSLIGDKAALTITGAQTEDEAIYFCALWYSNHWVFGGGTKLTVLGQPKSSPSVTLFPPSSEELETNKATLVCTITDFYPGVVTVDWKVDGTPVTQGMETTQPSKQSNNKYMASSYLTLTARAWERHSSYSCQVTHEGHTVEKSLSRADCS

Entity 2 Entity 2 polymer

Description description	N1G9 (IGG1-LAMBDA)
Molecular weight formula_weight	24082.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

QVQLQQPGAELVKPGASVKLSCKASGYTFTSYWMHWVKQRPGRGLEWIGRIDPNSGGTKYNEKFKSKATLTVDKPSSTAYMQLSSLTSEDSAVYYCARYDYYGSSYFDYWGQGTTLTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSPWPSETVTCNVAHPASSTKVDKKIVPRDC

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	140

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1ngqh1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1ngqh2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1ngql1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1ngql2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (4 domains)

Domain ID domain_id	1ngqH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1ngqH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1ngqL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1ngqL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (4)

▶

Unit-cell length a length_a	109.885 Å
Unit-cell length b length_b	109.885 Å
Unit-cell length c length_c	97.959 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	—
R_work r_work	0.1940
R_free r_free	0.2540

fit	/app/data/saxs_computation/ng/1ngq/1ngq.fit
pddf	/app/data/pr_computation/ng/1ngq/1ngq.pr.out
profile	/app/data/saxs_computation/ng/1ngq/1ngq.dat
