1a6v
B1-8 FV fragment complexed with a (4-hydroxy-3-nitrophenyl) acetate compound
SAXS Profile

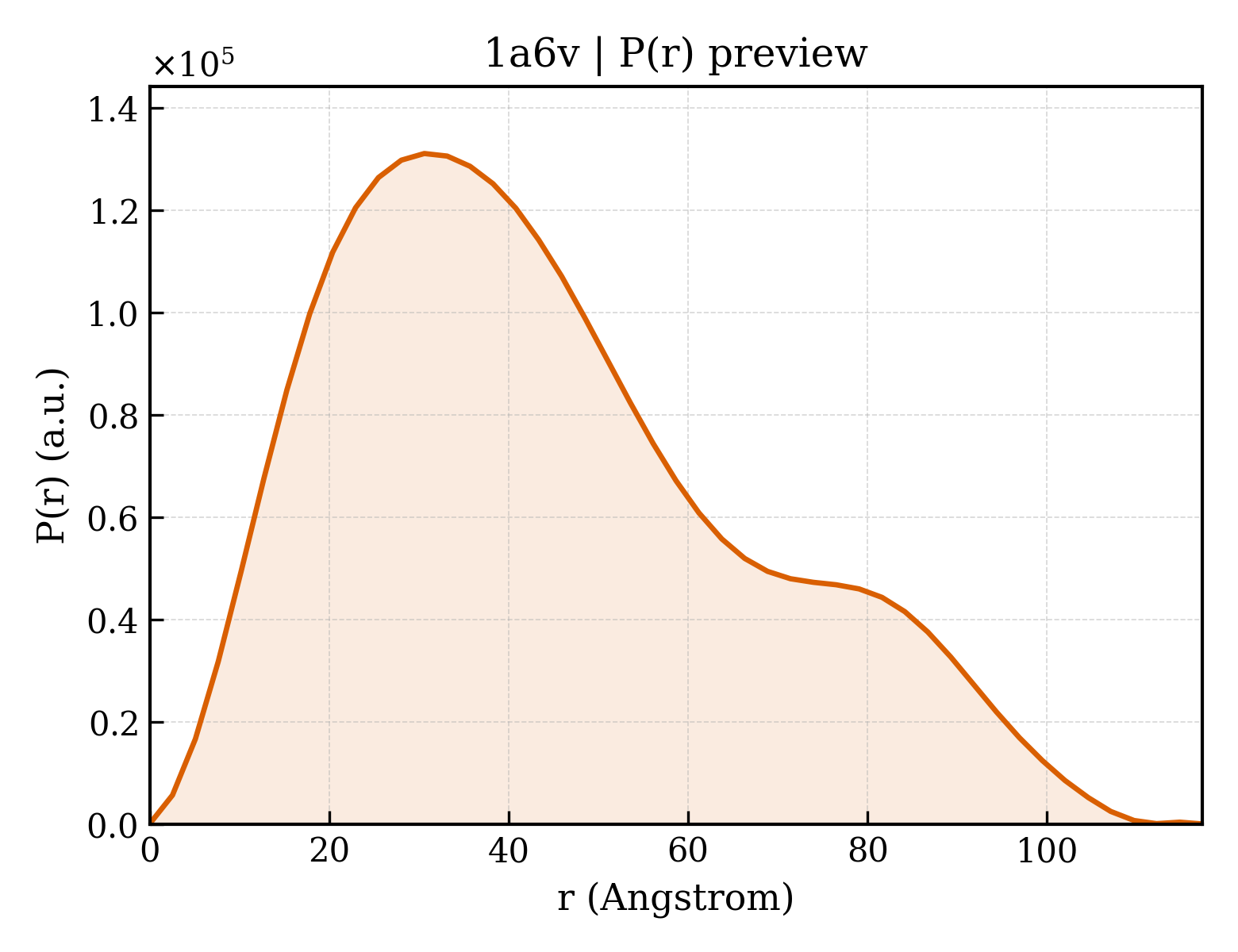

P(r) Distribution
1. Structure Basics
| entry_id | 1a6v |
| deposition_date | 1998-03-03 |
| title | B1-8 FV fragment complexed with a (4-hydroxy-3-nitrophenyl) acetate compound |
| keywords | IMMUNOGLOBULIN, HAPTEN, IMMUNE SYSTEM; IMMUNE SYSTEM |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 34.61 Å |
| rg_electron | 34.85 Å |
| i0 | 88862400.00 |
| molecular_weight | 74885.0 kDa |
| excluded_volume | 93362 ų |
| envelope_volume | 120690 ų |
| shell_volume | 32358 ų |
| envelope_diameter | 121.3 Å |
| shell_rg | 37.22 Å |
| envelope_rg | 34.47 Å |
| shape_rg | 34.83 Å |
| total_rg | 35.11 Å |
| total_atoms | 5288 |
| n_residues | 685 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 117.3 Å |
| rg_real | 35.00 Å |
| rg_real_error | 1.31 Å |
| i0_real | 8.8860e+07 |
| i0_real_error | 1.6720e+06 |
| rg_reciprocal | 34.76 Å |
| i0_reciprocal | 88840000.0000 |
| total_estimate | 0.7991 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 30.6 Å |
| skewness | 0.567 |
| kurtosis | -0.448 |
| angular_range | — – 0.2300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 10470000.0000 |
| n_real_points | 47 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.693; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.695; Smooth: 0.612 |
