SAXSdb — 1nib

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1nib
沉积日期 deposition_date	1995-07-03
结构标题 title	;THE STRUCTURE OF CU-NITRITE REDUCTASE FROM ACHROMOBACTER CYCLOCLASTES AT FIVE PH VALUES, WITH NITRITE BOUND AND WITH TYPE II CU DEPLETED ;
关键词 keywords	OXIDOREDUCTASE (NITRIC OXIDE(A)); OXIDOREDUCTASE (NITRIC OXIDE(A))
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	28.74 Å
回转半径 Rg (电子) rg_electron	27.70 Å
零角强度 I(0) i0	187523000.00
分子量 molecular_weight	108960.0 kDa
排除体积 excluded_volume	136150 Å³
包络体积 envelope_volume	158160 Å³
水化壳体积 shell_volume	44877 Å³
包络直径 envelope_diameter	91.3 Å
壳层 Rg shell_rg	37.07 Å
包络 Rg envelope_rg	27.93 Å
形状 Rg shape_rg	27.66 Å
总 Rg total_rg	28.66 Å
总原子数 total_atoms	7759
残基数 n_residues	999
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	84.7 Å
Rg (实空间) rg_real	28.57 Å
Rg 误差 (实空间) rg_real_error	0.35 Å
I(0) (实空间) i0_real	1.8750e+08
I(0) 误差 (实空间) i0_real_error	2.4630e+06
Rg (倒空间) rg_reciprocal	28.64 Å
I(0) (倒空间) i0_reciprocal	187500000.0000
解质量估计 total_estimate	0.9070
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	37.0 Å
偏度 Skewness skewness	0.119
峰度 Kurtosis kurtosis	-0.548
角度范围 angular_range	— – 0.2750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	72540000.0000
实空间数据点数 n_real_points	56
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.963; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.917

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	NITRITE REDUCTASE
分子量 formula_weight	37059.8 kDa
EC 编号 ec_number	1.7.99.3
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	8290

AAGAAPVDISTLPRVKVDLVKPPFVHAHDQVAKTGPRVVEFTMTIEEKKLVIDREGTEIHAMTFNGSVPGPLMVVHENDYVELRLINPDTNTLLHNIDFHAATGALGGGALTQVNPGEETTLRFKATKPGVFVYHCAPEGMVPWHVTSGMNGAIMVLPRDGLKDEKGQPLTYDKIYYVGEQDFYVPKDEAGNYKKYETPGEAYEDAVKAMRTLTPTHIVFNGAVGALTGDHALTAAVGERVLVVHSQANRDTRPHLIGGHGDYVWATGKFRNPPDLDQETWLIPGGTAGAAFYTFRQPGVYAYVNHNLIEAFELGAAGHFKVTGEWNDDLMTSVVKPASM

Entity 2 non-polymer

描述 description	COPPER (II) ION
分子量 formula_weight	63.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	531

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d1niba1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.3 — Multidomain cupredoxins

结构域编号 domain_id	d1niba2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.3 — Multidomain cupredoxins

结构域编号 domain_id	d1nibb1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.3 — Multidomain cupredoxins

结构域编号 domain_id	d1nibb2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.3 — Multidomain cupredoxins

结构域编号 domain_id	d1nibc1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.3 — Multidomain cupredoxins

结构域编号 domain_id	d1nibc2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.6 — Cupredoxin-like
超家族 Superfamily superfamily	b.6.1 — Cupredoxins
家族 Family family	b.6.1.3 — Multidomain cupredoxins

CATH v4.4 (6 domains)

结构域编号 domain_id	1nibA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	1nibA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	1nibB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	1nibB02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	1nibC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

结构域编号 domain_id	1nibC02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

▶

7. 引用文献 (4)

▶

晶胞边长 a length_a	99.560 Å
晶胞边长 b length_b	115.360 Å
晶胞边长 c length_c	115.700 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	10.000 Å
R 因子 r_factor	0.1550
R_work r_work	0.1550
R_free r_free	—

fit	/app/data/saxs_computation/ni/1nib/1nib.fit
pddf	/app/data/pr_computation/ni/1nib/1nib.pr.out
profile	/app/data/saxs_computation/ni/1nib/1nib.dat

;THE STRUCTURE OF CU-NITRITE REDUCTASE FROM ACHROMOBACTER CYCLOCLASTES AT FIVE PH VALUES, WITH NITRITE BOUND AND WITH TYPE II CU DEPLETED ;

SAXS 散射曲线 SAXS Profile

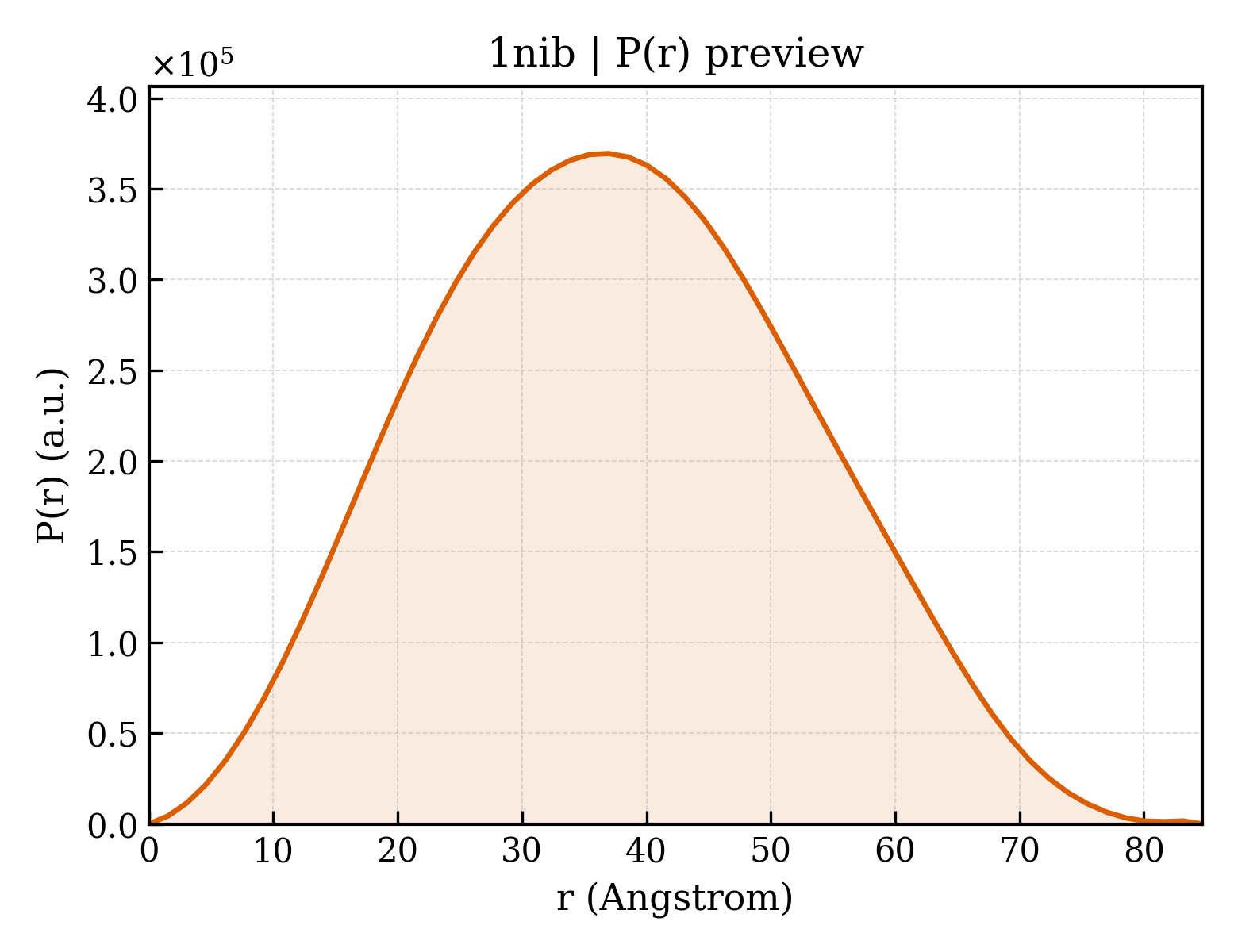

P(r) 距离分布 P(r) Distribution
