SAXSdb — 1nlq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nucleoplasmin-like protein

Drosophila melanogaster

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 5	MAGNESIUM ION × 2 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NLP_DROME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–108； UniProt 1–108 Author chain B； PDBConstruct 1–108； UniProt 1–108 Author chain C； PDBConstruct 1–108； UniProt 1–108 Author chain D； PDBConstruct 1–108； UniProt 1–108 Author chain E； PDBConstruct 1–108； UniProt 1–108

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1nlq
Deposition date deposition_date	2003-01-07
Structure title title	The crystal structure of Drosophila NLP-core provides insight into pentamer formation and histone binding
Keywords keywords	dNLP, Nucleoplasmin, chaperone, histone binding, LIGAND BINDING; CHAPERONE, LIGAND BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1nlq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

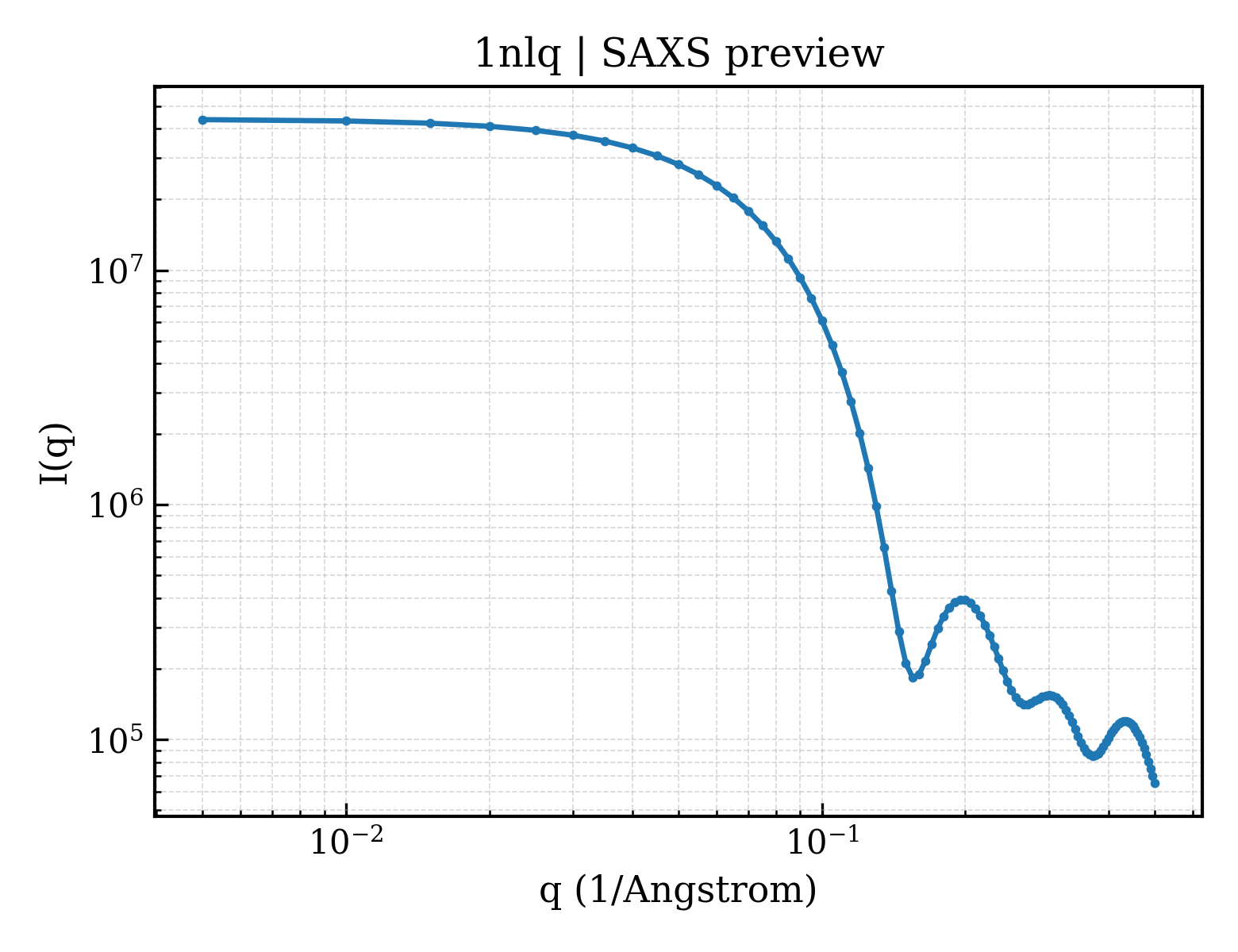

1nlq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

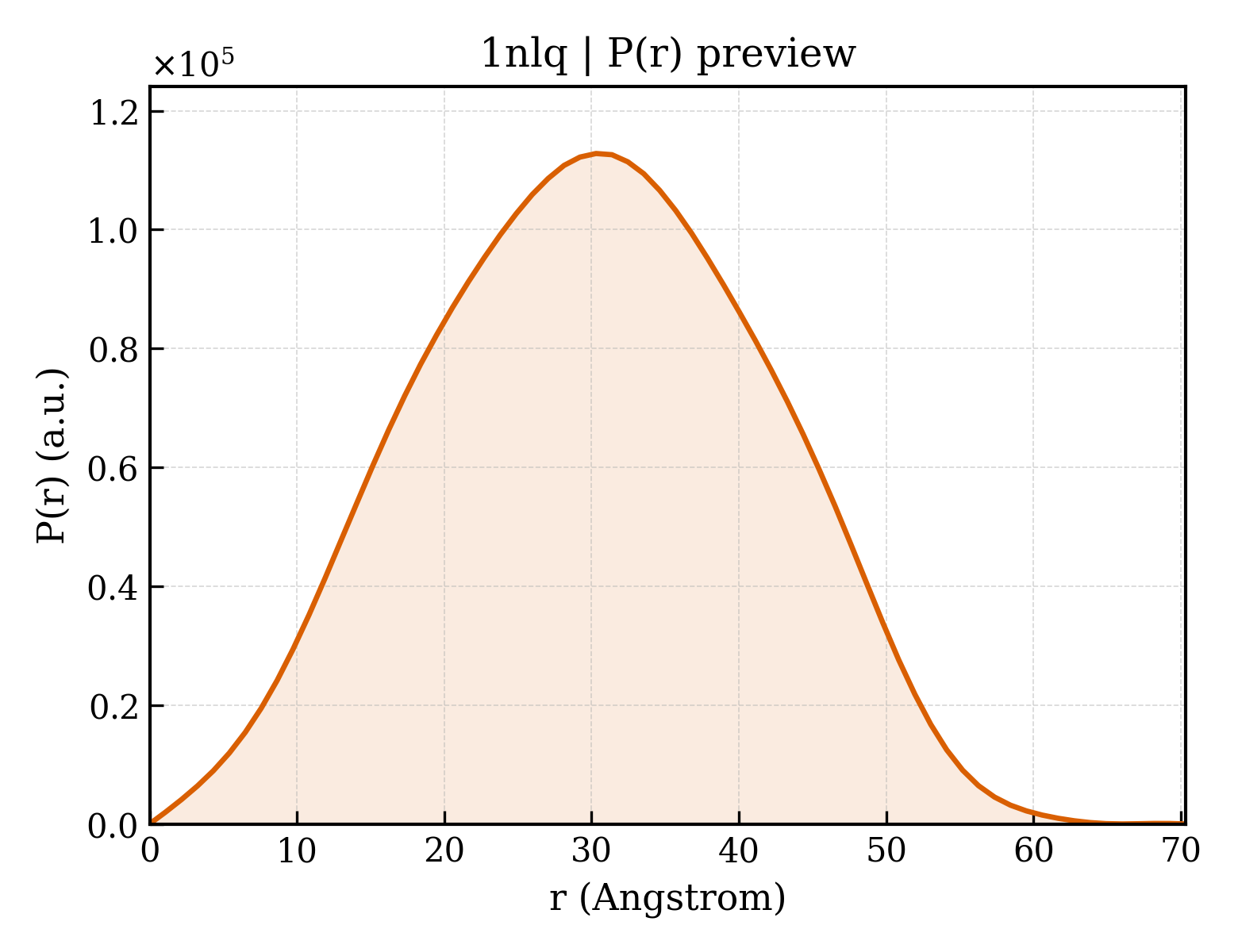

1nlq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.99 Å
Rg (electron density)	21.58 Å
Total Rg	22.56 Å
Atom count	3789
Residues	490
Excluded volume	67808 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1nlq__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Nucleoplasmin-like protein
Molecular weight formula_weight	11970.4 kDa
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E
Atom count atom_count	4147

MAEESFYGVTLTAESDSVTWDVDEDYARGQKLVIKQILLGAEAKENEFNVVEVNTPKDSVQIPIAVLKAGETRAVNPDVEFYESKVTFKLIKGSGPVYIHGHNIKDDV

Source Source

Source organism organism	Drosophila melanogaster
Common name common_name	fruit fly
NCBI taxonomy ID ncbi_taxonomy_id	7227
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	358

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d1nlqa_
Class class	b — All beta proteins
Fold Fold fold	b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins)
Superfamily Superfamily superfamily	b.121.3 — Nucleoplasmin-like core domain
Family Family family	b.121.3.1 — Nucleoplasmin-like core domain

Domain ID domain_id	d1nlqb_
Class class	b — All beta proteins
Fold Fold fold	b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins)
Superfamily Superfamily superfamily	b.121.3 — Nucleoplasmin-like core domain
Family Family family	b.121.3.1 — Nucleoplasmin-like core domain

Domain ID domain_id	d1nlqc_
Class class	b — All beta proteins
Fold Fold fold	b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins)
Superfamily Superfamily superfamily	b.121.3 — Nucleoplasmin-like core domain
Family Family family	b.121.3.1 — Nucleoplasmin-like core domain

Domain ID domain_id	d1nlqd_
Class class	b — All beta proteins
Fold Fold fold	b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins)
Superfamily Superfamily superfamily	b.121.3 — Nucleoplasmin-like core domain
Family Family family	b.121.3.1 — Nucleoplasmin-like core domain

Domain ID domain_id	d1nlqe_
Class class	b — All beta proteins
Fold Fold fold	b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins)
Superfamily Superfamily superfamily	b.121.3 — Nucleoplasmin-like core domain
Family Family family	b.121.3.1 — Nucleoplasmin-like core domain

CATH v4.4 (5 domains)

Domain ID domain_id	1nlqA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	340 — Nucleoplasmin core domain

Domain ID domain_id	1nlqB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	340 — Nucleoplasmin core domain

Domain ID domain_id	1nlqC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	340 — Nucleoplasmin core domain

Domain ID domain_id	1nlqD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	340 — Nucleoplasmin core domain

Domain ID domain_id	1nlqE00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	340 — Nucleoplasmin core domain

▶

Unit-cell length a length_a	57.608 Å
Unit-cell length b length_b	60.089 Å
Unit-cell length c length_c	73.426 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.79 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	10

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	31.150 Å
R factor r_factor	—
R_work r_work	0.2340
R_free r_free	0.2540

The crystal structure of Drosophila NLP-core provides insight into pentamer formation and histone binding
