1nlx
Crystal Structure of PHL P 6, A Major Timothy Grass Pollen Allergen Co-Crystallized with Zinc
SAXS 散射曲线 SAXS Profile

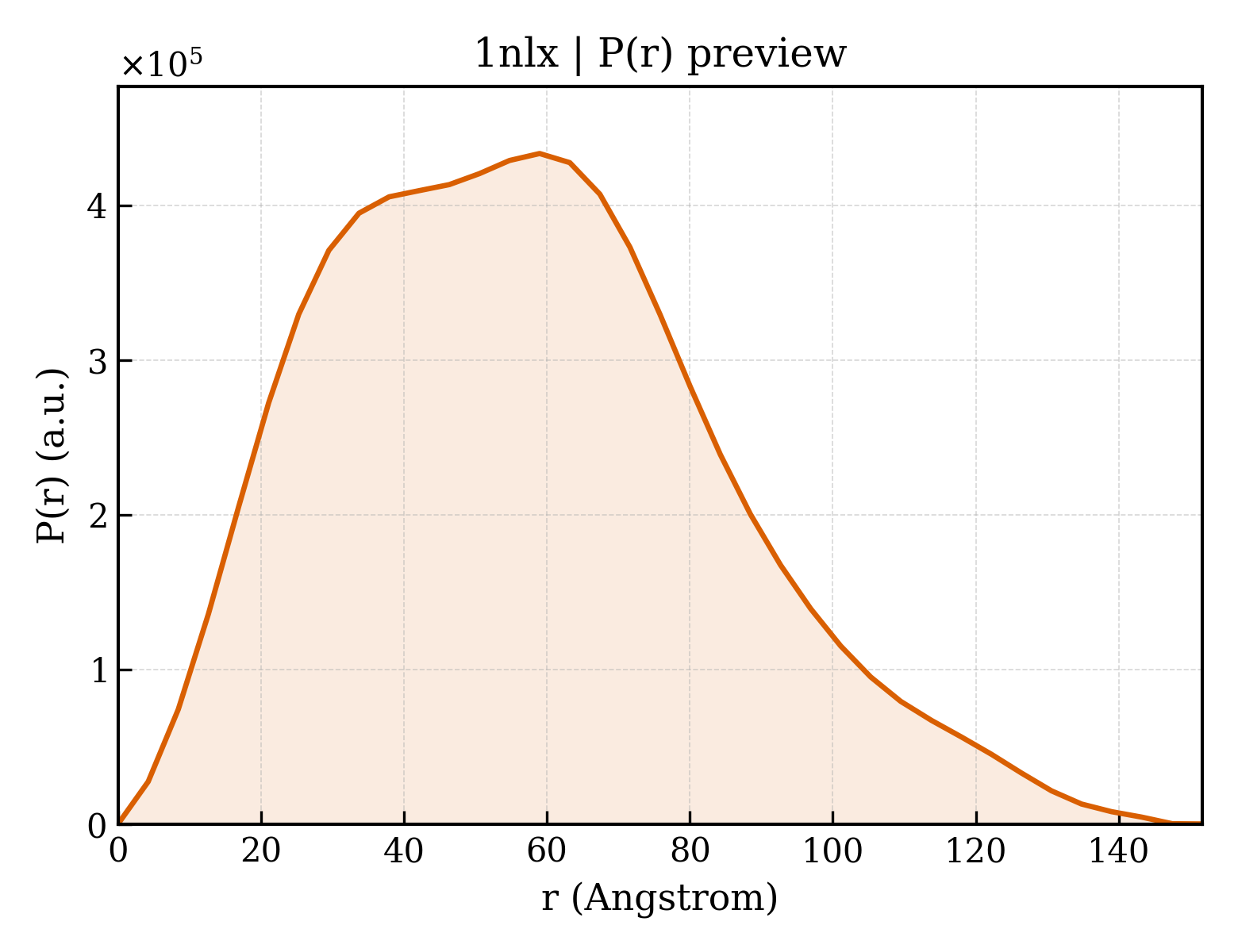

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1nlx |
| 沉积日期 deposition_date | 2003-01-07 |
| 结构标题 title | Crystal Structure of PHL P 6, A Major Timothy Grass Pollen Allergen Co-Crystallized with Zinc |
| 关键词 keywords | ;Allergen Phl p 6, four-helix-bundle, Structural Genomics, PSI, Protein Structure Initiative, New York SGX Research Center for Structural Genomics, NYSGXRC, ALLERGEN ;; ALLERGEN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 44.24 Å |
| 回转半径 Rg (电子) rg_electron | 44.24 Å |
| 零角强度 I(0) i0 | 393073000.00 |
| 分子量 molecular_weight | 159570.0 kDa |
| 排除体积 excluded_volume | 197990 ų |
| 包络体积 envelope_volume | 285080 ų |
| 水化壳体积 shell_volume | 55512 ų |
| 包络直径 envelope_diameter | 158.3 Å |
| 壳层 Rg shell_rg | 46.78 Å |
| 包络 Rg envelope_rg | 43.71 Å |
| 形状 Rg shape_rg | 44.24 Å |
| 总 Rg total_rg | 44.37 Å |
| 总原子数 total_atoms | 11151 |
| 残基数 n_residues | 1456 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 151.7 Å |
| Rg (实空间) rg_real | 44.44 Å |
| Rg 误差 (实空间) rg_real_error | 1.65 Å |
| I(0) (实空间) i0_real | 3.9310e+08 |
| I(0) 误差 (实空间) i0_real_error | 7.2960e+06 |
| Rg (倒空间) rg_reciprocal | 44.24 Å |
| I(0) (倒空间) i0_reciprocal | 393000000.0000 |
| 解质量估计 total_estimate | 0.8457 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 59.0 Å |
| 偏度 Skewness skewness | 0.431 |
| 峰度 Kurtosis kurtosis | -0.244 |
| 角度范围 angular_range | — – 0.1800 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 90170000.0000 |
| 实空间数据点数 n_real_points | 37 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.821; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.920; Smooth: 0.608 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (3)
6. 折叠分类 (SCOP + CATH) 28 domains
SCOP 2.08 (14 domains)
| 结构域编号 domain_id | d1nlxa_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.24 — Four-helical up-and-down bundle |
| 超家族 Superfamily superfamily | a.24.17 — Group V grass pollen allergen |
| 家族 Family family | a.24.17.1 — Group V grass pollen allergen |
| 结构域编号 domain_id | d1nlxb_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.24 — Four-helical up-and-down bundle |
| 超家族 Superfamily superfamily | a.24.17 — Group V grass pollen allergen |
| 家族 Family family | a.24.17.1 — Group V grass pollen allergen |
| 结构域编号 domain_id | d1nlxc_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.24 — Four-helical up-and-down bundle |
| 超家族 Superfamily superfamily | a.24.17 — Group V grass pollen allergen |
| 家族 Family family | a.24.17.1 — Group V grass pollen allergen |
| 结构域编号 domain_id | d1nlxd_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.24 — Four-helical up-and-down bundle |
| 超家族 Superfamily superfamily | a.24.17 — Group V grass pollen allergen |
| 家族 Family family | a.24.17.1 — Group V grass pollen allergen |
| 结构域编号 domain_id | d1nlxe_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.24 — Four-helical up-and-down bundle |
| 超家族 Superfamily superfamily | a.24.17 — Group V grass pollen allergen |
| 家族 Family family | a.24.17.1 — Group V grass pollen allergen |
| 结构域编号 domain_id | d1nlxf_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.24 — Four-helical up-and-down bundle |
| 超家族 Superfamily superfamily | a.24.17 — Group V grass pollen allergen |
| 家族 Family family | a.24.17.1 — Group V grass pollen allergen |
| 结构域编号 domain_id | d1nlxg_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.24 — Four-helical up-and-down bundle |
| 超家族 Superfamily superfamily | a.24.17 — Group V grass pollen allergen |
| 家族 Family family | a.24.17.1 — Group V grass pollen allergen |
| 结构域编号 domain_id | d1nlxh_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.24 — Four-helical up-and-down bundle |
| 超家族 Superfamily superfamily | a.24.17 — Group V grass pollen allergen |
| 家族 Family family | a.24.17.1 — Group V grass pollen allergen |
| 结构域编号 domain_id | d1nlxi_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.24 — Four-helical up-and-down bundle |
| 超家族 Superfamily superfamily | a.24.17 — Group V grass pollen allergen |
| 家族 Family family | a.24.17.1 — Group V grass pollen allergen |
| 结构域编号 domain_id | d1nlxj_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.24 — Four-helical up-and-down bundle |
| 超家族 Superfamily superfamily | a.24.17 — Group V grass pollen allergen |
| 家族 Family family | a.24.17.1 — Group V grass pollen allergen |
| 结构域编号 domain_id | d1nlxk_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.24 — Four-helical up-and-down bundle |
| 超家族 Superfamily superfamily | a.24.17 — Group V grass pollen allergen |
| 家族 Family family | a.24.17.1 — Group V grass pollen allergen |
| 结构域编号 domain_id | d1nlxl_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.24 — Four-helical up-and-down bundle |
| 超家族 Superfamily superfamily | a.24.17 — Group V grass pollen allergen |
| 家族 Family family | a.24.17.1 — Group V grass pollen allergen |
| 结构域编号 domain_id | d1nlxm_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.24 — Four-helical up-and-down bundle |
| 超家族 Superfamily superfamily | a.24.17 — Group V grass pollen allergen |
| 家族 Family family | a.24.17.1 — Group V grass pollen allergen |
| 结构域编号 domain_id | d1nlxn_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.24 — Four-helical up-and-down bundle |
| 超家族 Superfamily superfamily | a.24.17 — Group V grass pollen allergen |
| 家族 Family family | a.24.17.1 — Group V grass pollen allergen |
CATH v4.4 (14 domains)
| 结构域编号 domain_id | 1nlxA00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 120 — Four Helix Bundle (Hemerythrin (Met), subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 320 — Group V grass pollen allergen |
| 结构域编号 domain_id | 1nlxB00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 120 — Four Helix Bundle (Hemerythrin (Met), subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 320 — Group V grass pollen allergen |
| 结构域编号 domain_id | 1nlxC00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 120 — Four Helix Bundle (Hemerythrin (Met), subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 320 — Group V grass pollen allergen |
| 结构域编号 domain_id | 1nlxD00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 120 — Four Helix Bundle (Hemerythrin (Met), subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 320 — Group V grass pollen allergen |
| 结构域编号 domain_id | 1nlxE00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 120 — Four Helix Bundle (Hemerythrin (Met), subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 320 — Group V grass pollen allergen |
| 结构域编号 domain_id | 1nlxF00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 120 — Four Helix Bundle (Hemerythrin (Met), subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 320 — Group V grass pollen allergen |
| 结构域编号 domain_id | 1nlxG00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 120 — Four Helix Bundle (Hemerythrin (Met), subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 320 — Group V grass pollen allergen |
| 结构域编号 domain_id | 1nlxH00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 120 — Four Helix Bundle (Hemerythrin (Met), subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 320 — Group V grass pollen allergen |
| 结构域编号 domain_id | 1nlxI00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 120 — Four Helix Bundle (Hemerythrin (Met), subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 320 — Group V grass pollen allergen |
| 结构域编号 domain_id | 1nlxJ00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 120 — Four Helix Bundle (Hemerythrin (Met), subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 320 — Group V grass pollen allergen |
| 结构域编号 domain_id | 1nlxK00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 120 — Four Helix Bundle (Hemerythrin (Met), subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 320 — Group V grass pollen allergen |
| 结构域编号 domain_id | 1nlxL00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 120 — Four Helix Bundle (Hemerythrin (Met), subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 320 — Group V grass pollen allergen |
| 结构域编号 domain_id | 1nlxM00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 120 — Four Helix Bundle (Hemerythrin (Met), subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 320 — Group V grass pollen allergen |
| 结构域编号 domain_id | 1nlxN00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 120 — Four Helix Bundle (Hemerythrin (Met), subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 320 — Group V grass pollen allergen |
