SAXSdb — 1no7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Major capsid protein

Human herpesvirus 1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	No other associated polymer	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VCAP_HHV11
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–604； UniProt 451–1054 Author chain B； PDBConstruct 1–604； UniProt 451–1054

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1no7
Deposition date deposition_date	2003-01-15
Structure title title	Structure of the Large Protease Resistant Upper Domain of VP5, the Major Capsid Protein of Herpes Simplex Virus-1
Keywords keywords	novel fold, alpha plus beta, viral capsid protein, folding nucleus, Viral protein; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1no7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1no7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

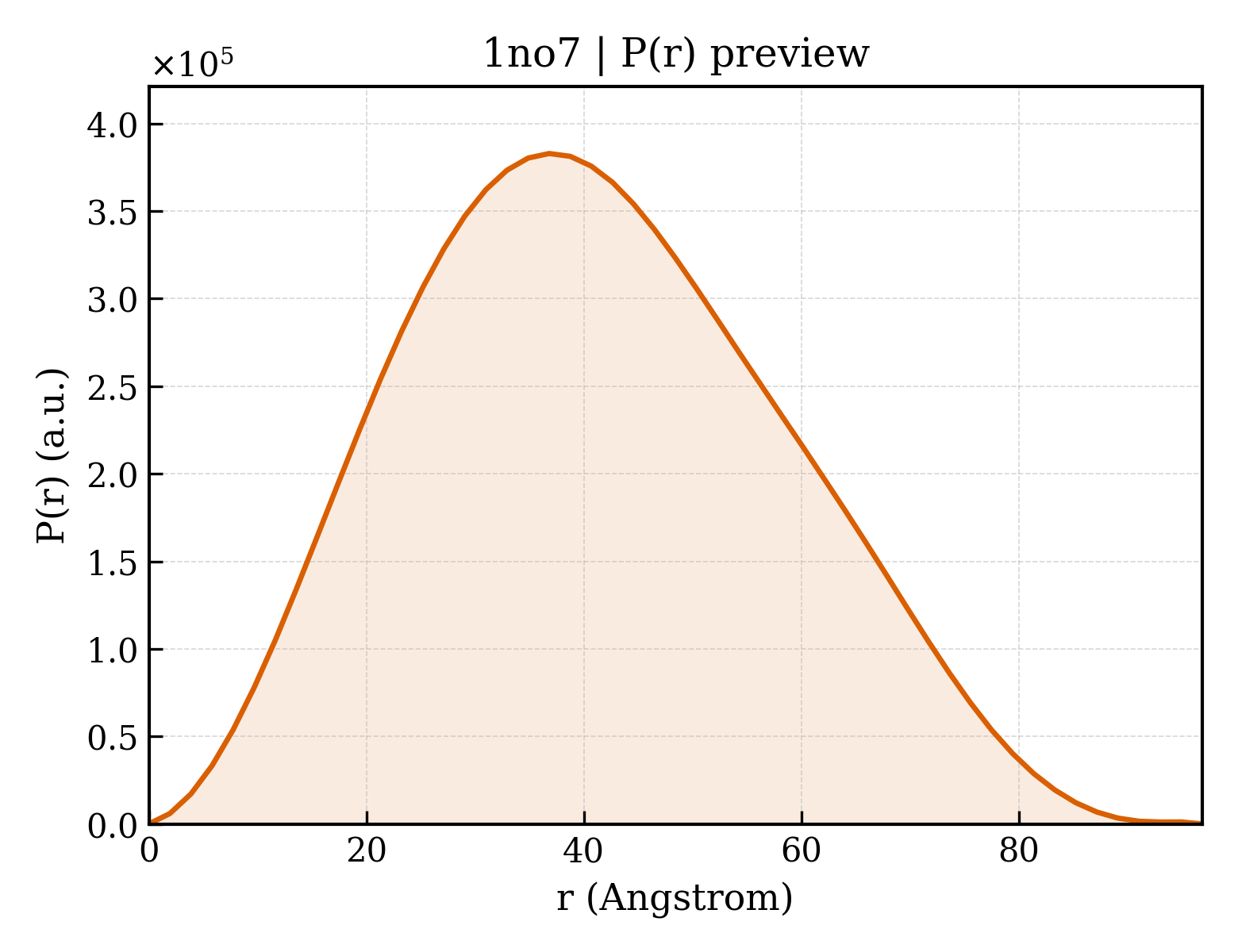

1no7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.12 Å
Rg (electron density)	23.08 Å
Total Rg	23.89 Å
Atom count	4121
Residues	542
Excluded volume	72653 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1no7__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1no7__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1no7a_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.48 — Major capsid protein VP5
Superfamily Superfamily superfamily	e.48.1 — Major capsid protein VP5
Family Family family	e.48.1.1 — Major capsid protein VP5

Domain ID domain_id	d1no7b_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.48 — Major capsid protein VP5
Superfamily Superfamily superfamily	e.48.1 — Major capsid protein VP5
Family Family family	e.48.1.1 — Major capsid protein VP5

▶

Unit-cell length a length_a	99.072 Å
Unit-cell length b length_b	99.072 Å
Unit-cell length c length_c	454.684 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	47.090 Å
R factor r_factor	0.2550
R_work r_work	0.2550
R_free r_free	0.2890

Description description	Major capsid protein
Molecular weight formula_weight	65169.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8179

Structure of the Large Protease Resistant Upper Domain of VP5, the Major Capsid Protein of Herpes Simplex Virus-1

1. Protein Identity and Related Structures Protein Identity & Related Structures

Major capsid protein

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1no7__assembly_1__model_1

1no7__assembly_1__model_1 | I(q)

1no7__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (2 domains)

7. Citations (1)

Source organism organism	Human herpesvirus 1
Common name common_name	Herpes simplex virus type 1
NCBI taxonomy ID ncbi_taxonomy_id	10298
Host organism host_organism	Escherichia coli BL21(DE3)
