SAXSdb — 1nou

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1nou
沉积日期 deposition_date	2003-01-16
结构标题 title	Native human lysosomal beta-hexosaminidase isoform B
关键词 keywords	(beta/alpha)8-barrel, homodimer, family 20 glycosidase, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	33.05 Å
回转半径 Rg (电子) rg_electron	32.20 Å
零角强度 I(0) i0	179814000.00
分子量 molecular_weight	110800.0 kDa
排除体积 excluded_volume	139830 Å³
包络体积 envelope_volume	170500 Å³
水化壳体积 shell_volume	42938 Å³
包络直径 envelope_diameter	110.0 Å
壳层 Rg shell_rg	40.06 Å
包络 Rg envelope_rg	32.27 Å
形状 Rg shape_rg	32.17 Å
总 Rg total_rg	32.91 Å
总原子数 total_atoms	7835
残基数 n_residues	960
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	104.1 Å
Rg (实空间) rg_real	32.96 Å
Rg 误差 (实空间) rg_real_error	0.53 Å
I(0) (实空间) i0_real	1.7980e+08
I(0) 误差 (实空间) i0_real_error	2.4340e+06
Rg (倒空间) rg_reciprocal	33.00 Å
I(0) (倒空间) i0_reciprocal	179800000.0000
解质量估计 total_estimate	0.9095
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	39.0 Å
偏度 Skewness skewness	0.222
峰度 Kurtosis kurtosis	-0.528
角度范围 angular_range	— – 0.2400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	52670000.0000
实空间数据点数 n_real_points	49
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.948; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.977

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	beta-hexosaminidase beta chain
分子量 formula_weight	58184.9 kDa
EC 编号 ec_number	3.2.1.52
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	8061

AKPGPALWPLPLSVKMTPNLLHLAPENFYISHSPNSTAGPSCTLLEEAFRRYHGYIFGFYKWHHEPAEFQAKTQVQQLLVSITLQSECDAFPNISSDESYTLLVKEPVAVLKANRVWGALRGLETFSQLVYQDSYGTFTINESTIIDSPRFSHRGILIDTSRHYLPVKIILKTLDAMAFNKFNVLHWHIVDDQSFPYQSITFPELSNKGSYSLSHVYTPNDVRMVIEYARLRGIRVLPEFDTPGHTLSWGKGQKDLLTPCYSRQNKLDSFGPINPTLNTTYSFLTTFFKEISEVFPDQFIHLGGDEVEFKCWESNPKIQDFMRQKGFGTDFKKLESFYIQKVLDIIATINKGSIVWQEVFDDKAKLAPGTIVEVWKDSAYPEELSRVTASGFPVILSAPWYLDLISYGQDWRKYYKVEPLDFGGTQKQKQLFIGGEACLWGEYVDATNLTPRLWPRASAVGERLWSSKDVRDMDDAYDRLTRHRCRMVERGIAAQPLYAGYCNHENM

Entity 2 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	226

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1noua1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.8 — (Trans)glycosidases
家族 Family family	c.1.8.6 — beta-N-acetylhexosaminidase catalytic domain

结构域编号 domain_id	d1noua2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.92 — Zincin-like
超家族 Superfamily superfamily	d.92.2 — beta-N-acetylhexosaminidase-like domain
家族 Family family	d.92.2.1 — beta-N-acetylhexosaminidase domain

结构域编号 domain_id	d1noub1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.8 — (Trans)glycosidases
家族 Family family	c.1.8.6 — beta-N-acetylhexosaminidase catalytic domain

结构域编号 domain_id	d1noub2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.92 — Zincin-like
超家族 Superfamily superfamily	d.92.2 — beta-N-acetylhexosaminidase-like domain
家族 Family family	d.92.2.1 — beta-N-acetylhexosaminidase domain

CATH v4.4 (4 domains)

结构域编号 domain_id	1nouA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	379 — Chitobiase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Chitobiase/beta-hexosaminidase domain 2-like

结构域编号 domain_id	1nouA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	80 — Glycosidases

结构域编号 domain_id	1nouB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	379 — Chitobiase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Chitobiase/beta-hexosaminidase domain 2-like

结构域编号 domain_id	1nouB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	80 — Glycosidases

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	112.465 Å
晶胞边长 b length_b	112.465 Å
晶胞边长 c length_c	397.867 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	P 61 2 2
空间群编号 int_tables_number	178
晶系 crystal_system	—

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	34.710 Å
R 因子 r_factor	0.2027
R_work r_work	0.2011
R_free r_free	0.2312

fit	/app/data/saxs_computation/no/1nou/1nou.fit
pddf	/app/data/pr_computation/no/1nou/1nou.pr.out
profile	/app/data/saxs_computation/no/1nou/1nou.dat

Native human lysosomal beta-hexosaminidase isoform B

SAXS 散射曲线 SAXS Profile

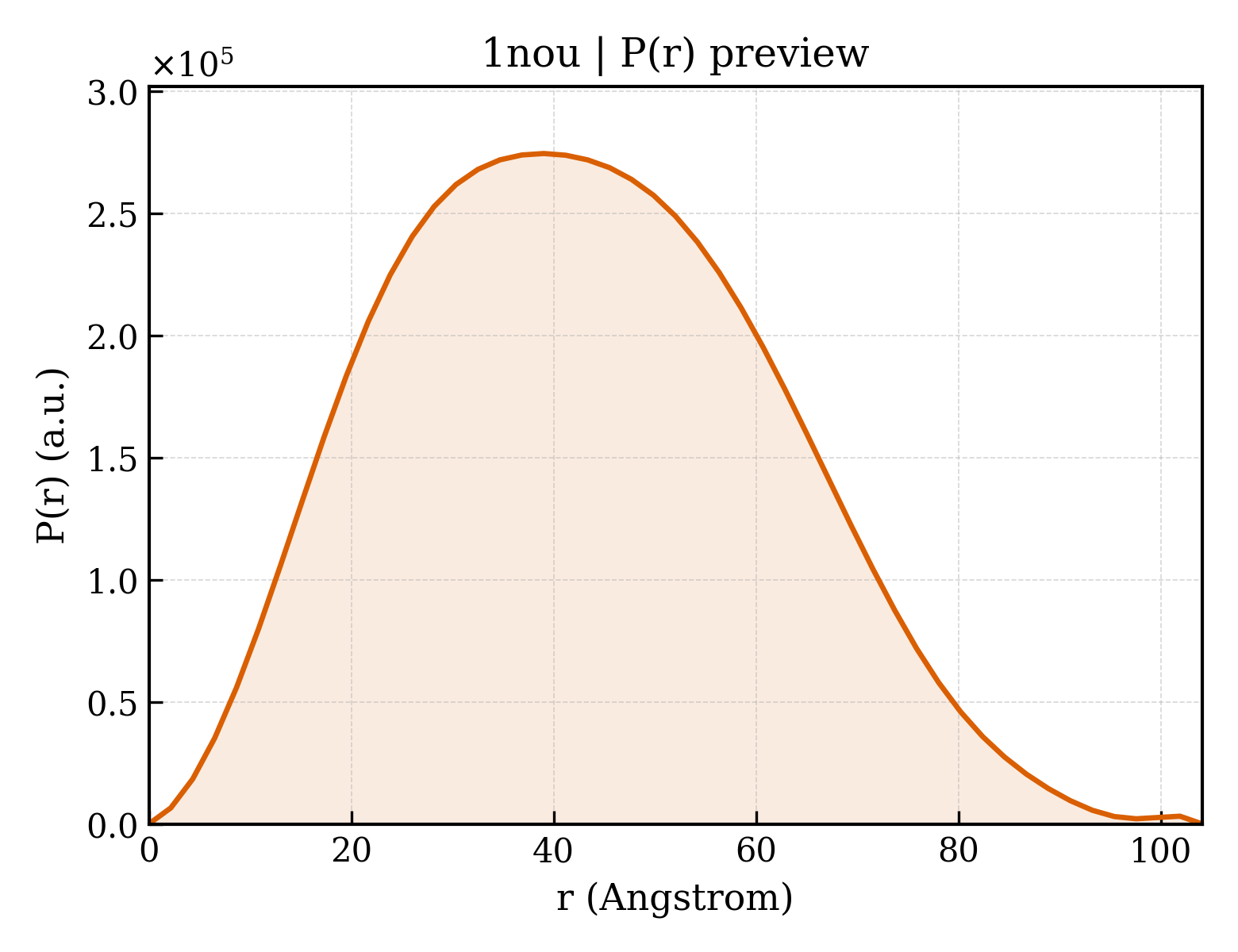

P(r) 距离分布 P(r) Distribution
