1np3

Crystal structure of class I acetohydroxy acid isomeroreductase from Pseudomonas aeruginosa

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ketol-acid reductoisomerase

Pseudomonas aeruginosa

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 12	water × 12	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ILVC_PSEAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–338； UniProt 1–338 Author chain B； PDBConstruct 1–338； UniProt 1–338 Author chain C； PDBConstruct 1–338； UniProt 1–338 Author chain D； PDBConstruct 1–338； UniProt 1–338

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1np3
Deposition date deposition_date	2003-01-17
Structure title title	Crystal structure of class I acetohydroxy acid isomeroreductase from Pseudomonas aeruginosa
Keywords keywords	a deep figure-of-eight knot, C-terminal alpha-helical domain, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1np3__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1np3__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

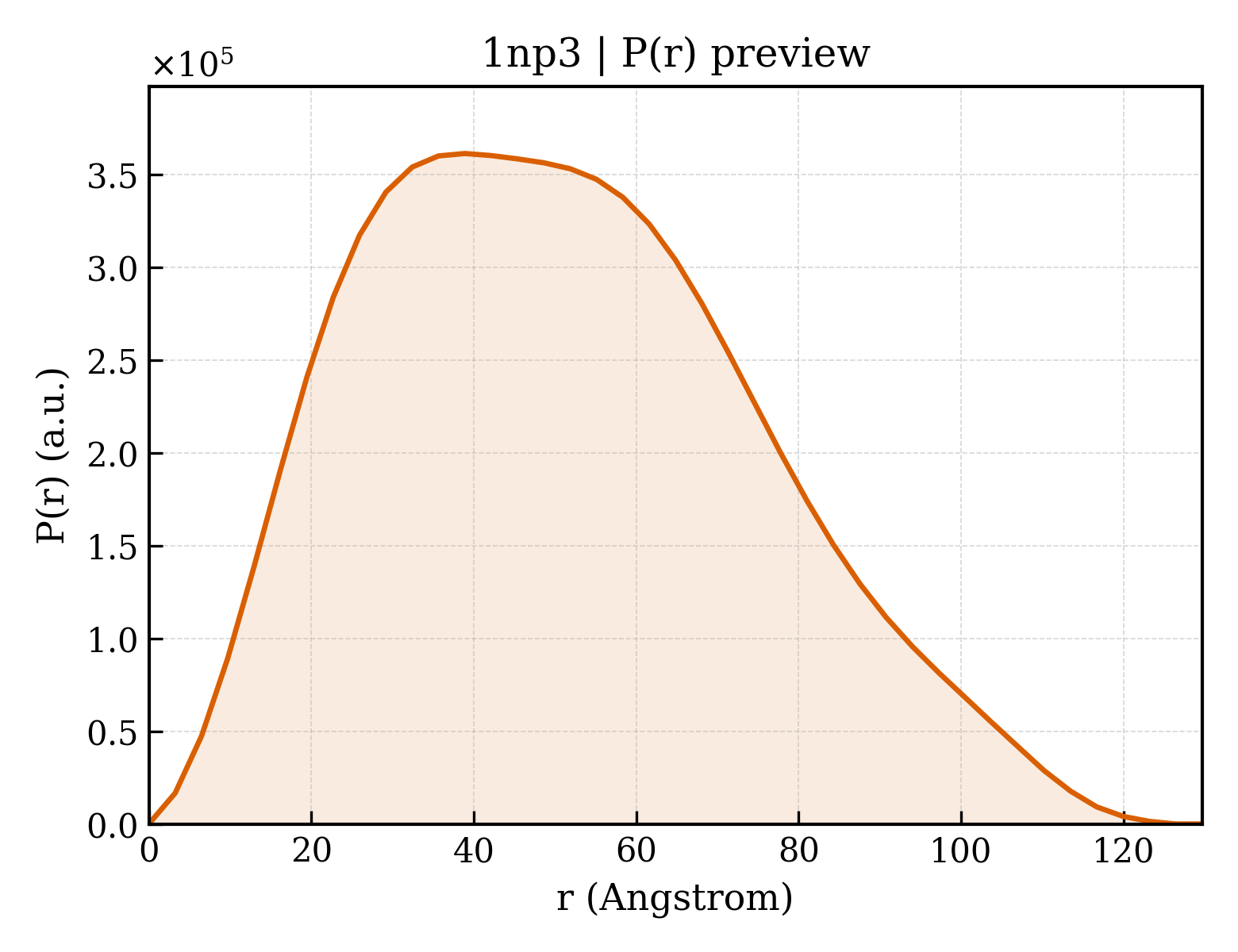

1np3__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	49.24 Å
Rg (electron density)	48.50 Å
Total Rg	48.83 Å
Atom count	29664
Residues	3924
Excluded volume	527940 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1np3__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1np3__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1np3__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1np3a1
Class class	a — All alpha proteins
Fold Fold fold	a.100 — 6-phosphogluconate dehydrogenase C-terminal domain-like
Superfamily Superfamily superfamily	a.100.1 — 6-phosphogluconate dehydrogenase C-terminal domain-like
Family Family family	a.100.1.2 — Acetohydroxy acid isomeroreductase (ketol-acid reductoisomerase, KARI)

Domain ID domain_id	d1np3a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.6 — 6-phosphogluconate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1np3b1
Class class	a — All alpha proteins
Fold Fold fold	a.100 — 6-phosphogluconate dehydrogenase C-terminal domain-like
Superfamily Superfamily superfamily	a.100.1 — 6-phosphogluconate dehydrogenase C-terminal domain-like
Family Family family	a.100.1.2 — Acetohydroxy acid isomeroreductase (ketol-acid reductoisomerase, KARI)

Domain ID domain_id	d1np3b2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.6 — 6-phosphogluconate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1np3c1
Class class	a — All alpha proteins
Fold Fold fold	a.100 — 6-phosphogluconate dehydrogenase C-terminal domain-like
Superfamily Superfamily superfamily	a.100.1 — 6-phosphogluconate dehydrogenase C-terminal domain-like
Family Family family	a.100.1.2 — Acetohydroxy acid isomeroreductase (ketol-acid reductoisomerase, KARI)

Domain ID domain_id	d1np3c2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.6 — 6-phosphogluconate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1np3d1
Class class	a — All alpha proteins
Fold Fold fold	a.100 — 6-phosphogluconate dehydrogenase C-terminal domain-like
Superfamily Superfamily superfamily	a.100.1 — 6-phosphogluconate dehydrogenase C-terminal domain-like
Family Family family	a.100.1.2 — Acetohydroxy acid isomeroreductase (ketol-acid reductoisomerase, KARI)

Domain ID domain_id	d1np3d2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.6 — 6-phosphogluconate dehydrogenase-like, N-terminal domain

CATH v4.4 (8 domains)

Domain ID domain_id	1np3A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1np3A02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	240 — ProC C-terminal domain-like fold
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1np3B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1np3B02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	240 — ProC C-terminal domain-like fold
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1np3C01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1np3C02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	240 — ProC C-terminal domain-like fold
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1np3D01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1np3D02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	240 — ProC C-terminal domain-like fold
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	184.377 Å
Unit-cell length b length_b	184.377 Å
Unit-cell length c length_c	184.377 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	P 21 3
Space-group number int_tables_number	198
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2120
R_work r_work	0.2120
R_free r_free	0.2350

Description description	Ketol-acid reductoisomerase
Molecular weight formula_weight	36466.5 kDa
EC 编号 ec_number	1.1.1.86
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	10348

Crystal structure of class I acetohydroxy acid isomeroreductase from Pseudomonas aeruginosa

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ketol-acid reductoisomerase

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1np3__assembly_1__model_1

1np3__assembly_1__model_1 | I(q)

1np3__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

CATH v4.4 (8 domains)

7. Citations (1)

Source organism organism	Pseudomonas aeruginosa
NCBI taxonomy ID ncbi_taxonomy_id	287
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	460
