SAXSdb — 1npd

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HYPOTHETICAL SHIKIMATE 5-DEHYDROGENASE-LIKE PROTEIN YDIB

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	YDIB_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–288； UniProt 1–288 Author chain B； PDBConstruct 1–288； UniProt 1–288

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1npd
Deposition date deposition_date	2003-01-17
Structure title title	X-RAY STRUCTURE OF SHIKIMATE DEHYDROGENASE COMPLEXED WITH NAD+ FROM E.COLI (YDIB) NORTHEAST STRUCTURAL GENOMICS RESEARCH CONSORTIUM (NESG) TARGET ER24
Keywords keywords	STRUCTURAL GENOMICS, PSI, Protein Structure Initiative, Northeast Structural Genomics Consortium, NESG, UNKNOWN FUNCTION; STRUCTURAL GENOMICS, UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1npd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1npd__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

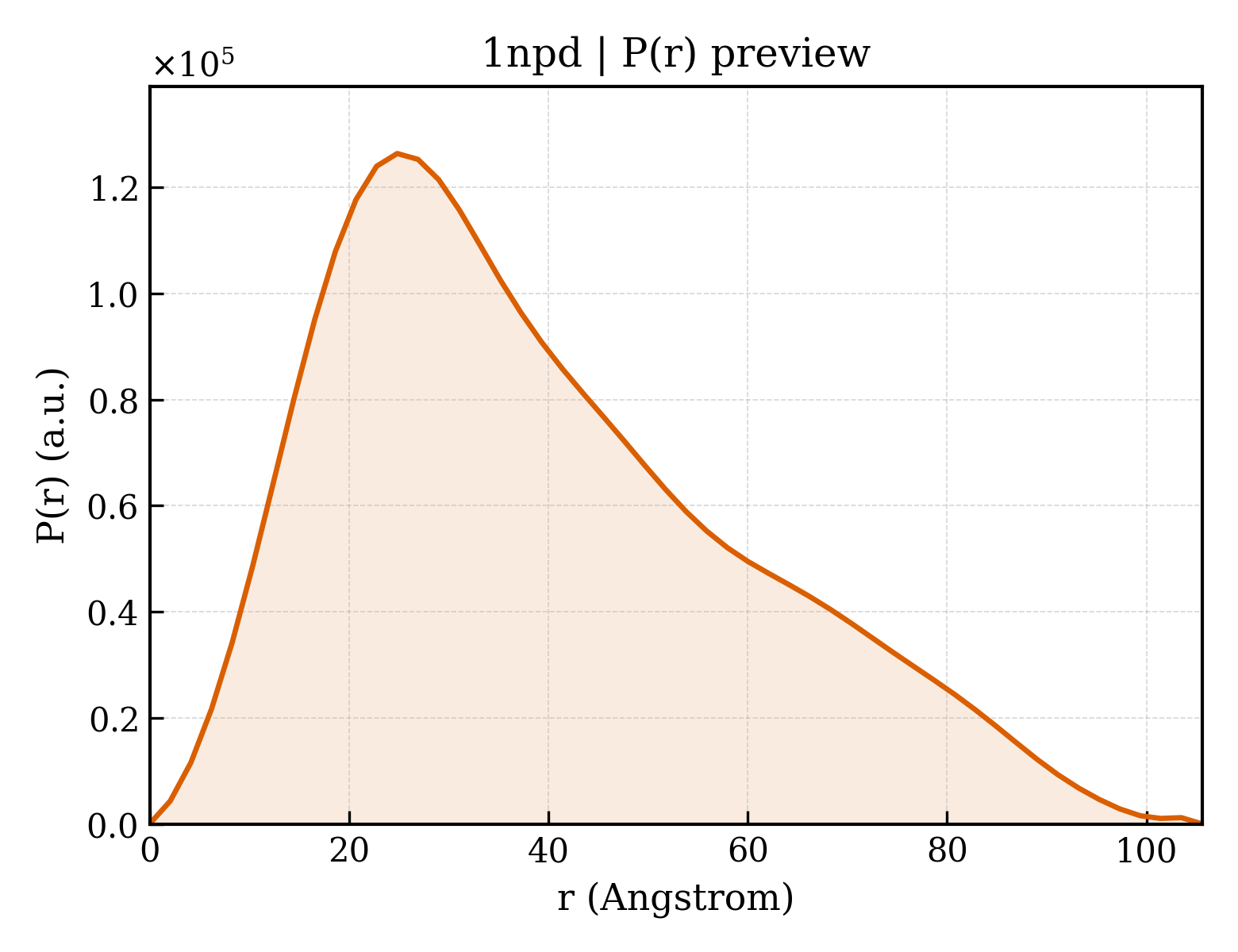

1npd__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.80 Å
Rg (electron density)	31.01 Å
Total Rg	31.05 Å
Atom count	4462
Residues	553
Excluded volume	79859 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1npd__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	HYPOTHETICAL SHIKIMATE 5-DEHYDROGENASE-LIKE PROTEIN YDIB
Molecular weight formula_weight	31773.6 kDa
EC 编号 ec_number	1.1.1.25
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4781

MDVTAKYELIGLMAYPIRHSLSPEMQNKALEKAGLPFTYMAFEVDNDSFPGAIEGLKALKMRGTGVSMPNKQLACEYVDELTPAAKLVGAINTIVNDDGYLRGYNTDGTGHIRAIKESGFDIKGKTMVLLGAGGASTAIGAQGAIEGLKEIKLFNRRDEFFDKALAFAQRVNENTDCVVTVTDLADQQAFAEALASADILTNGTKVGMKPLENESLVNDISLLHPGLLVTECVYNPHMTKLLQQAQQAGCKTIDGYGMLLWQGAEQFTLWTGKDFPLEYVKQVMGFGA

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
Molecular weight formula_weight	663.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	319

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1npda1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

Domain ID domain_id	d1npda2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
Superfamily Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
Family Family family	c.58.1.5 — Shikimate dehydrogenase-like

Domain ID domain_id	d1npdb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

Domain ID domain_id	d1npdb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
Superfamily Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
Family Family family	c.58.1.5 — Shikimate dehydrogenase-like

CATH v4.4 (4 domains)

Domain ID domain_id	1npdA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

Domain ID domain_id	1npdA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1npdB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

Domain ID domain_id	1npdB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

▶

Unit-cell length a length_a	157.185 Å
Unit-cell length b length_b	157.185 Å
Unit-cell length c length_c	39.782 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 64
Space-group number int_tables_number	172
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	19.710 Å
R factor r_factor	0.2170
R_work r_work	0.2170
R_free r_free	0.2740
