SAXSdb — 1npq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Troponin C

Gallus gallus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–90	Fragment：TnC, residues 1-90 Mutation：E56C, E63C	Troponin I × 1 （P02643） CA CALCIUM ION × 2	SOLUTION NMR NMR measurement conditions：pH 6.5；303 K；Ionic strength (raw mmCIF value) 320 mM KCl；Pressure ambiant NMR sample composition：320 mM KCl, 10 mM imidazole, 1.3% NaN3, pH 6.5, ~1mM sNTnC.2Ca2+.TnI115-131.BR56-63 \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1NPQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AVS X-RAY CRYSTALLOGRAPHIC STUDY OF CALCIUM-SATURATED N-TERMINAL DOMAIN OF TROPONIN C Deposited 1997-09-19	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–90（90 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 1 - 90	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；72 % AMMONIUM SULFATE 100 MM TRIS 2 % MPD, 5 MM CALCIUM CHLORIDE PH 7.5	Resolution 1.75 Å R-free 0.250
1AVS X-RAY CRYSTALLOGRAPHIC STUDY OF CALCIUM-SATURATED N-TERMINAL DOMAIN OF TROPONIN C Deposited 1997-09-19	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–90（90 aa） Fragment：N-TERMINAL DOMAIN, RESIDUES 1 - 90	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；72 % AMMONIUM SULFATE 100 MM TRIS 2 % MPD, 5 MM CALCIUM CHLORIDE PH 7.5	Resolution 1.75 Å R-free 0.250
1BLQ STRUCTURE AND INTERACTION SITE OF THE REGULATORY DOMAIN OF TROPONIN-C WHEN COMPLEXED WITH THE 96-148 REGION OF TROPONIN-I, NMR, 29 STRUCTURES Deposited 1998-07-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–90（90 aa） Fragment：REGULATORY	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.85；303 K；Ionic strength (raw mmCIF value) 100 mM KCL；Pressure 1 NMR sample composition H2O	Resolution not provided
1CTA DETERMINATION OF THE SOLUTION STRUCTURE OF A SYNTHETIC TWO-SITE CALCIUM-BINDING HOMODIMERIC PROTEIN DOMAIN BY NMR SPECTROSCOPY Deposited 1992-11-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 93–126（34 aa） Chain B 93–126（34 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 2	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1CTD DETERMINATION OF THE SOLUTION STRUCTURE OF A SYNTHETIC TWO-SITE CALCIUM-BINDING HOMODIMERIC PROTEIN DOMAIN BY NMR SPECTROSCOPY Deposited 1992-11-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 93–126（34 aa） Chain B 93–126（34 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 2	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1JC2 COMPLEX OF THE C-DOMAIN OF TROPONIN C WITH RESIDUES 1-40 OF TROPONIN I Deposited 2001-06-07	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 89–163（75 aa） Fragment：residues 89-163 of GB entry 212778	Not recorded	CA CALCIUM ION × 2	SOLUTION NMR NMR measurement conditions pH 6.8；303 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambiant NMR sample composition ~1.3 mM C-domain of Sqeletal Troponin C, 1.9 mM of TnI peptide (residues 1-40), 100 mM KCl, 10 mM Imidazole, 1 mM DSS \| 90% H2O/10% D2O	Resolution not provided
1NCX TROPONIN C Deposited 1996-06-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–162（162 aa）	Not recorded	CD CADMIUM ION × 2 SO4 SULFATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å
1NCY TROPONIN-C, COMPLEX WITH MANGANESE Deposited 1996-06-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–162（162 aa）	Not recorded	MN MANGANESE (II) ION × 2 SO4 SULFATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å
1NCZ TROPONIN C Deposited 1996-06-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–162（162 aa）	Not recorded	TB TERBIUM(III) ION × 2 SO4 SULFATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å
1PON SITE III-SITE IV TROPONIN C HETERODIMER, NMR Deposited 1996-04-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 93–126（34 aa） Fragment：SITE III AND IV Chain B 129–162（34 aa） Fragment：SITE III AND IV	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1SKT SOLUTION STRUCTURE OF APO N-DOMAIN OF TROPONIN C, NMR, 40 STRUCTURES Deposited 1998-04-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–90（90 aa） Fragment：N-DOMAIN, RESIDUES 1-90	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.7；277 K；Ionic strength (raw mmCIF value) 50mM KCL；Pressure 1 NMR sample composition WATER	Resolution not provided
1SMG CALCIUM-BOUND E41A MUTANT OF THE N-DOMAIN OF CHICKEN TROPONIN C, NMR, 40 STRUCTURES Deposited 1997-02-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–90（90 aa） Fragment：N-DOMAIN	Mutation：E41A	CA CALCIUM ION × 1	SOLUTION NMR NMR measurement conditions pH 6.7；303.15 K	Resolution not provided
1TNP STRUCTURES OF THE APO AND CALCIUM TROPONIN-C REGULATORY DOMAINS: THE MUSCLE CONTRACTION SWITCH Deposited 1995-07-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–90（90 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1TNQ STRUCTURES OF THE APO AND CALCIUM TROPONIN-C REGULATORY DOMAINS: THE MUSCLE CONTRACTION SWITCH Deposited 1995-07-07	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–90（90 aa）	Not recorded	CA CALCIUM ION × 2	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1TNW NMR SOLUTION STRUCTURE OF CALCIUM SATURATED SKELETAL MUSCLE TROPONIN C Deposited 1995-08-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–163（162 aa）	Mutation：T130I	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1TNX NMR SOLUTION STRUCTURE OF CALCIUM SATURATED SKELETAL MUSCLE TROPONIN C Deposited 1995-08-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–163（162 aa）	Mutation：T130I	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1TOP STRUCTURE OF CHICKEN SKELETAL MUSCLE TROPONIN-C AT 1.78 ANGSTROMS RESOLUTION Deposited 1993-08-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–162（162 aa）	Not recorded	CA CALCIUM ION × 2 SO4 SULFATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.78 Å
1YTZ Crystal structure of skeletal muscle troponin in the Ca2+-activated state Deposited 2005-02-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–162（162 aa）	Not recorded	DR6 ALPHA-[4-(1,1,3,3 - TETRAMETHYLBUTYL)PHENYL]-OMEGA-HYDROXY-POLY(OXY-1,2-ETHANEDIYL) × 3 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；0.4 M NaH2PO4/1.6 M K2HPO4, 200 mM NaCl, 0.1 M immidazole, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.00 Å R-free 0.338
1YTZ Crystal structure of skeletal muscle troponin in the Ca2+-activated state Deposited 2005-02-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 1–162（162 aa）	Not recorded	DR6 ALPHA-[4-(1,1,3,3 - TETRAMETHYLBUTYL)PHENYL]-OMEGA-HYDROXY-POLY(OXY-1,2-ETHANEDIYL) × 6 CA CALCIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；0.4 M NaH2PO4/1.6 M K2HPO4, 200 mM NaCl, 0.1 M immidazole, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 3.00 Å R-free 0.338
1YV0 Crystal structure of skeletal muscle troponin in the Ca2+-free state Deposited 2005-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–162（162 aa）	Not recorded	MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；1.6 M tri-Sodium Citrate dihydrate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 7.00 Å R-free 0.359
1YV0 Crystal structure of skeletal muscle troponin in the Ca2+-free state Deposited 2005-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 1–162（162 aa）	Not recorded	MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；1.6 M tri-Sodium Citrate dihydrate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 7.00 Å R-free 0.359
1ZAC N-DOMAIN OF TROPONIN C FROM CHICKEN SKELETAL MUSCLE, NMR, MINIMIZED AVERAGE STRUCTURE Deposited 1998-04-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–90（90 aa） Fragment：N-DOMAIN, RESIDUES 1-90	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.7；277 K；Ionic strength (raw mmCIF value) 50mM KCL；Pressure 1 NMR sample composition WATER	Resolution not provided
2W49 ISOMETRICALLY CONTRACTING INSECT ASYNCHRONOUS FLIGHT MUSCLE Deposited 2008-11-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric	Chain 0 5–163（159 aa） Fragment：RESIDUES 5-163 Chain 3 5–163（159 aa） Fragment：RESIDUES 5-163 Chain 6 5–163（159 aa） Fragment：RESIDUES 5-163 Chain 9 5–163（159 aa） Fragment：RESIDUES 5-163	Not recorded	CA CALCIUM ION × 16	ELECTRON MICROSCOPY cryo-EM buffer 20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR CONCENTRATIONS；20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR CONCENTRATIONS cryo-EM vitrification conditions Cryogen HELIUM；SMASH AGAINST A LIQUID HELIUM COOLED GOLD COATED COPPER MIRROR	Resolution 35.00 Å
2W4U Isometrically contracting insect asynchronous flight muscle quick frozen after a length step Deposited 2008-12-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric	Chain 0 5–163（159 aa） Fragment：RESIDUES 5-163 Chain 3 5–163（159 aa） Fragment：RESIDUES 5-163 Chain 6 5–163（159 aa） Fragment：RESIDUES 5-163 Chain 9 5–163（159 aa） Fragment：RESIDUES 5-163	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR CONCENTRATIONS；20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR CONCENTRATIONS cryo-EM vitrification conditions Cryogen HELIUM；SMASH AGAINST A LIQUID HELIUM COOLED GOLD COATED COPPER MIRROR	Resolution 35.00 Å
4TNC REFINED STRUCTURE OF CHICKEN SKELETAL MUSCLE TROPONIN C IN THE TWO-CALCIUM STATE AT 2-ANGSTROMS RESOLUTION Deposited 1987-09-28	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–162（161 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å

22 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TNNC2_CHICK
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–90； UniProt 1–90

Troponin I

OrganismNot specified

UniProt P02643

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 115–131	Fragment：switch peptide, residues 115-131	Troponin C × 1 （P02588） CA CALCIUM ION × 2	SOLUTION NMR NMR measurement conditions：pH 6.5；303 K；Ionic strength (raw mmCIF value) 320 mM KCl；Pressure ambiant NMR sample composition：320 mM KCl, 10 mM imidazole, 1.3% NaN3, pH 6.5, ~1mM sNTnC.2Ca2+.TnI115-131.BR56-63 \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1NPQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A2X COMPLEX OF TROPONIN C WITH A 47 RESIDUE (1-47) FRAGMENT OF TROPONIN I Deposited 1998-01-13	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–47（47 aa） Fragment：RESIDUES 1 - 47	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；HANGING-DROP VAPOR DIFFUSION METHOD WAS USED AT 289K BY MIXING THE PROTEIN SOLUTION CONTAINING 25-30MG/ML OF THE CI47 COMPLEX WITH A RESERVOIR SOLUTION CONTAINING 1.5M SODIUM CITRATE, 0.1M TRIS-HCL, PH 8.0, 15% TREHALOSE., vapor diffusion - hanging drop	Resolution 2.30 Å R-free 0.325

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TNNI2_RABIT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–17； UniProt 115–131

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1npq
Deposition date deposition_date	2003-01-18
Structure title title	structure of a rhodamine-labeled N-domain Troponin C mutant (Ca2+ saturated) in complex with skeletal Troponin I 115-131
Keywords keywords	Troponin C- Troponin I complex, bifunctional rhodamine labeled Toponin C, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	SOLUTION NMR

▼

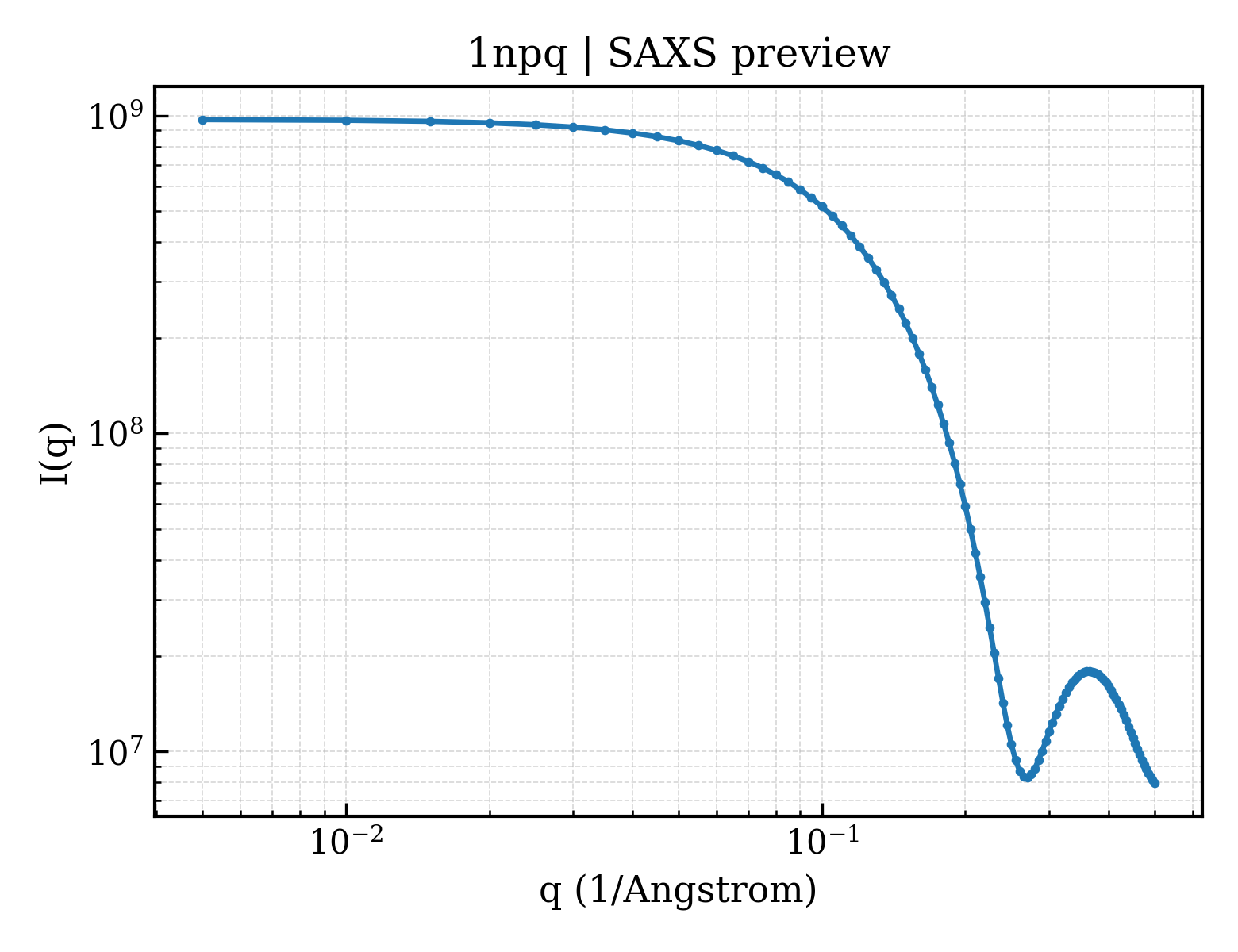

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.67 Å
Radius of gyration Rg (electron density) rg_electron	13.17 Å
Forward intensity I(0) i0	972665000.00
Molecular weight molecular_weight	249470.0 kDa
Excluded volume excluded_volume	305880 Å³
Envelope volume envelope_volume	31084 Å³
Hydration-shell volume shell_volume	15843 Å³
Envelope diameter envelope_diameter	58.3 Å
Shell Rg shell_rg	22.71 Å
Envelope Rg envelope_rg	17.16 Å
Shape Rg shape_rg	13.16 Å
Total Rg total_rg	13.41 Å
Total atoms total_atoms	33936
Residues n_residues	2247
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

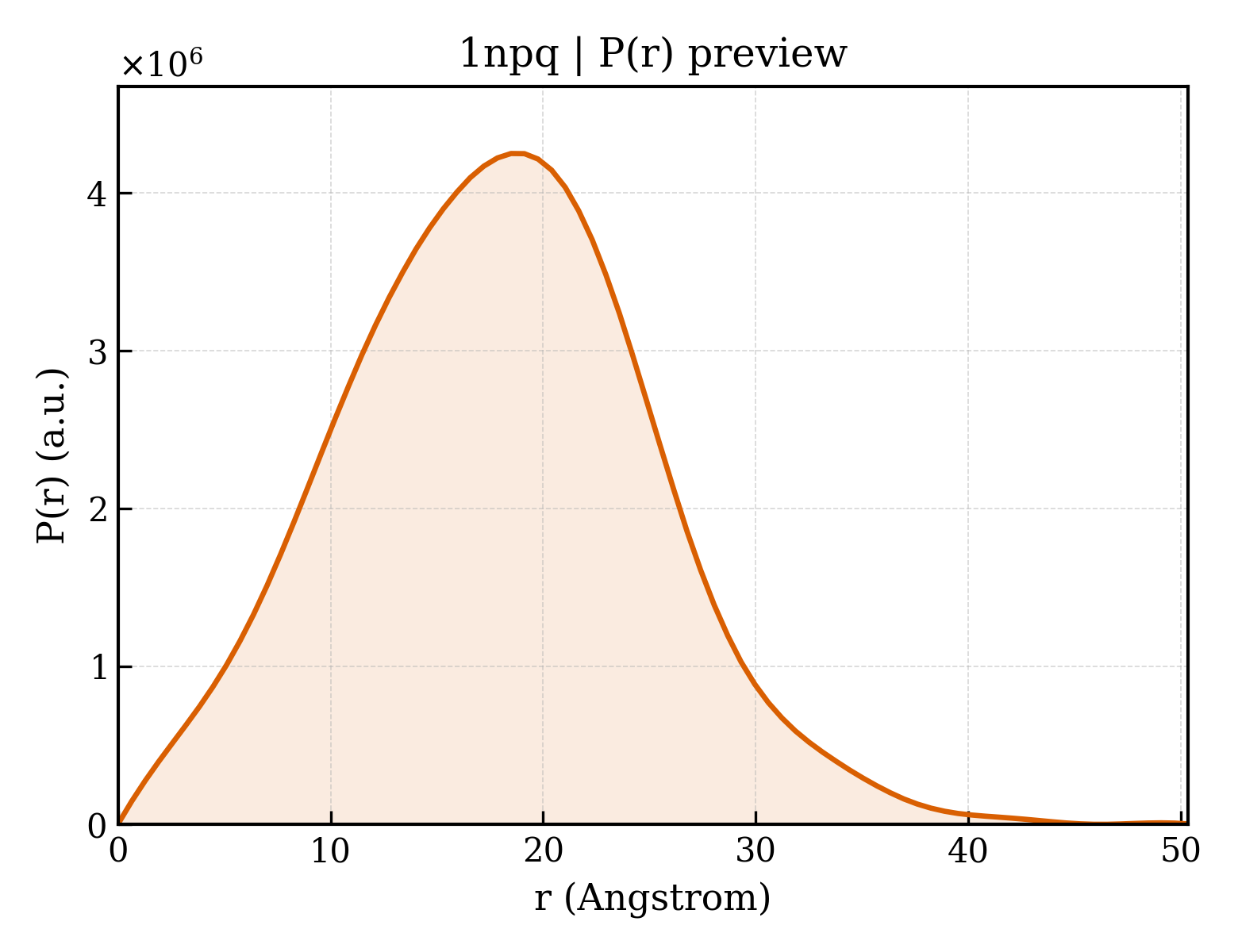

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	50.4 Å
Rg (real space) rg_real	13.59 Å
Rg uncertainty (real space) rg_real_error	0.41 Å
I(0) (real space) i0_real	9.7270e+08
I(0) uncertainty (real space) i0_real_error	1.1430e+07
Rg (reciprocal space) rg_reciprocal	13.60 Å
I(0) (reciprocal space) i0_reciprocal	972700000.0000
Solution quality estimate total_estimate	0.8049
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.5 Å
Skewness Skewness skewness	0.176
Kurtosis Kurtosis kurtosis	-0.053
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	364300.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.494; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.998

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Troponin C
Molecular weight formula_weight	9932.1 kDa
Mutation mutation	E56C, E63C
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	33936

ASMTDQQAEARAFLSEEMIAEFKAAFDMFDADGGGDISTKELGTVMRMLGQNPTKCELDAIICEVDEDGSGTIDFEEFLVMMVRQMKEDA

来源 Source

来源生物 organism	Gallus gallus
通用名 common_name	chicken
NCBI Class编号 ncbi_taxonomy_id	9031
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Troponin I
Molecular weight formula_weight	1890.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

RMSADAMLRALLGSKHK

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1npqa_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

CATH v4.4 (1 domains)

Domain ID domain_id	1npqA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

▶

8. Citations (1)

▶

fit	/app/data/saxs_computation/np/1npq/1npq.fit
pddf	/app/data/pr_computation/np/1npq/1npq.pr.out
profile	/app/data/saxs_computation/np/1npq/1npq.dat

structure of a rhodamine-labeled N-domain Troponin C mutant (Ca2+ saturated) in complex with skeletal Troponin I 115-131
