SAXSdb — 1nt0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

mannose-binding protein associated serine protease-2

Rattus norvegicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CALCIUM ION × 2 1,2-ETHANEDIOL × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MASP2_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–280； UniProt 13–292 Author chain G； PDBConstruct 1–280； UniProt 13–292

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1nt0
Deposition date deposition_date	2003-01-28
Structure title title	Crystal structure of the CUB1-EGF-CUB2 region of MASP2
Keywords keywords	mannose-binding protein, MASP, CUB domain, EGF like domain., HYDROLASE, SUGAR BINDING PROTEIN; HYDROLASE, SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1nt0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1nt0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

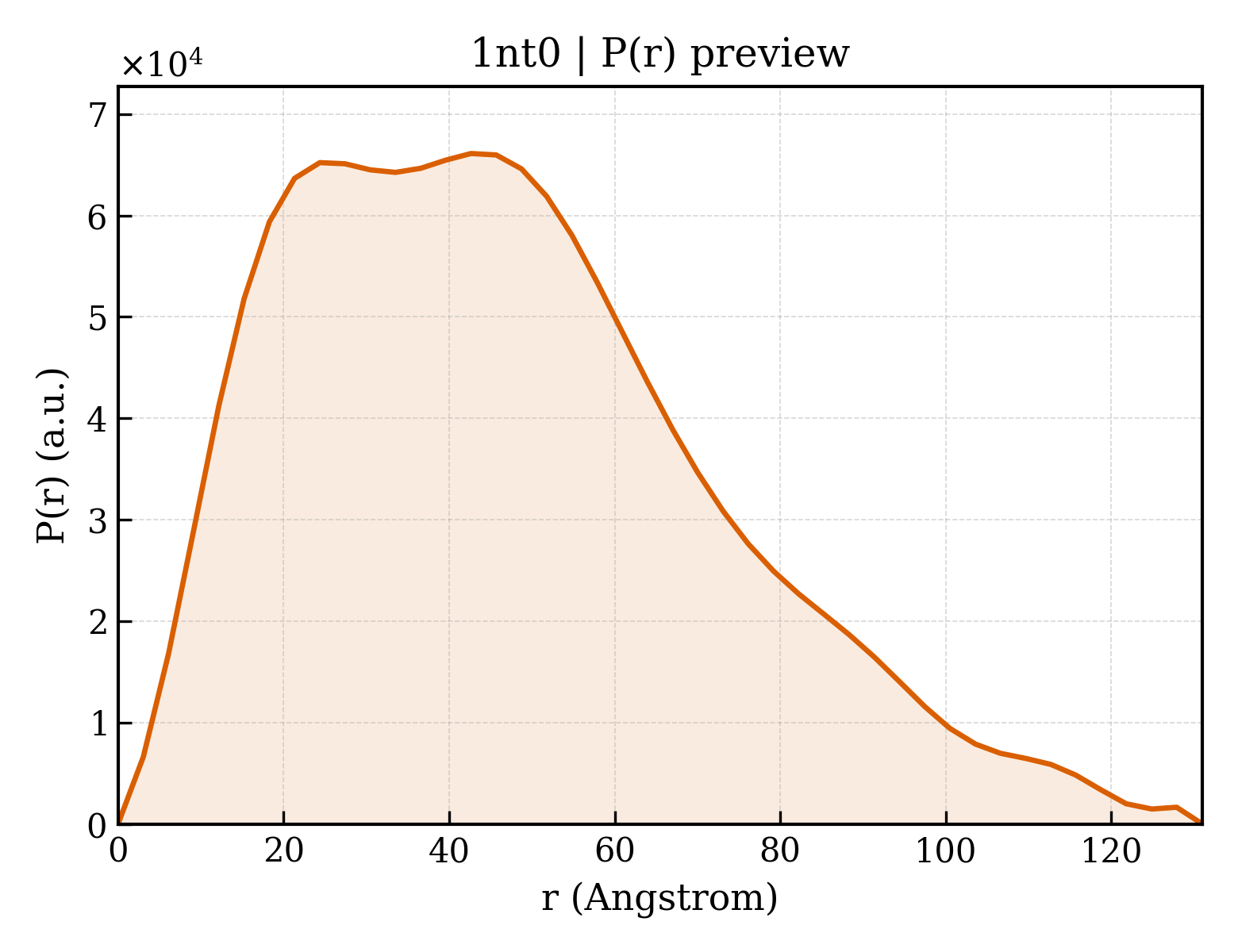

1nt0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.86 Å
Rg (electron density)	37.54 Å
Total Rg	37.49 Å
Atom count	4088
Residues	512
Excluded volume	71972 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1nt0__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	mannose-binding protein associated serine protease-2
Molecular weight formula_weight	32556.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,G
Atom count atom_count	4210

SKWPEPVFGRLVSPGFPEKYGNHQDRSWTLTAPPGFRLRLYFTHFNLELSYRCEYDFVKLTSGTKVLATLCGQESTDTERAPGNDTFYSLGPSLKVTFHSDYSNEKPFTGFEAFYAAEDVDECRTSLGDSVPCDHYCHNYLGGYYCSCRVGYILHQNKHTCSALCSGQVFTGRSGFLSSPEYPQPYPKLSSCAYNIRLEEGFSITLDFVESFDVEMHPEAQCPYDSLKIQTDKREYGPFCGKTLPPRIETDSNKVTITFTTDESGNHTGWKIHYTSTAQPHHHHHH

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Cricetulus griseus

Entity 2 Entity 2 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	106

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1nt0a1
Class class	b — All beta proteins
Fold Fold fold	b.23 — CUB-like
Superfamily Superfamily superfamily	b.23.1 — Spermadhesin, CUB domain
Family Family family	b.23.1.1 — Spermadhesin, CUB domain

Domain ID domain_id	d1nt0a2
Class class	b — All beta proteins
Fold Fold fold	b.23 — CUB-like
Superfamily Superfamily superfamily	b.23.1 — Spermadhesin, CUB domain
Family Family family	b.23.1.1 — Spermadhesin, CUB domain

Domain ID domain_id	d1nt0a3
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.11 — EGF/Laminin
Family Family family	g.3.11.1 — EGF-type module

Domain ID domain_id	d1nt0g1
Class class	b — All beta proteins
Fold Fold fold	b.23 — CUB-like
Superfamily Superfamily superfamily	b.23.1 — Spermadhesin, CUB domain
Family Family family	b.23.1.1 — Spermadhesin, CUB domain

Domain ID domain_id	d1nt0g2
Class class	b — All beta proteins
Fold Fold fold	b.23 — CUB-like
Superfamily Superfamily superfamily	b.23.1 — Spermadhesin, CUB domain
Family Family family	b.23.1.1 — Spermadhesin, CUB domain

Domain ID domain_id	d1nt0g3
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.11 — EGF/Laminin
Family Family family	g.3.11.1 — EGF-type module

CATH v4.4 (6 domains)

Domain ID domain_id	1nt0A01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	290 — Spermadhesin, CUB domain

Domain ID domain_id	1nt0A02
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	25 — Laminin
Homologous superfamily homologous superfamily	10 — Laminin

Domain ID domain_id	1nt0A03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	290 — Spermadhesin, CUB domain

Domain ID domain_id	1nt0G01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	290 — Spermadhesin, CUB domain

Domain ID domain_id	1nt0G02
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	25 — Laminin
Homologous superfamily homologous superfamily	10 — Laminin

Domain ID domain_id	1nt0G03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	290 — Spermadhesin, CUB domain

▶

Unit-cell length a length_a	70.411 Å
Unit-cell length b length_b	103.901 Å
Unit-cell length c length_c	70.484 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	119.93 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	39.560 Å
R factor r_factor	—
R_work r_work	0.2480
R_free r_free	0.2830
