1nvj

Deletion Mutant (Delta 141) of Molybdopterin Synthase

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Molybdopterin converting factor subunit 2

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	GLYCEROL × 4 FORMIC ACID × 2 SODIUM ION × 1 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	GLYCEROL × 4 FORMIC ACID × 2 SODIUM ION × 2 water × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	FORMIC ACID × 2 SODIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MOAE_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–140； UniProt 0–139 Author chain B； PDBConstruct 1–140； UniProt 0–139 Author chain C； PDBConstruct 1–140； UniProt 0–139 Author chain D； PDBConstruct 1–140； UniProt 0–139 Author chain E； PDBConstruct 1–140； UniProt 0–139 Author chain F； PDBConstruct 1–140； UniProt 0–139

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1nvj
Deposition date deposition_date	2003-02-03
Structure title title	Deletion Mutant (Delta 141) of Molybdopterin Synthase
Keywords keywords	Deletion Mutant, Molybdenum cofactor biosynthesis, Transferase; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1nvj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1nvj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

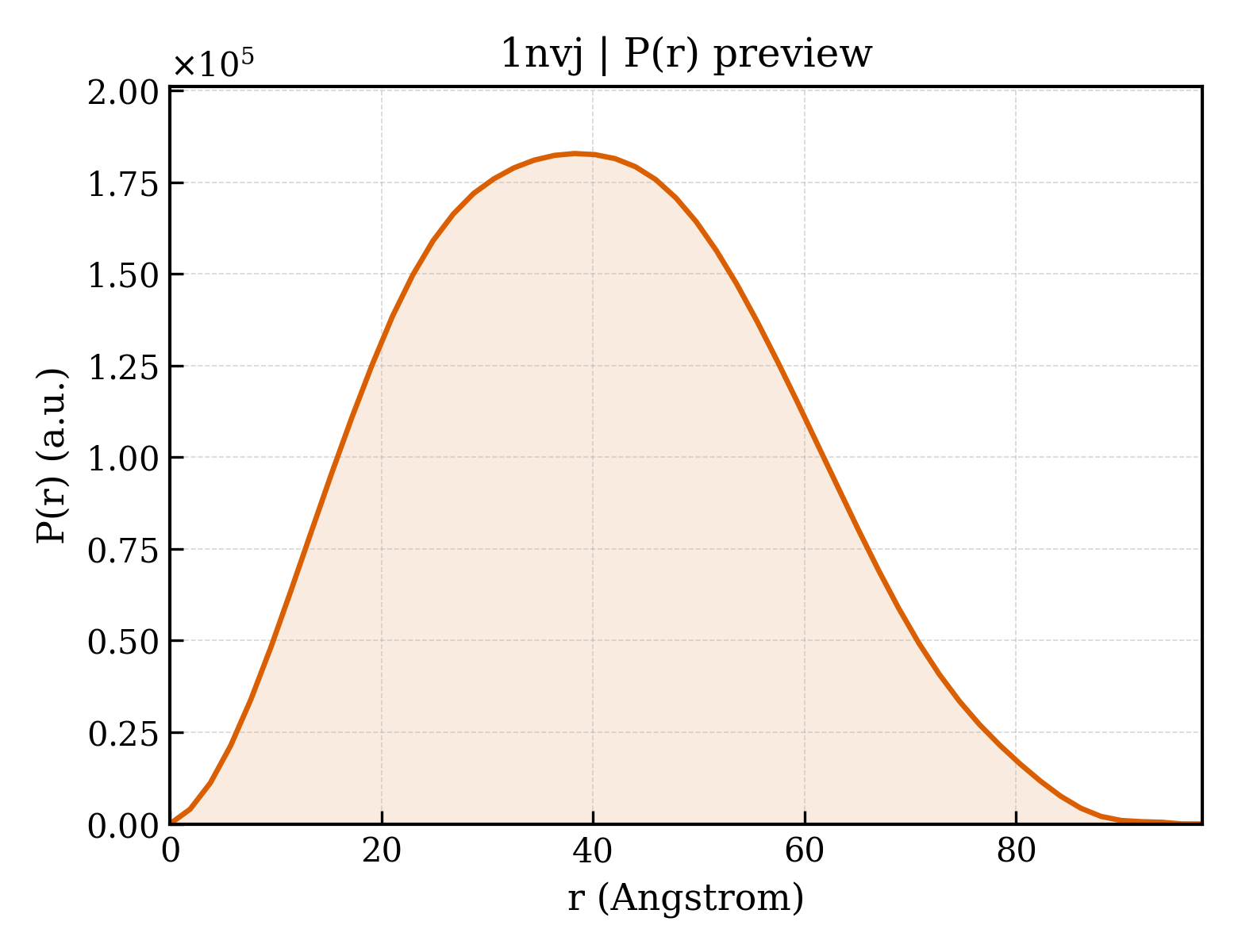

1nvj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.49 Å
Rg (electron density)	18.43 Å
Total Rg	19.37 Å
Atom count	1974
Residues	244
Excluded volume	35039 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1nvj__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1nvj__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1nvj__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Molybdopterin converting factor subunit 2
Molecular weight formula_weight	15800.7 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	6319

MAETKIVVGPQPFSVGEEYPWLAERDEDGAVVTFTGKVRNHNLGDSVNALTLEHYPGMTEKALAEIVDEARNRWPLGRVTVIHRIGELWPGDEIVFVGVTSAHRSSAFEAGQFIMDYLKTRAPFWKREATPEGDRWVEAR

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	FORMIC ACID
Molecular weight formula_weight	46.0 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	330

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1nvja_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.41 — alpha/beta-Hammerhead
Superfamily Superfamily superfamily	d.41.5 — Molybdopterin synthase subunit MoaE
Family Family family	d.41.5.1 — Molybdopterin synthase subunit MoaE

Domain ID domain_id	d1nvjb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.41 — alpha/beta-Hammerhead
Superfamily Superfamily superfamily	d.41.5 — Molybdopterin synthase subunit MoaE
Family Family family	d.41.5.1 — Molybdopterin synthase subunit MoaE

Domain ID domain_id	d1nvjc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.41 — alpha/beta-Hammerhead
Superfamily Superfamily superfamily	d.41.5 — Molybdopterin synthase subunit MoaE
Family Family family	d.41.5.1 — Molybdopterin synthase subunit MoaE

Domain ID domain_id	d1nvjd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.41 — alpha/beta-Hammerhead
Superfamily Superfamily superfamily	d.41.5 — Molybdopterin synthase subunit MoaE
Family Family family	d.41.5.1 — Molybdopterin synthase subunit MoaE

Domain ID domain_id	d1nvje_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.41 — alpha/beta-Hammerhead
Superfamily Superfamily superfamily	d.41.5 — Molybdopterin synthase subunit MoaE
Family Family family	d.41.5.1 — Molybdopterin synthase subunit MoaE

Domain ID domain_id	d1nvjf_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.41 — alpha/beta-Hammerhead
Superfamily Superfamily superfamily	d.41.5 — Molybdopterin synthase subunit MoaE
Family Family family	d.41.5.1 — Molybdopterin synthase subunit MoaE

CATH v4.4 (6 domains)

Domain ID domain_id	1nvjA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1170 — Aldehyde Oxidoreductase; domain 3
Homologous superfamily homologous superfamily	40 — Molybdopterin biosynthesis MoaE subunit

Domain ID domain_id	1nvjB00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1170 — Aldehyde Oxidoreductase; domain 3
Homologous superfamily homologous superfamily	40 — Molybdopterin biosynthesis MoaE subunit

Domain ID domain_id	1nvjC00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1170 — Aldehyde Oxidoreductase; domain 3
Homologous superfamily homologous superfamily	40 — Molybdopterin biosynthesis MoaE subunit

Domain ID domain_id	1nvjD00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1170 — Aldehyde Oxidoreductase; domain 3
Homologous superfamily homologous superfamily	40 — Molybdopterin biosynthesis MoaE subunit

Domain ID domain_id	1nvjE00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1170 — Aldehyde Oxidoreductase; domain 3
Homologous superfamily homologous superfamily	40 — Molybdopterin biosynthesis MoaE subunit

Domain ID domain_id	1nvjF00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1170 — Aldehyde Oxidoreductase; domain 3
Homologous superfamily homologous superfamily	40 — Molybdopterin biosynthesis MoaE subunit

▶

Unit-cell length a length_a	104.128 Å
Unit-cell length b length_b	127.832 Å
Unit-cell length c length_c	138.118 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.150 Å
Low-resolution limit resolution_low	47.140 Å
R factor r_factor	0.1790
R_work r_work	0.1765
R_free r_free	0.2270
