1nwy

COMPLEX OF THE LARGE RIBOSOMAL SUBUNIT FROM DEINOCOCCUS RADIODURANS WITH AZITHROMYCIN

Method: X-RAY DIFFRACTION D_max: 263.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

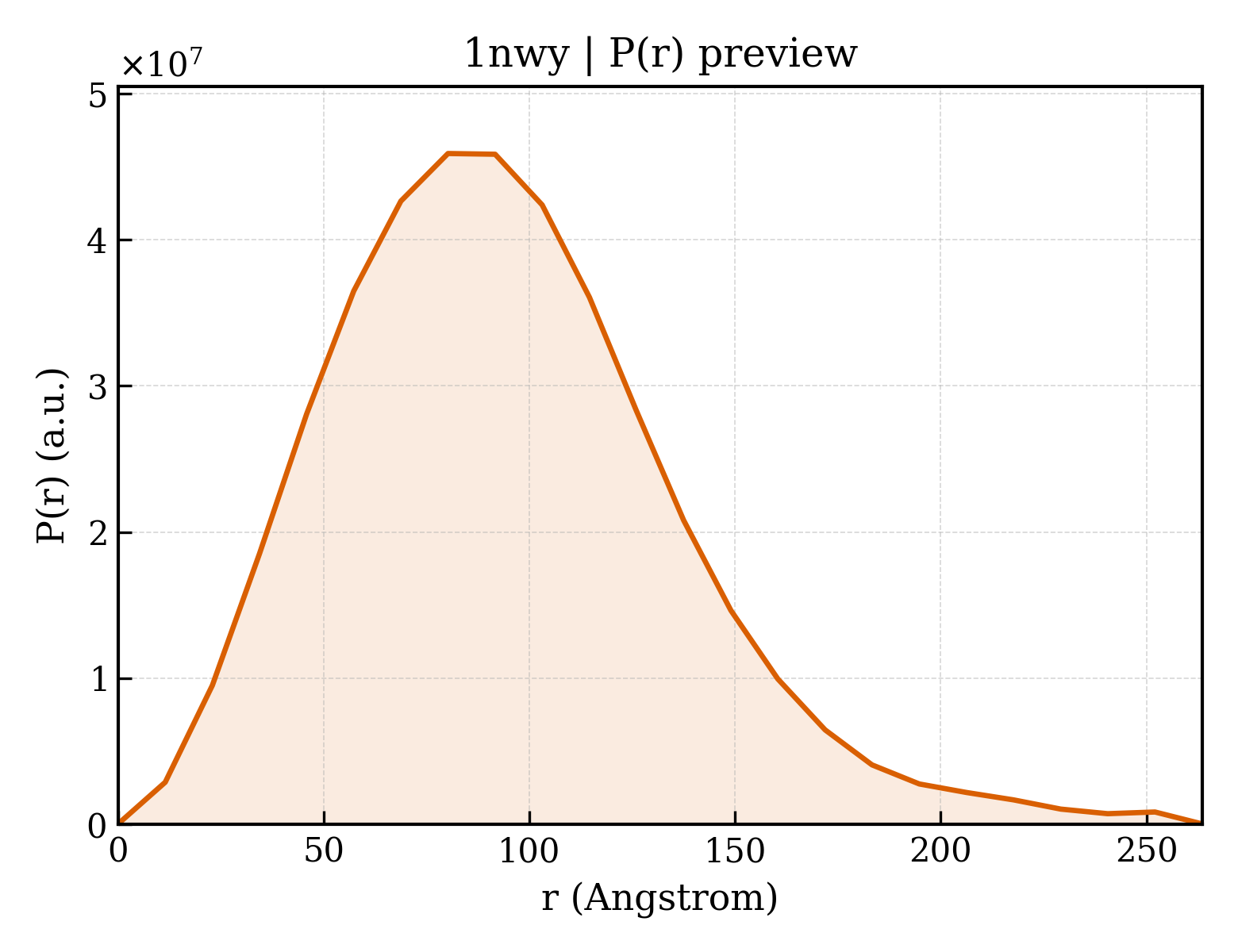

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1nwy
沉积日期 deposition_date	2003-02-07
结构标题 title	COMPLEX OF THE LARGE RIBOSOMAL SUBUNIT FROM DEINOCOCCUS RADIODURANS WITH AZITHROMYCIN
关键词 keywords	AZITHROMYCIN, MACROLIDE, KETOLIDE, RIBOSOME, 50S, RIBOSOMAL; RIBOSOME
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	68.51 Å
回转半径 Rg (电子) rg_electron	69.57 Å
零角强度 I(0) i0	57522400000.00
分子量 molecular_weight	1315700.0 kDa
排除体积 excluded_volume	1338300 Å³
包络体积 envelope_volume	2099800 Å³
水化壳体积 shell_volume	235410 Å³
包络直径 envelope_diameter	250.0 Å
壳层 Rg shell_rg	80.35 Å
包络 Rg envelope_rg	68.51 Å
形状 Rg shape_rg	66.75 Å
总 Rg total_rg	72.91 Å
总原子数 total_atoms	61982
残基数 n_residues	2884
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	263.6 Å
Rg (实空间) rg_real	72.16 Å
Rg 误差 (实空间) rg_real_error	1.53 Å
I(0) (实空间) i0_real	5.7820e+10
I(0) 误差 (实空间) i0_real_error	1.2130e+09
Rg (倒空间) rg_reciprocal	69.06 Å
I(0) (倒空间) i0_reciprocal	57600000000.0000
解质量估计 total_estimate	0.8633
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	80.2 Å
偏度 Skewness skewness	0.641
峰度 Kurtosis kurtosis	0.630
角度范围 angular_range	— – 0.1150 Å⁻¹
当前正则化参数 α current_alpha	0.8577
最高正则化参数 α highest_alpha	11350000000.0000
实空间数据点数 n_real_points	24
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.573; Stabil: 0.870; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.913

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (32)

Entity 1 polymer

描述 description	23S RIBOSOMAL RRNA
分子量 formula_weight	933405.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	0
原子数 atom_count	65404

GGUCAAGAUAGUAAGGGUCCACGGUGGAUGCCCUGGCGCUGGAGCCGAUGAAGGACGCGAUUACCUGCGAAAAGCCCCGACGAGCUGGAGAUACGCUUUGACUCGGGGAUGUCCGAAUGGGGAAACCCACCUCGUAAGAGGUAUCCGCAAGGAUGGGAACUCAGGGAACUGAAACAUCUCAGUACCUGAAGGAGAAGAAAGAGAAUUCGAUUCCGUUAGUAGCGGCGAGCGAACCCGGAUCAGCCCAAACCGAAACGCUUGCGUUUCGGGGUUGUAGGACCAGUUUUUAAGAUUCAACCCCUCAAGCCGAAGUGGCUGGAAAGCUACACCUCAGAAGGUGAGAGUCCUGUAGGCGAACGAGCGGUUGACUGUACUGGCACCUGAGUAGGUCGUUGUUCGUGAAACGAUGACUGAAUCCGCGCGGACCACCGCGCAAGGCUAAAUACUCCCAGUGACCGAUAGCGCAUAGUACCGUGAGGGAAAGGUGAAAAGAACCCCGGGAGGGGAGUGAAAGAGAACCUGAAACCGUGGACUUACAAGCAGUCAUGGCACCUUAUGCGUGUUAUGGCGUGCCUAUUGAAGCAUGAGCCGGCGACUUAGACCUGACGUGCGAGCUUAAGUUGAAAAACGGAGGCGGAGCGAAAGCGAGUCCGAAUAGGGCGGCAUUAGUACGUCGGGCUAGACUCGAAACCAGGUGAGCUAAGCAUGACCAGGUUGAAACCCCCGUGACAGGGGGCGGAGGACCGAACCGGUGCCUGCUGAAACAGUCUCGGAUGAGUUGUGUUUAGGAGUGAAAAGCUAACCGAACCUGGAGAUAGCUAGUUCUCCCCGAAAUGUAUUGAGGUACAGCCUCGGAUGUUGACCAUGUCCUGUAGAGCACUCACAAGGCUAGGGGGCCUACCAGCUUACCAAACCUUAUGAAACUCCGAAGGGGCACGCGUUUAGUCCGGGAGUGAGGCUGCGAGAGCUAACUUCCGUAGCCGAGAGGGAAACAACCCAGACCAUCAGCUAAGGUCCCUAAAUGAUCGCUCAGUGGUUAAGGAUGUGUCGUCGCAUAGACAGCCAGGAGGUUGGCUUAGAAGCAGCCACCCUUCAAAGAGUGCGUAAUAGCUCACUGGUCGAGUGACGAUGCGCCGAAAAUGAUCGGGGCUCAAGUGAUCUACCGAAGCUAUGGAUUCAACUCGCGAAGCGAGUUGUCUGGUAGGGGAGCGUUCAGUCCGCGGAGAAGCCAUACCGGAAGGAGUGGUGGAGCCGACUGAAGUGCGGAUGCCGGCAUGAGUAACGAUAAAAGAAGUGAGAAUCUUCUUCGCCGUAAGGACAAGGGUUCCUGGGGAAGGGUCGUCCGCCCAGGGAAAGUCGGGACCUAAGGUGAGGCCGAACGGCGCAGCCGAUGGACAGCAGGUCAAGAUUCCUGCACCGAUCAUGUGGAGUGAUGGAGGGACGCAUUACGCUAUCCAAUGCCAAGCUAUGGCUAUGCUGGUUGGUACGCUCAAGGGCGAUCGGGUCAGAAAAUCUACCGGUCACAUGCCUCAGACGUAUCGGGAGCUUCCUCGGAAGCGAAGUUGGAAACGCGACGGUGCCAAGAAAAGCUUCUAAACGUUGAAACAUGAUUGCCCGUACCGCAAACCGACACAGGUGUCCGAGUGUCAAUGCACUAAGGCGCGCGAGAGAACCCUCGUUAAGGAACUUUGCAAUCUCACCCCGUAACUUCGGAAGAAGGGGUCCCCACGCUUCGCGUGGGGCGCAGUGAAUAGGCCCAGGCGACUGUUUACCAAAAUCACAGCACUCUGCCAACACGAACAGUGGACGUAUAGGGUGUGACGCCUGCCCGGUGCCGGAAGGUCAAGUGGAGCGGUGCAAGCUGCGAAAUGAAGCCCCGGUGAACGGCGGCCGUAACUAUAACGGUCCUAAGGUAGCGAAAUUCCUUGUCGGGUAAGUUCCGACCUGCACGAAAGGCGUAACGAUCUGGGCGCUGUCUCAACGAGGGACUCGGUGAAAUUGAAUUGGCUGUAAAGAUGCGGCCUACCCGUAGCAGGACGAAAAGACCCCGUGGAGCUUUACUAUAGUCUGGCAUUGGGAUUCGGGUUUCUCUGCGUAGGAUAGGUGGGAGCCUGCGAAACUGGCCUUUUGGGGUCGGUGGAGGCAACGGUGAAAUACCACCCUGAGAAACUUGGAUUUCUAACCUGAAAAAUCACUUUCGGGGACCGUGCUUGGCGGGUAGUUUGACUGGGGCGGUCGCCUCCCAAAAUGUAACGGAGGCGCCCAAAGGUCACCUCAAGACGGUUGGAAAUCGUCUGUAGAGCGCAAAGGUAGAAGGUGGCUUGACUGCGAGACUGACACGUCGAGCAGGGAGGAAACUCGGGCUUAGUGAACCGGUGGUACCGUGUGGAAGGGCCAUCGAUCAACGGAUAAAAGUUACCCCGGGGAUAACAGGCUGAUCUCCCCCGAGAGUCCAUAUCGGCGGGGAGGUUUGGCACCUCGAUGUCGGCUCGUCGCAUCCUGGGGCUGAAGAAGGUCCCAAGGGUUGGGCUGUUCGCCCAUUAAAGCGGCACGCGAGCUGGGUUCAGAACGUCGUGAGACAGUUCGGUCUCUAUCCGCUACGGGCGCAGGAGAAUUGAGGGGAGUUGCUCCUAGUACGAGAGGACCGGAGUGAACGGACCGCUGGUCUCCCUGCUGUCGUACCAACGGCACAUGCAGGGUAGCUAUGUCCGGAACGGAUAACCGCUGAAAGCAUCUAAGCGGGAAGCCAGCCCCAAGAUGAGUUCUCCCACUGUUUAUCAGGUAAGACUCCCGGAAGACCACCGGGUUAAGAGGCCAGGCGUGCACGCAUAGCAAUGUGUUCAGCGGACUGGUGCUCAUCAGUCGAGGUCUUGACCACUC

Entity 2 polymer

描述 description	5S RIBOSOMAL RRNA
分子量 formula_weight	39911.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	9

ACACCCCCGUGCCCAUAGCACUGUGGAACCACCCCACCCCAUGCCGAACUGGGUCGUGAAACACAGCAGCGCCAAUGAUACUCGGACCGCAGGGUCCCGGAAAAGUCGGUCAGCGCGGGGGUUU

Entity 3 polymer

描述 description	ribosomal protein L2
分子量 formula_weight	29976.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

AVKKYRPYTPSRRQMTTADFSGLTKKRPEKALTEALPKTGGRNNRGRITSRFIGGGHKRLYRIIDFKRRDKSGVNAKVAAIEYDPNRSARIALLHYADGEKRYILAPEGLTVGATVNAGPEAEPKLGNALPLRFVPVGAVVHALELVPGKGAQLARSAGTSVQVQGKESDYVIVRLPSGELRRVHSECYATIGAVGNAEHKNIVLGKAGRSRWLGRKPHQRGSAMNPVDHPHGGGEGRTGAGRVPVTPWGKPTKGLKTRRKRKTSDRFIVTRRK

Entity 4 polymer

描述 description	ribosomal protein L3
分子量 formula_weight	22477.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MKGILGTKIGMTQIWKNDRAIPVTVVLAGPCPIVQRKTAQTDGYEAVQIGYAPKAERKVNKPMQGHFAKAGVAPTRILREFRGFAPDGDSVNVDIFAEGEKIDATGTSKGKGTQGVMKRWNFAGGPASHGSKKWHRRPGSIGQRKTPGRVYKGKRMAGHMGMERVTVQNLEVVEIRAGENLILVKGAIPGANGGLVVLRSAAKASAAKGGK

Entity 5 polymer

描述 description	ribosomal protein L4
分子量 formula_weight	22177.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

AQINVIGQNGGRTIELPLPEVNSGVLHEVVTWQLASRRRGTASTRTRAQVSKTGRKMYGQKGTGNARHGDRSVPTFVGGGVAFGPKPRSYDYTLPRQVRQLGLAMAIASRQEGGKLVAVDGFDIADAKTKNFISWAKQNGLDGTEKVLLVTDDENTRRAARNVSWVSVLPVAGVNVYDILRHDRLVIDAAALEIVEEEAGEEQQ

Entity 6 polymer

描述 description	ribosomal protein L5
分子量 formula_weight	20379.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MQQLKTKYNDQVRPALMQQFGYSSVMAVPRIEKIVVNEGLGSSKEDSKAIDKAAKELALITLQKPIITKAKKSISNFKLRQGMPVGIKVTLRGERMYVFLEKLINIGLPRIRDFRGINPNAFDGRGNYNLGIKEQLIFPEITYDMVDKTRGMDITIVTTAKTDEEARALLQSMGLPFRKQ

Entity 7 polymer

描述 description	ribosomal protein L6
分子量 formula_weight	19613.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MSRIGKQPIAVPSGVTVNAQDGVFKVKGPKGELTVPYNTELTVRQDGDQLLVERPSDAQKHRALHGLTRTLVANAVKGVSDGYTINLELRGVGFRAKLTGKALEMNIGYSHPVIIEPPAGVTFAVPEPTRIDVSGIDKQLVGQVAANVRKVRKPDAYHGKGVRFVGEQIALKAGKAGATGGKGKK

Entity 8 polymer

描述 description	ribosomal protein L9
分子量 formula_weight	16089.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MQVILLEPSRLGKTGEVVSVKDGYARNWLIPQGLAVSATRTNMKTLEAQLRSIEKRQAQEKAVAEDLASRLNGVAVELSVRAGEGKIYGAVTHQDVANSLDQLGFDVDRRKIDMPKTVKEVGEYDIAYRAHPEVTIPMKLVVHAAK

Entity 9 polymer

描述 description	ribosomal protein L11
分子量 formula_weight	14889.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MKKVAGIVKLQLPAGKATPAPPVGPALGQYGANIMEFTKAFNAQTADKGDAIIPVEITIYADRSFTFITKTPPMSYLIRKAAGIGKGSSTPNKAKVGKLNWDQVLEIAKTKMPDLNAGSVEAAANTVAGTARSMGVTVEGGPNA

Entity 10 polymer

描述 description	ribosomal protein L13
分子量 formula_weight	19223.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MAFPDTDVSPPRGGPSSPAKSPLLRSFKVKTYIPKNDEQNWVVVDASGVPLGRLATLIASRIRGKHRPDFTPNMIQGDFVVVINAAQVALTGKKLDDKVYTRYTGYQGGLKTETAREALSKHPERVIEHAVFGMLPKGRQGRAMHTRLKVYAGETHPHSAQKPQVLKTQPLEVK

Entity 11 polymer

描述 description	ribosomal protein L14
分子量 formula_weight	14256.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MIMPQSRLDVADNSGAREIMCIRVLNSGIGGKGLTTGGGGNKRYAHVGDIIVASVKDAAPRGAVKAGDVVKAVVVRTSHAIKRADGSTIRFDRNAAVIINNQGEPRGTRVFGPVARELRDRRFMKIVSLAPEVL

Entity 12 polymer

描述 description	ribosomal protein L15
分子量 formula_weight	16894.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MKLHDLKPTPGSRKDRKRVGRGPGGTDKTAGRGHKGQKSRSGAGKGAFFEGGRSRLIARLPKRGFNNVGTTYEVVKLSQLQDLEDTTFDRDTLEAYRLVRRKNRPVKLLASGEISRAVTVHVDAASAAAIKAVEAAGGRVVLPEVQTQQDDAQKAE

Entity 13 polymer

描述 description	ribosomal protein L16
分子量 formula_weight	16126.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MLLPKRTKFRKQFRGRMTGDAKGGDYVAFGDYGLIAMEPAWIKSNQIEACRIVMSRHFRRGGKIYIRIFPDKPVTKKPAETRMGKGKGAVEYWVSVVKPGRVMFEVAGVTEEQAKEAFRLAGHKLPIQTKMVKREVYDEAQ

Entity 14 polymer

描述 description	ribosomal protein L17
分子量 formula_weight	12926.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MRHGKAGRKLNRNSSARVALARAQATALLREGRIQTTLTKAKELRPFVEQLITTAKGGDLHSRRLVAQDIHDKDVVRKVMDEVAPKYAERPGGYTRILRVGTRRGDGVTMALIELV

Entity 15 polymer

描述 description	ribosomal protein L18
分子量 formula_weight	12032.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

ATATTIRRKLRTRRKVRTTTAASGRLRLSVYRSSKHIYAQIIDDSRGQTLAAASSAALKSGNKTDTAAAVGKALAAAAAEKGIKQVVFDRGSYKYHGRVKALADAAREGGLDF

Entity 16 polymer

描述 description	ribosomal protein L19
分子量 formula_weight	18347.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MQTHIKINRGELLRGIEQDHTRQLPDFRPGDTVRVDTKVREGNRTRSQAFEGVVIAINGSGSRKSFTVRKISFGEGVERVFPFASPLVNQVTIVERGKVRRAKLYYLRELRGKAARIKSDRSRVMKDAARAQQDKANASASQAAAAQADVTVISAAPEVAPETQGE

Entity 17 polymer

描述 description	ribosomal protein L20
分子量 formula_weight	13991.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MPRAKTGIVRRRRHKKVLKRAKGFWGSRSKQYRNAFQTLLNAATYEYRDRRNKKRDFRRLWIQRINAGARLHGMNYSTFINGLKRANIDLNRKVLADIAAREPEAFKALVDASRNARQ

Entity 18 polymer

描述 description	ribosomal protein L21
分子量 formula_weight	11165.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MFAIIQTGGKQYRVSEGDVIRVESLQGEAGDKVELKALFVGGEQTVFGEDAGKYTVQAEVVEHGRGKKIYIRKYKSGVQYRRRTGHRQNFTAIKILGIQG

Entity 19 polymer

描述 description	ribosomal protein L22
分子量 formula_weight	15190.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MTAPEQTFRNKKQRKQQVKLRKPGFAVAKYVRMSPRKVRLVVDVIRGKSVQDAEDLLRFIPRSASEPVAKVLNSAKANALHNDEMLEDRLFVKEAYVDAGPTLKRLIPRARGSANIIKKRTSHITIIVAEKGNK

Entity 20 polymer

描述 description	ribosomal protein L23
分子量 formula_weight	10408.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

SHYDILQAPVISEKAYSAMERGVYSFWVSPKATKTEIKDAIQQAFGVRVIGISTMNVPGKRKRVGRFIGQRNDRKKAIVRLAEGQSIEALAGQA

Entity 21 polymer

描述 description	ribosomal protein L24
分子量 formula_weight	12384.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MPRPSAGSHHNDKLHFKKGDTVIVLSGKHKGQTGKVLLALPRDQKVVVEGVNVITKNVKPSMTNPQGGQEQRELALHASKVALVDPETGKATRVRKQIVDGKKVRVAVASGKTID

Entity 22 polymer

描述 description	general stress protein Ctc
分子量 formula_weight	25415.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MELTAKPRTPKQKLDESMIAAVAYNKENNVSFALDRKAFDRAFRQQSTTGLFDITVEGGETFPALVKAVQMDKRKRAPIHVDFYMVTYGEPVEVSVPVHTTGRSQGEVQGGLVDIVVHNLQIVAPGPRRIPQELVVDVTKMNIGDHITAGDIKLPEGCTLAADPELTVVSVLPPRLTAEELEAEVQAAQVAGLVAAGELSEEAAEAVLEGDASLEEVKAEASEDNAGTDSEDNSDAQ

Entity 23 polymer

描述 description	ribosomal protein L27
分子量 formula_weight	9609.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MAHKKGVGSSKNGRDSNPKYLGVKKFGGEVVKAGNILVRQRGTKFKAGQGVGMGRDHTLFALSDGKVVFINKGKGARFISIEAAQTEVAAD

Entity 24 polymer

描述 description	ribosomal protein L29
分子量 formula_weight	7775.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

MKPSEMRNLQATDFAKEIDARKKELMELRFQAAAGQLAQPHRVRQLRREVAQLNTVKAELARKGEQQ

Entity 25 polymer

描述 description	ribosomal protein L30
分子量 formula_weight	6079.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

MKIKLVRSVIGRPGNQVKTVQALGLRKIGDSREVSDTPAVRGMVKTVKHLLEVQE

Entity 26 polymer

描述 description	ribosomal protein L31
分子量 formula_weight	8597.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

MQKDLHPKAVPCKIIYQGQVVMETMSTRPEIHVDVWSGVHPFWTGEERFLDTEGRVDKFNKRFGDSYRRGSKK

Entity 27 polymer

描述 description	ribosomal protein L32
分子量 formula_weight	6678.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

AKHPVPKKKTSKSKRDMRRSHHALTAPNLTECPQCHGKKLSHHICPNCGYYDGRQVLAV

Entity 28 polymer

描述 description	ribosomal protein L33
分子量 formula_weight	6374.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1

MAKDGPRIIVKMESSAGTGFYYTTTKNRRNTQAKLELKKYDPVAKKHVVFREKKV

Entity 29 polymer

描述 description	ribosomal protein L34
分子量 formula_weight	5626.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2

MKRTYQPNNRKRAKTHGFRARMKTKSGRNILARRRAKGRHQLTVSDE

Entity 30 polymer

描述 description	ribosomal protein L35
分子量 formula_weight	7316.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3

PKMKTHKMAKRRIKITGTGKVMAFKSGKRHQNTGKSGDEIRGKGKGFVLAKAEWARMKLMLPRGK

Entity 31 polymer

描述 description	ribosomal protein L36
分子量 formula_weight	4322.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	4

MKVRSSVKKMCDNCKVVRRHGRVLVICSNVKHKQRQG

Entity 32 non-polymer

描述 description	AZITHROMYCIN
分子量 formula_weight	749.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▼

6. 折叠分类 (SCOP + CATH) 29 domains

SCOP 2.08 (29 domains)

结构域编号 domain_id	d1nwy1_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwy2_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwy3_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwy4_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwya_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyb_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyc_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyd_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwye_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyf_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyg_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyh_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyi_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyj_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyk_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyl_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwym_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyn_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyo_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyp_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyq_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyr_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwys_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyt_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyu_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyw_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyx_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyy_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

结构域编号 domain_id	d1nwyz_
类 Class class	i — Low resolution protein structures
折叠类型 Fold fold	i.1 — Ribosome and ribosomal fragments
超家族 Superfamily superfamily	i.1.1 — Ribosome and ribosomal fragments
家族 Family family	i.1.1.2 — Large subunit

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	170.800 Å
晶胞边长 b length_b	409.500 Å
晶胞边长 c length_c	695.700 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	I 2 2 2
空间群编号 int_tables_number	23
晶系 crystal_system	—

分辨率 resolution	3.300 Å
最低分辨率 resolution_low	15.000 Å
R 因子 r_factor	0.2790
R_work r_work	0.2790
R_free r_free	0.3040

fit	/app/data/saxs_computation/nw/1nwy/1nwy.fit
pddf	/app/data/pr_computation/nw/1nwy/1nwy.pr.out
profile	/app/data/saxs_computation/nw/1nwy/1nwy.dat

COMPLEX OF THE LARGE RIBOSOMAL SUBUNIT FROM DEINOCOCCUS RADIODURANS WITH AZITHROMYCIN

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

衍射实验 Diffraction

5. 实体与聚合体信息 (32)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 non-polymer

6. 折叠分类 (SCOP + CATH) 29 domains

SCOP 2.08 (29 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)
