SAXSdb — 1nx8

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1nx8
沉积日期 deposition_date	2003-02-10
结构标题 title	Structure of carbapenem synthase (CarC) complexed with N-acetyl proline
关键词 keywords	jelly roll, UNKNOWN FUNCTION; UNKNOWN FUNCTION
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	30.51 Å
回转半径 Rg (电子) rg_electron	29.39 Å
零角强度 I(0) i0	116757000.00
分子量 molecular_weight	86527.0 kDa
排除体积 excluded_volume	108480 Å³
包络体积 envelope_volume	136900 Å³
水化壳体积 shell_volume	37794 Å³
包络直径 envelope_diameter	97.1 Å
壳层 Rg shell_rg	37.59 Å
包络 Rg envelope_rg	29.22 Å
形状 Rg shape_rg	29.38 Å
总 Rg total_rg	30.19 Å
总原子数 total_atoms	6118
残基数 n_residues	750
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	90.4 Å
Rg (实空间) rg_real	30.35 Å
Rg 误差 (实空间) rg_real_error	0.50 Å
I(0) (实空间) i0_real	1.1680e+08
I(0) 误差 (实空间) i0_real_error	1.4620e+06
Rg (倒空间) rg_reciprocal	30.42 Å
I(0) (倒空间) i0_reciprocal	116800000.0000
解质量估计 total_estimate	0.9164
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	38.2 Å
偏度 Skewness skewness	0.080
峰度 Kurtosis kurtosis	-0.737
角度范围 angular_range	— – 0.2600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	53780000.0000
实空间数据点数 n_real_points	53
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.980; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.968

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Carbapenem synthase
分子量 formula_weight	31649.9 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	6350

MSEIVKFNPVMASGFGAYIDHRDFLEAKTETIKNLLMRQGFVVVKNLDIDSDTFRDIYSAYGTIVEYADEKIGVGFGYRDTLKLEGEKGKIVTGRGQLPFHADGGLLLSQVDQVFLYAAEIKNVKFRGATTVCDHALACQEMPAHLLRVLEEETFEVRVLERGYYVDVSPDGWFKVPVFTDLGWVRKMLIYFPFDEGQPASWEPRIVGFTDHETQAFFQELGAFLKQPRYYYKHFWEDGDLLIMDNRRVIHEREEFNDDDIVRRLYRGQTADI

来源 Source

来源生物 organism	Pectobacterium carotovorum
NCBI 分类编号 ncbi_taxonomy_id	554
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	FE (III) ION
分子量 formula_weight	55.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 3 non-polymer

描述 description	2-OXOGLUTARIC ACID
分子量 formula_weight	146.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 non-polymer

描述 description	1-ACETYL-L-PROLINE
分子量 formula_weight	157.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	232

▼

6. 折叠分类 (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

结构域编号 domain_id	d1nx8a_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.82 — Double-stranded beta-helix
超家族 Superfamily superfamily	b.82.2 — Clavaminate synthase-like
家族 Family family	b.82.2.8 — gamma-Butyrobetaine hydroxylase

结构域编号 domain_id	d1nx8b_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.82 — Double-stranded beta-helix
超家族 Superfamily superfamily	b.82.2 — Clavaminate synthase-like
家族 Family family	b.82.2.8 — gamma-Butyrobetaine hydroxylase

结构域编号 domain_id	d1nx8c_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.82 — Double-stranded beta-helix
超家族 Superfamily superfamily	b.82.2 — Clavaminate synthase-like
家族 Family family	b.82.2.8 — gamma-Butyrobetaine hydroxylase

CATH v4.4 (3 domains)

结构域编号 domain_id	1nx8A00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	130 — Double-stranded beta-helix
同源超家族 H-superfamily homologous superfamily	10 — Clavaminate synthase-like

结构域编号 domain_id	1nx8B00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	130 — Double-stranded beta-helix
同源超家族 H-superfamily homologous superfamily	10 — Clavaminate synthase-like

结构域编号 domain_id	1nx8C00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	130 — Double-stranded beta-helix
同源超家族 H-superfamily homologous superfamily	10 — Clavaminate synthase-like

▶

7. 引用文献 (6)

Crystal structure of carbapenem synthase (CarC).

J.Biol.Chem. (2003)

PMID: 12611886 · DOI: 10.1074/jbc.M213054200 PRIMARY

;Diastereoselective synthesis of 3,5-trans-(+)-(3R,5R)-3- carbomethoxycarbapenam from 3-hydroxypyridine: questioning the stereochemical assignment of the natural product ;

TETRAHEDRON LETT. (2002)

DOI: 10.1016/S0040-4039(01)02073-1

Three Unusual Reactions Mediate Carbapenem and Carbapenam Biosynthesis

J.AM.CHEM.SOC. (2000)

DOI: 10.1021/ja001723l

Bacterial production of carbapenems and clavams: evolution of beta-lactam antibiotic pathways

Trends Microbiol. (1998)

DOI: 10.1016/S0966-842X(98)01251-7

;Analysis of the carbapenem gene cluster of Erwinia carotovora: definition of the antibiotic biosynthetic genes and evidence for a novel beta-lactam resistance mechanism ;

MOL.MICROBIOL. (1997)

DOI: 10.1046/j.1365-2958.1997.6001974.x

;A Chiral Synthesis of trans-Carbapenam-3-carboxylic Acid and the Assignment of (3S, 5S) Configuration to the Corresponding Product from Serratia and Erwinia Species. ;

J.CHEM.SOC.,CHEM.COMMUN. (1989)

DOI: 10.1039/c39890000423

▶

晶胞边长 a length_a	80.443 Å
晶胞边长 b length_b	164.082 Å
晶胞边长 c length_c	146.330 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	2.300 Å
最低分辨率 resolution_low	81.650 Å
R 因子 r_factor	0.2299
R_work r_work	0.2275
R_free r_free	0.2751

fit	/app/data/saxs_computation/nx/1nx8/1nx8.fit
pddf	/app/data/pr_computation/nx/1nx8/1nx8.pr.out
profile	/app/data/saxs_computation/nx/1nx8/1nx8.dat

Structure of carbapenem synthase (CarC) complexed with N-acetyl proline

SAXS 散射曲线 SAXS Profile

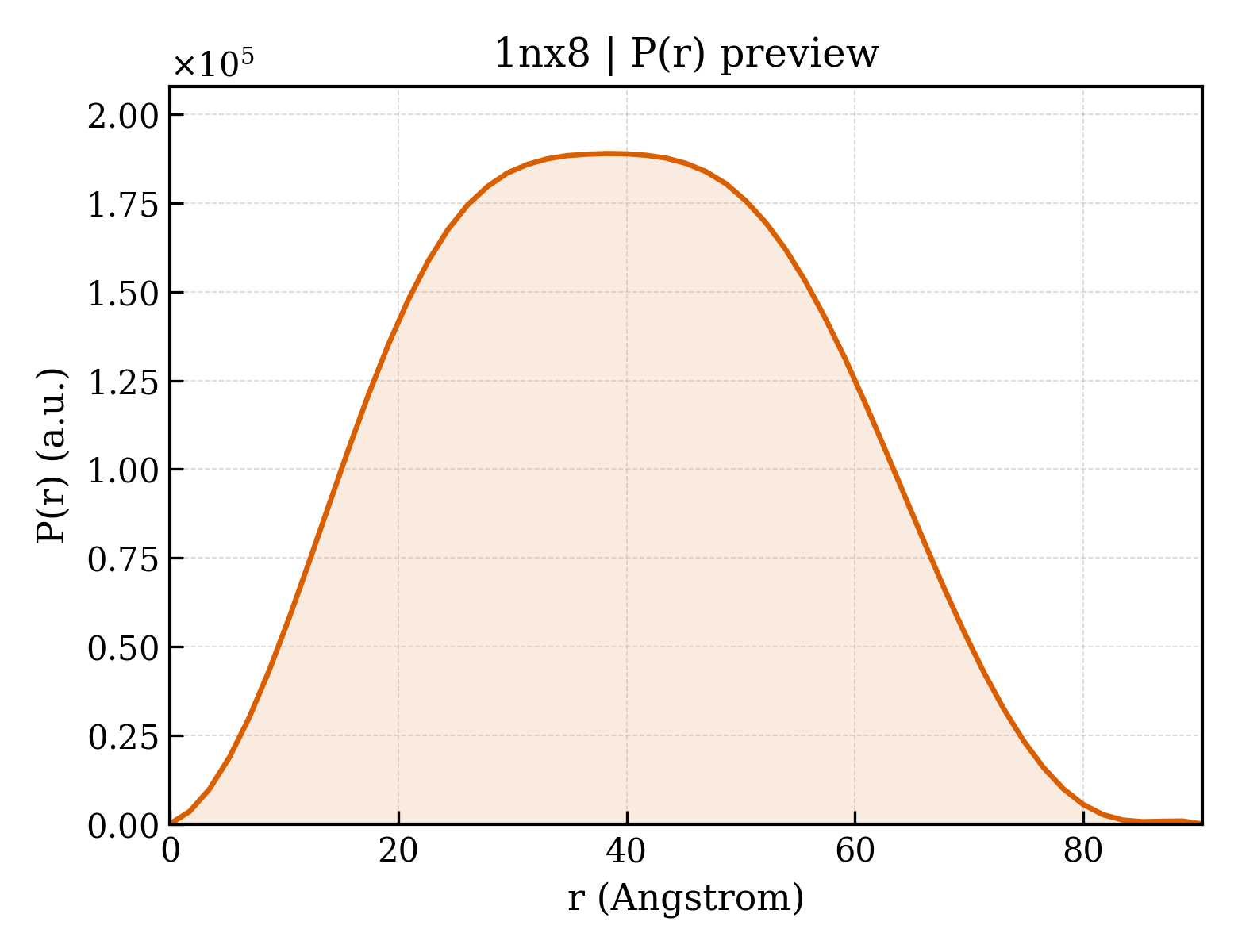

P(r) 距离分布 P(r) Distribution
