Laticauda semifasciata
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | SULFATE ION × 2 water × 1 | Consistent with protein count |
| UniProt name | NXSB_LATSE |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–62； UniProt 22–83 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1nxb |
| Deposition date deposition_date | 1980-08-08 |
| Structure title title | STRUCTURE AND FUNCTION OF SNAKE VENOM CURARIMIMETIC NEUROTOXINS |
| Keywords keywords | NEUROTOXIN (POST-SYNAPTIC); NEUROTOXIN (POST-SYNAPTIC) |
| Experimental Method method | X-RAY DIFFRACTION |

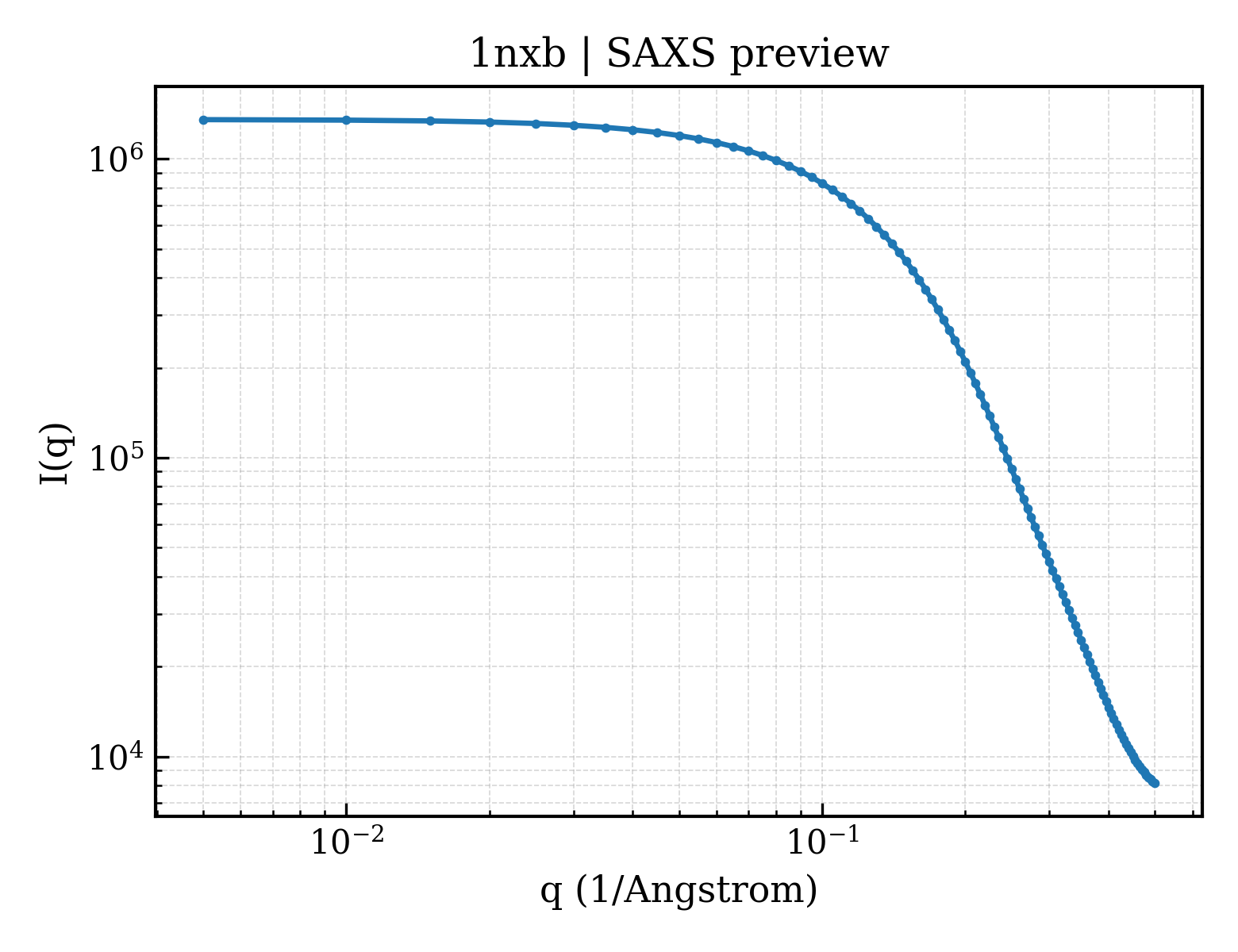

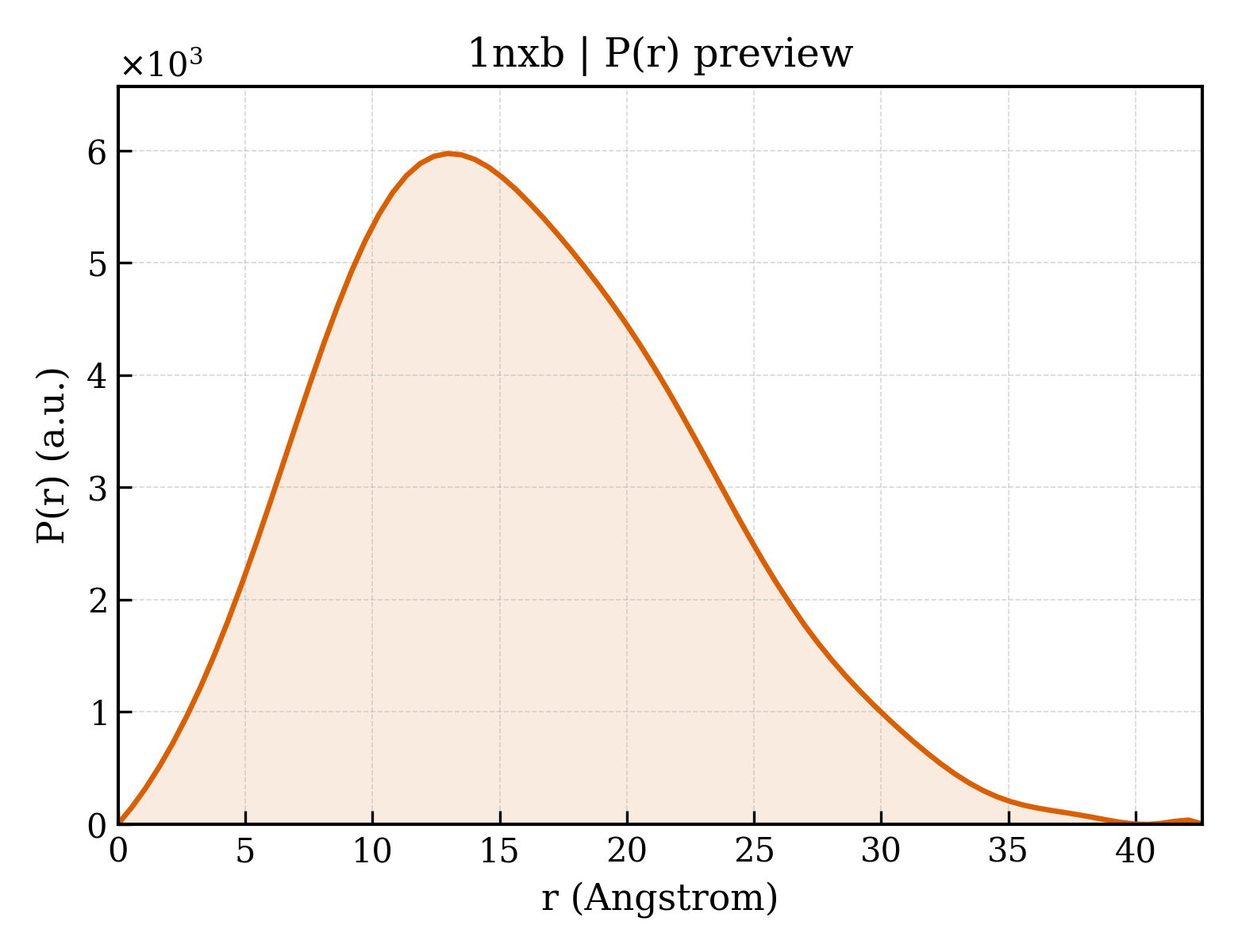

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 12.16 Å |
| Rg (electron density) | 11.52 Å |
| Total Rg | 12.56 Å |
| Atom count | 476 |
| Residues | 62 |
| Excluded volume | 8239 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1nxba_ |
| Class class | g — Small proteins |
| Fold Fold fold | g.7 — Snake toxin-like |
| Superfamily Superfamily superfamily | g.7.1 — Snake toxin-like |
| Family Family family | g.7.1.1 — Snake venom toxins |
| Domain ID domain_id | 1nxbA00 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 10 — Ribbon |
| Topology topology | 60 — CD59 |
| Homologous superfamily homologous superfamily | 10 — CD59 |
