SAXSdb — 1nxu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hypothetical oxidoreductase yiaK

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 4 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	YIAK_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–332； UniProt 1–332 Author chain B； PDBConstruct 1–332； UniProt 1–332

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1nxu
Deposition date deposition_date	2003-02-11
Structure title title	CRYSTAL STRUCTURE OF E. COLI HYPOTHETICAL OXIDOREDUCTASE YIAK NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET ER82.
Keywords keywords	;Hypothetical protein, Oxidoreductase, Structural Genomics, PSI, Protein Structure Initiative, Northeast Structural Genomics Consortium, NESG ;; STRUCTURAL GENOMICS, OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1nxu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

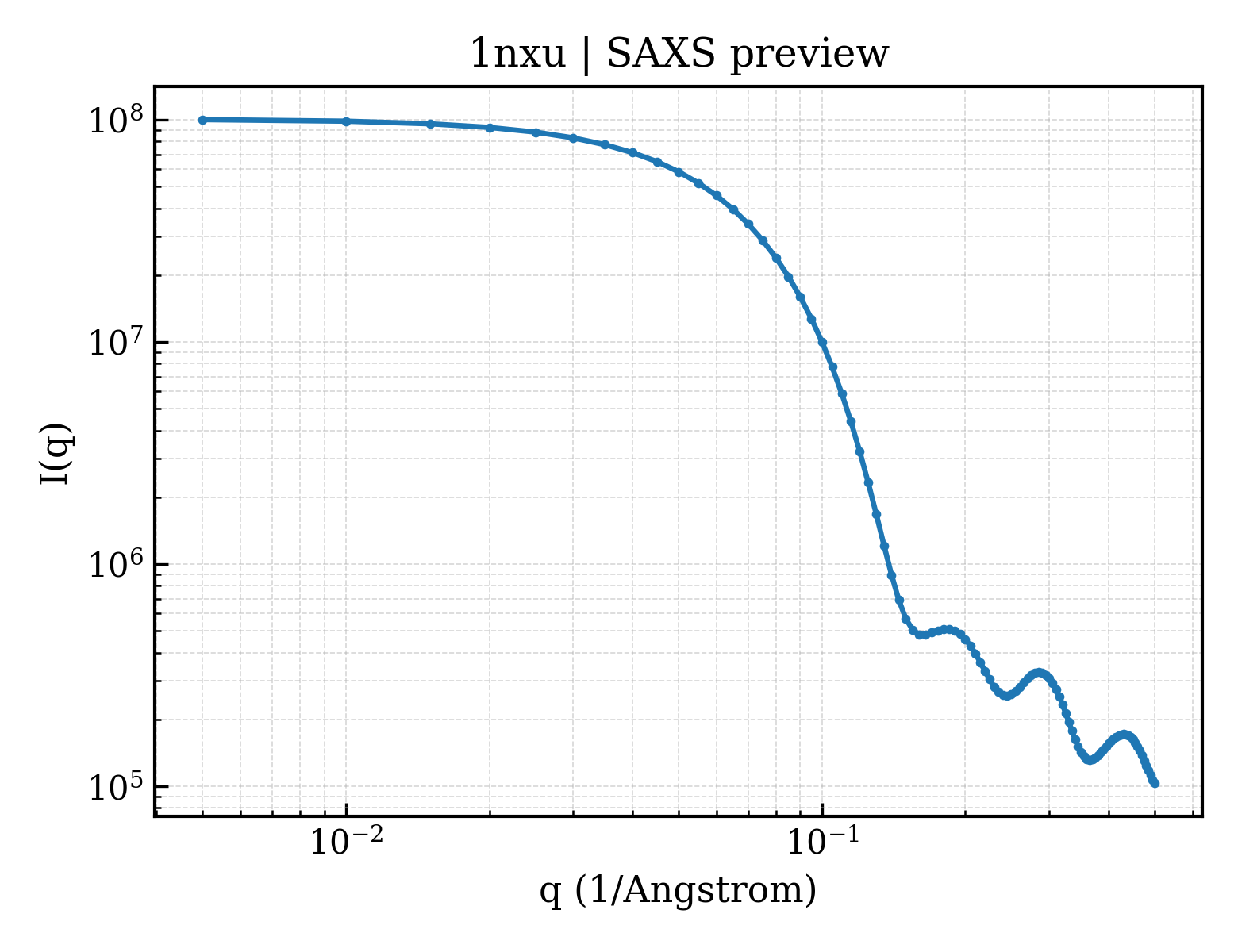

1nxu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1nxu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.49 Å
Rg (electron density)	24.50 Å
Total Rg	24.96 Å
Atom count	5149
Residues	635
Excluded volume	91628 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1nxu__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Hypothetical oxidoreductase yiaK
Molecular weight formula_weight	37385.1 kDa
EC 编号 ec_number	1.1.1.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5813

MKVTFEQLKAAFNRVLISRGVDSETADACAEMFARTTESGVYSHGVNRFPRFIQQLENGDIIPDAQPKRITSLGAIEQWDAQRSIGNLTAKKMMDRAIELAADHGIGLVALRNANHWMRGGSYGWQAAEKGYIGICWTNSIAVMPPWGAKECRIGTNPLIVAIPSTPITMVDMSMSMFSYGMLEVNRLAGRQLPVDGGFDDEGNLTKEPGVIEKNRRILPMGYWKGSGMSIVLDMIATLLSDGASVAEVTQDNSDEYGISQIFIAIEVDKLIDGPTRDAKLQRIMDYVTSAERADENQAIRLPGHEFTTLLAENRRNGITVDDSVWAKIQALA

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	664

▼

6. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1nxua_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.122 — L-sulfolactate dehydrogenase-like
Superfamily Superfamily superfamily	c.122.1 — L-sulfolactate dehydrogenase-like
Family Family family	c.122.1.1 — L-sulfolactate dehydrogenase-like

Domain ID domain_id	d1nxub1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.122 — L-sulfolactate dehydrogenase-like
Superfamily Superfamily superfamily	c.122.1 — L-sulfolactate dehydrogenase-like
Family Family family	c.122.1.1 — L-sulfolactate dehydrogenase-like

Domain ID domain_id	d1nxub2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (6 domains)

Domain ID domain_id	1nxuA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1530 — Hypothetical Oxidoreductase Yiak; Chain: A, domain 1
Homologous superfamily homologous superfamily	10 — Malate/L-lactate/L-sulpholactate dehydrogenase, four-helix barrel

Domain ID domain_id	1nxuA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1370 — Ribosomal Protein S8; Chain: A, domain 1
Homologous superfamily homologous superfamily	60 — Malate/L-lactate/L-sulpholactate dehydrogenase, NADPH binding domain

Domain ID domain_id	1nxuA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
Homologous superfamily homologous superfamily	50 — Hypothetical oxidoreductase yiak; domain 3

Domain ID domain_id	1nxuB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1530 — Hypothetical Oxidoreductase Yiak; Chain: A, domain 1
Homologous superfamily homologous superfamily	10 — Malate/L-lactate/L-sulpholactate dehydrogenase, four-helix barrel

Domain ID domain_id	1nxuB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1370 — Ribosomal Protein S8; Chain: A, domain 1
Homologous superfamily homologous superfamily	60 — Malate/L-lactate/L-sulpholactate dehydrogenase, NADPH binding domain

Domain ID domain_id	1nxuB03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
Homologous superfamily homologous superfamily	50 — Hypothetical oxidoreductase yiak; domain 3

▶

Unit-cell length a length_a	58.012 Å
Unit-cell length b length_b	51.229 Å
Unit-cell length c length_c	108.930 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	103.78 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	37.900 Å
R factor r_factor	0.1920
R_work r_work	0.1920
R_free r_free	0.2350

CRYSTAL STRUCTURE OF E. COLI HYPOTHETICAL OXIDOREDUCTASE YIAK NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET ER82.
