1nye
Crystal structure of OsmC from E. coli
SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1nye |
| 沉积日期 deposition_date | 2003-02-12 |
| 结构标题 title | Crystal structure of OsmC from E. coli |
| 关键词 keywords | ;OsmC, Structural genomics, peroxiredoxin, BSGC structure funded by NIH, Protein Structure Initiative, PSI, Berkeley Structural Genomics Center, UNKNOWN FUNCTION ;; STRUCTURAL GENOMICS, UNKNOWN FUNCTION |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 39.81 Å |
| 回转半径 Rg (电子) rg_electron | 40.56 Å |
| 零角强度 I(0) i0 | 144738000.00 |
| 分子量 molecular_weight | 96910.0 kDa |
| 排除体积 excluded_volume | 121120 ų |
| 包络体积 envelope_volume | 166880 ų |
| 水化壳体积 shell_volume | 38376 ų |
| 包络直径 envelope_diameter | 154.6 Å |
| 壳层 Rg shell_rg | 40.42 Å |
| 包络 Rg envelope_rg | 40.61 Å |
| 形状 Rg shape_rg | 40.57 Å |
| 总 Rg total_rg | 40.54 Å |
| 总原子数 total_atoms | 6813 |
| 残基数 n_residues | 910 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |

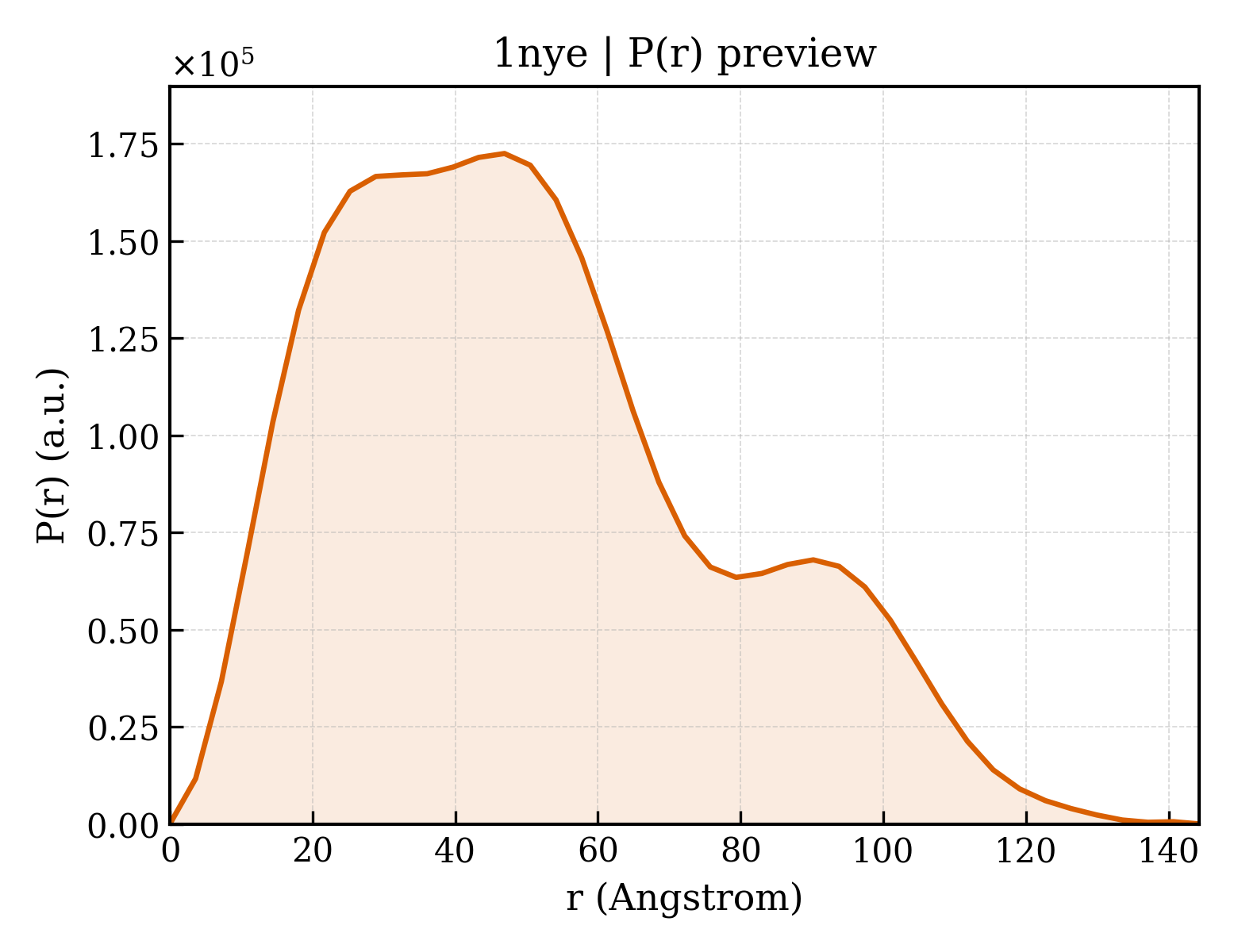

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 144.3 Å |
| Rg (实空间) rg_real | 40.48 Å |
| Rg 误差 (实空间) rg_real_error | 1.78 Å |
| I(0) (实空间) i0_real | 1.4470e+08 |
| I(0) 误差 (实空间) i0_real_error | 2.7410e+06 |
| Rg (倒空间) rg_reciprocal | 40.07 Å |
| I(0) (倒空间) i0_reciprocal | 144700000.0000 |
| 解质量估计 total_estimate | 0.7554 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 3 |
| 主峰位置 r_peak_primary | 46.9 Å |
| 偏度 Skewness skewness | 0.568 |
| 峰度 Kurtosis kurtosis | -0.389 |
| 角度范围 angular_range | — – 0.2000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 18020000.0000 |
| 实空间数据点数 n_real_points | 41 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.476; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.495; Smooth: 0.894 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 16 domains
SCOP 2.08 (10 domains)
| 结构域编号 domain_id | d1nyea_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.227 — OsmC-like |
| 超家族 Superfamily superfamily | d.227.1 — OsmC-like |
| 家族 Family family | d.227.1.1 — Ohr/OsmC resistance proteins |
| 结构域编号 domain_id | d1nyeb_ |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.227 — OsmC-like |
| 超家族 Superfamily superfamily | d.227.1 — OsmC-like |
| 家族 Family family | d.227.1.1 — Ohr/OsmC resistance proteins |
| 结构域编号 domain_id | d1nyec1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.227 — OsmC-like |
| 超家族 Superfamily superfamily | d.227.1 — OsmC-like |
| 家族 Family family | d.227.1.1 — Ohr/OsmC resistance proteins |
| 结构域编号 domain_id | d1nyec2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1nyed1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.227 — OsmC-like |
| 超家族 Superfamily superfamily | d.227.1 — OsmC-like |
| 家族 Family family | d.227.1.1 — Ohr/OsmC resistance proteins |
| 结构域编号 domain_id | d1nyed2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1nyee1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.227 — OsmC-like |
| 超家族 Superfamily superfamily | d.227.1 — OsmC-like |
| 家族 Family family | d.227.1.1 — Ohr/OsmC resistance proteins |
| 结构域编号 domain_id | d1nyee2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1nyef1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.227 — OsmC-like |
| 超家族 Superfamily superfamily | d.227.1 — OsmC-like |
| 家族 Family family | d.227.1.1 — Ohr/OsmC resistance proteins |
| 结构域编号 domain_id | d1nyef2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
CATH v4.4 (6 domains)
| 结构域编号 domain_id | 1nyeA00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 300 — GMP Synthetase; Chain A, domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 20 — K homology (KH) domain |
| 结构域编号 domain_id | 1nyeB00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 300 — GMP Synthetase; Chain A, domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 20 — K homology (KH) domain |
| 结构域编号 domain_id | 1nyeC00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 300 — GMP Synthetase; Chain A, domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 20 — K homology (KH) domain |
| 结构域编号 domain_id | 1nyeD00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 300 — GMP Synthetase; Chain A, domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 20 — K homology (KH) domain |
| 结构域编号 domain_id | 1nyeE00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 300 — GMP Synthetase; Chain A, domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 20 — K homology (KH) domain |
| 结构域编号 domain_id | 1nyeF00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 300 — GMP Synthetase; Chain A, domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 20 — K homology (KH) domain |
