SAXSdb — 1o1x

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ribose-5-phosphate isomerase RpiB

Thermotoga maritima

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	(4S)-2-METHYL-2,4-PENTANEDIOL × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9X0G9_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 14–155； UniProt 2–143

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1o1x
Deposition date deposition_date	2003-02-12
Structure title title	Crystal structure of a ribose 5-phosphate isomerase rpib (tm1080) from thermotoga maritima at 1.90 A resolution
Keywords keywords	Structural genomics, Joint Center for Structural Genomics, JCSG, Protein Structure Initiative, PSI, isomerase; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1o1x__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1o1x__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

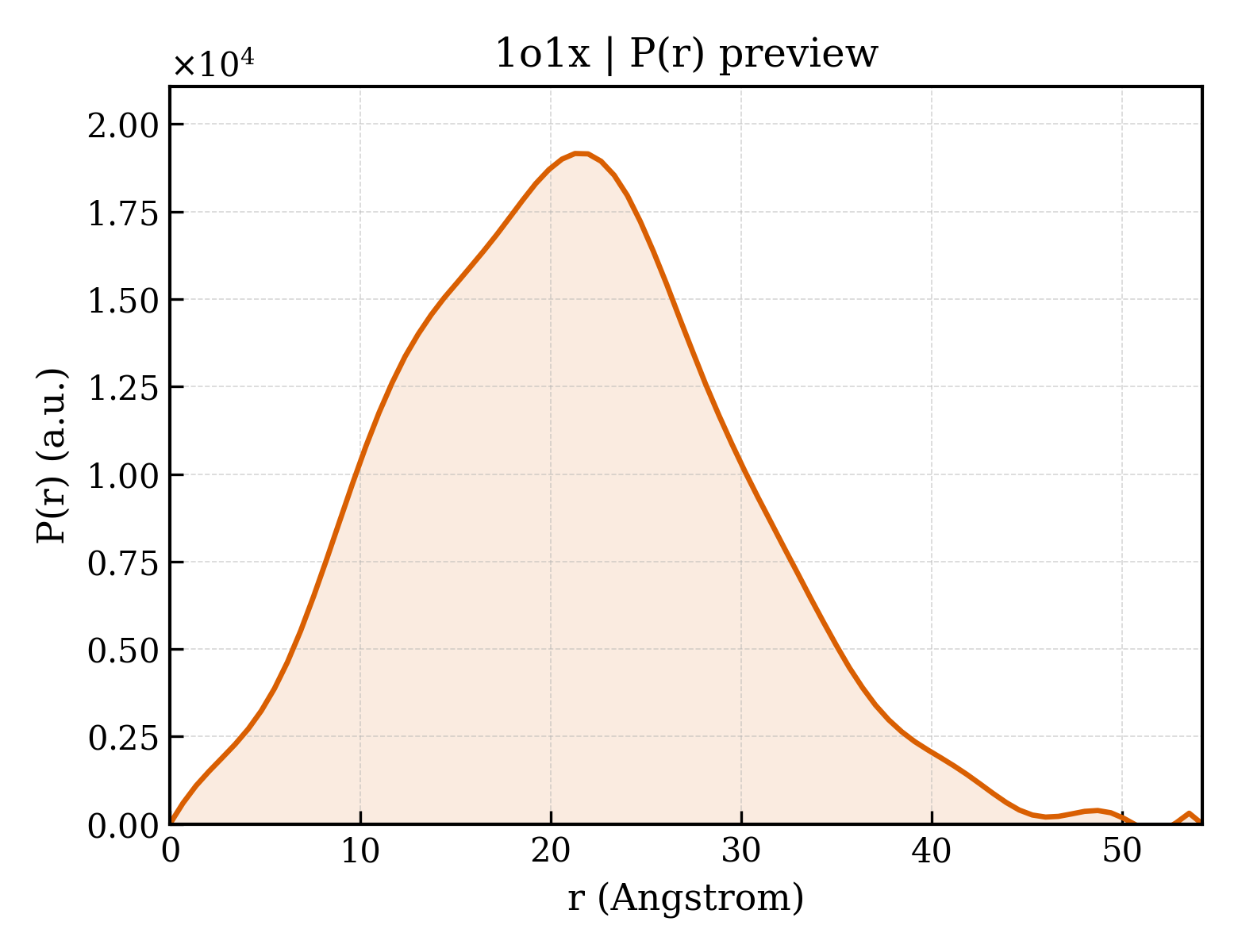

1o1x__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.05 Å
Rg (electron density)	23.49 Å
Total Rg	24.18 Å
Atom count	4588
Residues	568
Excluded volume	81901 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1o1x__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	ribose-5-phosphate isomerase RpiB
Molecular weight formula_weight	17507.5 kDa
EC 编号 ec_number	5.3.1.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1390

MGSDKIHHHHHHVKIAIASDHAAFELKEKVKNYLLGKGIEVEDHGTYSEESVDYPDYAKKVVQSILSNEADFGILLCGTGLGMSIAANRYRGIRAALCLFPDMARLARSHNNANILVLPGRLIGAELAFWIVDTFLSTPFDGGRHERRIRKIDEV

Source Source

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	2336
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	(4S)-2-METHYL-2,4-PENTANEDIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	212

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1o1xa1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.121 — Ribose/Galactose isomerase RpiB/AlsB
Superfamily Superfamily superfamily	c.121.1 — Ribose/Galactose isomerase RpiB/AlsB
Family Family family	c.121.1.1 — Ribose/Galactose isomerase RpiB/AlsB

Domain ID domain_id	d1o1xa2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	1o1xA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1400 — Ribose 5-phosphate Isomerase B; Chain: A,
Homologous superfamily homologous superfamily	10 — Sugar-phosphate isomerase, RpiB/LacA/LacB

▶

Unit-cell length a length_a	61.490 Å
Unit-cell length b length_b	73.890 Å
Unit-cell length c length_c	87.740 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 2 2 2
Space-group number int_tables_number	23
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	28.260 Å
R factor r_factor	0.1180
R_work r_work	0.1170
R_free r_free	0.1380

Crystal structure of a ribose 5-phosphate isomerase rpib (tm1080) from thermotoga maritima at 1.90 A resolution
