SAXSdb — 1o1y

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

conserved hypothetical protein TM1158

Thermotoga maritima

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	SULFATE ION × 9 water × 1	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 18 water × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 18 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9X0P2_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 14–239； UniProt 2–227

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1o1y
Deposition date deposition_date	2003-02-12
Structure title title	Crystal structure of a glutamine amidotransferase (tm1158) from thermotoga maritima at 1.70 A resolution
Keywords keywords	;Flavodoxin-like fold, structural genomics, Joint Center for Structural Genomics, JCSG, Protein Structure Initiative, PSI, transferase ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1o1y__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

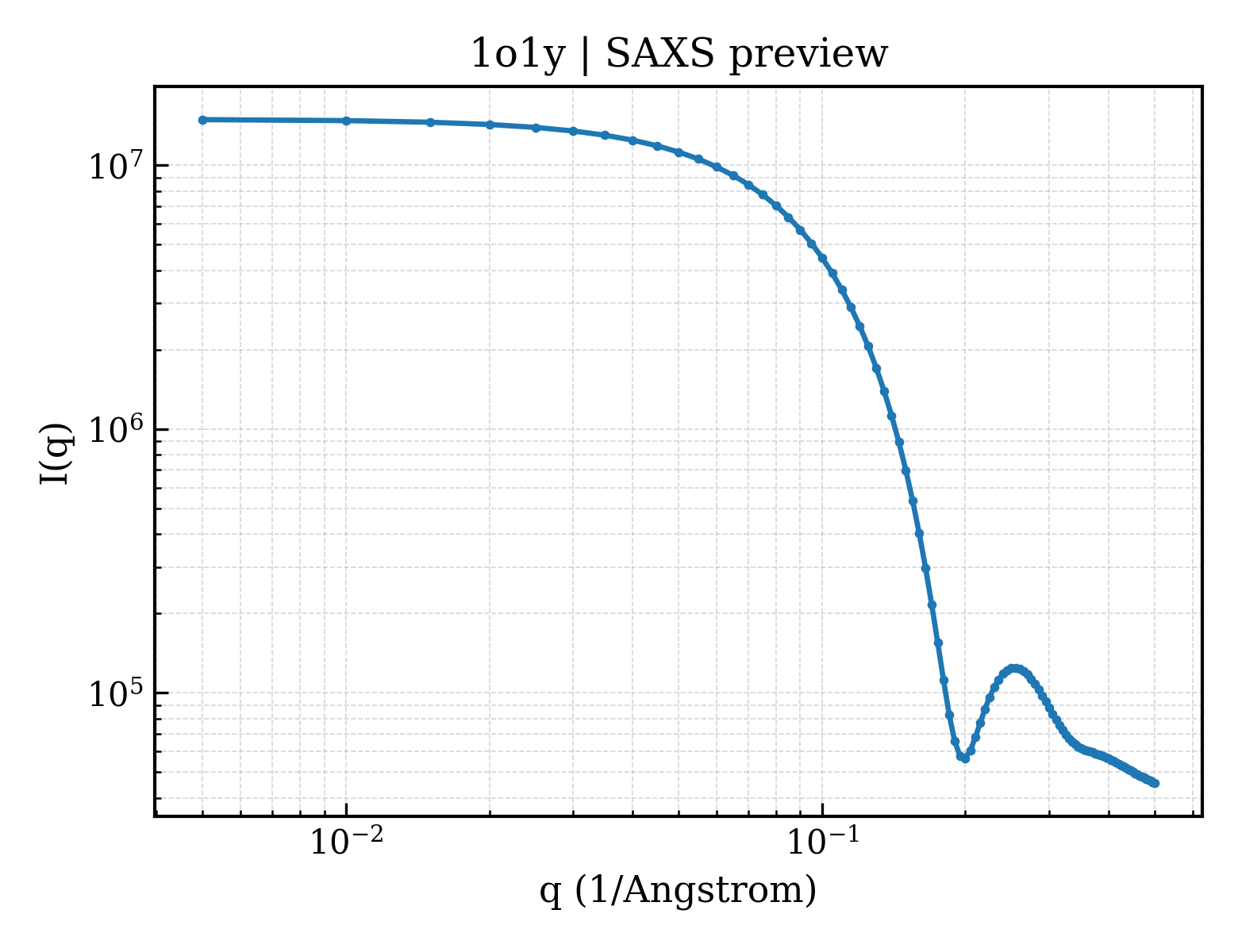

1o1y__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

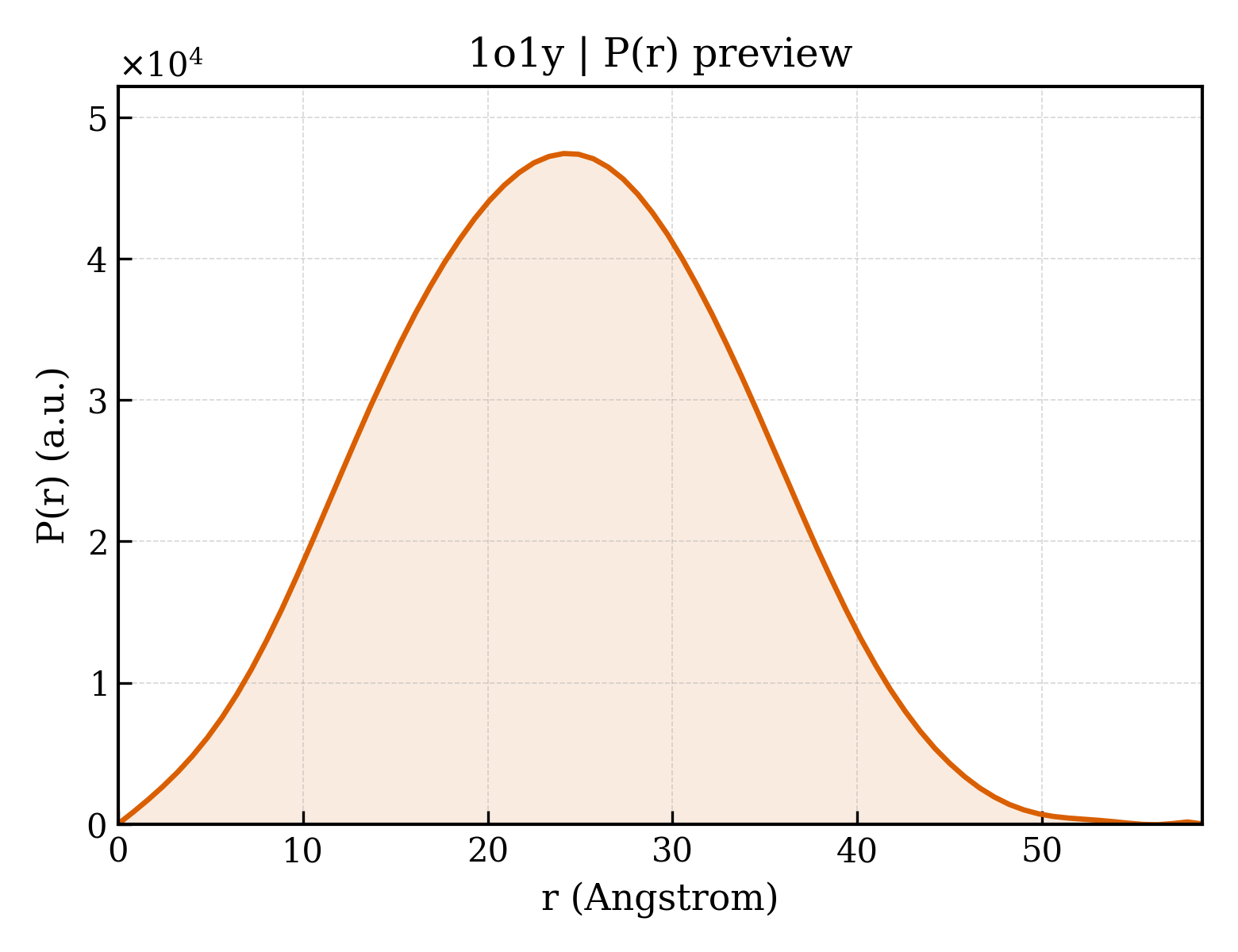

1o1y__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.52 Å
Rg (electron density)	16.99 Å
Total Rg	18.05 Å
Atom count	1967
Residues	223
Excluded volume	35037 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1o1y__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1o1y__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1o1y__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	conserved hypothetical protein TM1158
Molecular weight formula_weight	28746.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2351

MGSDKIHHHHHHVRVLAIRHVEIEDLGMMEDIFREKNWSFDYLDTPKGEKLERPLEEYSLVVLLGGYMGAYEEEKYPFLKYEFQLIEEILKKEIPFLGICLGSQMLAKVLGASVYRGKNGEEIGWYFVEKVSDNKFFREFPDRLRVFQWHGDTFDLPRRATRVFTSEKYENQGFVYGKAVGLQFHIEVGARTMKRWIEAYKDELEKKKIDPRLLLETAEREEKVLKGLLRSLLERMVES

Source Source

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	2336
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	358

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1o1ya1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.16 — Class I glutamine amidotransferase-like
Family Family family	c.23.16.1 — Class I glutamine amidotransferases (GAT)

Domain ID domain_id	d1o1ya2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	1o1yA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	880 — Class I glutamine amidotransferase (GATase) domain

▶

Unit-cell length a length_a	92.362 Å
Unit-cell length b length_b	92.362 Å
Unit-cell length c length_c	135.833 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 65 2 2
Space-group number int_tables_number	179
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	39.400 Å
R factor r_factor	0.1465
R_work r_work	0.1452
R_free r_free	0.1724

Crystal structure of a glutamine amidotransferase (tm1158) from thermotoga maritima at 1.70 A resolution
