SAXSdb — 1o2d

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Alcohol dehydrogenase, iron-containing

Thermotoga maritima

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	FE (III) ION × 1 NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	FE (III) ION × 1 NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 1 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9X022_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 14–371； UniProt 2–359 Author chain B； PDBConstruct 14–371； UniProt 2–359

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1o2d
Deposition date deposition_date	2003-02-27
Structure title title	Crystal structure of Alcohol dehydrogenase, iron-containing (TM0920) from Thermotoga maritima at 1.30 A resolution
Keywords keywords	;TM0920, ALCOHOL DEHYDROGENASE, IRON-CONTAINING, STRUCTURAL GENOMICS, JCSG, PSI, PROTEIN STRUCTURE INITIATIVE, JOINT CENTER FOR STRUCTURAL GENOMICS, OXIDOREDUCTASE ;; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1o2d__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1o2d__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

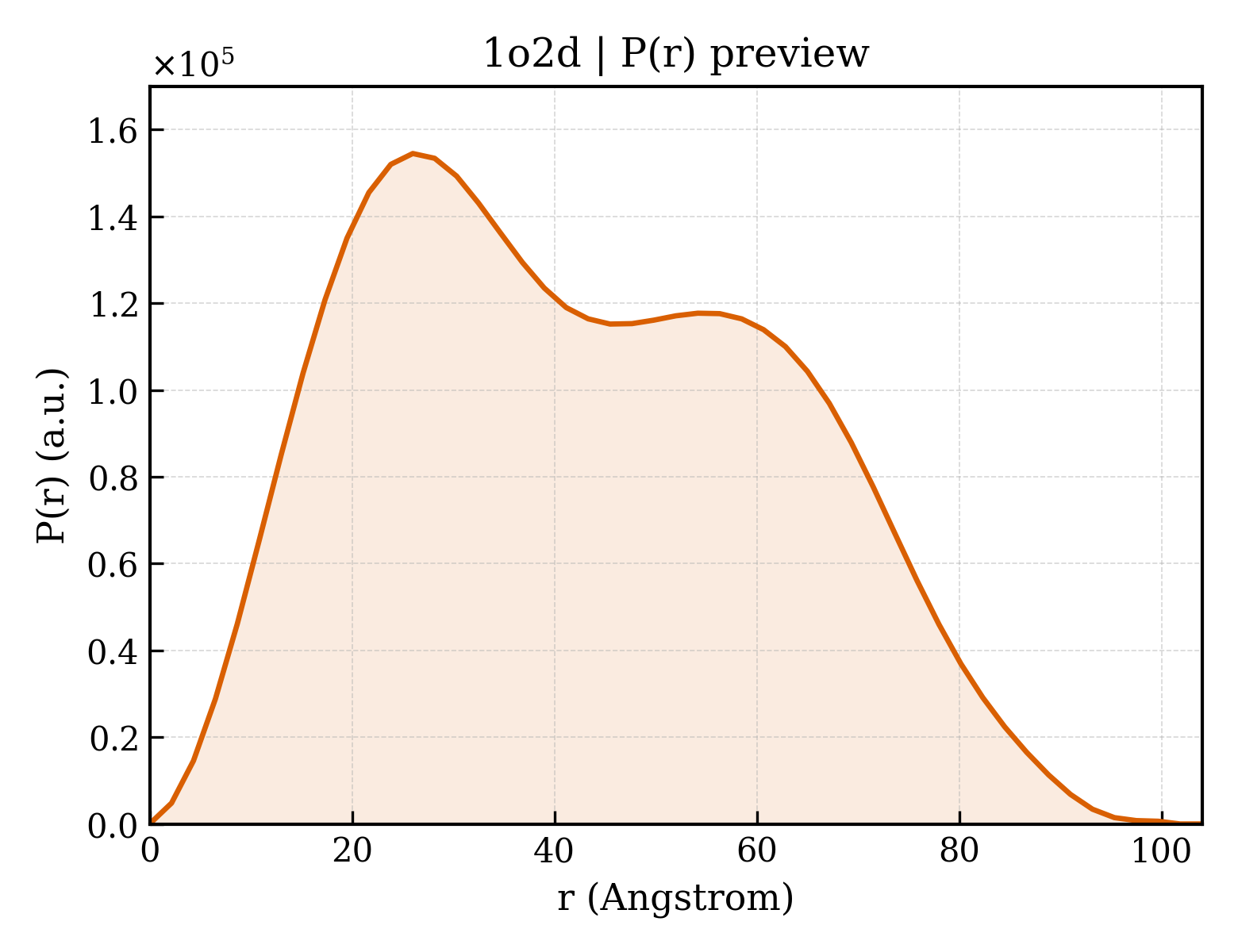

1o2d__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.58 Å
Rg (electron density)	19.79 Å
Total Rg	20.51 Å
Atom count	2827
Residues	348
Excluded volume	50841 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1o2d__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1o2d__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Alcohol dehydrogenase, iron-containing
Molecular weight formula_weight	41942.3 kDa
EC 编号 ec_number	1.1.1.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6604

MGSDKIHHHHHHVWEFYMPTDVFFGEKILEKRGNIIDLLGKRALVVTGKSSSKKNGSLDDLKKLLDETEISYEIFDEVEENPSFDNVMKAVERYRNDSFDFVVGLGGGSPMDFAKAVAVLLKEKDLSVEDLYDREKVKHWLPVVEIPTTAGTGSEVTPYSILTDPEGNKRGCTLMFPVYAFLDPRYTYSMSDELTLSTGVDALSHAVEGYLSRKSTPPSDALAIEAMKIIHRNLPKAIEGNREARKKMFVASCLAGMVIAQTGTTLAHALGYPLTTEKGIKHGKATGMVLPFVMEVMKEEIPEKVDTVNHIFGGSLLKFLKELGLYEKVAVSSEELEKWVEKGSRAKHLKNTPGTFTPEKIRNIYREALGV

Source Source

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	2336
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FE (III) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
Molecular weight formula_weight	743.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
Molecular weight formula_weight	122.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	892

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1o2da1
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.22 — Dehydroquinate synthase-like
Superfamily Superfamily superfamily	e.22.1 — Dehydroquinate synthase-like
Family Family family	e.22.1.2 — Iron-containing alcohol dehydrogenase

Domain ID domain_id	d1o2da2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1o2db1
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.22 — Dehydroquinate synthase-like
Superfamily Superfamily superfamily	e.22.1 — Dehydroquinate synthase-like
Family Family family	e.22.1.2 — Iron-containing alcohol dehydrogenase

Domain ID domain_id	d1o2db2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (4 domains)

Domain ID domain_id	1o2dA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1970 —

Domain ID domain_id	1o2dA02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1090 — Dehydroquinate synthase-like, alpha domain
Homologous superfamily homologous superfamily	10 — Dehydroquinate synthase-like - alpha domain

Domain ID domain_id	1o2dB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1970 —

Domain ID domain_id	1o2dB02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1090 — Dehydroquinate synthase-like, alpha domain
Homologous superfamily homologous superfamily	10 — Dehydroquinate synthase-like - alpha domain

▶

Unit-cell length a length_a	58.047 Å
Unit-cell length b length_b	85.283 Å
Unit-cell length c length_c	72.080 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	96.29 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.300 Å
Low-resolution limit resolution_low	38.190 Å
R factor r_factor	0.1390
R_work r_work	0.1370
R_free r_free	0.1700

Crystal structure of Alcohol dehydrogenase, iron-containing (TM0920) from Thermotoga maritima at 1.30 A resolution
