SAXSdb — 1o6j

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRYPAREDOXIN II

CRITHIDIA FASCICULATA

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O77093
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–150； UniProt 16–165 Author chain B； PDBConstruct 1–150； UniProt 16–165

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1o6j
Deposition date deposition_date	2002-10-04
Structure title title	Tryparedoxin II from C.fasciculata solved by sulphur phasing
Keywords keywords	ELECTRON TRANSPORT, TRYPAREDOXIN II, SULPHUR PHASING, SAD, S-SAD; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1o6j__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

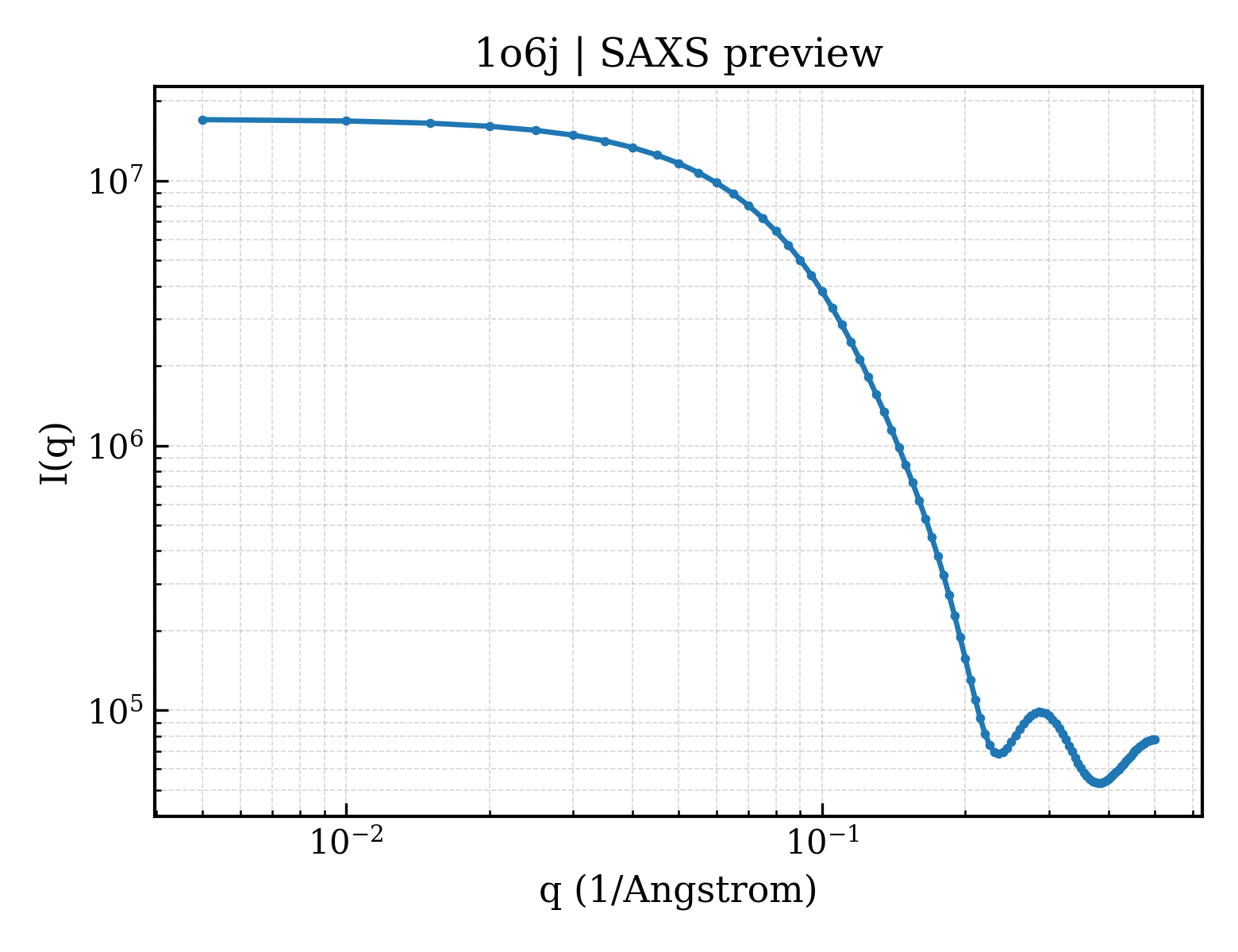

1o6j__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1o6j__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.48 Å
Rg (electron density)	20.56 Å
Total Rg	21.48 Å
Atom count	2343
Residues	297
Excluded volume	42205 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1o6j__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1o6ja_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.10 — Glutathione peroxidase-like

Domain ID domain_id	d1o6jb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.10 — Glutathione peroxidase-like

CATH v4.4 (2 domains)

Domain ID domain_id	1o6jA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	1o6jB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

▶

Unit-cell length a length_a	114.200 Å
Unit-cell length b length_b	114.200 Å
Unit-cell length c length_c	102.600 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.350 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2016
R_work r_work	0.2008
R_free r_free	0.2150

Description description	TRYPAREDOXIN II
Molecular weight formula_weight	16928.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2470

Tryparedoxin II from C.fasciculata solved by sulphur phasing

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRYPAREDOXIN II

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1o6j__assembly_1__model_1

1o6j__assembly_1__model_1 | I(q)

1o6j__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

7. Citations (1)

Source organism organism	CRITHIDIA FASCICULATA
NCBI taxonomy ID ncbi_taxonomy_id	5656
Host organism host_organism	ESCHERICHIA COLI

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	110
