1o7p

NAPHTHALENE 1,2-DIOXYGENASE, PRODUCT COMPLEX

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NAPHTHALENE 1,2-DIOXYGENASE ALPHA SUBUNIT

PSEUDOMONAS PUTIDA

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	NAPHTHALENE 1,2-DIOXYGENASE BETA SUBUNIT × 3 （P23095） 1,2-ETHANEDIOL × 18 (1R, 2S)-CIS 1,2 DIHYDROXY-1,2-DIHYDRONAPHTHALENE × 3 SULFATE ION × 9 FE2/S2 (INORGANIC) CLUSTER × 3 FE (III) ION × 3 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NDOB_PSEPU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–449； UniProt 1–449

NAPHTHALENE 1,2-DIOXYGENASE BETA SUBUNIT

PSEUDOMONAS PUTIDA

UniProt P23095

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	NAPHTHALENE 1,2-DIOXYGENASE ALPHA SUBUNIT × 3 （P23094） 1,2-ETHANEDIOL × 18 (1R, 2S)-CIS 1,2 DIHYDROXY-1,2-DIHYDRONAPHTHALENE × 3 SULFATE ION × 9 FE2/S2 (INORGANIC) CLUSTER × 3 FE (III) ION × 3 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NDOC_PSEPU
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–194； UniProt 1–194

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1o7p
Deposition date deposition_date	2002-11-11
Structure title title	NAPHTHALENE 1,2-DIOXYGENASE, PRODUCT COMPLEX
Keywords keywords	OXIDOREDUCTASE, NON-HEME IRON DIOXYGENASE, ENZYME-SUBSTRATE COMPLEX, IRON-SULFUR, AROMATIC HYDROCARBON CATABOLISM OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1o7p__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1o7p__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

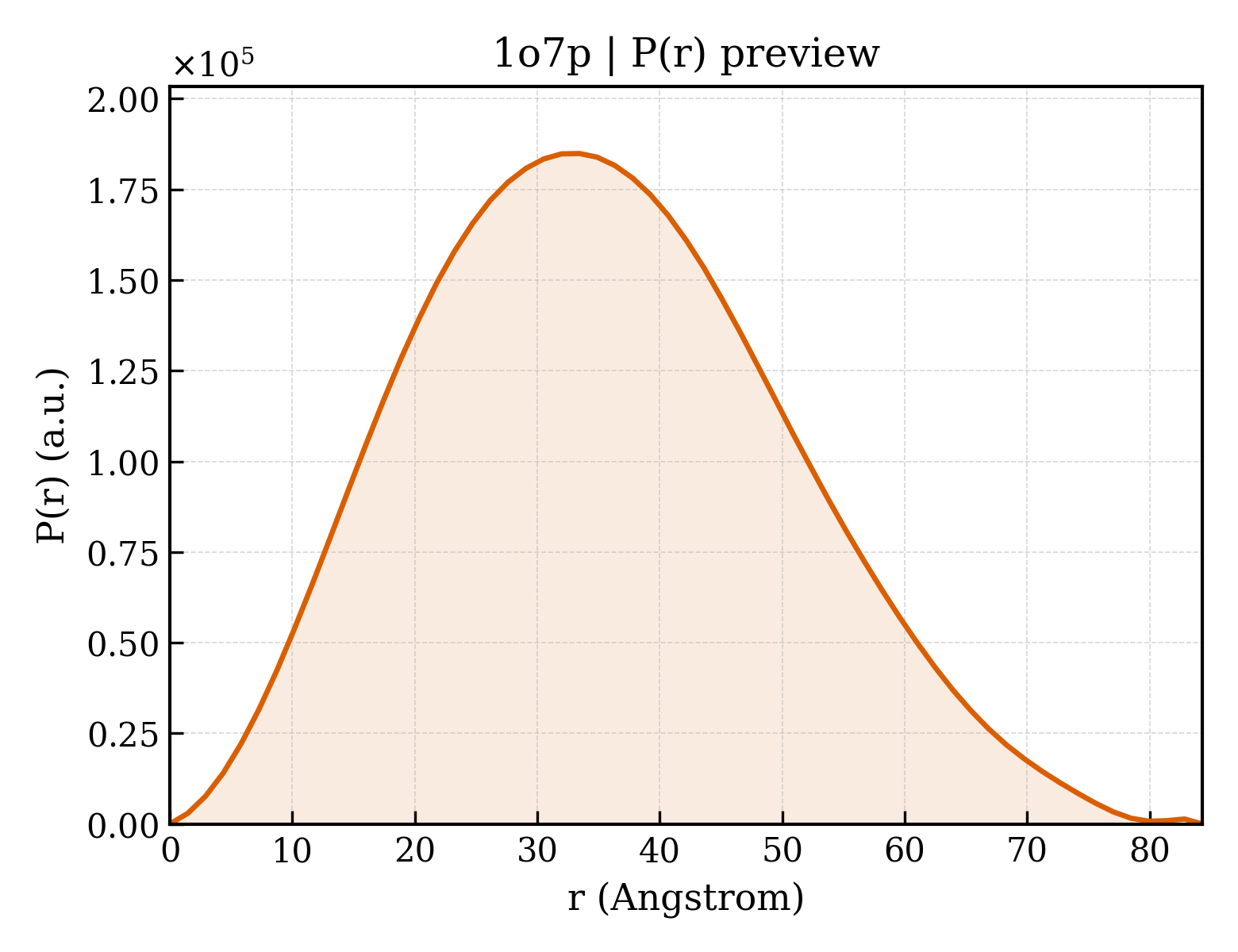

1o7p__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.35 Å
Rg (electron density)	35.35 Å
Total Rg	35.96 Å
Atom count	15432
Residues	1920
Excluded volume	271620 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1o7p__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	NAPHTHALENE 1,2-DIOXYGENASE ALPHA SUBUNIT
Molecular weight formula_weight	49664.4 kDa
EC 编号 ec_number	1.14.12.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5568

MNYNNKILVSESGLSQKHLIHGDEELFQHELKTIFARNWLFLTHDSLIPAPGDYVTAKMGIDEVIVSRQNDGSIRAFLNVCRHRGKTLVSVEAGNAKGFVCSYHGWGFGSNGELQSVPFEKDLYGESLNKKCLGLKEVARVESFHGFIYGCFDQEAPPLMDYLGDAAWYLEPMFKHSGGLELVGPPGKVVIKANWKAPAENFVGDAYHVGWTHASSLRSGESIFSSLAGNAALPPEGAGLQMTSKYGSGMGVLWDGYSGVHSADLVPELMAFGGAKQERLNKEIGDVRARIYRSHLNCTVFPNNSMLTCSGVFKVWNPIDANTTEVWTYAIVEKDMPEDLKRRLADSVQRTFGPAGFWESDDNDNMETASQNGKKYQSRDSDLLSNLGFGEDVYGDAVYPGVVGKSAIGETSYRGFYRAYQAHVSSSNWAEFEHASSTWHTELTKTTDR

Source Source

Source organism organism	PSEUDOMONAS PUTIDA
NCBI taxonomy ID ncbi_taxonomy_id	303
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	NAPHTHALENE 1,2-DIOXYGENASE BETA SUBUNIT
Molecular weight formula_weight	22969.1 kDa
EC 编号 ec_number	1.14.12.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MMINIQEDKLVSAHDAEEILRFFNCHDSALQQEATTLLTQEAHLLDIQAYRAWLEHCVGSEVQYQVISRELRAASERRYKLNEAMNVYNENFQQLKVRVEHQLDPQNWGNSPKLRFTRFITNVQAAMDVNDKELLHIRSNVILHRARRGNQVDVFYAAREDKWKRGEGGVRKLVQRFVDYPERILQTHNLMVFL

Source Source

Source organism organism	PSEUDOMONAS PUTIDA
NCBI taxonomy ID ncbi_taxonomy_id	303
Host organism host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	(1R, 2S)-CIS 1,2 DIHYDROXY-1,2-DIHYDRONAPHTHALENE
Molecular weight formula_weight	162.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 non-polymer

Description description	FE2/S2 (INORGANIC) CLUSTER
Molecular weight formula_weight	175.8 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	FE (III) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	424

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1o7pa1
Class class	b — All beta proteins
Fold Fold fold	b.33 — ISP domain
Superfamily Superfamily superfamily	b.33.1 — ISP domain
Family Family family	b.33.1.2 — Ring hydroxylating alpha subunit ISP domain

Domain ID domain_id	d1o7pa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.129 — TBP-like
Superfamily Superfamily superfamily	d.129.3 — Bet v1-like
Family Family family	d.129.3.3 — Ring hydroxylating alpha subunit catalytic domain

Domain ID domain_id	d1o7pb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.4 — NTF2-like
Family Family family	d.17.4.4 — Ring hydroxylating beta subunit

CATH v4.4 (3 domains)

Domain ID domain_id	1o7pA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	380 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Naphthalene 1,2-dioxygenase Alpha Subunit; Chain A, domain 1

Domain ID domain_id	1o7pA02
Class class	2 — Mainly Beta
Architecture architecture	102 — 3-layer Sandwich
Topology topology	10 — Rieske Iron-sulfur Protein
Homologous superfamily homologous superfamily	10 — Rieske [2Fe-2S] iron-sulphur domain

Domain ID domain_id	1o7pB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	50 —

▶

Unit-cell length a length_a	139.673 Å
Unit-cell length b length_b	139.673 Å
Unit-cell length c length_c	208.439 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	1.950 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	—
R_work r_work	0.1840
R_free r_free	0.2190
