SAXSdb — 1o7q

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

N-ACETYLLACTOSAMINIDE ALPHA-1,3-GALACTOSYLTRANSFERASE

BOS TAURUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Monomer	Protein 1 其他Polymer 1	beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 GLYCEROL × 2 MANGANESE (II) ION × 1 URIDINE-5'-DIPHOSPHATE × 2 water × 1	Consistent with protein count
2	Other combination	Monomer	Protein 1 其他Polymer 1	beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 GLYCEROL × 3 MANGANESE (II) ION × 1 URIDINE-5'-DIPHOSPHATE × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GATR_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–289； UniProt 80–368 Author chain B； PDBConstruct 1–289； UniProt 80–368

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1o7q
Deposition date deposition_date	2002-11-12
Structure title title	Roles of Individual Residues of Alpha-1,3 Galactosyltransferases in Substrate Binding and Catalysis
Keywords keywords	;TRANSFERASE, ALPHA-1, 3-GALACTOSYLTRANSFERASE-UDP COMPLEX, GLYCOSYLTRANSFERASE, GLYCOPROTEIN, TRANSMEMBRANE, NUCLEOTIDE-BINDING PROTEIN, XENOTRANSPLANTATION ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1o7q__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1o7q__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

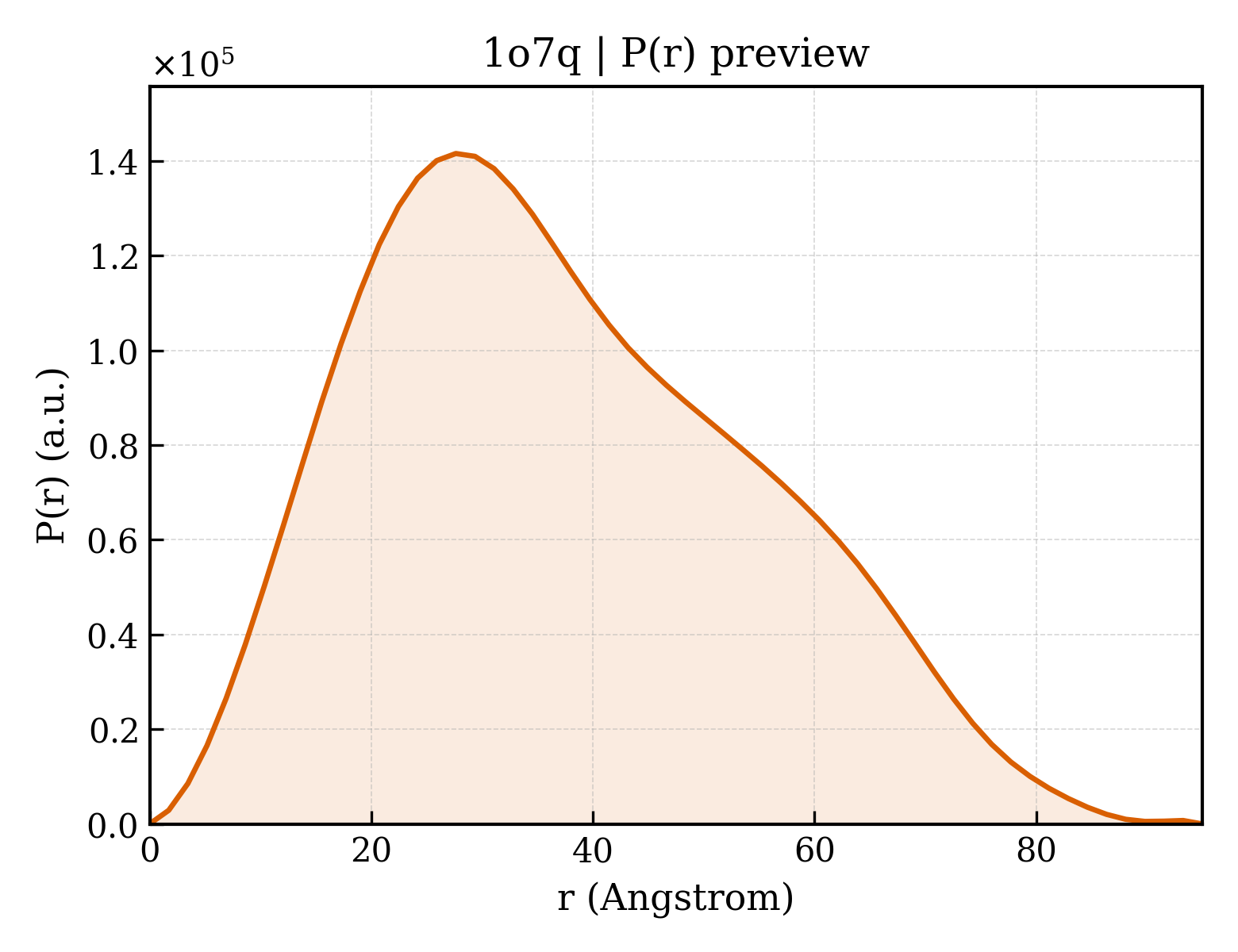

1o7q__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.48 Å
Rg (electron density)	18.41 Å
Total Rg	19.42 Å
Atom count	4806
Residues	287
Excluded volume	44281 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1o7q__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1o7q__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	N-ACETYLLACTOSAMINIDE ALPHA-1,3-GALACTOSYLTRANSFERASE
Molecular weight formula_weight	34090.2 kDa
EC 编号 ec_number	2.4.1.151
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	10790

ESKLKLSDWFNPFKRPEVVTMTKWKAPVVWEGTYNRAVLDNYYAKQKITVGLTVFAVGRYIEHYLEEFLTSANKHFMVGHPVIFYIMVDDVSRMPLIELGPLRSFKVFKIKPEKRWQDISMMRMKTIGEHIVAHIQHEVDFLFCMDVDQVFQDKFGVETLGESVAQLQAWWYKADPNDFTYERRKESAAYIPFGEGDFYYHAAIFGGTPTQVLNITQECFKGILKDKKNDIEAQWHDESHLNKYFLLNKPTKILSPEYCWDYHIGLPADIKLVKMSWQTKEYNVVRNNV

Source Source

Source organism organism	BOS TAURUS
Common name common_name	BOVINE
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 branched

Description description	beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	383.3 kDa
Source method src_method	man
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	URIDINE-5'-DIPHOSPHATE
Molecular weight formula_weight	404.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	952

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1o7qa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
Superfamily Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
Family Family family	c.68.1.9 — alpha-1,3-galactosyltransferase-like

Domain ID domain_id	d1o7qb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
Superfamily Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
Family Family family	c.68.1.9 — alpha-1,3-galactosyltransferase-like

CATH v4.4 (2 domains)

Domain ID domain_id	1o7qA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	1o7qB00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

▶

Unit-cell length a length_a	45.326 Å
Unit-cell length b length_b	94.678 Å
Unit-cell length c length_c	95.006 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	99.03 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.300 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.1069
R_work r_work	—
R_free r_free	0.1543

Roles of Individual Residues of Alpha-1,3 Galactosyltransferases in Substrate Binding and Catalysis
