1o92

Methionine Adenosyltransferase complexed with ADP and a L-methionine analogue

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

S-ADENOSYLMETHIONINE SYNTHETASE

RATTUS NORVEGICUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	L-2-AMINO-4-METHOXY-CIS-BUT-3-ENOIC ACID × 2 PHOSPHATE ION × 6 MAGNESIUM ION × 6 ADENOSINE-5'-DIPHOSPHATE × 2 POTASSIUM ION × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	METL_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–344； UniProt 1–344 Author chain A； PDBConstruct 345–396； UniProt 346–397 Author chain B； PDBConstruct 1–344； UniProt 1–344 Author chain B； PDBConstruct 345–396； UniProt 346–397

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1o92
Deposition date deposition_date	2002-12-10
Structure title title	Methionine Adenosyltransferase complexed with ADP and a L-methionine analogue
Keywords keywords	TRANSFERASE, ADENOSYLTRANSFERASE, METHIONINE BINDING, ADP BINDING; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1o92__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1o92__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

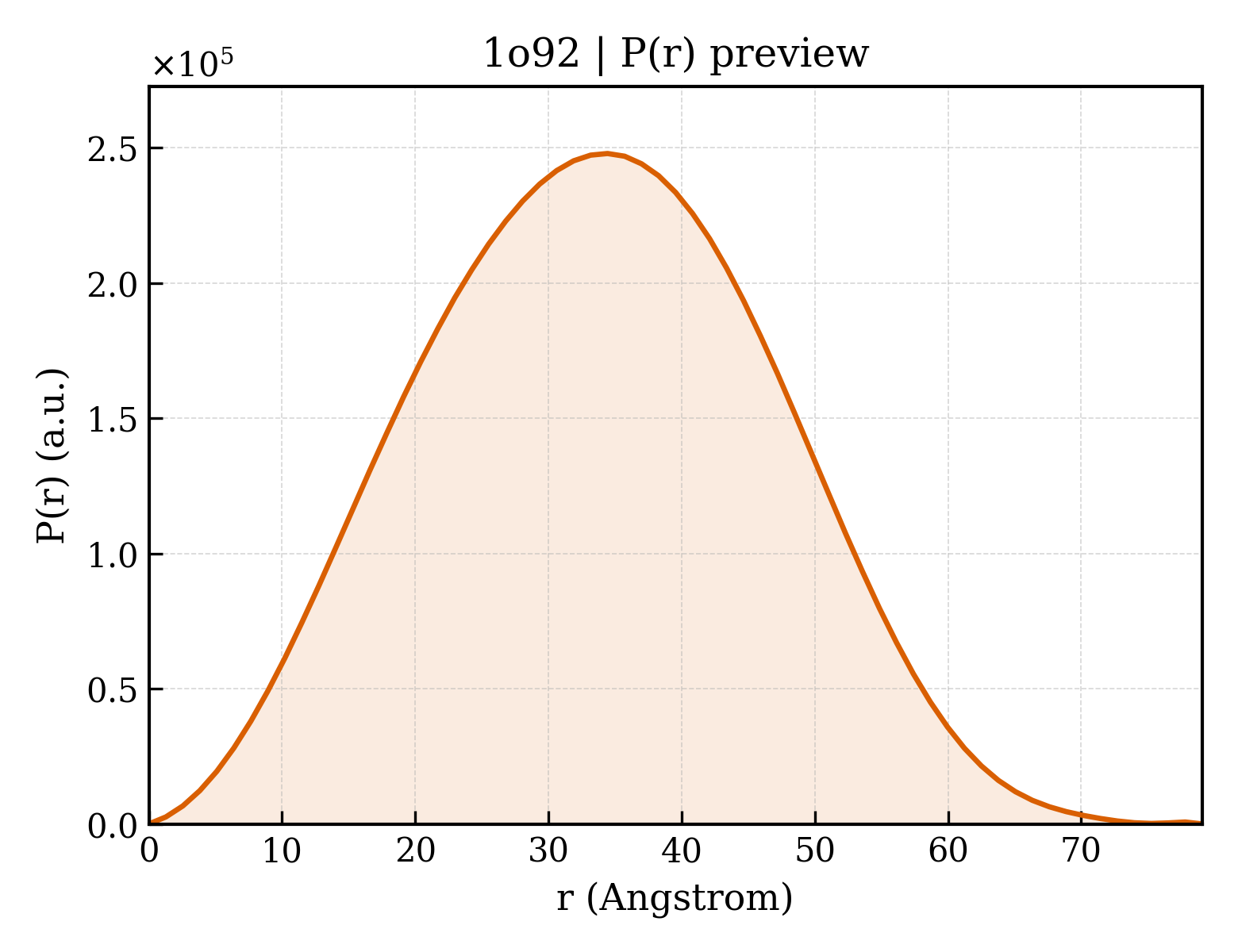

1o92__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.99 Å
Rg (electron density)	36.17 Å
Total Rg	36.45 Å
Atom count	11496
Residues	1472
Excluded volume	205060 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1o92__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	S-ADENOSYLMETHIONINE SYNTHETASE
Molecular weight formula_weight	43637.7 kDa
EC 编号 ec_number	2.5.1.6
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5932

MNGPVDGLCDHSLSEEGAFMFTSESVGEGHPDKICDQISDAVLDAHLKQDPNAKVACETVCKTGMVLLCGEITSMAMIDYQRVVRDTIKHIGYDDSAKGFDFKTCNVLVALEQQSPDIAQCVHLDRNEEDVGAGDQGLMFGYATDETEECMPLTIVLAHKLNTRMADLRRSGVLPWLRPDSKTQVTVQYVQDNGAVIPVRVHTIVISVQHNEDITLEAMREALKEQVIKAVVPAKYLDEDTIYHLQPSGRFVIGGPQGDAGVTGRKIIVDTYGGWGAHGGGAFSGKDYTKVDRSAAYAARWVAKSLVKAGLCRRVLVQVSYAIGVAEPLSISIFTYGTSKKTERELLEVVNKNFDLRPGVIVRDLDLKKPIYQKTACYGHFGRSEFPWEVPKKLVF

Source Source

Source organism organism	RATTUS NORVEGICUS
Common name common_name	RAT
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	L-2-AMINO-4-METHOXY-CIS-BUT-3-ENOIC ACID
Molecular weight formula_weight	131.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	184

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1o92a1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.130 — S-adenosylmethionine synthetase
Superfamily Superfamily superfamily	d.130.1 — S-adenosylmethionine synthetase
Family Family family	d.130.1.1 — S-adenosylmethionine synthetase

Domain ID domain_id	d1o92a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.130 — S-adenosylmethionine synthetase
Superfamily Superfamily superfamily	d.130.1 — S-adenosylmethionine synthetase
Family Family family	d.130.1.1 — S-adenosylmethionine synthetase

Domain ID domain_id	d1o92a3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.130 — S-adenosylmethionine synthetase
Superfamily Superfamily superfamily	d.130.1 — S-adenosylmethionine synthetase
Family Family family	d.130.1.1 — S-adenosylmethionine synthetase

Domain ID domain_id	d1o92b1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.130 — S-adenosylmethionine synthetase
Superfamily Superfamily superfamily	d.130.1 — S-adenosylmethionine synthetase
Family Family family	d.130.1.1 — S-adenosylmethionine synthetase

Domain ID domain_id	d1o92b2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.130 — S-adenosylmethionine synthetase
Superfamily Superfamily superfamily	d.130.1 — S-adenosylmethionine synthetase
Family Family family	d.130.1.1 — S-adenosylmethionine synthetase

Domain ID domain_id	d1o92b3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.130 — S-adenosylmethionine synthetase
Superfamily Superfamily superfamily	d.130.1 — S-adenosylmethionine synthetase
Family Family family	d.130.1.1 — S-adenosylmethionine synthetase

CATH v4.4 (6 domains)

Domain ID domain_id	1o92A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	300 — GMP Synthetase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1o92A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	300 — GMP Synthetase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1o92A03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	300 — GMP Synthetase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1o92B01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	300 — GMP Synthetase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1o92B02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	300 — GMP Synthetase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1o92B03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	300 — GMP Synthetase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	115.140 Å
Unit-cell length b length_b	115.140 Å
Unit-cell length c length_c	160.450 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 41 2 2
Space-group number int_tables_number	91
Crystal system crystal_system	—

Resolution resolution	3.190 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2460
R_work r_work	0.2460
R_free r_free	0.2640
