SAXSdb — 1o97

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ELECTRON TRANSFERRING FLAVOPROTEIN BETA-SUBUNIT

METHYLOPHILUS METHYLOTROPHUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	ELECTRON TRANSFERRING FLAVOPROTEIN ALPHA-SUBUNIT × 1 （P53571） ADENOSINE MONOPHOSPHATE × 1 FLAVIN-ADENINE DINUCLEOTIDE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ETFB_METME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 1–264； UniProt 1–264

ELECTRON TRANSFERRING FLAVOPROTEIN ALPHA-SUBUNIT

METHYLOPHILUS METHYLOTROPHUS

UniProt P53571

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	ELECTRON TRANSFERRING FLAVOPROTEIN BETA-SUBUNIT × 1 （P53570） ADENOSINE MONOPHOSPHATE × 1 FLAVIN-ADENINE DINUCLEOTIDE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ETFA_METME
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–320； UniProt 1–320

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1o97
Deposition date deposition_date	2002-12-11
Structure title title	Structure of electron transferring flavoprotein from Methylophilus methylotrophus, recognition loop removed by limited proteolysis
Keywords keywords	ELECTRON TRANSFER, FLAVOPROTEIN, FAD BINDING; ELECTRON TRANSFER
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1o97__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1o97__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

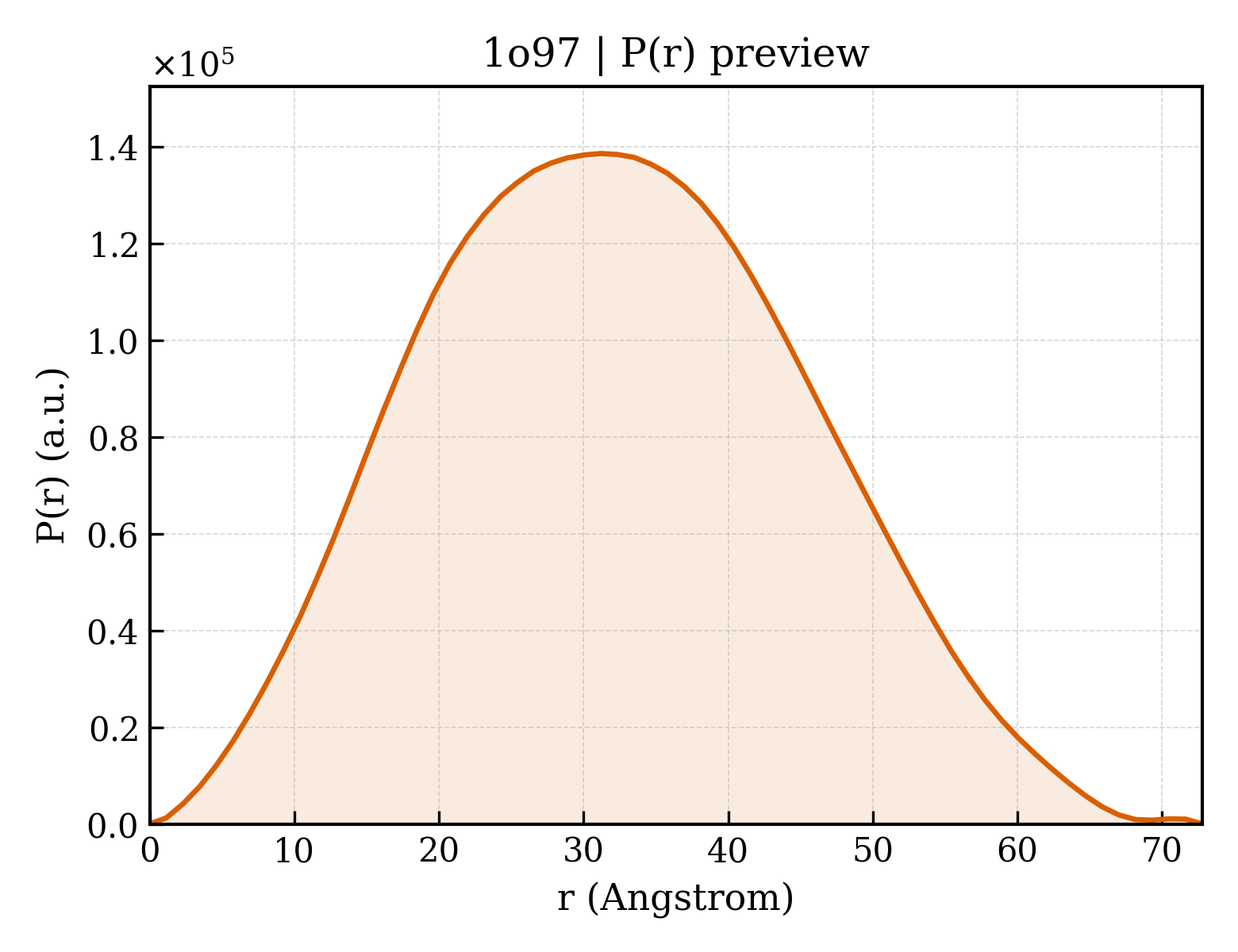

1o97__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.70 Å
Rg (electron density)	23.61 Å
Total Rg	24.43 Å
Atom count	4240
Residues	566
Excluded volume	75100 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1o97__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	ELECTRON TRANSFERRING FLAVOPROTEIN BETA-SUBUNIT
Molecular weight formula_weight	28929.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	4920

MKILVAVKQTAALEEDFEIREDGMDVDEDFMMYDLNEWDDFSLEEAMKIKESSDTDVEVVVVSVGPDRVDESLRKCLAKGADRAVRVWDDAAEGSDAIVVGRILTEVIKKEAPDMVFAGVQSSDQAYASTGISVASYLNWPHAAVVADLQYKPGDNKAVIRRELEGGMLQEVEINCPAVLTIQLGINKPRYASLRGIKQAATKPIEEVSLADIGLSANDVGAAQSMSRVRRMYIPEKGRATMIEGTISEQAAKIIQIINEFKGA

Source Source

Source organism organism	METHYLOPHILUS METHYLOTROPHUS
NCBI taxonomy ID ncbi_taxonomy_id	17
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	ELECTRON TRANSFERRING FLAVOPROTEIN ALPHA-SUBUNIT
Molecular weight formula_weight	33622.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

SKILVIAEHRRNDLRPVSLELIGAANGLKKSGEDKVVVAVIGSQADAFVPALSVNGVDELVVVKGSSIDFDPDVFEASVSALIAAHNPSVVLLPHSVDSLGYASSLASKTGYGFATDVYIVEYQGDELVATRGGYNQKVNVEVDFPGKSTVVLTIRPSVFKPLEGAGSPVVSNVDAPSVQSRSQNKDYVEVGGGNDIDITTVDFIMSIGRGIGEETNVEQFRELADEAGATLCCSRPIADAGWLPKSRQVGQSGKVVGSCKLYVAMGISGSIQHMAGMKHVPTIIAVNTDPGASIFTIAKYGIVADIFDIEEELKAQLAA

Source Source

Source organism organism	METHYLOPHILUS METHYLOTROPHUS
NCBI taxonomy ID ncbi_taxonomy_id	17
Host organism host_organism	ESCHERICHIA COLI

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE MONOPHOSPHATE
Molecular weight formula_weight	347.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	656

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1o97c_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.2 — Adenine nucleotide alpha hydrolases-like
Family Family family	c.26.2.3 — ETFP subunits

Domain ID domain_id	d1o97d1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.2 — Adenine nucleotide alpha hydrolases-like
Family Family family	c.26.2.3 — ETFP subunits

Domain ID domain_id	d1o97d2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.31 — DHS-like NAD/FAD-binding domain
Superfamily Superfamily superfamily	c.31.1 — DHS-like NAD/FAD-binding domain
Family Family family	c.31.1.2 — C-terminal domain of the electron transfer flavoprotein alpha subunit

CATH v4.4 (3 domains)

Domain ID domain_id	1o97C00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1o97D01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1o97D02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1220 — TPP-binding domain

▶

Unit-cell length a length_a	118.248 Å
Unit-cell length b length_b	118.248 Å
Unit-cell length c length_c	85.216 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 61
Space-group number int_tables_number	169
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	19.920 Å
R factor r_factor	0.2030
R_work r_work	0.2010
R_free r_free	0.2290
