SAXSdb — 1o9b

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1o9b
沉积日期 deposition_date	2002-12-12
结构标题 title	QUINATE/SHIKIMATE DEHYDROGENASE YDIB COMPLEXED WITH NADH
关键词 keywords	OXIDOREDUCTASE, QUINATE, SHIKIMATE, NAD, MONTREAL-KINGSTON BACTERIAL STRUCTURAL GENOMICS INITIATIVE, BSGI, STRUCTURAL GENOMICS; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	31.18 Å
回转半径 Rg (电子) rg_electron	31.49 Å
零角强度 I(0) i0	69832400.00
分子量 molecular_weight	63650.0 kDa
排除体积 excluded_volume	78255 Å³
包络体积 envelope_volume	97362 Å³
水化壳体积 shell_volume	28323 Å³
包络直径 envelope_diameter	113.6 Å
壳层 Rg shell_rg	35.07 Å
包络 Rg envelope_rg	31.63 Å
形状 Rg shape_rg	31.57 Å
总 Rg total_rg	31.54 Å
总原子数 total_atoms	4387
残基数 n_residues	542
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	108.2 Å
Rg (实空间) rg_real	31.65 Å
Rg 误差 (实空间) rg_real_error	1.15 Å
I(0) (实空间) i0_real	6.9830e+07
I(0) 误差 (实空间) i0_real_error	1.0870e+06
Rg (倒空间) rg_reciprocal	31.45 Å
I(0) (倒空间) i0_reciprocal	69820000.0000
解质量估计 total_estimate	0.6751
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	25.5 Å
偏度 Skewness skewness	0.606
峰度 Kurtosis kurtosis	-0.401
角度范围 angular_range	— – 0.2550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	57360000.0000
实空间数据点数 n_real_points	52
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.482; Stabil: 0.988; Sysdev: 1.000; Positv: 1.000; Valcen: 0.362; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	HYPOTHETICAL SHIKIMATE 5-DEHYDROGENASE-LIKE PROTEIN YDIB
分子量 formula_weight	31773.6 kDa
EC 编号 ec_number	1.1.1.25
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	4541

MDVTAKYELIGLMAYPIRHSLSPEMQNKALEKAGLPFTYMAFEVDNDSFPGAIEGLKALKMRGTGVSMPNKQLACEYVDELTPAAKLVGAINTIVNDDGYLRGYNTDGTGHIRAIKESGFDIKGKTMVLLGAGGASTAIGAQGAIEGLKEIKLFNRRDEFFDKALAFAQRVNENTDCVVTVTDLADQQAFAEALASADILTNGTKVGMKPLENESLVNDISLLHPGLLVTECVYNPHMTKLLQQAQQAGCKTIDGYGMLLWQGAEQFTLWTGKDFPLEYVKQVMGFGA

来源 Source

来源生物 organism	ESCHERICHIA COLI
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 non-polymer

描述 description	1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE
分子量 formula_weight	665.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	PHOSPHATE ION
分子量 formula_weight	95.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	154

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1o9ba1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1o9ba2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.5 — Shikimate dehydrogenase-like

结构域编号 domain_id	d1o9bb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1o9bb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.5 — Shikimate dehydrogenase-like

CATH v4.4 (4 domains)

结构域编号 domain_id	1o9bA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1o9bA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1o9bB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

结构域编号 domain_id	1o9bB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	157.874 Å
晶胞边长 b length_b	157.874 Å
晶胞边长 c length_c	40.011 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 64
空间群编号 int_tables_number	172
晶系 crystal_system	—

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	19.800 Å
R 因子 r_factor	0.2260
R_work r_work	0.2260
R_free r_free	0.2940

fit	/app/data/saxs_computation/o9/1o9b/1o9b.fit
pddf	/app/data/pr_computation/o9/1o9b/1o9b.pr.out
profile	/app/data/saxs_computation/o9/1o9b/1o9b.dat

QUINATE/SHIKIMATE DEHYDROGENASE YDIB COMPLEXED WITH NADH

SAXS 散射曲线 SAXS Profile

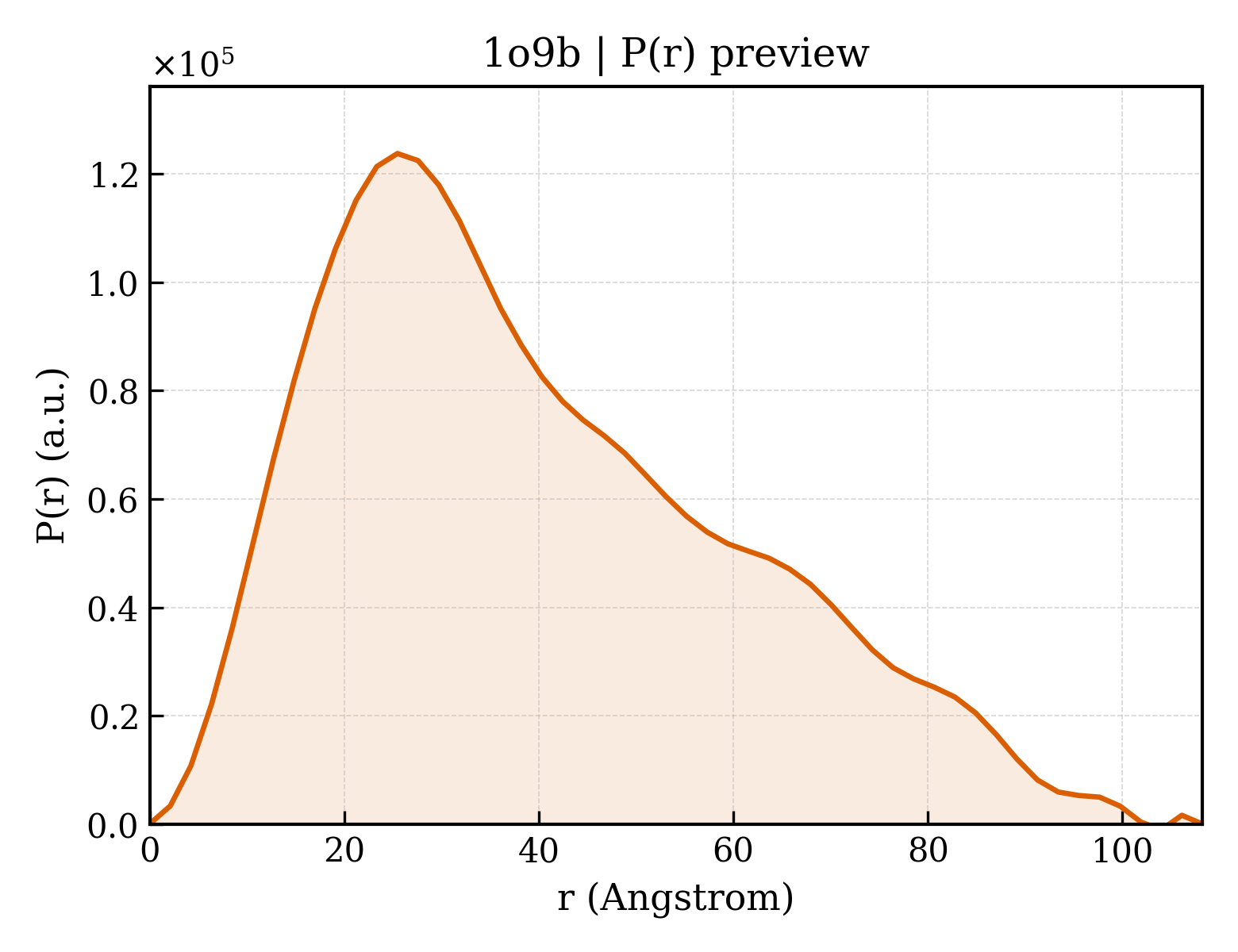

P(r) 距离分布 P(r) Distribution
