SAXSdb — 1obb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ALPHA-GLUCOSIDASE

THERMOTOGA MARITIMA

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 2 其他Polymer 2	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose × 2 NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AGLA_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–480； UniProt 1–480 Author chain B； PDBConstruct 1–480； UniProt 1–480

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1obb
Deposition date deposition_date	2003-01-29
Structure title title	alpha-glucosidase A, AglA, from Thermotoga maritima in complex with maltose and NAD+
Keywords keywords	GLYCOSIDASE, SULFINIC ACID, NAD+, MALTOSE, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1obb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

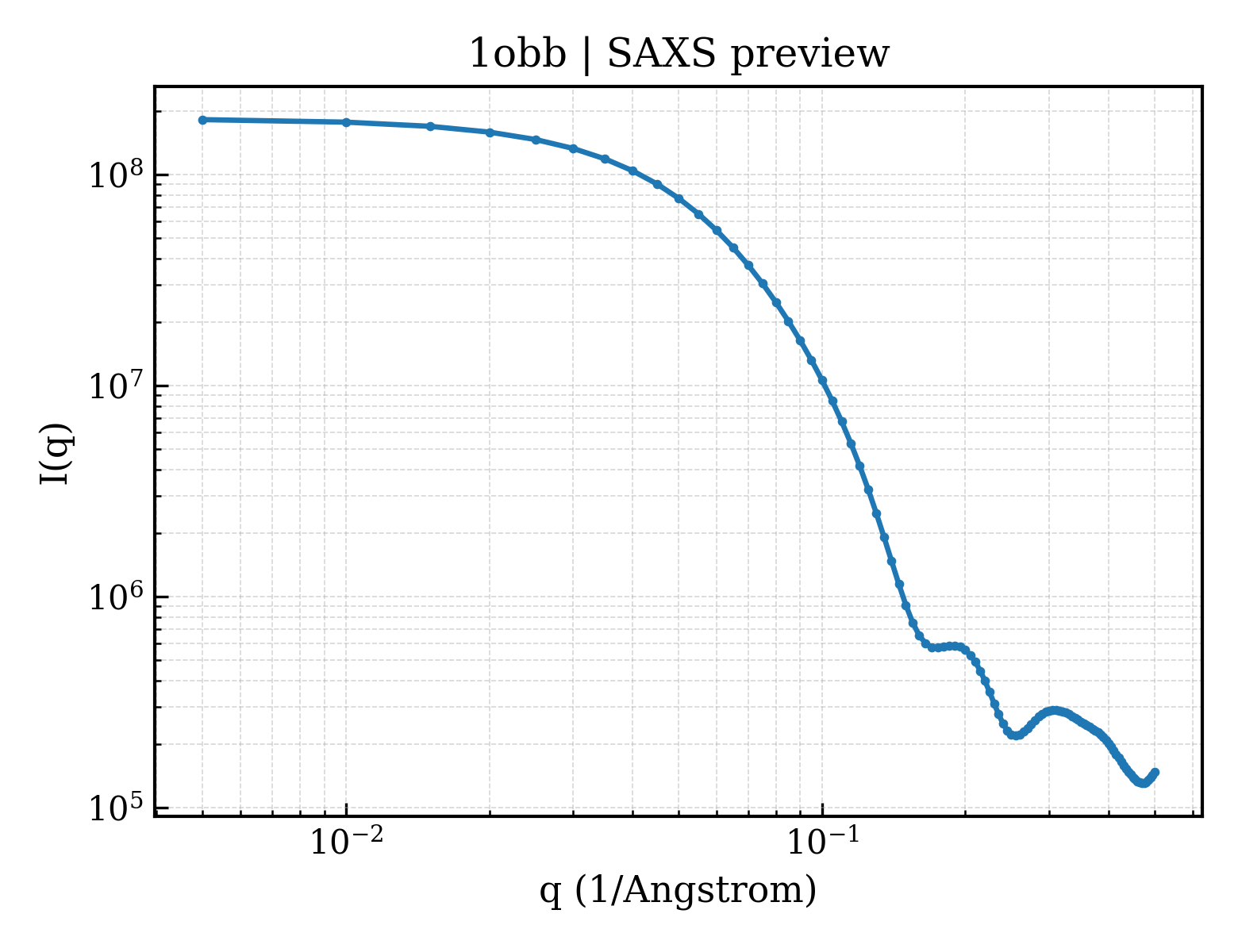

1obb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

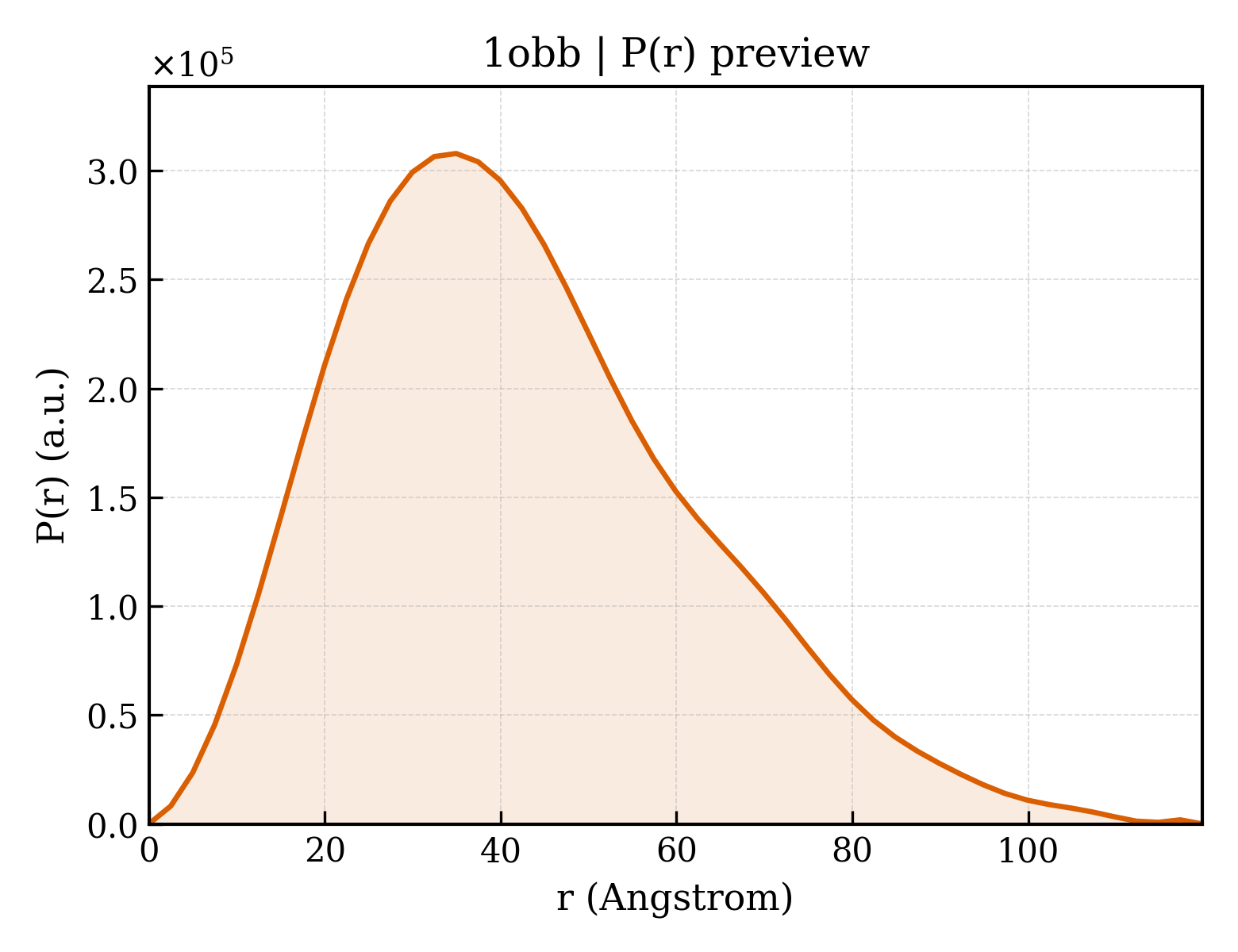

1obb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.84 Å
Rg (electron density)	32.79 Å
Total Rg	33.41 Å
Atom count	7855
Residues	954
Excluded volume	140500 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1obb__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ALPHA-GLUCOSIDASE
Molecular weight formula_weight	55154.1 kDa
EC 编号 ec_number	3.2.1.20
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8523

MPSVKIGIIGAGSAVFSLRLVSDLCKTPGLSGSTVTLMDIDEERLDAILTIAKKYVEEVGADLKFEKTMNLDDVIIDADFVINTAMVGGHTYLEKVRQIGEKYGYYRGIDAQEFNMVSDYYTFSNYNQLKYFVDIARKIEKLSPKAWYLQAANPIFEGTTLVTRTVPIKAVGFCHGHYGVMEIVEKLGLEEEKVDWQVAGVNHGIWLNRFRYNGGNAYPLLDKWIEEKSKDWKPENPFNDQLSPAAIDMYRFYGVMPIGDTVRNSSWRYHRDLETKKKWYGEPWGGADSEIGWKWYQDTLGKVTEITKKVAKFIKENPSVRLSDLGSVLGKDLSEKQFVLEVEKILDPERKSGEQHIPFIDALLNDNKARFVVNIPNKGIIHGIDDDVVVEVPALVDKNGIHPEKIEPPLPDRVVKYYLRPRIMRMEMALEAFLTGDIRIIKELLYRDPRTKSDEQVEKVIEEILALPENEEMRKHYLKR

Source Source

Source organism organism	THERMOTOGA MARITIMA
NCBI taxonomy ID ncbi_taxonomy_id	243274
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 branched

Description description	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose
Molecular weight formula_weight	342.3 kDa
Source method src_method	man
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
Molecular weight formula_weight	663.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	646

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1obba1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.5 — LDH N-terminal domain-like

Domain ID domain_id	d1obba2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.2 — AglA-like glucosidase

Domain ID domain_id	d1obbb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.5 — LDH N-terminal domain-like

Domain ID domain_id	d1obbb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.162 — LDH C-terminal domain-like
Superfamily Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
Family Family family	d.162.1.2 — AglA-like glucosidase

CATH v4.4 (2 domains)

Domain ID domain_id	1obbA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1820 — LDH C-terminal domain-like
Homologous superfamily homologous superfamily	10 — AglA-like glucosidase

Domain ID domain_id	1obbB00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1820 — LDH C-terminal domain-like
Homologous superfamily homologous superfamily	10 — AglA-like glucosidase

▶

Unit-cell length a length_a	75.000 Å
Unit-cell length b length_b	85.700 Å
Unit-cell length c length_c	83.600 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	106.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	17.650 Å
R factor r_factor	0.1990
R_work r_work	0.1990
R_free r_free	0.2350
