SAXSdb — 1od6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PHOSPHOPANTETHEINE ADENYLYLTRANSFERASE

THERMUS THERMOPHILUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	4'-PHOSPHOPANTETHEINE × 6 SULFATE ION × 18 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	COAD_THET8
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–160； UniProt 1–160

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1od6
Deposition date deposition_date	2003-02-13
Structure title title	The Crystal Structure of Phosphopantetheine adenylyltransferase from Thermus Thermophilus in complex with 4'-phosphopantetheine
Keywords keywords	;COENZYME A BIOSYNTHESIS, TRANSFERASE, NUCLEOTIDYLTRANSFERASE, RIKEN STRUCTURAL GENOMICS/PROTEOMICS INITIATIVE, RSGI, STRUCTURAL GENOMICS ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1od6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1od6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

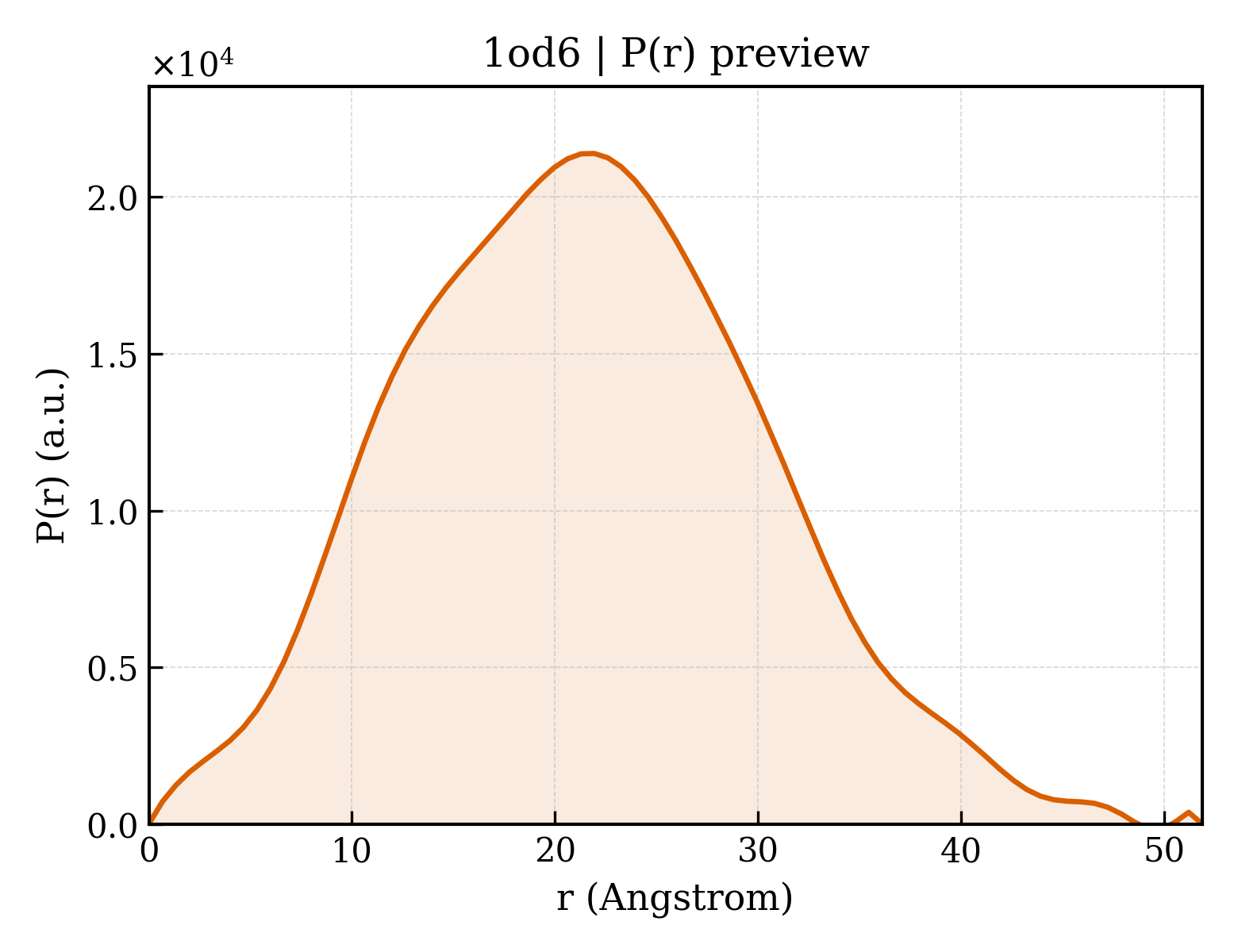

1od6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.34 Å
Rg (electron density)	28.10 Å
Total Rg	28.95 Å
Atom count	7476
Residues	930
Excluded volume	133890 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1od6__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PHOSPHOPANTETHEINE ADENYLYLTRANSFERASE
Molecular weight formula_weight	17730.5 kDa
EC 编号 ec_number	2.7.7.3
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1428

MHVVYPGSFDPLTNGHLDVIQRASRLFEKVTVAVLENPSKRGQYLFSAEERLAIIREATAHLANVEAATFSGLLVDFVRRVGAQAIVKGLRAVSDYEYELQMAHLNRQLYPGLETLFILAATRYSFVSSTMVKEIARYGGDVSKLVPPATLRALKAKLGQ

Source Source

Source organism organism	THERMUS THERMOPHILUS
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	4'-PHOSPHOPANTETHEINE
Molecular weight formula_weight	358.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	162

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1od6a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.3 — Adenylyltransferase

CATH v4.4 (1 domains)

Domain ID domain_id	1od6A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

▶

Unit-cell length a length_a	115.715 Å
Unit-cell length b length_b	115.715 Å
Unit-cell length c length_c	115.661 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	37.800 Å
R factor r_factor	0.1960
R_work r_work	0.1960
R_free r_free	0.2010
