SAXSdb — 1odv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PHOTOACTIVE YELLOW PROTEIN

ECTOTHIORHODOSPIRA HALOPHILA

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	;4'-HYDROXYCINNAMIC ACID ; × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	;4'-HYDROXYCINNAMIC ACID ; × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PYP_ECTHA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–100； UniProt 26–125 Author chain B； PDBConstruct 1–100； UniProt 26–125

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1odv
Deposition date deposition_date	2003-03-14
Structure title title	Photoactive yellow protein 1-25 deletion mutant
Keywords keywords	SIGNALLING, PHOTOACTIVITY, P-COUMARIC ACID; SIGNALLING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1odv__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1odv__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

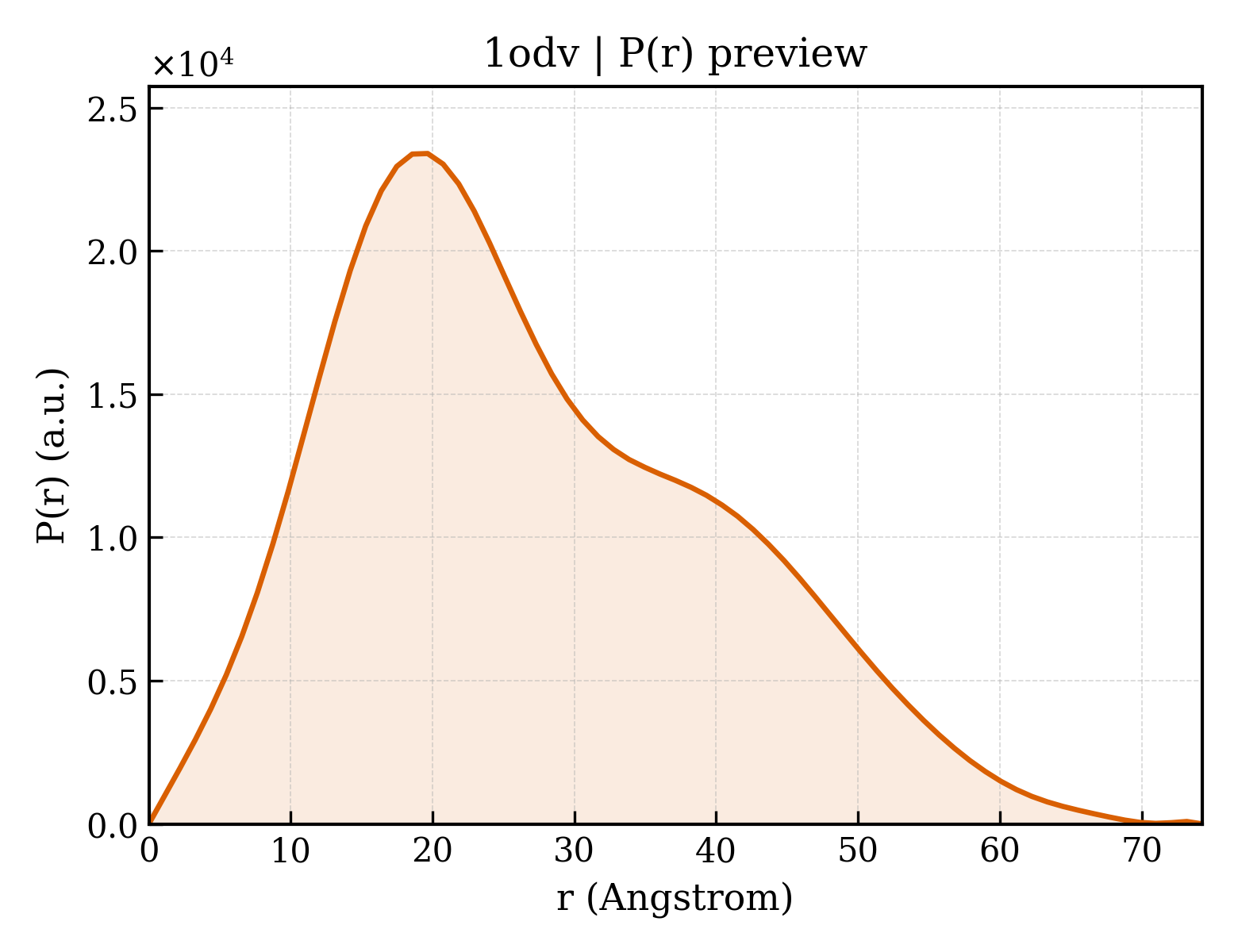

1odv__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	13.79 Å
Rg (electron density)	12.26 Å
Total Rg	13.75 Å
Atom count	799
Residues	100
Excluded volume	14262 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1odv__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1odv__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	PHOTOACTIVE YELLOW PROTEIN
Molecular weight formula_weight	11181.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1985

LAFGAIQLDGDGNILQYNAAEGDITGRDPKQVIGKNFFKDVAPCTDSPEFYGKFKEGVASGNLNTMFEYTFDYQMTPTKVKVHMKKALSGDSYWVFVKRV

Source Source

Source organism organism	ECTOTHIORHODOSPIRA HALOPHILA
NCBI taxonomy ID ncbi_taxonomy_id	1053
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	;4'-HYDROXYCINNAMIC ACID ;
Molecular weight formula_weight	164.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	364

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1odva_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.110 — Profilin-like
Superfamily Superfamily superfamily	d.110.3 — PYP-like sensor domain (PAS domain)
Family Family family	d.110.3.1 — PYP-like

Domain ID domain_id	d1odvb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.110 — Profilin-like
Superfamily Superfamily superfamily	d.110.3 — PYP-like sensor domain (PAS domain)
Family Family family	d.110.3.1 — PYP-like

CATH v4.4 (2 domains)

Domain ID domain_id	1odvA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	20 — PAS domain

Domain ID domain_id	1odvB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	20 — PAS domain

▶

Unit-cell length a length_a	82.566 Å
Unit-cell length b length_b	82.566 Å
Unit-cell length c length_c	63.453 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	1.140 Å
Low-resolution limit resolution_low	17.000 Å
R factor r_factor	0.1473
R_work r_work	—
R_free r_free	0.1774
