1ofi

Asymmetric complex between HslV and I-domain deleted HslU (H. influenzae)

Method: X-RAY DIFFRACTION D_max: 202.4 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1ofi
沉积日期 deposition_date	2003-04-14
结构标题 title	Asymmetric complex between HslV and I-domain deleted HslU (H. influenzae)
关键词 keywords	CHAPERONE, HYDROLASE, ATP-BINDING; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

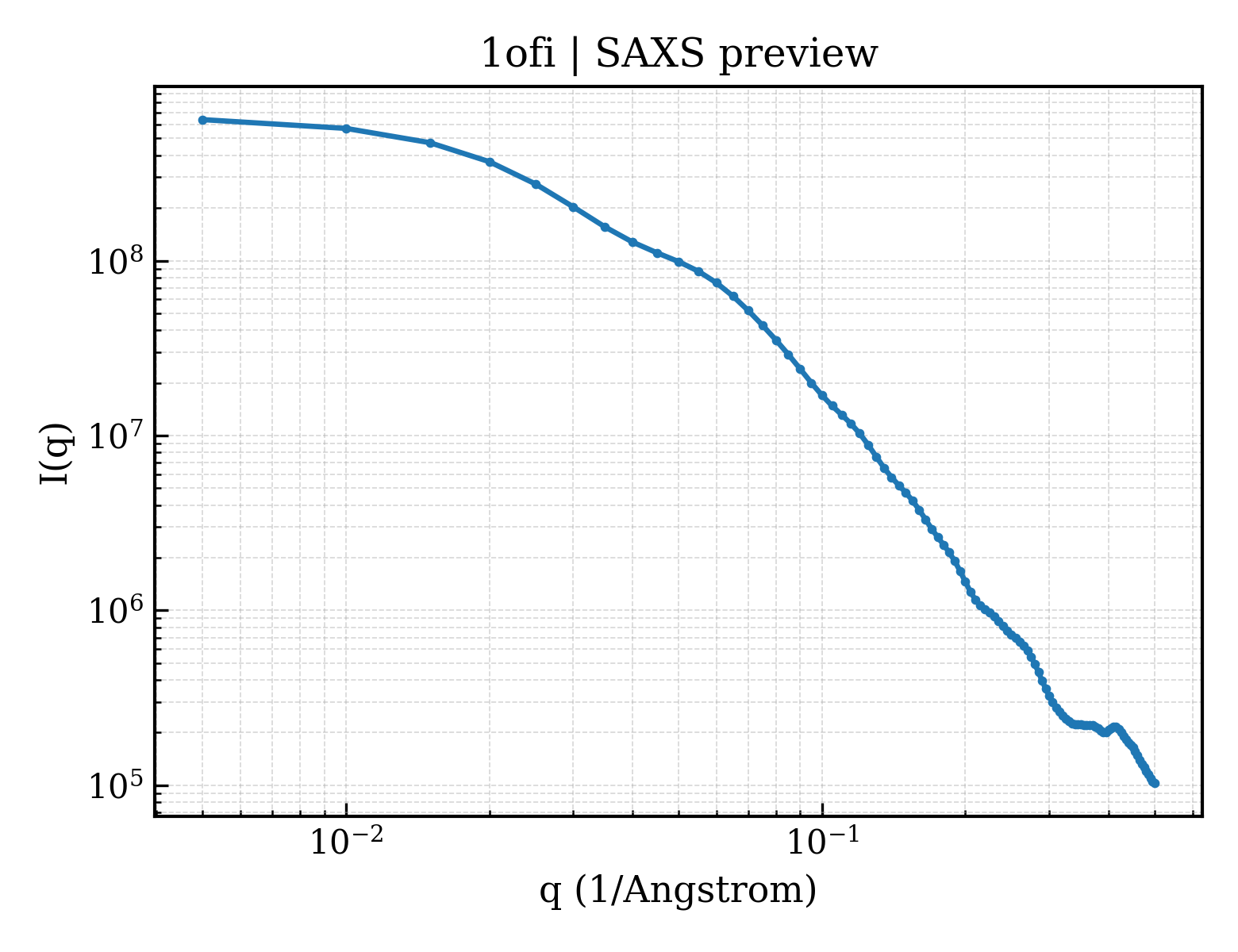

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	68.01 Å
回转半径 Rg (电子) rg_electron	68.12 Å
零角强度 I(0) i0	665305000.00
分子量 molecular_weight	214270.0 kDa
排除体积 excluded_volume	267800 Å³
包络体积 envelope_volume	491240 Å³
水化壳体积 shell_volume	62943 Å³
包络直径 envelope_diameter	217.7 Å
壳层 Rg shell_rg	64.46 Å
包络 Rg envelope_rg	64.70 Å
形状 Rg shape_rg	68.11 Å
总 Rg total_rg	68.06 Å
总原子数 total_atoms	15029
残基数 n_residues	1934
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

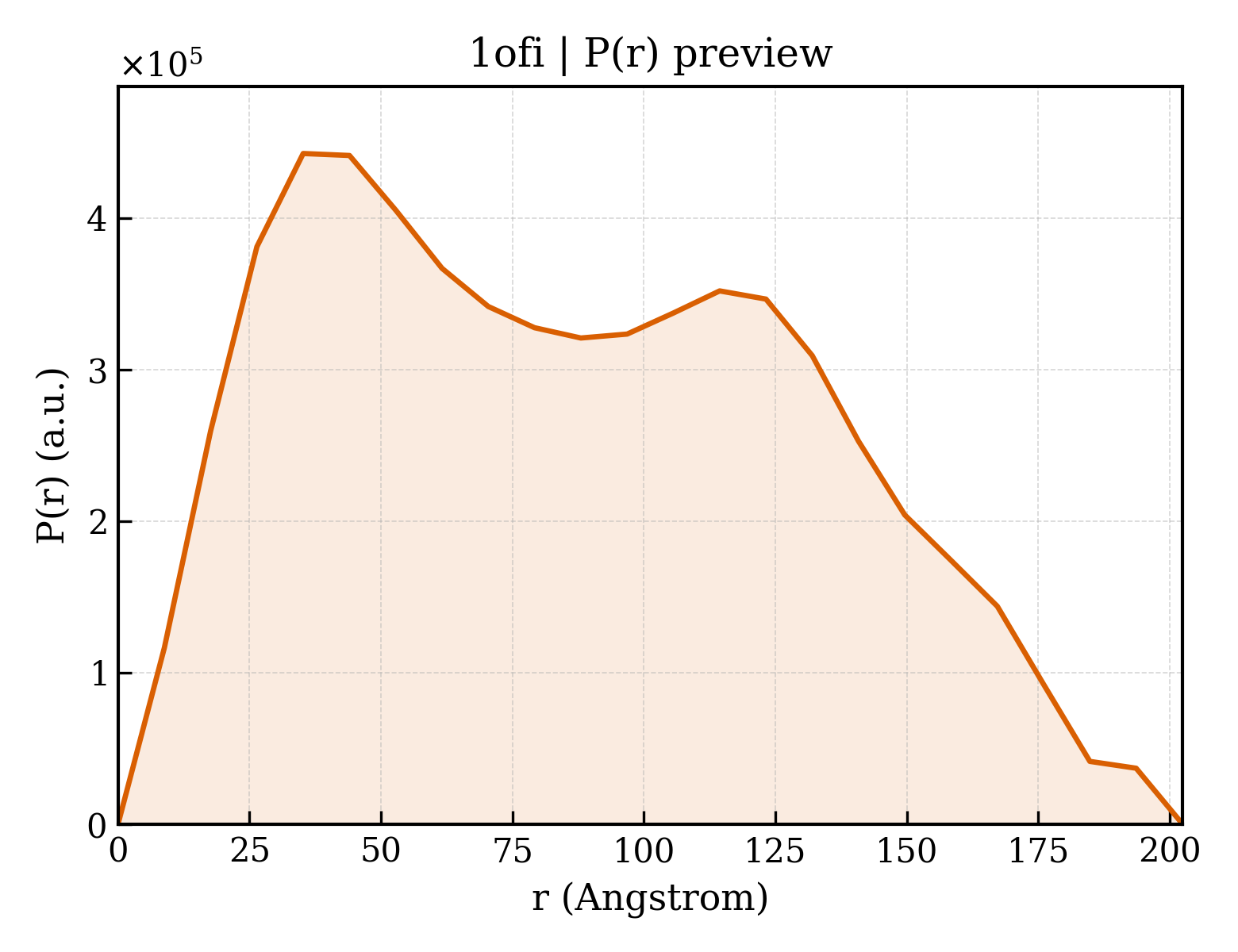

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	202.4 Å
Rg (实空间) rg_real	68.32 Å
Rg 误差 (实空间) rg_real_error	2.19 Å
I(0) (实空间) i0_real	6.6530e+08
I(0) 误差 (实空间) i0_real_error	1.2340e+07
Rg (倒空间) rg_reciprocal	66.68 Å
I(0) (倒空间) i0_reciprocal	663200000.0000
解质量估计 total_estimate	0.7662
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	35.2 Å
偏度 Skewness skewness	0.264
峰度 Kurtosis kurtosis	-0.939
角度范围 angular_range	— – 0.1150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	17290000.0000
实空间数据点数 n_real_points	24
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.777; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.629; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	ATP-DEPENDENT HSL PROTEASE ATP-BINDING SUBUNIT HSLU
分子量 formula_weight	34126.0 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	15050

MSEMTPREIVSELDQHIIGQADAKRAVAIALRNRWRRMQLQEPLRHEVTPKNILMIGPTGVGKTEIARRLAKLANAPFIKVEATKFTEVGYVGKEVDSIIRDLTDSAGGAIDAVEQNGIVFIDEIDKICKKGEYSGADVSREGVQRDLLPLVEGSTVSTKHGMVKTDHILFIASGAFQVARPSDLIPELQGRLPIRVELTALSAADFERILTEPHASLTEQYKALMATEGVNIAFTTDAVKKIAEAAFRVNEKTENIGARRLHTVMERLMDKISFSASDMNGQTVNIDAAYVADALGEVVENEDLSRFIL

来源 Source

来源生物 organism	HAEMOPHILUS INFLUENZAE
NCBI 分类编号 ncbi_taxonomy_id	71421
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 polymer

描述 description	ATP-DEPENDENT PROTEASE HSLV
分子量 formula_weight	18903.5 kDa
EC 编号 ec_number	3.4.25.-
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,H,I,L,M,N

TTIVSVRRNGQVVVGGDGQVSLGNTVMKGNARKVRRLYNGKVLAGFAGGTADAFTLFELFERKLEMHQGHLLKSAVELAKDWRTDRALRKLEAMLIVADEKESLIITGIGDVVQPEEDQILAIGSGGNYALSAARALVENTELSAHEIVEKSLRIAGDICVFTNTNFTIEELPN

来源 Source

来源生物 organism	HAEMOPHILUS INFLUENZAE
NCBI 分类编号 ncbi_taxonomy_id	71421
宿主生物 host_organism	ESCHERICHIA COLI

Entity 3 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 5 non-polymer

描述 description	PHOSPHATE ION
分子量 formula_weight	95.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 6 non-polymer

描述 description	4-IODO-3-NITROPHENYL ACETYL-LEUCINYL-LEUCINYL-LEUCINYL-VINYLSULFONE
分子量 formula_weight	722.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 7 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	21

▼

6. 折叠分类 (SCOP + CATH) 21 domains

SCOP 2.08 (9 domains)

结构域编号 domain_id	d1ofia_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.20 — Extended AAA-ATPase domain

结构域编号 domain_id	d1ofib_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.20 — Extended AAA-ATPase domain

结构域编号 domain_id	d1ofic_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.20 — Extended AAA-ATPase domain

结构域编号 domain_id	d1ofig_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1ofih_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1ofii_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1ofil_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1ofim_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1ofin_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

CATH v4.4 (12 domains)

结构域编号 domain_id	1ofiA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

结构域编号 domain_id	1ofiA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	8 — Helicase, Ruva Protein; domain 3
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1ofiB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

结构域编号 domain_id	1ofiB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	8 — Helicase, Ruva Protein; domain 3
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1ofiC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

结构域编号 domain_id	1ofiC02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	8 — Helicase, Ruva Protein; domain 3
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1ofiG00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1ofiH00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1ofiI00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1ofiL00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1ofiM00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1ofiN00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	190.177 Å
晶胞边长 b length_b	190.177 Å
晶胞边长 c length_c	114.511 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	36

空间群 space_group	P 6
空间群编号 int_tables_number	168
晶系 crystal_system	—

分辨率 resolution	3.200 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	0.2320
R_work r_work	0.2320
R_free r_free	0.3270

fit	/app/data/saxs_computation/of/1ofi/1ofi.fit
pddf	/app/data/pr_computation/of/1ofi/1ofi.pr.out
profile	/app/data/saxs_computation/of/1ofi/1ofi.dat
